2005 Honda CR250R refresh, finished pics

WODirtCycles
Edited Date/Time 6/18/2019 9:07am
In december 2017 I make the decision to make a engine top-end work to my '05 CR250R for the next new year. But surprise, after take all the top-end out I found that the engine needs a complete rebuild and here is the history in pictures...
1
|
ledger
Profile picture for user ledger
Posts
3669
Joined
1/17/2013
Location
TN US
ledger 5/5/2018 4:07pm
5/5/2018 4:07pm
Very nice bike, I noticed you have a Core decal in the background, there brake line's are high quality.
macz400
Profile picture for user macz400
Posts
1388
Joined
8/20/2013
Location
League City, TX US
macz400 5/5/2018 4:27pm
5/5/2018 4:27pm
If your interested in a complete seat let me know
WODirtCycles 8/28/2018 10:02am
8/28/2018 10:02am
ledger wrote:
Very nice bike, I noticed you have a Core decal in the background, there brake line's are high quality.
Works well but the rubber cover in the clamp area isn't the same as stock and a day riding in a mx track that piece break and the brake line come lose. I had to do a work with straps to complete the race day.Angry
WODirtCycles 8/28/2018 10:07am
8/28/2018 10:07am
A Pro-x rod kit installed in the same crankshaft.

The Shop

See All »
WODirtCycles 8/28/2018 10:11am
8/28/2018 10:11am
.
Here is the most hard work of the game
1
WODirtCycles 8/28/2018 10:13am
8/28/2018 10:13am
Plated engine bolts
WODirtCycles 8/28/2018 10:15am
8/28/2018 10:15am
Here is the new parts for the engine cases.
WODirtCycles 8/28/2018 10:17am
8/28/2018 10:17am
All parts was cleaned in a Safety-Kleen parts washer.
WODirtCycles 8/28/2018 10:23am
8/28/2018 10:23am
Closed and ready to start with the right side section.
WODirtCycles 8/28/2018 10:25am
8/28/2018 10:25am
Here is the new parts for the right side.
WODirtCycles 8/28/2018 10:29am
8/28/2018 10:29am
The new Hinson clutch basket installed.

WODirtCycles 8/28/2018 10:37am
8/28/2018 10:37am Edited Date/Time 8/28/2018 10:38am
macz400 wrote:
If your interested in a complete seat let me know [img]https://p.vitalmx.com/photos/forums/2018/05/05/259442/s1200_IMG_8925.jpg[/img]
If your interested in a complete seat let me know
Until now, I don't know which combination I will made for the body. Out of curiosity, how much?$$
WODirtCycles 8/28/2018 2:29pm
8/28/2018 2:29pm

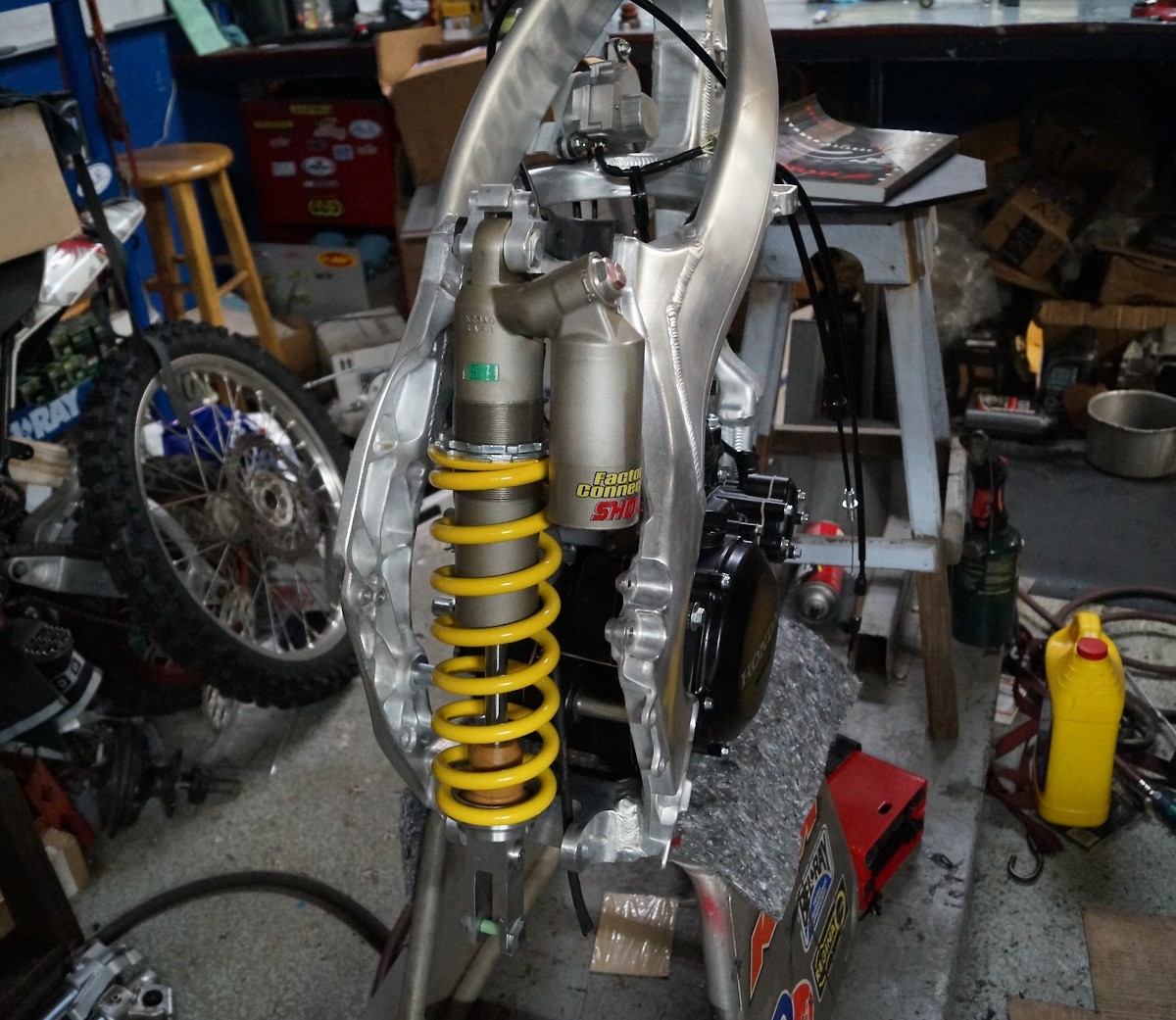

After cleaning the frame I take the decision of assembly the engine installed to prevent scratches and dings in the motor.
bbtr_736
Profile picture for user bbtr_736
Posts
56
Joined
8/9/2018
Location
AU
bbtr_736 8/28/2018 9:13pm
8/28/2018 9:13pm
looks fantastic. What did you do to clean up the Frame.
WODirtCycles 8/29/2018 5:39am
8/29/2018 5:39am
bbtr_736 wrote:
looks fantastic. What did you do to clean up the Frame.
I used acid air conditioner cleaner first, then hand pads and then Brillo pads in the foot pegs area.
1
WODirtCycles 8/29/2018 5:54am
8/29/2018 5:54am
Nothing better than a new Hinson basket! My home made clutch locking tool made me the job very easy. KG factory clutch plates looks like OEM ones and with Barnett steel plates is my favorite combo.



WODirtCycles 8/29/2018 5:58am
8/29/2018 5:58am
Here is the engine top end parts ready to install.

Pit Row

See All »
WODirtCycles 8/29/2018 6:08am
8/29/2018 6:08am
Before installing the piston I made this holes on it to cooldown the exhaust port bridge. The piston is a Pro-X "A".

1
WODirtCycles 8/29/2018 7:17am
8/29/2018 7:17am

Electrical system, engine top end and shift pedal installed.
1
WODirtCycles 8/29/2018 7:43am
8/29/2018 7:43am Edited Date/Time 8/29/2018 12:22pm
Here is the RC ex-valve system, LH cover and the big switch, the carburetor, I change it to a Keihin PWK38 short bell from a '01YZ250.

1
FarleyMX25
Profile picture for user FarleyMX25
Posts
224
Joined
10/2/2017
Location
Harrison, TN US
FarleyMX25 8/29/2018 4:07pm
8/29/2018 4:07pm
What kind of paint did you use for the engine?
1
WODirtCycles 8/29/2018 5:33pm
8/29/2018 5:33pm Edited Date/Time 7/17/2021 1:29pm
FarleyMX25 wrote:
What kind of paint did you use for the engine?
Powder coating satin black with silver letters for the covers and the rest with Wanda PU marine paint satin black.
WODirtCycles 8/31/2018 7:03pm
8/31/2018 7:03pm

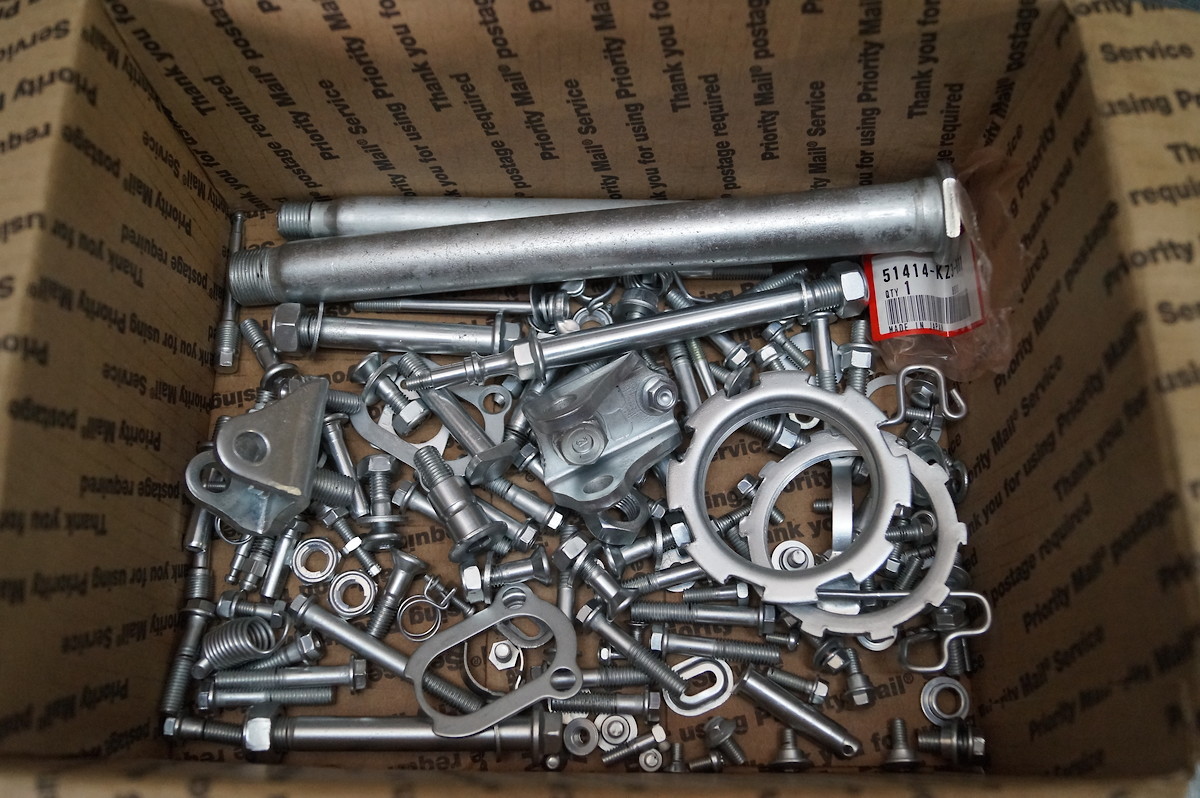

Here is the chassis plated bolts.
WODirtCycles 8/31/2018 7:23pm
8/31/2018 7:23pm

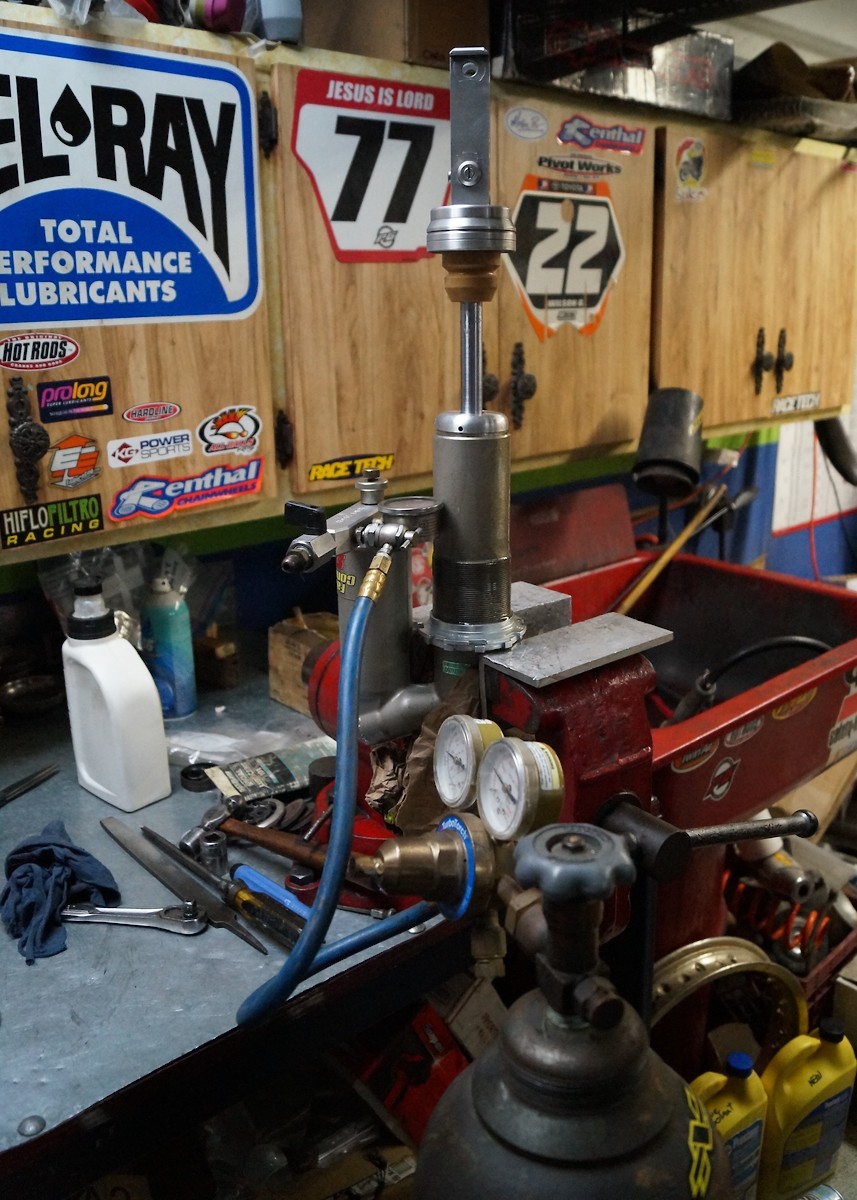

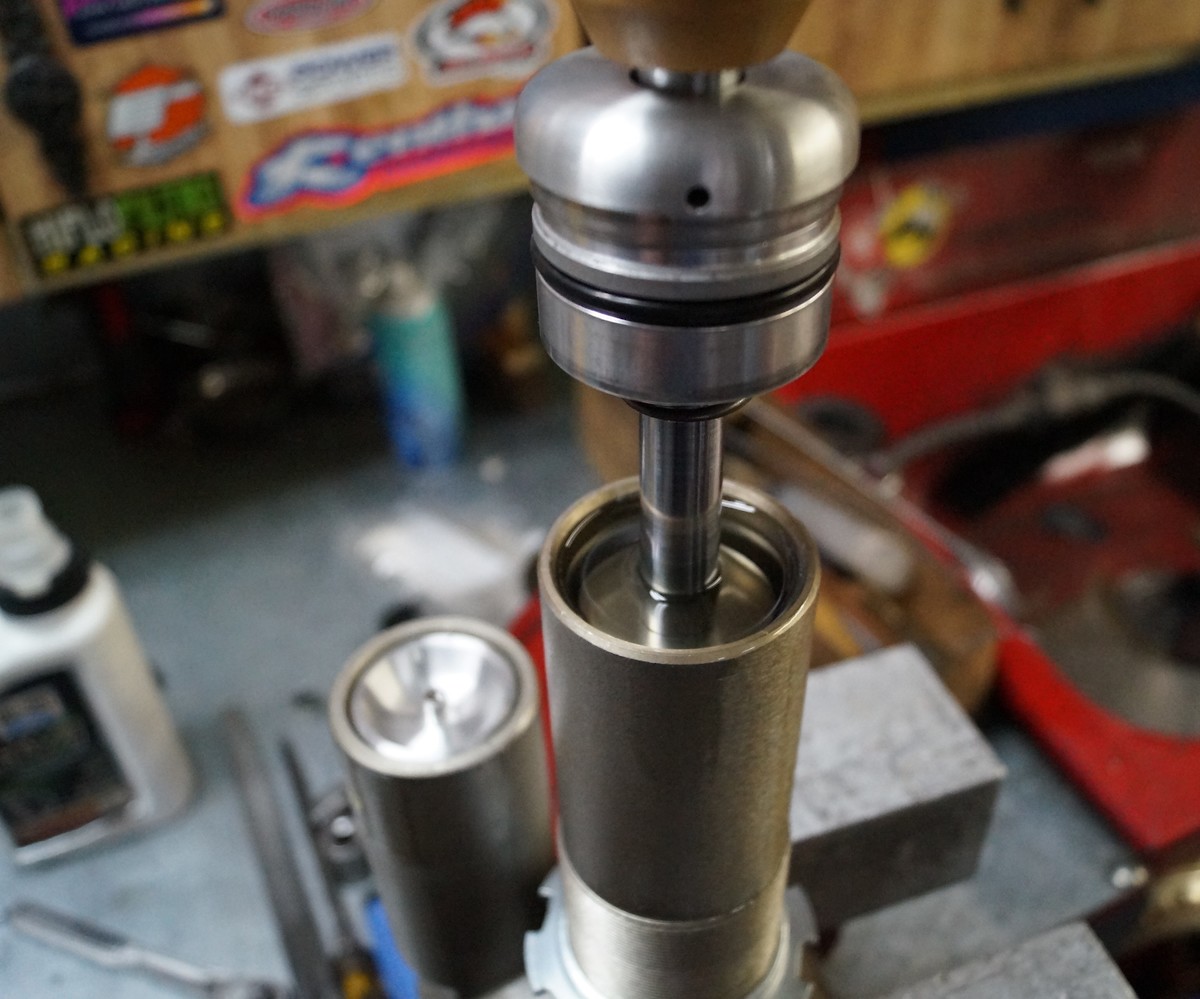

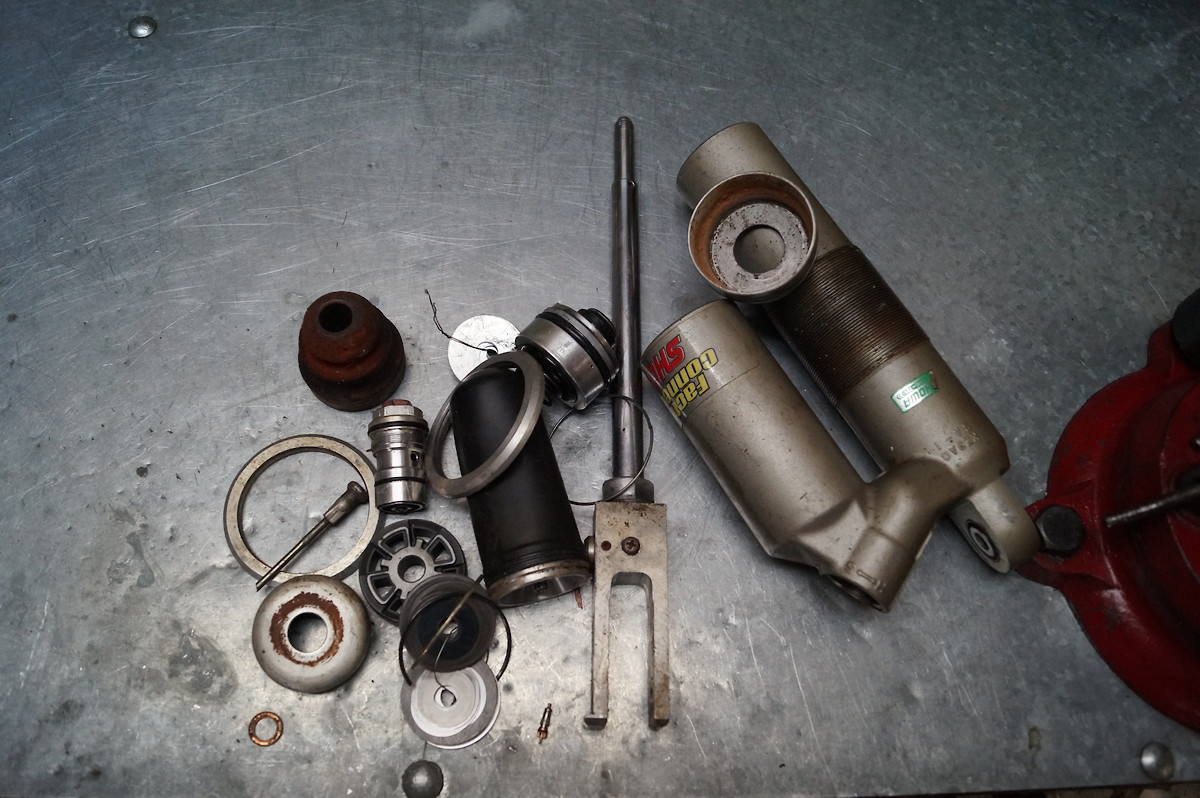

I was working with the rear suspension today. To see if is true that it's "Factory Connection".

1
WODirtCycles 8/31/2018 7:26pm
8/31/2018 7:26pm

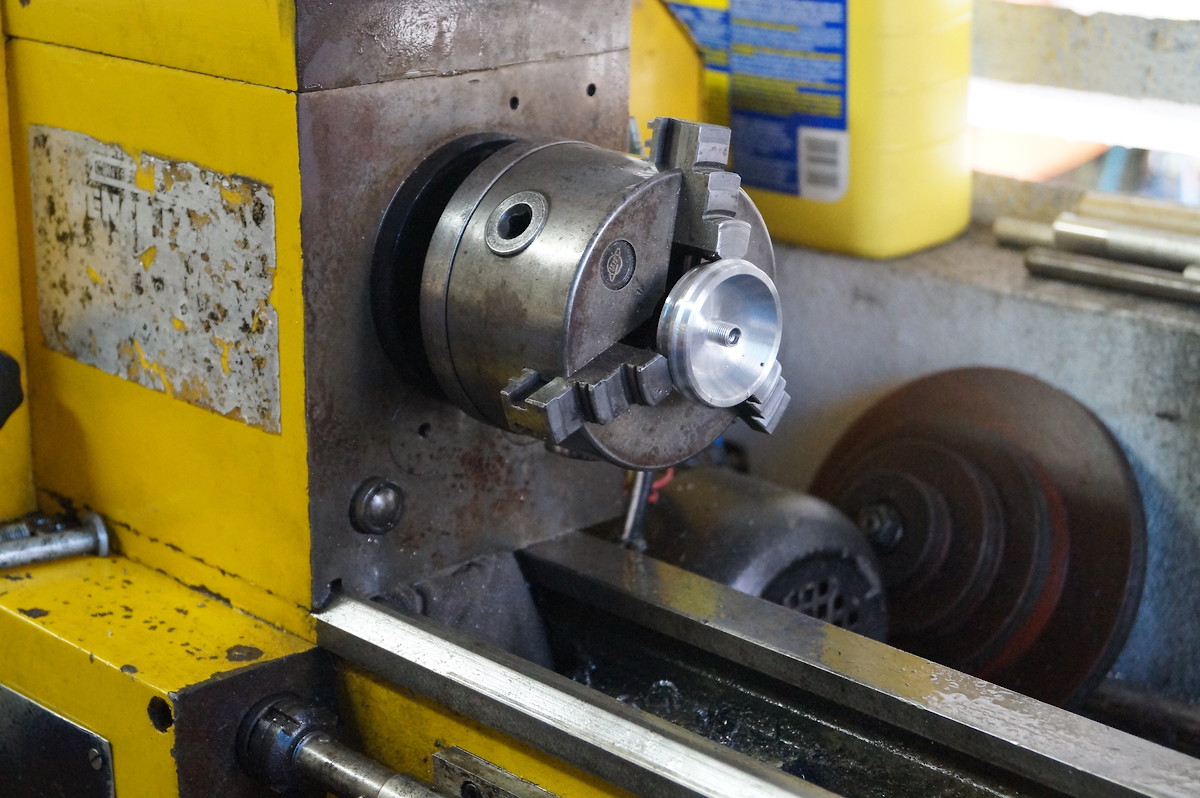

Some aluminum parts was cleaned in the lathe.
