Triumph Motorcycles

Specifications

Product

Triumph TF 250-X Bike

Model Year

2024

Engine Size

250cc

Engine Type

Four-Stroke

Engine Displacement

249.95cc

Bore x Stroke

78 mm x 52.3 mm

Compression Ratio

14.4:1

Fuel System

Dellorto EFI (Electronic Fuel Injection), 44 mm throttle body

Ignition

Athena EMS

Transmission

5-speed; wet multiplate spring Exedy Belleville HD clutch, Brembo hydraulics

Final Drive

Chain, 13/48

Suspension Front

KYB USD AOS 48 mm (1.88") coil spring fork, compression/rebound adjustment, 310 mm (12.2") travel

Suspension Rear

KYB coil piggyback shock, hollow mount, compression adjustment (high and low speed), rebound adjustment, 305 mm (12.0") travel

Brakes Front

Brembo floating caliper, twin 24 mm (0.94") piston, 260 mm (10.23") Galfer disc

Brakes Rear

Brembo floating caliper, single 26 mm (1.02") piston, 220 mm (8.66") Galfer disc

Tires Front

Pirelli Scorpion MX32 mid-soft, 80/100-21" (1.6" wheel)

Tires Rear

Pirelli Scorpion MX32 mid-soft, 100/90-19" (1.85" wheel)

Overall Length

Overall Width

836 mm (32.91")

Overall Height

1270 mm (50")

Seat Height

960 mm (37.8")

Wheelbase

1492 mm (58.74")

Ground Clearance

333 mm (13.1")

Rake/Trail

27.4° / 116 mm (4.57")

Fuel Capacity

7 liters (1.85 gallons)

Curb Weight

103.87 kg (229 lbs) with fuel

Features

• Frame has internal machining details for mass optimization, stiffness tuning, and race-optimized longitudinal, lateral, and torsional stiffness
• Performance-tuned resonator for superb mid-range performance
• Hour meter with multifunction switch cubes
• Rider-selectable launch control
• Rider-selectable traction control
• Rider-selectable engine maps
• Holeshot Assist enables clutch-less, throttle-pinned gear changes through second to fifth gear

Miscellaneous

• Airbox: vented, with tool-free cover

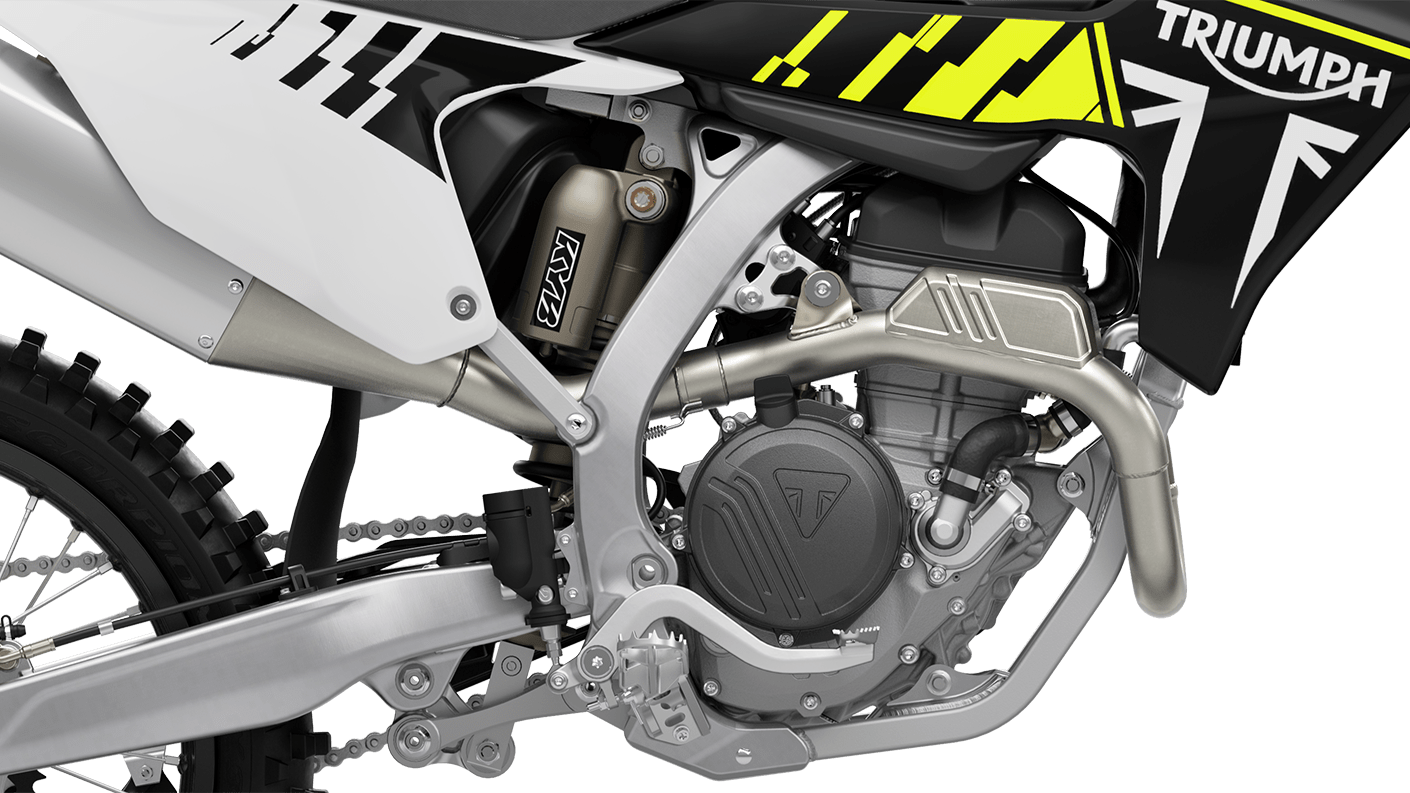

• Engine: single cylinder, 4-stroke, DOHC (Dual Overhead Cams), titanium valves, forged aluminum piston, diamond-like carbon low-friction coatings, lightweight magnesium covers
• Exhaust: stainless steel with single hydro-formed and extruded silencer
• Frame: satin-brushed hand-welded aluminum, central spine with twin cradle; hydro-formed aluminum swingarm
• Grips: ODI Half-Waffle, lock-on
• Handlebars: ProTaper ACF, carbon core
• Hubs: machined aluminum
• Rims: D.I.D DirtStar 7000-series aluminum
• Triple clamps: 7075-T6 forged and machined aluminum
• Warranty: 30 day, unlimited mileage

Price

$9,995.00
