Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/9/2020 3:03 PM

Well actually it’s going to be a race bike, but the question about the carburetor was which of the works carburetor should I run. From the dyno readings and talking to the guys who R&D the engine the Honda didn’t like running a 38mm carburetor, it ... more »

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/9/2020 2:52 PM

They did have some variation but they got as high as 42-43 on the dyno, but what made it good was the powerband had some pretty good low to mid range for a 125. There Is a real good article in MXA on the Factory Connection bikes which ran the same engine. ... more »

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/8/2020 6:09 PM

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/7/2020 5:45 PM

Here’s a mock up of my 1994 HRC CR125 factory engine, sand cast cases, real HRC magnesium ignition cover and power valve covers.

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/5/2020 10:29 AM

This is going to be a rider!!!

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/4/2020 11:56 PM

If you guys look closely at the 2003-2004 works HRC parts, look at the Hinson pressure plate, it’s says Works on it. Just some of the little thing I noticed !

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/4/2020 1:19 PM

Once I get the cases back from the welder, I can start my engine build!

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/4/2020 1:18 PM

Back to the 125 a bit updated picture

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/4/2020 1:17 PM

Sorry I been collecting parts for years, so at this point I don’t want to sell anything, I finally am ready to start building bikes

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/2/2020 11:23 PM

Oh yea forgot about the HRC works crank for the RC250

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/2/2020 11:22 PM

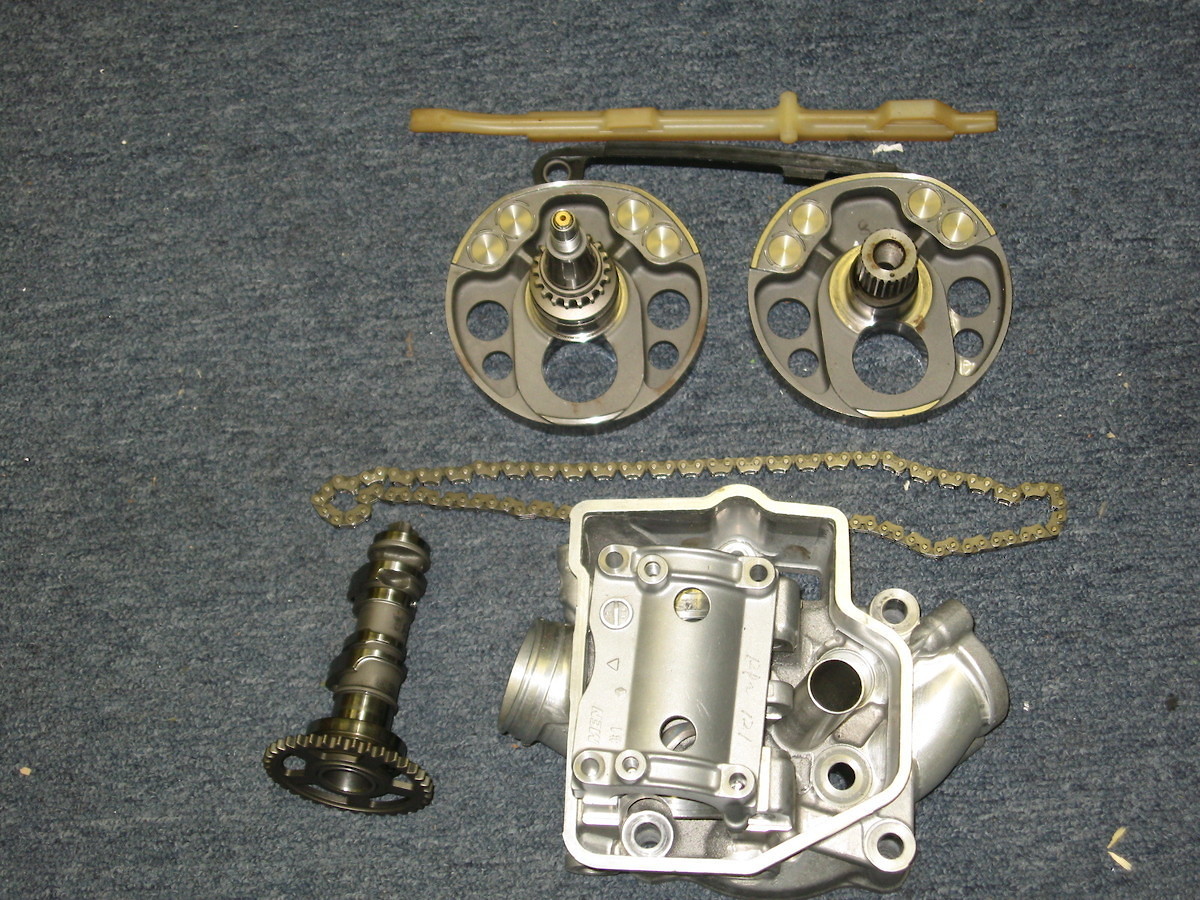

So here’s some HRC 2003-2004 engine kit.

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/2/2020 4:23 PM

Here’s a bit if a mock up, not the engine that will be in the final build, also have a different frame. But It’s just a visual mock up

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/1/2020 10:00 PM

Well since it’s a long rod and a spacer plate goes under neith the cylinder, I could not really tell you, But I can’t give you too much!

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/1/2020 8:52 PM

Yes it was developed by AHM with some help from Japan, one of my closest friend is one of the guys that did the majority of R&D work. So as far as the reed valve area goes, From my understand the important part is the shape of that area not flow ... more »

Added reply in a thread 2015/2016 HRC/Team Honda CRF450R 7/1/2020 6:11 PM

Looking at the sprocket you got, the factory one looks Like they used a tumbler on it to maybe debut it or smooth it out before anodizing

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/1/2020 12:47 PM

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/1/2020 12:45 PM

Well on the case there is a ton of epoxy work done to them, they actually made molds so they could replicate the shape in the reef valve area! The cylinder has made to use orings on the head, also ported and added epoxy at the bottom of the ports to ... more »

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 7/1/2020 12:01 PM

The cases have some differences nothing really really major, the cylinder has some differences also but more major.

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 6/30/2020 9:25 PM

Works 49mm Showa’s

Added reply in a thread 2002 Works Honda HRC RC125 with a twist 6/30/2020 6:23 PM

Here’s an old RC, I’m trying to find parts for , just putting it up fir shits and giggles
