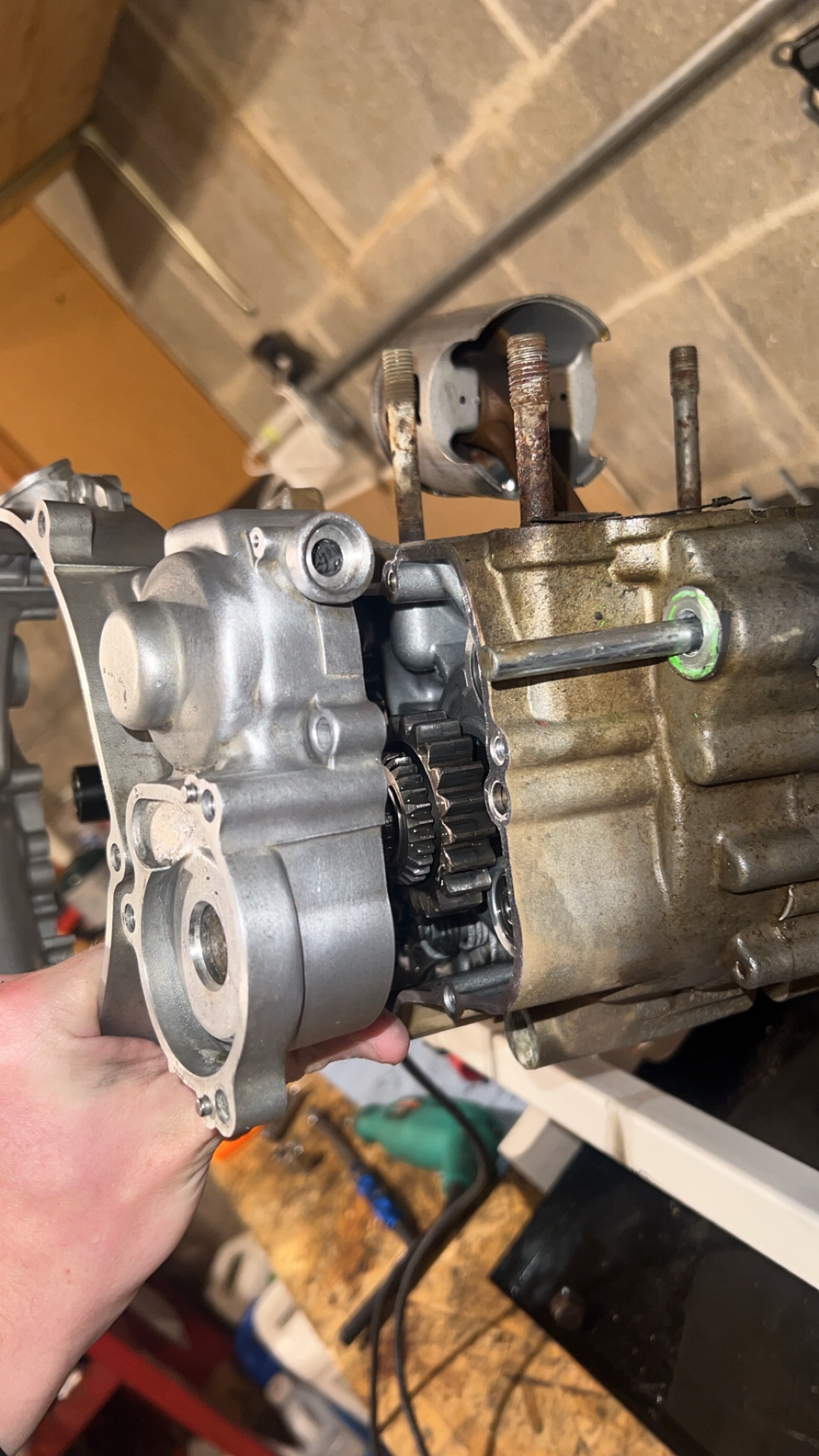

Currently running through this 2000 KX250 project bike and decided to pull the studs out of the case with how corroded/rusted the studs and dowels were. However my stupid self didnt realize to check RM or Motosport to see if I could get new studs before I pulled them. Looks like the studs towards the front wheel are different sizes on the left and right hand sides of the case and are out of stock just about everywhere. Anyone have any leads to where I could get some replacements? I pulled the existing studs with a stud puller, so they're pretty much junk.
If you contact your local dealer, they can tell you what kawasaki dealer, if any, has them in stock across the country.
The rears are on ebay 92004-1203. R frt is 92004-1165. L get is 92004-1250. Try entering into Google and click on every hit, good luck
Maybe one of these will work. Hopefully you kept the old ones to measure.
https://arp-bolts.com/kits/product.php?PL=2
Looks like both part numbers are discontinued. I would do what 40acres suggested, that is sound advice.
The Shop
DeCal Works Huge Plastic Inventory of UFO and Polisport kits.
Luxon 4-Post Bar Mounts
$189.95 - $239.95
Try the stainless steel stud from a 2 strk. Jet Ski 750 or 800, they fit.
He's right, great idea! Jet ski parts my friend
Really? What year makes and models should I look for?
I would much rather throw stainless in there anyway, just to prevent rust
I expect this thread to stay at the top of the forum through the Foxborough supercrosss and many days beyond. just as the 2024 KX post will likely be visible still as the 2027 model is released.
LOL what?
Js750 1993 on, check the length. But I bet i will work
What nothing. 2019 KX thread stayed at the top all the way until the 2024 model thread. then so many garage posts - we have an area of the forum for this. This area should be about racing, the sport, the media, the history.
They look to be 8x41 on the js750. I need 10x41 and a 10x53
My bad. Ok how bout wave runner gp1200 base studs?
In order to have a similar unthreaded section, you'll need to buy longer and cut them down, but 10x41 are out there:
https://belmetric.com/m10-double-ended-stud-din-938-stainless/?sku=S10X…
https://belmetric.com/m10-double-ended-stud-din-835-stainless/?sku=S10X…
https://belmetric.com/m10-double-ended-stud-din-835-class-8-8-steel/?sk…
