Any luck with sandblasting?

Andrew_Foster
Profile picture for user Andrew_Foster
Posts
25
Joined
4/27/2016
Location
North Wilkesboro, NC US
Andrew_Foster
Edited Date/Time 1/29/2018 3:10pm
Just curious is anyone here has ever tried sandblasting engine covers and what the results ended up being. I’m looking to sandblast the ignition cover on my Husky to give it more of a factory style look. Anyone ever had any luck?




|
kzizok
Profile picture for user kzizok
Posts
8393
Joined
10/19/2010
Location
AS US
Fantasy
2068th
kzizok 1/28/2018 7:48pm
1/28/2018 7:48pm
What material is the ignition cover?
Acidreamer
Profile picture for user Acidreamer
Posts
1794
Joined
8/25/2015
Location
Mansfield, OH US
Acidreamer 1/29/2018 1:10am
1/29/2018 1:10am
Get it vapor blasted. Sand blasting wont give you the look you want.
RussB
Profile picture for user RussB
Posts
851
Joined
7/12/2014
Location
GB
Fantasy
1164th
RussB 1/29/2018 1:32am
1/29/2018 1:32am Edited Date/Time 1/29/2018 4:04am

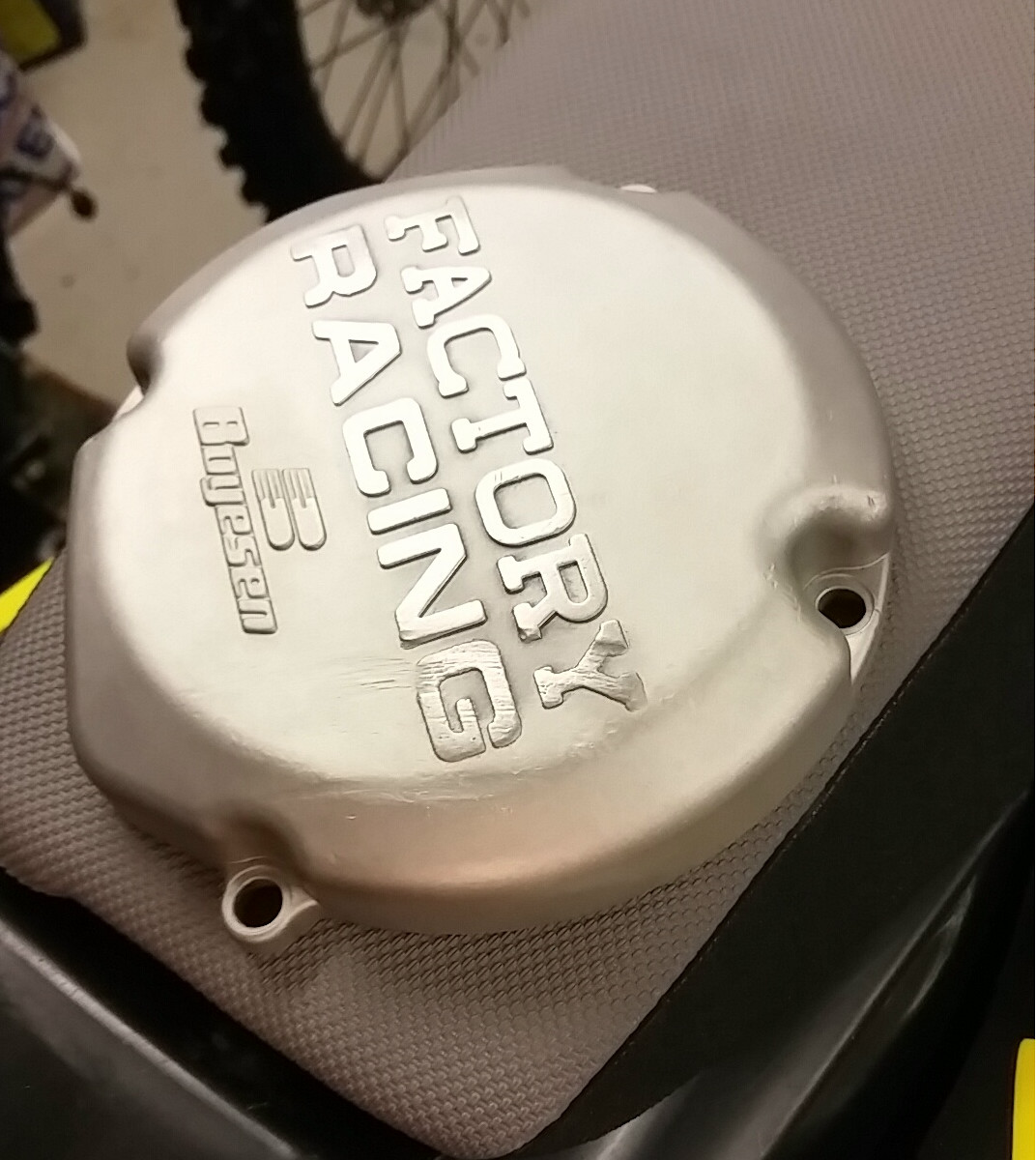

This cover was originally the Boyesen Bronze colour.

I used glass bead media to achieve this finish. Took a while but turned out nice, sort of a satin shine.




Sand blasting will probably leave a rougher finish, depends how coarse the media is.

TrailDigger 1/29/2018 3:00am
1/29/2018 3:00am
RussB wrote:
This cover was originally the Boyesen Bronze colour. I used glass bead media to achieve this finish. Took a while but turned out nice, sort of...
This cover was originally the Boyesen Bronze colour.

I used glass bead media to achieve this finish. Took a while but turned out nice, sort of a satin shine.




Sand blasting will probably leave a rougher finish, depends how coarse the media is.

I second this. Glass blasting is what you want, not sand blasting, although it’s the same equipment. Sandblasting will be pretty rough and could eat through the cover if it’s magnesium. Glass blasting isn’t as harsh and will give you the look you want.

The Shop

See All »
Andrew_Foster
Profile picture for user Andrew_Foster
Posts
25
Joined
4/27/2016
Location
North Wilkesboro, NC US
Andrew_Foster 1/29/2018 5:51am
1/29/2018 5:51am
RussB wrote:
This cover was originally the Boyesen Bronze colour. I used glass bead media to achieve this finish. Took a while but turned out nice, sort of...
This cover was originally the Boyesen Bronze colour.

I used glass bead media to achieve this finish. Took a while but turned out nice, sort of a satin shine.




Sand blasting will probably leave a rougher finish, depends how coarse the media is.

TrailDigger wrote:
I second this. Glass blasting is what you want, not sand blasting, although it’s the same equipment. Sandblasting will be pretty rough and could eat through...
I second this. Glass blasting is what you want, not sand blasting, although it’s the same equipment. Sandblasting will be pretty rough and could eat through the cover if it’s magnesium. Glass blasting isn’t as harsh and will give you the look you want.
Any tips or trick when doing this or is it the same process as sandblasting? I’ve thought about just ordering a KTM ignition cover since they came from the factory silver. Would save quite a bit of a headache but for $150 for the new covers and gaskets I thought about trying a different cheaper route first.
pete24
Profile picture for user pete24
Posts
2733
Joined
10/20/2011
Location
Marlborough, MA US
pete24 1/29/2018 6:29am
1/29/2018 6:29am

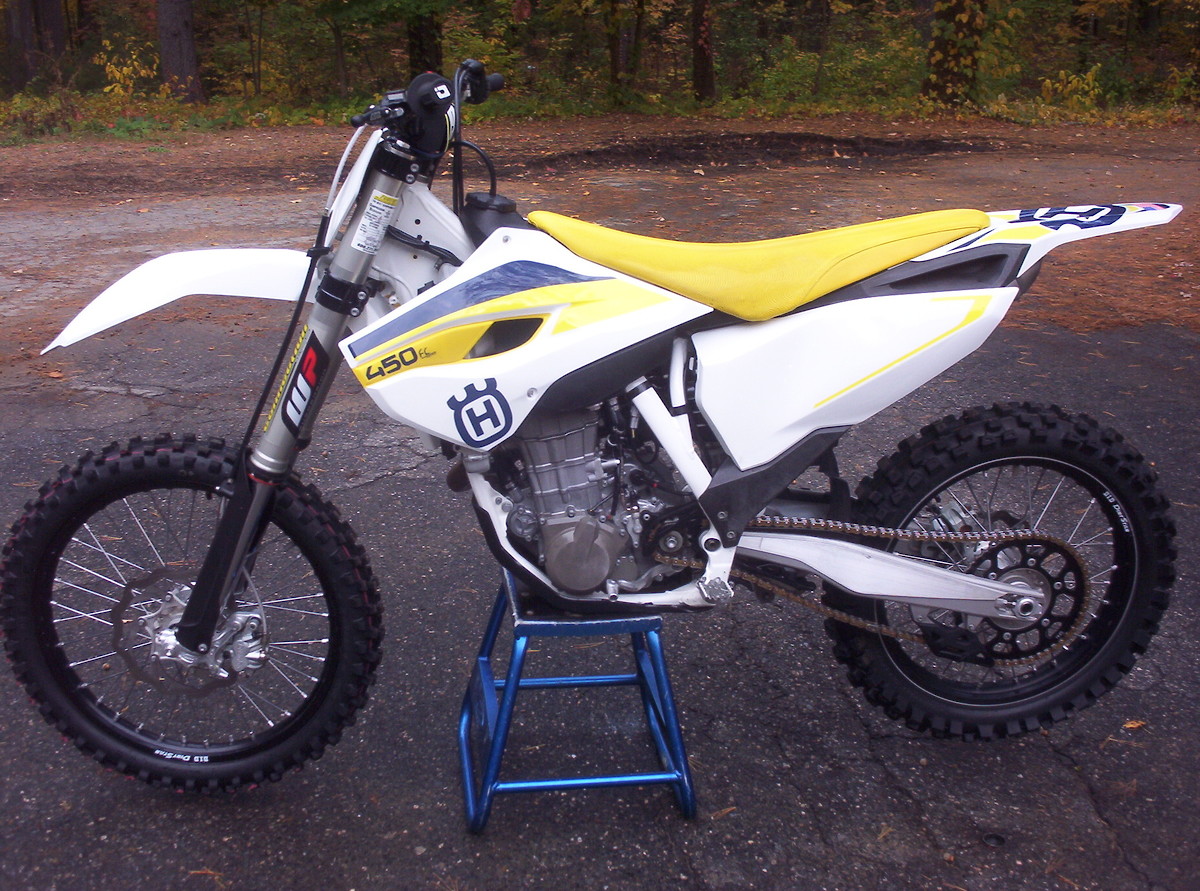

i did my 15 husky with glass bead media, that brown powdercoat on there is tough i burnt it off with a torch first



Andrew_Foster
Profile picture for user Andrew_Foster
Posts
25
Joined
4/27/2016
Location
North Wilkesboro, NC US
Andrew_Foster 1/29/2018 6:47am
1/29/2018 6:47am Edited Date/Time 1/29/2018 6:48am
pete24 wrote:
i did my 15 husky with glass bead media, that brown powdercoat on there is tough i burnt it off with a torch first [img]https://p.vitalmx.com/photos/forums/2018/01/29/240912/s1200_100_4131.jpg[/img]
i did my 15 husky with glass bead media, that brown powdercoat on there is tough i burnt it off with a torch first



That looks mint! Is this something you could do with a tumbler or does it need to be blasted with the glass media?
pete24
Profile picture for user pete24
Posts
2733
Joined
10/20/2011
Location
Marlborough, MA US
pete24 1/29/2018 7:09am
1/29/2018 7:09am
i blasted it in my blast cabinet, and it woulndt touch the powdercoat so i burned it off first
pete24
Profile picture for user pete24
Posts
2733
Joined
10/20/2011
Location
Marlborough, MA US
pete24 1/29/2018 7:11am
1/29/2018 7:11am

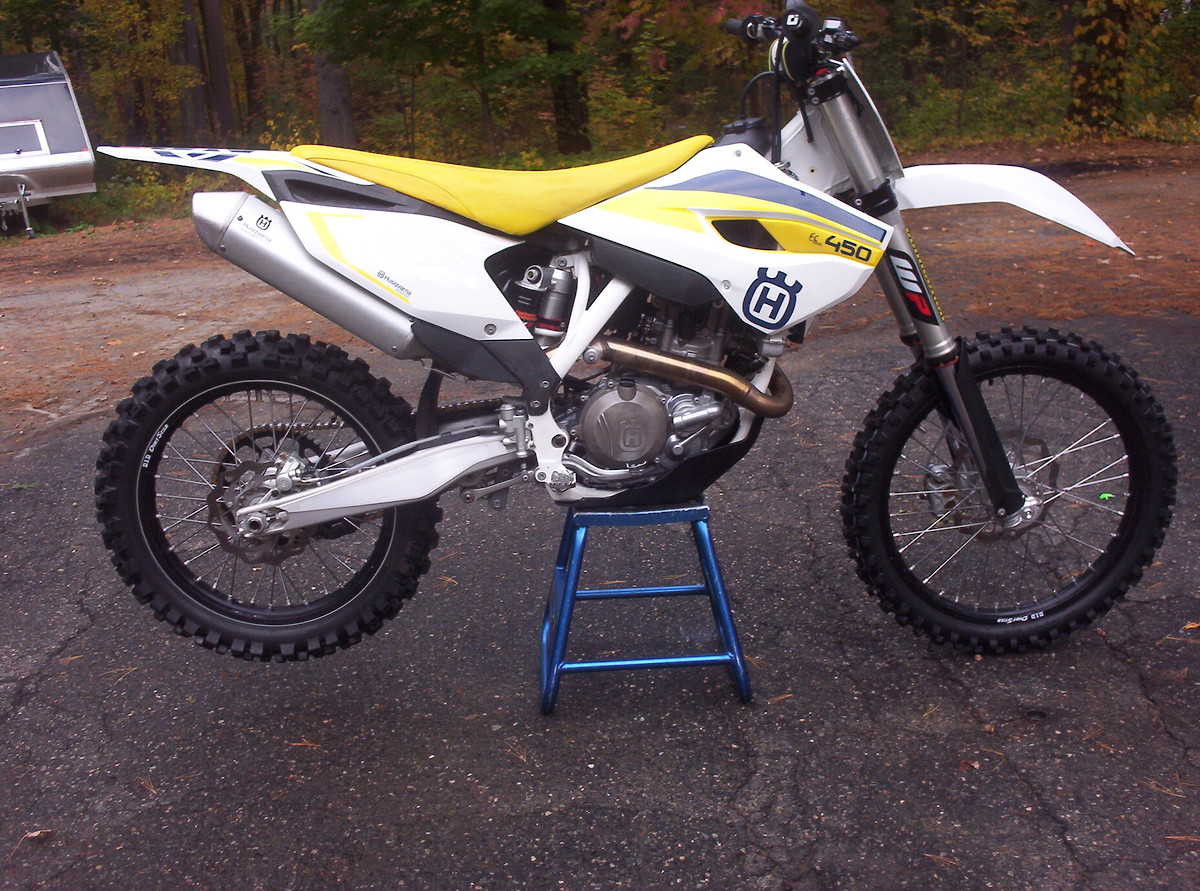

heres the other side and i did the valve cover too , before i ever rode the thing mine came with yellow, it was fugly
TrailDigger 1/29/2018 8:07am
1/29/2018 8:07am
RussB wrote:
This cover was originally the Boyesen Bronze colour. I used glass bead media to achieve this finish. Took a while but turned out nice, sort of...
This cover was originally the Boyesen Bronze colour.

I used glass bead media to achieve this finish. Took a while but turned out nice, sort of a satin shine.




Sand blasting will probably leave a rougher finish, depends how coarse the media is.

TrailDigger wrote:
I second this. Glass blasting is what you want, not sand blasting, although it’s the same equipment. Sandblasting will be pretty rough and could eat through...
I second this. Glass blasting is what you want, not sand blasting, although it’s the same equipment. Sandblasting will be pretty rough and could eat through the cover if it’s magnesium. Glass blasting isn’t as harsh and will give you the look you want.
Andrew_Foster wrote:
Any tips or trick when doing this or is it the same process as sandblasting? I’ve thought about just ordering a KTM ignition cover since they...
Any tips or trick when doing this or is it the same process as sandblasting? I’ve thought about just ordering a KTM ignition cover since they came from the factory silver. Would save quite a bit of a headache but for $150 for the new covers and gaskets I thought about trying a different cheaper route first.
Same process, just a different media.
Andrew_Foster
Profile picture for user Andrew_Foster
Posts
25
Joined
4/27/2016
Location
North Wilkesboro, NC US
Andrew_Foster 1/29/2018 3:10pm
1/29/2018 3:10pm
TrailDigger wrote:
I second this. Glass blasting is what you want, not sand blasting, although it’s the same equipment. Sandblasting will be pretty rough and could eat through...
I second this. Glass blasting is what you want, not sand blasting, although it’s the same equipment. Sandblasting will be pretty rough and could eat through the cover if it’s magnesium. Glass blasting isn’t as harsh and will give you the look you want.
Andrew_Foster wrote:
Any tips or trick when doing this or is it the same process as sandblasting? I’ve thought about just ordering a KTM ignition cover since they...
Any tips or trick when doing this or is it the same process as sandblasting? I’ve thought about just ordering a KTM ignition cover since they came from the factory silver. Would save quite a bit of a headache but for $150 for the new covers and gaskets I thought about trying a different cheaper route first.
TrailDigger wrote:
Same process, just a different media.
Sweet, thanks traildigger! I’ll give it a go one day when it warms up here and I’m home from school. Boone, NC has the most bipolar weather on the Earth!
Andrew_Foster
Profile picture for user Andrew_Foster
Posts
25
Joined
4/27/2016
Location
North Wilkesboro, NC US
Andrew_Foster 1/29/2018 3:16pm
1/29/2018 3:16pm
pete24 wrote:
[img]https://p.vitalmx.com/photos/forums/2018/01/29/240917/s1200_100_4132.jpg[/img] heres the other side and i did the valve cover too , before i ever rode the thing mine came with yellow, it was fugly


heres the other side and i did the valve cover too , before i ever rode the thing mine came with yellow, it was fugly
Valve cover isn’t seen very much on the 250s so I probably won’t touch it. The yellow doesn’t really bother my tastes if you can’t see much of it.
