Specifications

Product

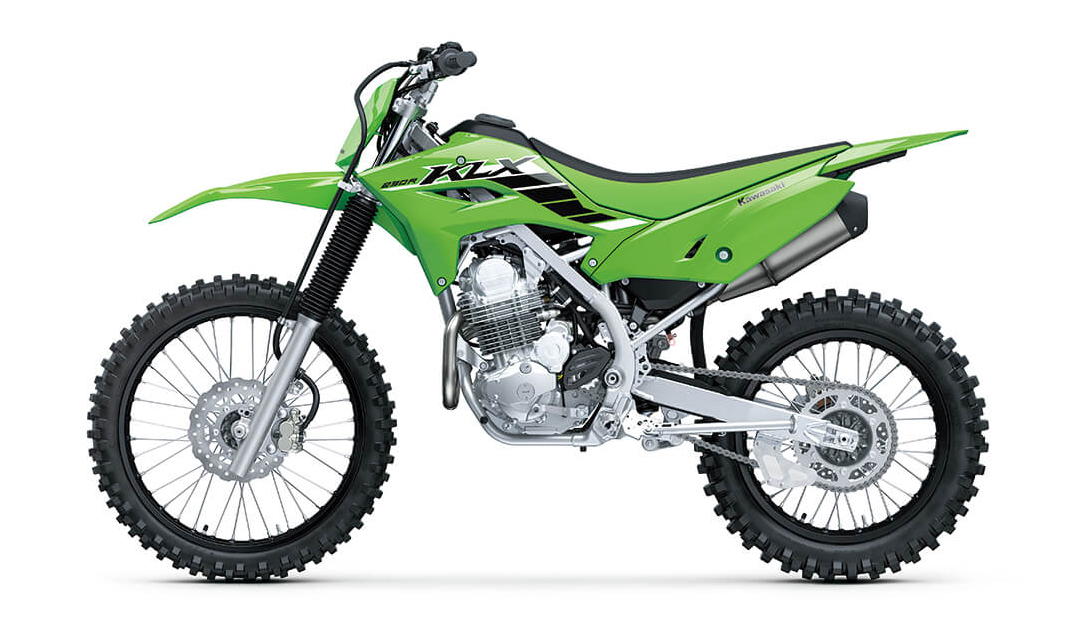

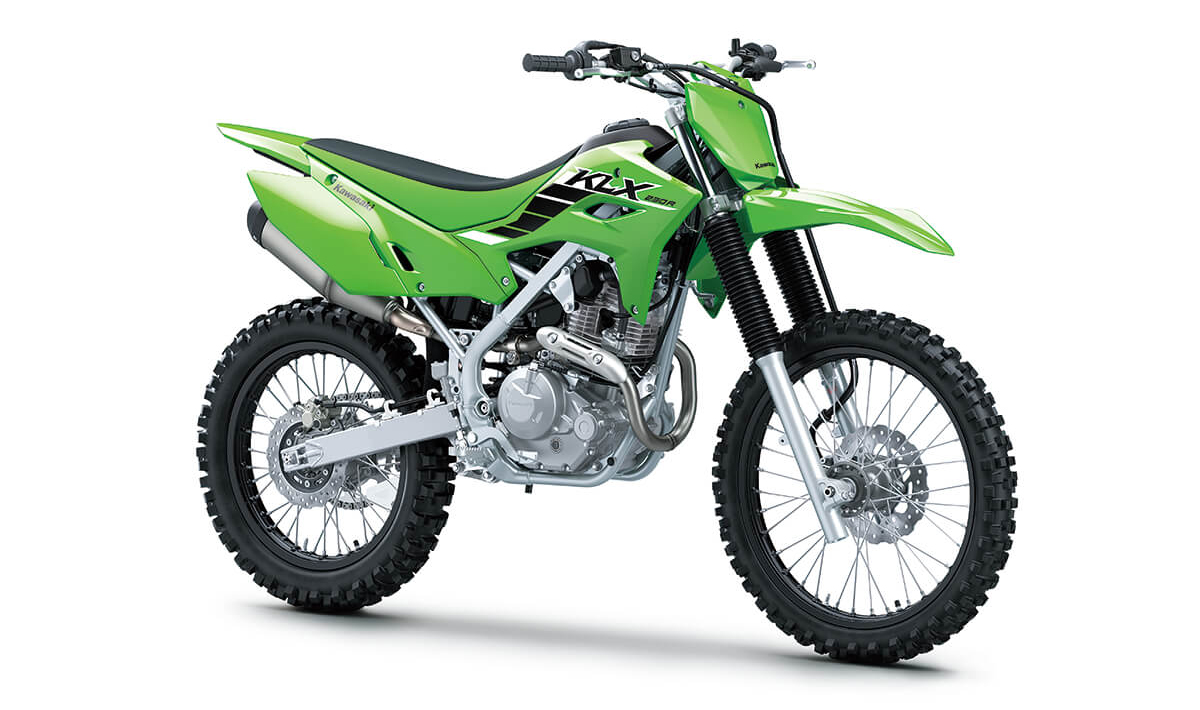

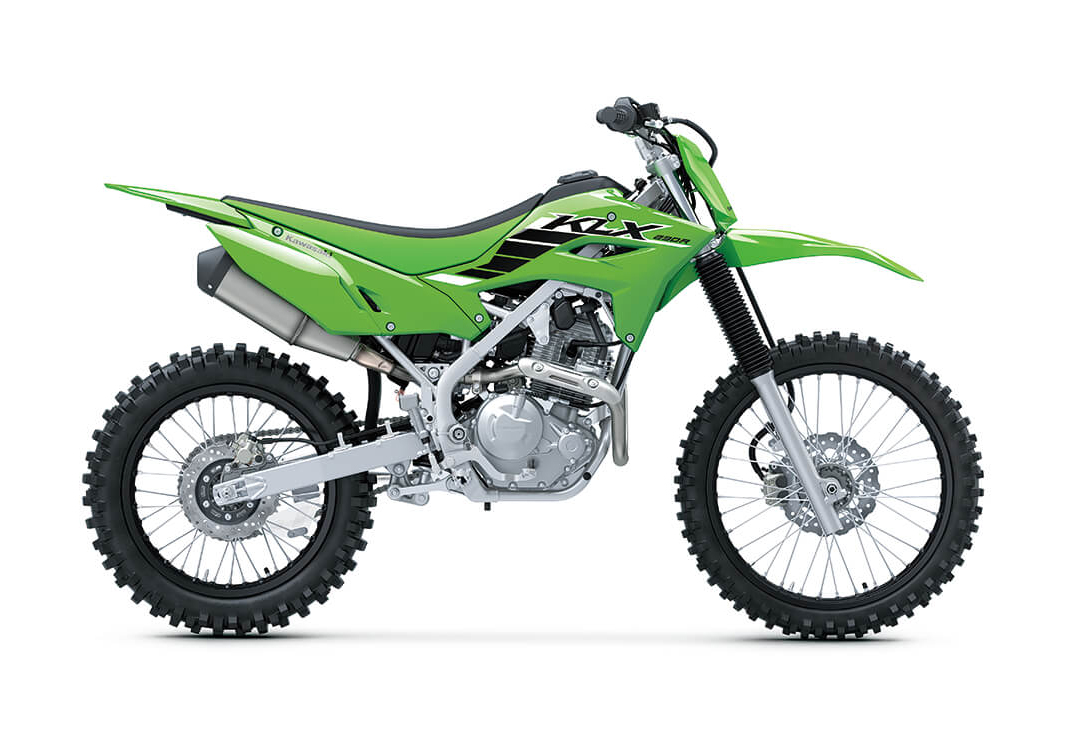

Kawasaki KLX230R Bike
Model Year
2025
Engine Size
Other
Engine Type
Four-Stroke
Engine Displacement
233cc
Bore x Stroke
67.0 mm x 66.0 mm
Compression Ratio
9.4:1
Fuel System
DFI (Dual Fuel Injection), 32mm Keihin throttle body
Ignition
TCBI Electronic Advance
Transmission
6-speed, return shift; wet multi-disc manual clutch
Final Drive
Chain
Suspension Front
37mm telescopic fork, 249 mm (9.8") travel
Suspension Rear
Uni-Trak linkage system; single shock, adjustable spring preload, 249 mm (9.8") travel
Brakes Front
Dual-piston caliper, single 240mm petal disc
Brakes Rear
Single-piston caliper, single 220 mm petal disc
Tires Front
80/100-21"
Tires Rear
100/100-18"
Overall Length
2045 mm (80.5")
Overall Width
846 mm (33.3")
Overall Height
1199 mm (47.2")
Seat Height
904 mm (35.6")
Wheelbase
1374 mm (54.1")
Ground Clearance
290 mm (11.4")
Rake/Trail
25.4° / 4.2"
Fuel Capacity
7.57 liters (2.0 gallons)
Curb Weight
119 kg (262.4 lbs) with fuel; 120 kg (264.5 lbs) with fuel on 50-State model
Features

Miscellaneous

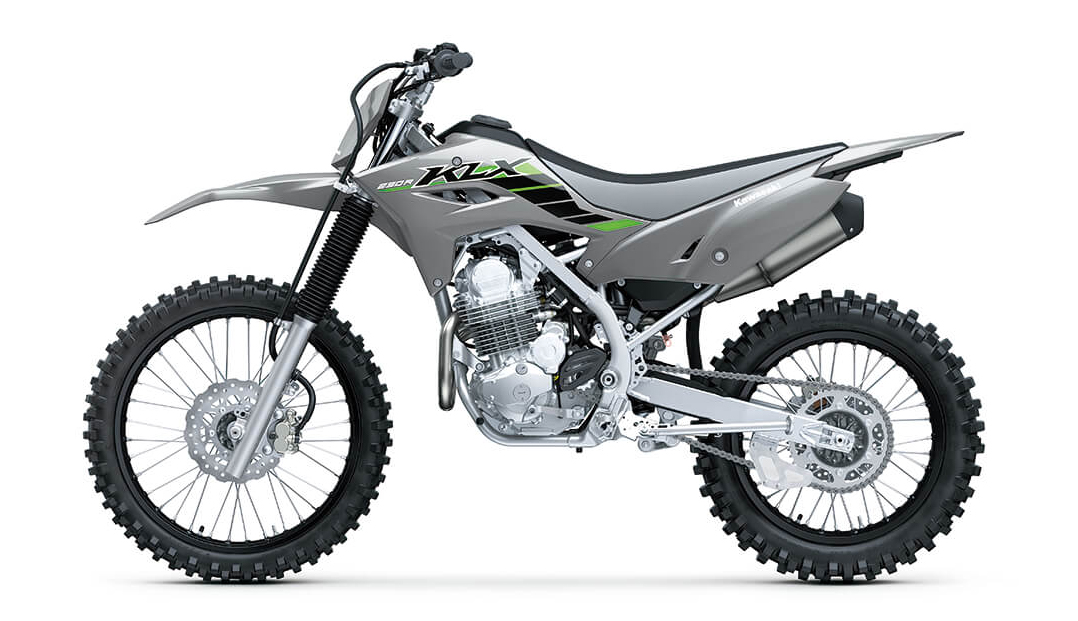

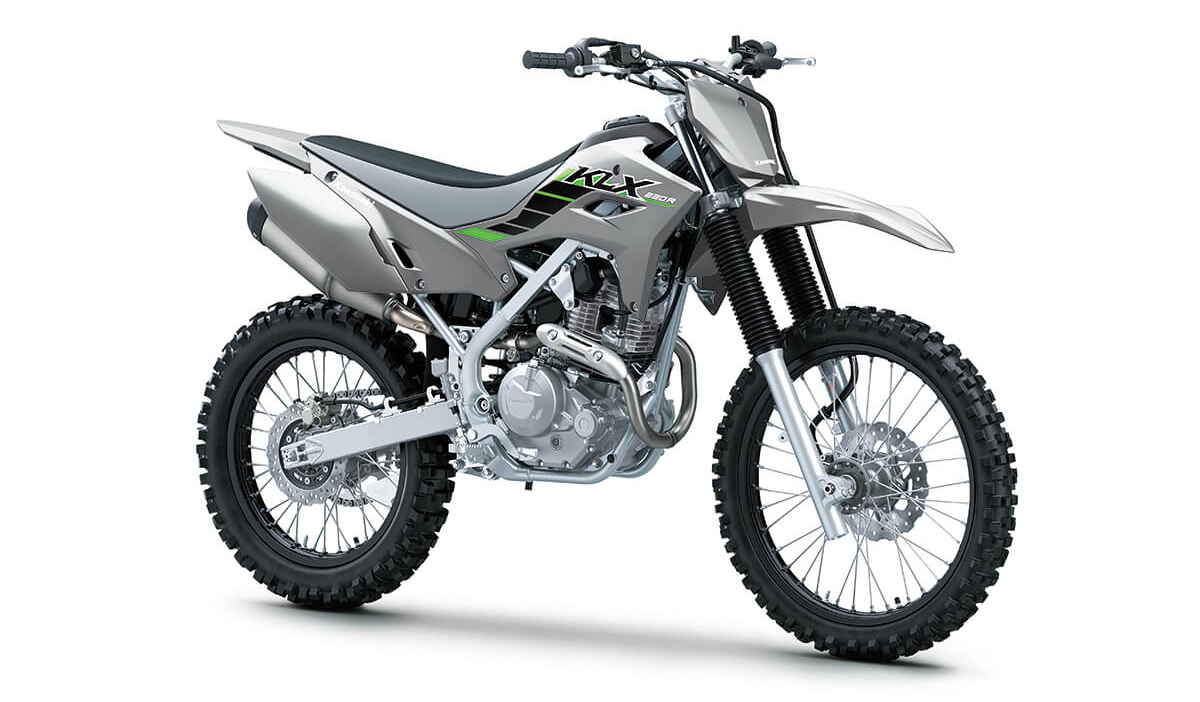

• Colors: Lime Green or Battle Gray
• Cooling: air
• Engine: single cylinder, four-stroke, SOHC (Single OverHead Cam)
• Frame: high-tensile steel, box-section perimeter
• Warranty: 6 months
Price
$4,999.00
