Who is the ultimate at YZ 125 porting/head work?

blaze 57
Profile picture for user blaze 57
Posts
378
Joined
4/11/2018
Location
Inchelium, WA US
blaze 57
Edited Date/Time 4/20/2021 4:32pm
Just bought a new 21' YZ 125 and just want a good port job and the head cut to still run on pump gas. With a few more horses on mid-top this thing would be perfect I have zero idea who is the best out there? Thanks
|
Falcon
Profile picture for user Falcon
Posts
10107
Joined
11/16/2011
Location
Menifee, CA US
Fantasy
798th
Falcon 3/31/2021 1:33pm
3/31/2021 1:33pm
Terry Varner.
1
1
Falcon
Profile picture for user Falcon
Posts
10107
Joined
11/16/2011
Location
Menifee, CA US
Fantasy
798th
Falcon 3/31/2021 1:35pm
3/31/2021 1:35pm Edited Date/Time 3/31/2021 4:05pm
LaughingLaughingLaughingWoohoo

Actually, I had a ported/milled Varner cylinder on my '01 YZ125. It was, hands-down, the fastest 125 I have ever ridden. I pulled good starts at Glen Helen on that bike against 250s and 450s. (Well, 426es.)
Judging by all the issues that guy has had recently though, I wouldn't send my stuff to him.
10
JBoneMotorworks 3/31/2021 2:21pm
3/31/2021 2:21pm
I would do a Bill's Pipe set, VForce reeds, and take the squish clearance down to .95mm..run a mix of VPc12 and 93 oct at 40/1 and it will be a ripper and reliable. About 100 octane is perfect, Maxima Formula K2 is good for the oil.

Good luck-
4

The Shop

See All »
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 3/31/2021 4:28pm
3/31/2021 4:28pm
Bruce372 wrote:

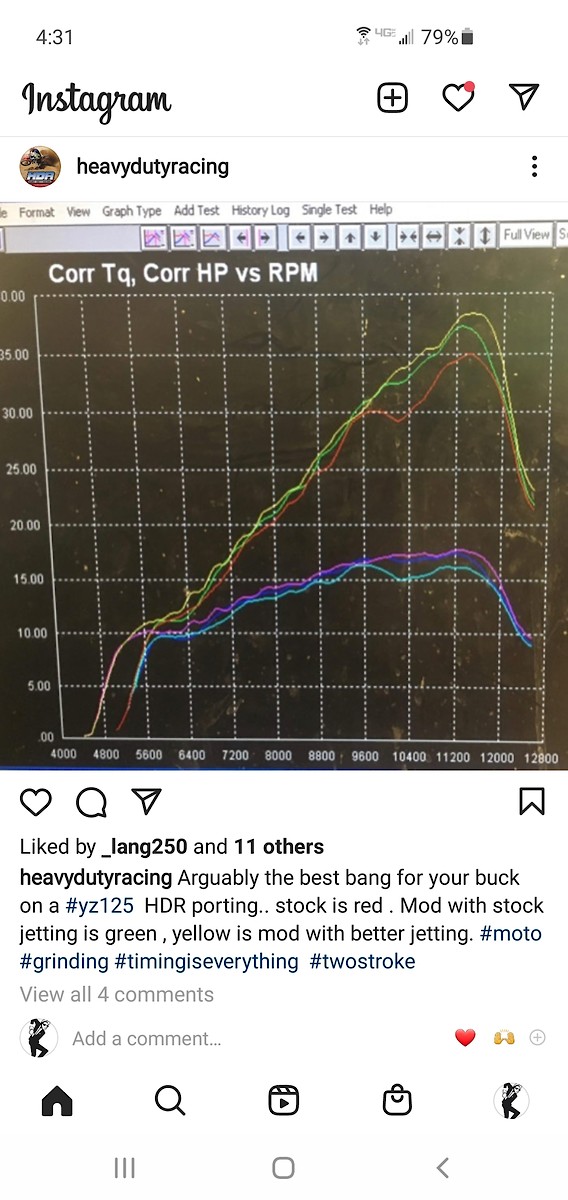

Heavy duty racing on the east coast.
navalseabee wrote:
Pete did my 150, it was a ripper.
Pete has spent a lot of dyno time on the yz125.
soggy
Profile picture for user soggy
Posts
4871
Joined
12/3/2018
Location
UT US
Fantasy
3846th
soggy 3/31/2021 4:46pm
3/31/2021 4:46pm
Tom Morgan has done lots of yz, or pc.
opyguy
Profile picture for user opyguy
Posts
567
Joined
8/22/2016
Location
Boston, MA US
opyguy 3/31/2021 6:02pm
3/31/2021 6:02pm
JBoneMotorworks wrote:
I would do a Bill's Pipe set, VForce reeds, and take the squish clearance down to .95mm..run a mix of VPc12 and 93 oct at 40/1...
I would do a Bill's Pipe set, VForce reeds, and take the squish clearance down to .95mm..run a mix of VPc12 and 93 oct at 40/1 and it will be a ripper and reliable. About 100 octane is perfect, Maxima Formula K2 is good for the oil.

Good luck-
any 21 KTM 250sx ideas j-bone?
love the bike, need a bit more top end pull...
i hear your the go to guy (that retired)
1
MotoChris
Profile picture for user MotoChris
Posts
427
Joined
12/12/2016
Location
Vilonia, AR US
MotoChris 3/31/2021 6:40pm
3/31/2021 6:40pm
Tom Morgan. We got a new YZ125 a few months ago and I sent the cylinder and head to him as soon as I got it home. The bike is very strong. We have another YZ125 built by someone else with more work done and my son says that the Tom Morgan motor is a lot stronger. We had the competition at our local state championship race asking me about it and they are on different color bikes.
2
jaredkeller96
Profile picture for user jaredkeller96
Posts
504
Joined
11/8/2015
Location
Huntersville, NC US
jaredkeller96 4/1/2021 9:09am
4/1/2021 9:09am
Dean baker ex JGR,Kawi, and legendary Yamaha of Troy knows a thing or two about yz125s…check him out on Instagram..@baker_speed
blaze 57
Profile picture for user blaze 57
Posts
378
Joined
4/11/2018
Location
Inchelium, WA US
blaze 57 4/1/2021 9:35am
4/1/2021 9:35am
Thanks for the feed back everyone. Sounds like some good source here so far to prevent my cylinder from becoming a paper weight.
Moto520
Profile picture for user Moto520
Posts
3386
Joined
2/4/2013
Location
Schaumburg, IL US
Moto520 4/1/2021 2:37pm
4/1/2021 2:37pm
Add the Apex head if you have the means....nice improvement.
1
MXJIM10
Profile picture for user MXJIM10
Posts
30
Joined
2/21/2012
Location
PA US
MXJIM10 4/1/2021 4:20pm
4/1/2021 4:20pm
Had Tom Morgan do my engine and it was terrible. No better than stock,plus powervalve bolts fell out. Not tightened enough. Great Guy and good service,but did a half ass job on my engine. Not trying to be an ass,but he can do better than that.
1
1
Moto520
Profile picture for user Moto520
Posts
3386
Joined
2/4/2013
Location
Schaumburg, IL US
Moto520 4/2/2021 8:05am
4/2/2021 8:05am
TZR Motorsports in Illinois. Tom is really good and meticulous. Never heard anything bad about them. They have done a ton of my 4 strokes and they have all been great. No affiliation....don't care.
JBoneMotorworks 4/2/2021 5:51pm
4/2/2021 5:51pm
opyguy wrote:
any 21 KTM 250sx ideas j-bone?
love the bike, need a bit more top end pull...
i hear your the go to guy (that retired)
Hey opyguy. I did get out of the engine biz a while ago but a head cut to get your squish down to about 1.1mm would be a good start, some hi rpm reeds, a pipe set to match the tune, there is a lot that can be done in the pv flapper area but can't really explain it without a tutorial lol.
You could also add a base gasket of like .25mm or so and then cut the head back to get the squish down, this would accelerate the port timing and have more hi rpm.
Bills pipe sets work great. Best- J
1

Pit Row

See All »
Motofinne
Profile picture for user Motofinne
Posts
10686
Joined
1/4/2014
Location
FI
Motofinne 4/2/2021 10:51pm
4/2/2021 10:51pm
The guy doing the Fantic EMX bikes has to be up there with the best
1
Bearuno
Profile picture for user Bearuno
Posts
4139
Joined
6/28/2014
Location
AU
Bearuno 4/3/2021 1:26am
4/3/2021 1:26am
Motofinne wrote:
The guy doing the Fantic EMX bikes has to be up there with the best
Well, if Dr Jan Witteveen is behind the mods done to the YZ engines, or even someone, or 'someones' that are working under him, you're not wrong.

He's far more than just a 'tuner', which the vast majority of industry types are.

I'd love to see him let loose to create new, modern 2t engine designs. What phenomenal powerplants they could be! His previous engine designs won multiple World Championships, for those who have no idea who he is.
sebastianer 4/4/2021 3:38am
4/4/2021 3:38am
Motofinne wrote:
The guy doing the Fantic EMX bikes has to be up there with the best
yes probalby Jan Witteveen but i dont think you can get him to do your cylinder, but i would send the cylinder to two stroke preformance in au, he does a lot of cylinders for many fast 125 racer around the world.
captmoto
Profile picture for user captmoto
Posts
5139
Joined
4/22/2009
Location
Rancho Cucamonga, CA US
captmoto 4/22/2021 9:22am
4/22/2021 9:22am
Why would you go with a modded motor and then use pump gas? Even something like T2 will give you more consistent performance.
1
