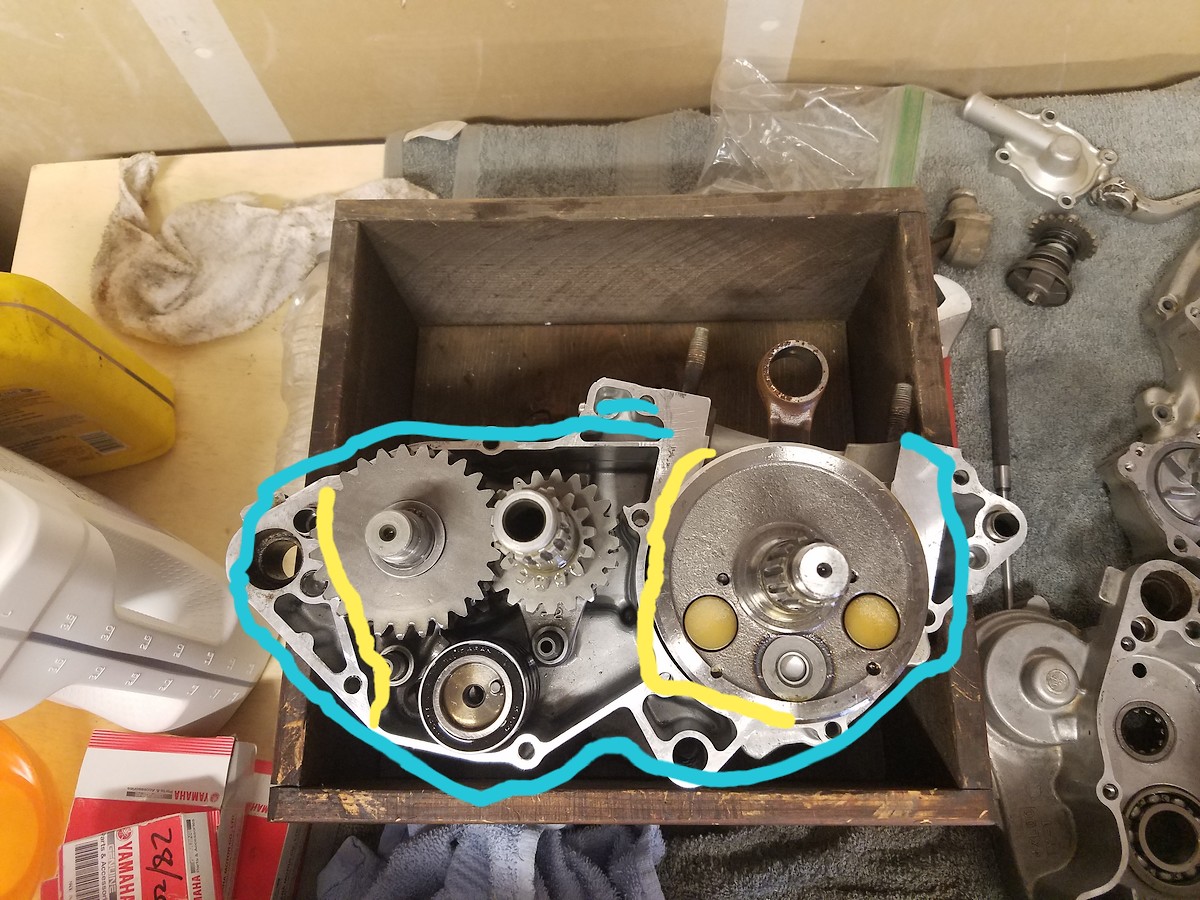

When joining cases do you put the gasket maker along all the mating surface or just the outer edge?

Related:
Create New Tag

10/22/2018 1:55 PM


So basically along both lines or just along the blue line?
|

10/22/2018 2:33 PM
Edited Date/Time: 10/22/2018 2:33 PM

Follow both lines the crankcase has to be completely sealed from the transmission on a 2 stroke... you can find a manual it will show you the preferred way to lay the case bond... Also the top of the rod looks a little rusty?

|

10/22/2018 3:02 PM

Completely very thin coat on both halves

|

10/22/2018 3:15 PM

Applied at thin layer of sealant along all the mating surfaces of both halves. Photo

|

10/22/2018 3:34 PM

That is the proper way.

Paw Paw

|

10/23/2018 6:03 PM

i hope you didn't use rtv silicone

|

10/24/2018 3:46 PM

RTV sells a grey colored silicon that is made for motorcycle cases and is as good as anything I’ve used. I think it’s called ‘motobond’.

|
