Running in a new 4 stroke piston

Grovesy98
Profile picture for user Grovesy98
Posts
246
Joined
10/14/2019
Location
GB
Grovesy98
Edited Date/Time 11/27/2020 12:56pm
Just had a new piston on my 2020 KX450, what's the best method for running it in? I usually just warm it up fully and then ride it steady for 20 mins, then let it cool right down, then warm up again fully and let it rip. Am I doing it right?
|
JK714
Profile picture for user JK714
Posts
71
Joined
6/16/2020
Location
Durham, NC US
JK714 11/21/2020 2:08pm
11/21/2020 2:08pm
Probably should do multiple heat cycles at moderate but varied rpm, not lugging. Cool and check head and cylinder bolts. Check a service manual for the bike. After a few heat cycles you should run it hard to seat the rings.
captmoto
Profile picture for user captmoto
Posts
5153
Joined
4/22/2009
Location
Rancho Cucamonga, CA US
captmoto 11/21/2020 2:25pm
11/21/2020 2:25pm
You sound like you already know what to do. Or go by your owners manual to break in. I swear guys over think this break in. Don't let it sit in your garage idling. Stupid. These thing aren't made of glass. The bike needs air moving over through the radiators.
captmoto
Profile picture for user captmoto
Posts
5153
Joined
4/22/2009
Location
Rancho Cucamonga, CA US
captmoto 11/21/2020 2:35pm
11/21/2020 2:35pm
What is a heat cycle?

The Shop

See All »
JK714
Profile picture for user JK714
Posts
71
Joined
6/16/2020
Location
Durham, NC US
JK714 11/21/2020 2:35pm
11/21/2020 2:35pm
The heat cycles are just a few minutes at idle until radiators hot, then allow to cool completely. After 3 cycles and checking bolt torque, run a few minutes at various throttle settings and gears up to half throttle on a gentle grade. Then a few minutes up to three quarters. Then run it hard. Change oil after first hour.
walent215
Profile picture for user walent215
Posts
2418
Joined
12/6/2014
Location
Ridgecrest, CA US
walent215 11/21/2020 5:41pm
11/21/2020 5:41pm
Do not “ heat cycle “ it in the garage on the stand. The rings need to be seated immediately after starting it for the first time by putting a load on them. Be ready to ride it down the street / dirt, whatever you have outside your garage or wherever you may be. Go thru the gears at a decent pace then allow the engine braking to pull the motor down putting a decent load on the rings. Definitely no wide open fire roads but varying rpms and slowing down numerous times. Ride it like that for 5-10 mins or so. Let it cool. Check for leaks etc then ride it exactly how it’s going to be ridden .
3
c0ncEpT
Profile picture for user c0ncEpT
Posts
1270
Joined
5/13/2015
Location
Harrison Twp., MI US
c0ncEpT 11/21/2020 6:25pm
11/21/2020 6:25pm Edited Date/Time 11/23/2020 4:20pm
Get the engine up to operating temp. Ride the bike to the gate. The bike is now broken in.

For real though. Ride the bike as you normally would. The only break in is seating the rings. Which needs to be done with a load on the engine.
1
Bogett287
Profile picture for user Bogett287
Posts
236
Joined
3/17/2019
Location
Malone, NY US
Bogett287 11/21/2020 8:30pm
11/21/2020 8:30pm
I have rebuilt a lot of engine I let the warmup on the stand for few minutes through it in the truck. Head to track and rode it how I plan on riding never had a issue at all . To me best method it’s so over rated and mixed emotions on the break in method.
1
kb228
Profile picture for user kb228
Posts
6161
Joined
1/31/2018
Location
Mansfield, OH US
kb228 11/22/2020 7:40am
11/22/2020 7:40am
Ride it for 30 mins easy and then let it rip.
Tracktor
Profile picture for user Tracktor
Posts
2344
Joined
8/17/2006
Location
The RTF/Amboy, WA US
Tracktor 11/23/2020 2:47pm
11/23/2020 2:47pm
c0ncEpT wrote:
Get the engine up to operating temp. Ride the bike to the gate. The bike is now broken in. For real though. Ride the bike as...
Get the engine up to operating temp. Ride the bike to the gate. The bike is now broken in.

For real though. Ride the bike as you normally would. The only break in is seating the rings. Which needs to be done with a load on the engine.
^^^This. Warm it up well, check it over & ride...........
Falcon
Profile picture for user Falcon
Posts
10123
Joined
11/16/2011
Location
Menifee, CA US
Fantasy
856th
Falcon 11/25/2020 8:39am
11/25/2020 8:39am
I always used to ride my bikes easy for the first hour or so, then let 'er rip. My mechanic friend says to ride it like you stole it from the first minute, though. I just can't bring myself to do that.
Rider 5280
Profile picture for user Rider 5280
Posts
2014
Joined
11/9/2011
Location
Denver Metro, CO US
Rider 5280 11/25/2020 9:21am
11/25/2020 9:21am

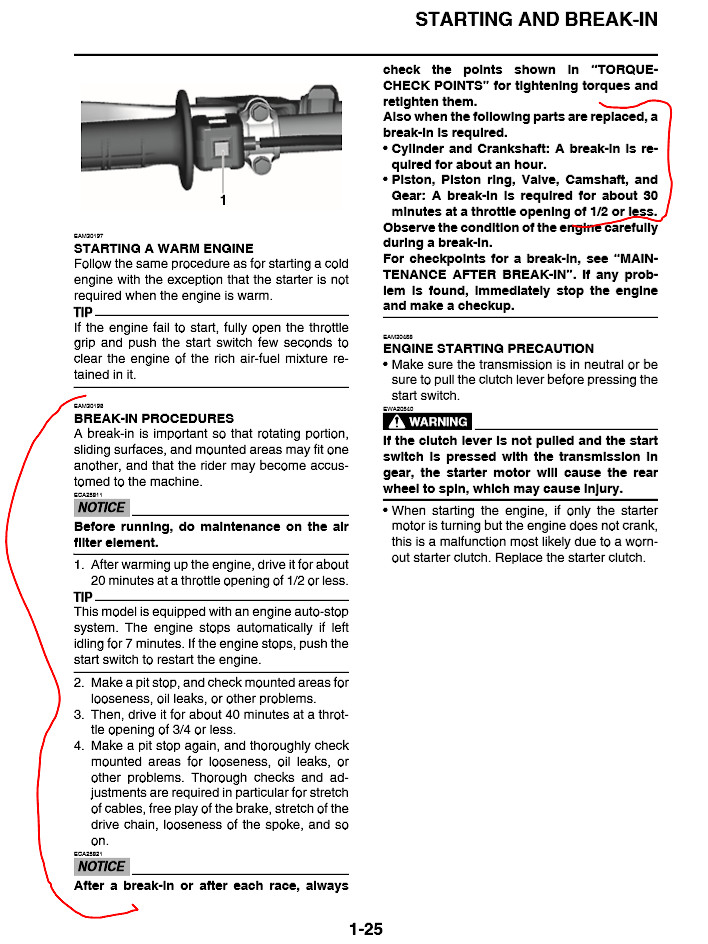

Here's what Yamaha recommends on the 2020 Yamaha YZ450F:


40acres
Profile picture for user 40acres
Posts
625
Joined
7/23/2017
Location
Houston, TX US
40acres 11/27/2020 9:17am
11/27/2020 9:17am
Rider 5280 wrote:
Here's what Yamaha recommends on the 2020 Yamaha YZ450F: [img]https://p.vitalmx.com/photos/forums/2020/11/25/461667/s1200_2020_YZ450F_Break_in_Procedure.jpg[/img]
Here's what Yamaha recommends on the 2020 Yamaha YZ450F:


How often does yamaha suggest you replace the piston on the 450?
Rider 5280
Profile picture for user Rider 5280
Posts
2014
Joined
11/9/2011
Location
Denver Metro, CO US
Rider 5280 11/27/2020 11:55am
11/27/2020 11:55am Edited Date/Time 11/27/2020 12:56pm

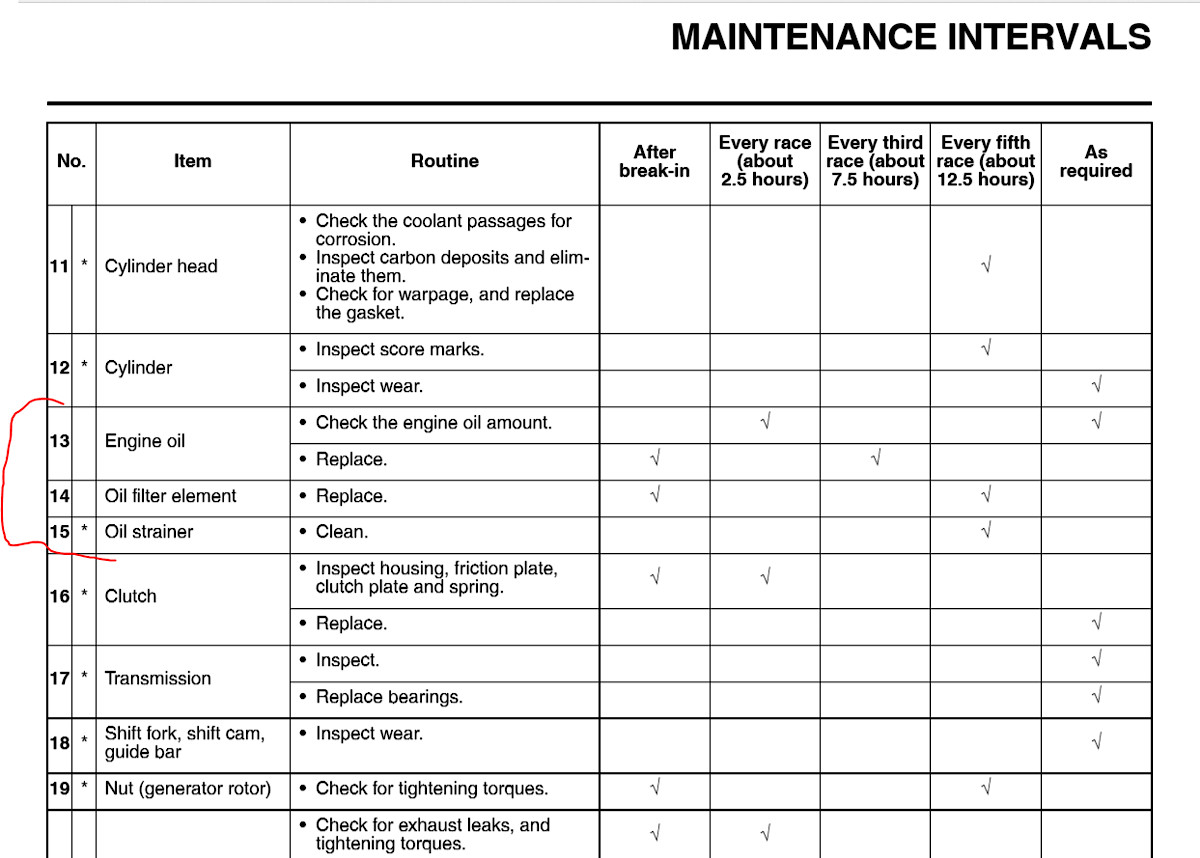

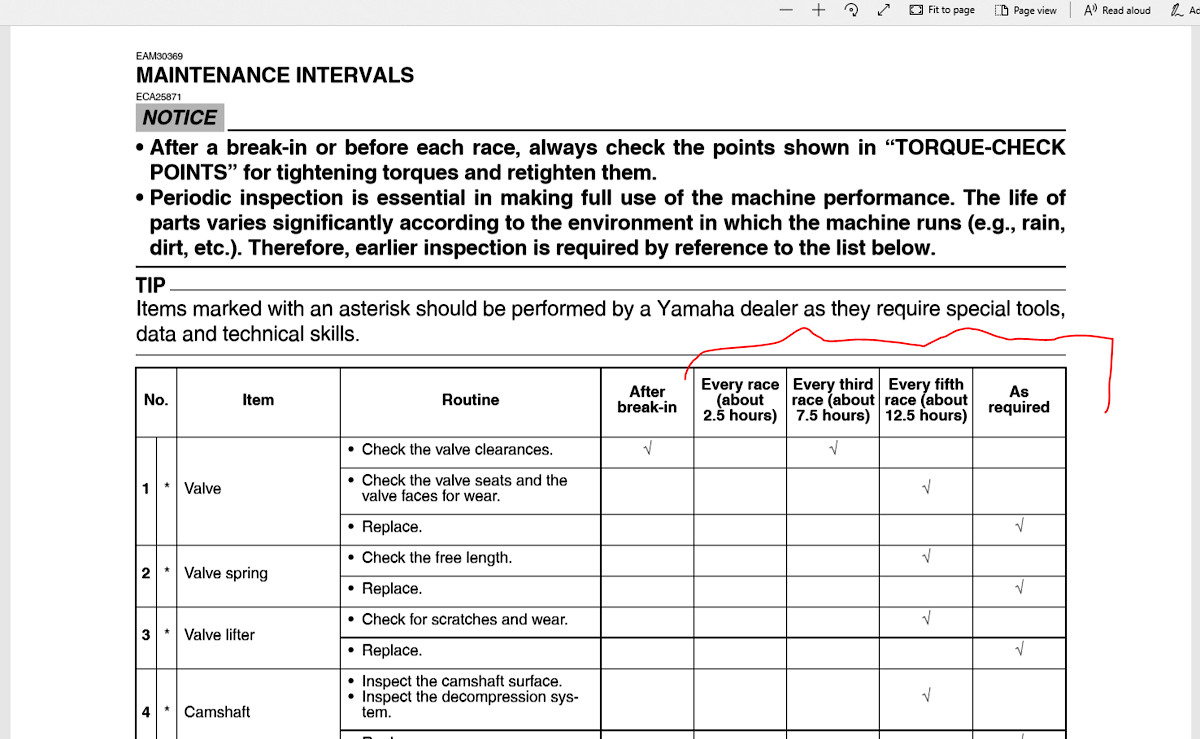

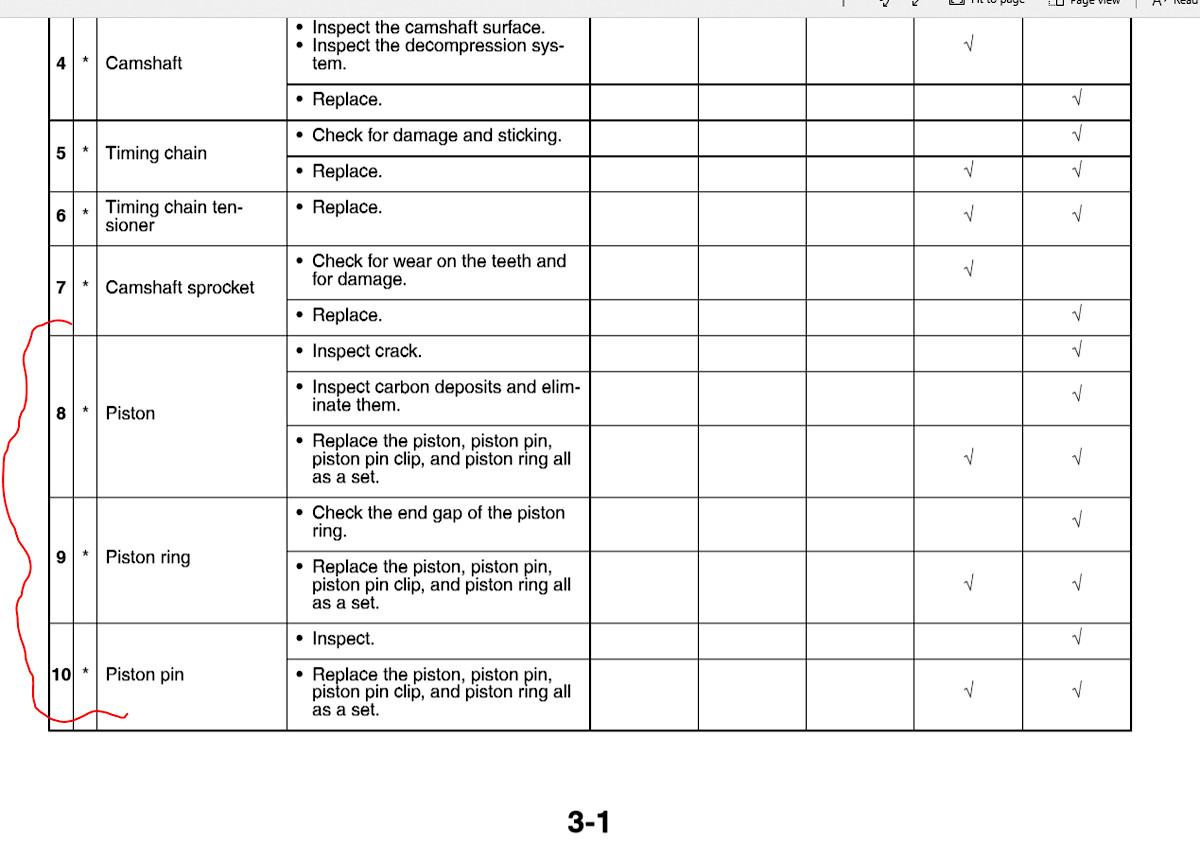

See below for the 2020 YZ450F.
