calcoast calcoast
10/12/2018 3:01 PM

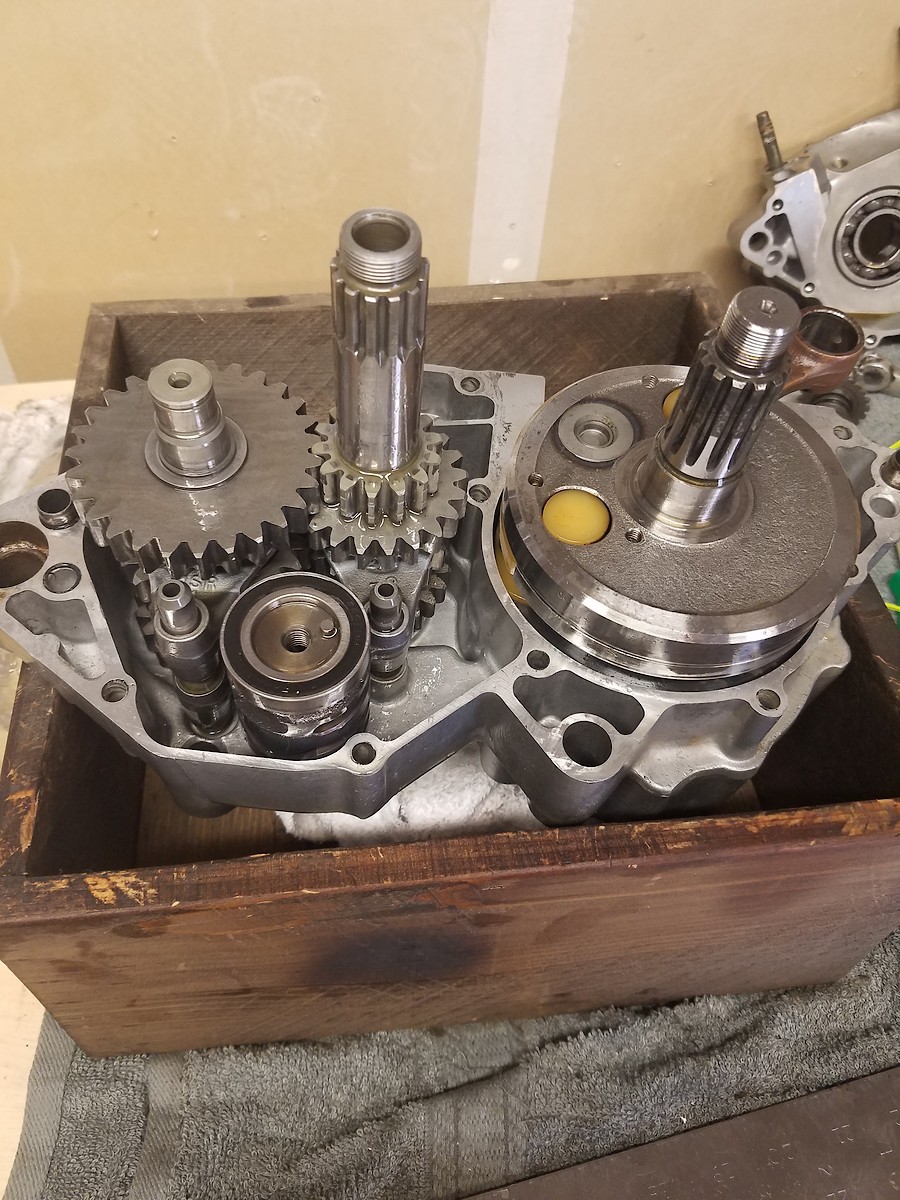

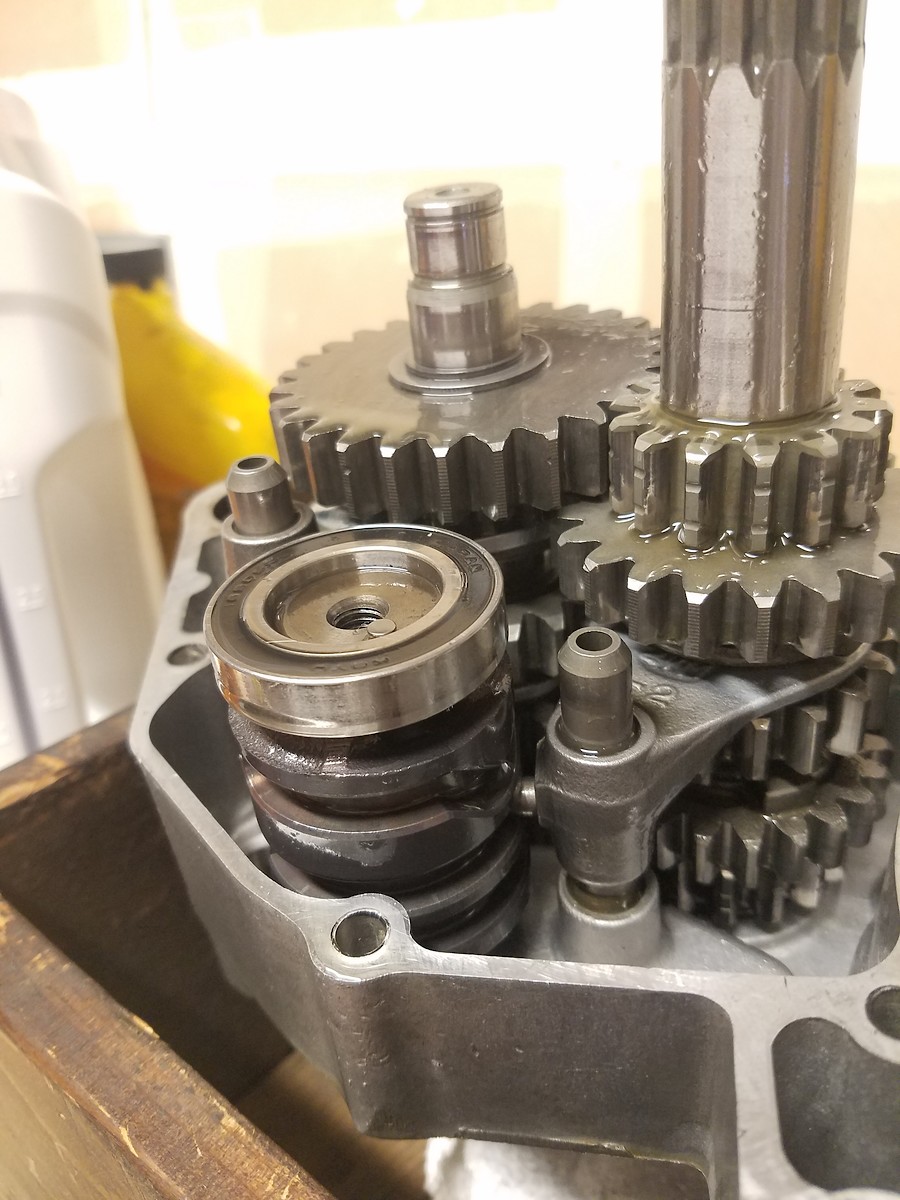

Getting ready to put the cases back together. The manual says make sure it's in neutral but doesnt exactly show what neutral should look like.
Everything shifts smoothly.


| Quote
kb228 kb228
10/12/2018 5:04 PM

If its in neutral you should be able to spin both shafts seperate from each other.

| Quote
BT747 BT747
10/12/2018 10:38 PM

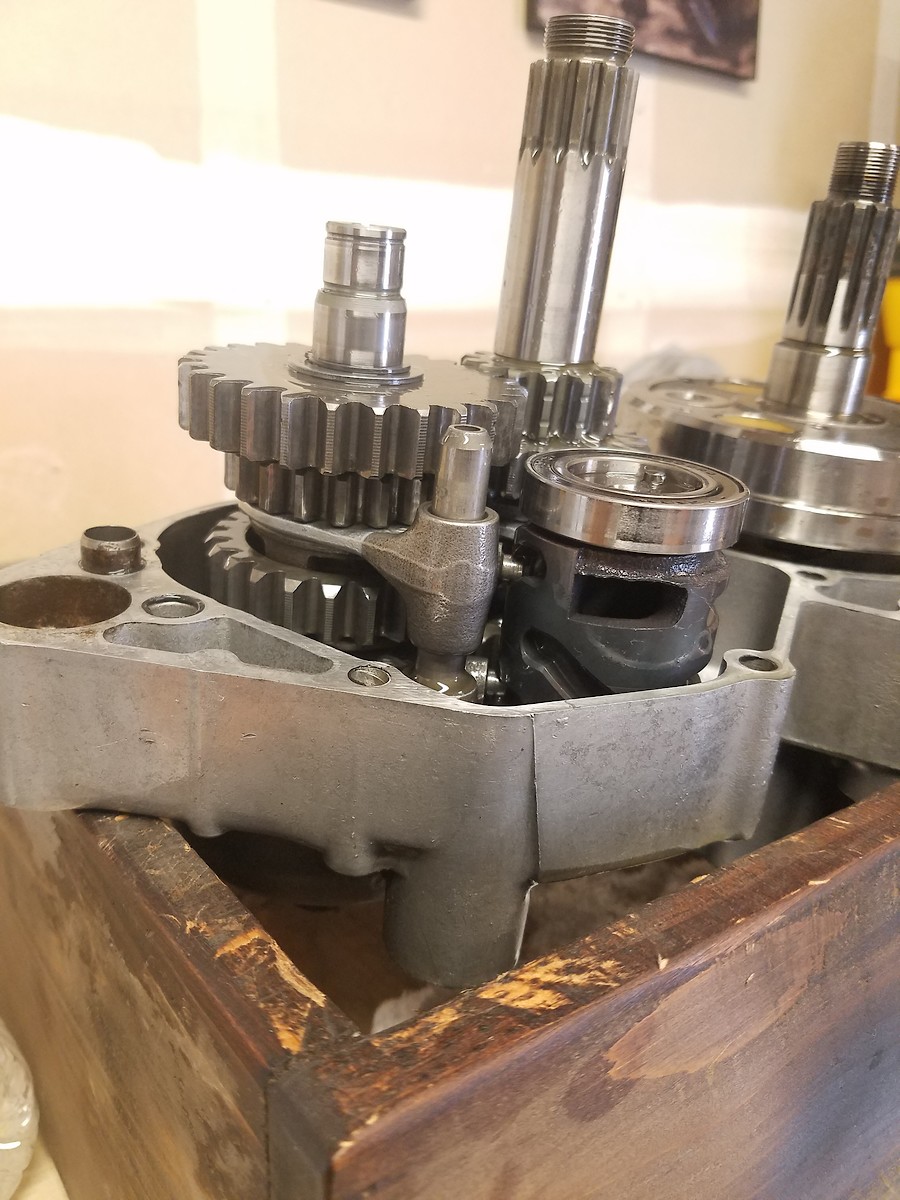

Isn't that shift drum bearing suppose to be in the other case?

| Quote
calcoast calcoast
10/13/2018 7:46 AM

When I split the cases it came out with the shift drum.

| Quote
Paw Paw 271 Paw Paw 271
10/13/2018 12:23 PM

I always work these from the other side.

Paw Paw

| Quote
project racer project racer
10/13/2018 2:17 PM

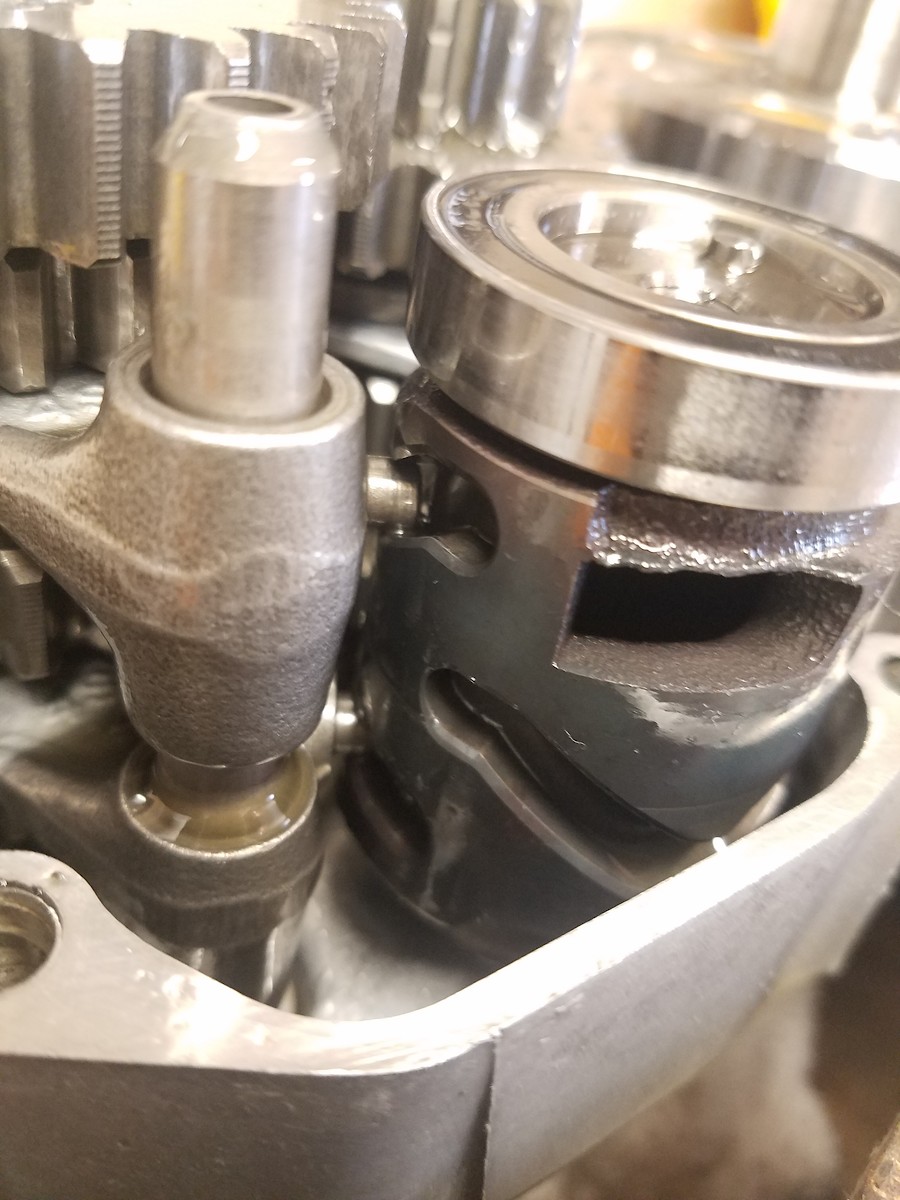

That bearing hanging half off the shift drum may give a bit of grief during reassembly. Pull it off, and put it back in the case.

| Quote
calcoast calcoast
10/13/2018 11:13 PM
kb228 wrote:

If its in neutral you ...more

So I gave it a try and that was the only position they could spin freely. Makes a lot of sense when you visualize everything in your head. Thanks

| Quote
BT747 BT747
10/14/2018 9:04 AM

I test shifting with cases together, no crank. Using a T handle on the shift drum bolt 9 on diagram, it's easy to find neutral and check shifting. Then slide cases apart and install crank on clutch side opposite of the pics above. Sure someone else can explain it better. Photo

| Quote
