2020 Crf250r. Anyone seen this before?

Naanak
Profile picture for user Naanak
Posts
625
Joined
9/9/2014
Location
NJ US
Naanak 12/25/2019 2:18pm
12/25/2019 2:18pm Edited Date/Time 12/28/2019 7:42am

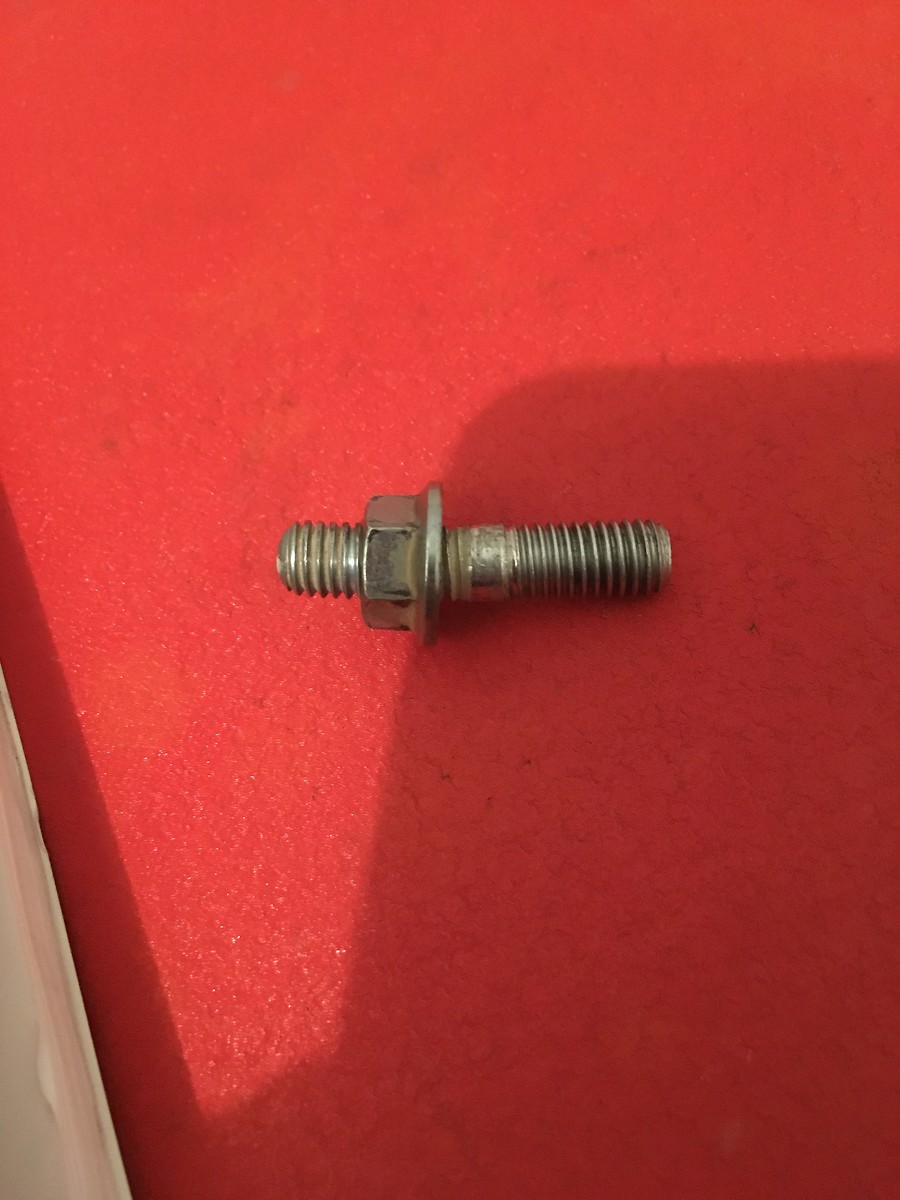

Removing my stock pipes today to install a yoshi. Right side pipe came off and went on fine. Left side header when loosening the two header bolts the one just threaded out of the motor. The stud is bent and bolt appears cross threaded possibly. Not a big deal as I just need a new stud and thankfully it just came out of the motor clean. Just figured I’d share.
|
kwenske321
Profile picture for user kwenske321
Posts
371
Joined
11/8/2011
Location
Houston, TX US
kwenske321 12/25/2019 6:11pm
12/25/2019 6:11pm
I had a 2011 Crf450R and experienced the same thing when installing a pro circuit exhaust. When I went to torque those nuts it bent the studs exactly like that. Pro Circuit said I was over tightening those nuts, but I never even got them close to the manufacturer torque setting. They bought the exhaust back and I switched to FMF and never had that issue again.
Naanak
Profile picture for user Naanak
Posts
625
Joined
9/9/2014
Location
NJ US
Naanak 12/25/2019 6:29pm
12/25/2019 6:29pm
kwenske321 wrote:
I had a 2011 Crf450R and experienced the same thing when installing a pro circuit exhaust. When I went to torque those nuts it bent the...
I had a 2011 Crf450R and experienced the same thing when installing a pro circuit exhaust. When I went to torque those nuts it bent the studs exactly like that. Pro Circuit said I was over tightening those nuts, but I never even got them close to the manufacturer torque setting. They bought the exhaust back and I switched to FMF and never had that issue again.
This was from the factory. I hadn’t touched the stock system and when I went to take off the nut to remove the header the whole stud came out.
Wolfey
Profile picture for user Wolfey
Posts
253
Joined
12/7/2015
Location
IL US
Wolfey 12/26/2019 3:37am
12/26/2019 3:37am
I’m currently waiting for new stud bolts to arrive. I have the exact same problem on the left side. Both stud bolts were bent and removing the stock header was a bitch! Luckily both studs came out without any damage to the head.

The Shop

See All »
shkapars
Profile picture for user shkapars
Posts
41
Joined
2/12/2016
Location
Riga LV
shkapars 12/27/2019 6:11am
12/27/2019 6:11am
The new one stud bolt (only one was bent) after some time was bent again on 2018 CRF250R not so badly as it was before when couldnt slide bracket off. Now with some force is possible to remove header without damaging bolt
Naanak
Profile picture for user Naanak
Posts
625
Joined
9/9/2014
Location
NJ US
Naanak 12/27/2019 7:07am
12/27/2019 7:07am
So it’s not extremely uncommon. I wonder what causes it or how that happens.
shkapars
Profile picture for user shkapars
Posts
41
Joined
2/12/2016
Location
Riga LV
shkapars 12/27/2019 7:55am
12/27/2019 7:55am
Maybe bracket change form when heated up and bend bolt?
Wolfey
Profile picture for user Wolfey
Posts
253
Joined
12/7/2015
Location
IL US
Wolfey 12/27/2019 6:42pm
12/27/2019 6:42pm
I have 2 crf250r 2020s and both were a problem getting the left side header bracket off. The first came off but needed enough force that I was afraid the bracket was going to strip the threads coming off. The second bike ended up with two bent studs that I have now replaced.
1
shkapars
Profile picture for user shkapars
Posts
41
Joined
2/12/2016
Location
Riga LV
shkapars 12/28/2019 1:25am
12/28/2019 1:25am
Maybe have to drill bigger holes in bracket? I don't see anything als could damage stud bolt
afk66
Profile picture for user afk66
Posts
219
Joined
7/28/2018
Location
Mechanicsville, MD US
afk66 12/28/2019 6:12am
12/28/2019 6:12am
Wolfey wrote:
I have 2 crf250r 2020s and both were a problem getting the left side header bracket off. The first came off but needed enough force that...
I have 2 crf250r 2020s and both were a problem getting the left side header bracket off. The first came off but needed enough force that I was afraid the bracket was going to strip the threads coming off. The second bike ended up with two bent studs that I have now replaced.
I just bought an exhaust it sounds like I should go ahead and order studs too. I did look after reading this post and it does appear that my 2020 studs are slightly bent. Mine appears to be all four..... 6 hours on the bike so far.
tzmike
Profile picture for user tzmike
Posts
437
Joined
2/22/2014
Location
Warwick, NY US
tzmike 12/28/2019 6:33am
12/28/2019 6:33am
If it was my exhaust, I would elongate the holes in the header mount and red loctite the stud to head threads. Then neverseize the nut threads. That SHOULD be the cure all in a perfect world.
Asnep815
Profile picture for user Asnep815
Posts
19
Joined
7/17/2019
Location
IN US
Asnep815 12/28/2019 6:53am
12/28/2019 6:53am
same deal happened on my '18. Left side bolt came out clean but was bent awkwardly in that same way. ordered new studs for all of them just as a precaution, and havent had an issue since.
Wolfey
Profile picture for user Wolfey
Posts
253
Joined
12/7/2015
Location
IL US
Wolfey 12/28/2019 7:29am
12/28/2019 7:29am
The yoshi brackets went on much easier. It seems the holes are slightly larger. I did use red loctite on the new studs.
Naanak
Profile picture for user Naanak
Posts
625
Joined
9/9/2014
Location
NJ US
Naanak 12/28/2019 7:42am
12/28/2019 7:42am
Wolfey wrote:
The yoshi brackets went on much easier. It seems the holes are slightly larger. I did use red loctite on the new studs.
Yoshi went on a lot easier. The bike are definitely a little bigger.
