2018 CRF250R Clutch Perch

7/31/2017 11:50am Edited Date/Time 8/18/2017 4:06pm

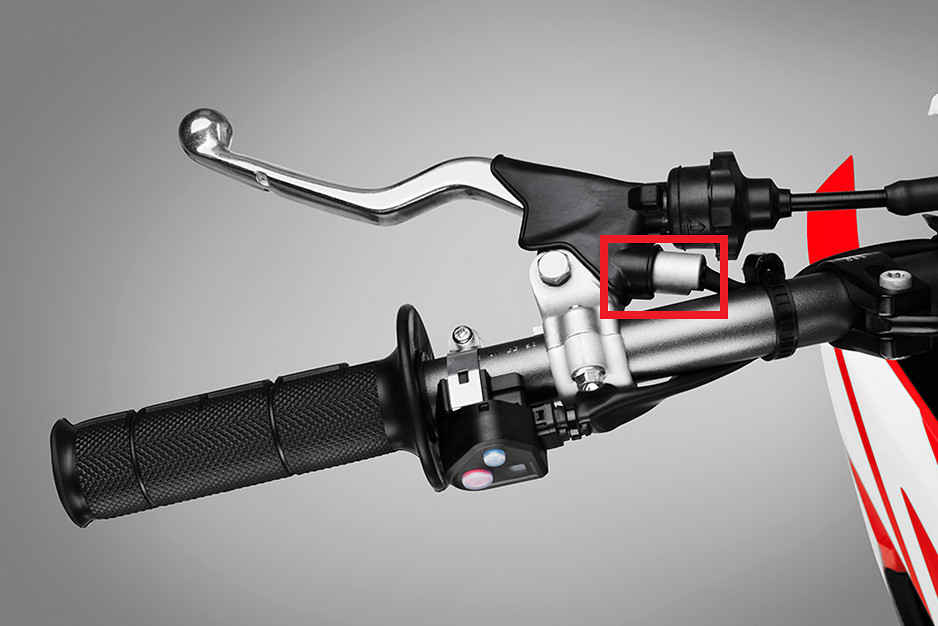

I noticed this on Transworld's intro pics of the bike. What is this second line going into the clutch perch behind the adjuster wheel?

|
Honda11
Posts
199
Joined
1/10/2015
Location
Inside, KY US
7/31/2017 12:01pm
If I had to guess I would say its a sensor? Maybe you have to have the clutch pulled in for the e-start to work?
omalley
Posts
1491
Joined
7/27/2016
Location
Snohomish, WA US
7/31/2017 12:20pm
Honda11 wrote:
If I had to guess I would say its a sensor? Maybe you have to have the clutch pulled in for the e-start to work?
I believe that's correct. I think I recall someone referencing a clutch safety on the optional e-start kit for the '17 450R. Another "thank a lawyer" piece of stupidity.
Slosh 112
Posts
1123
Joined
3/31/2014
Location
Mackay QLD AU
7/31/2017 12:40pm
easily deleted its just a switch.
CarlinoJoeVideo
Posts
6903
Joined
11/30/2013
Location
Portland/Los Angeles, CA US
7/31/2017 12:56pm
Yeah I heard Keefer say that on his pod cast. The 2018 250 and 450 must have the clutch pulled in for E-start to work If the bike is in gear or not.

The Shop

jaredkeller96
Posts
477
Joined
11/8/2015
Location
Huntersville, NC US
7/31/2017 10:07pm
easy to just take that wire and ground it out somewhere or make a dummy switch hidden so no one can start it
rmoto003
Posts
910
Joined
2/26/2017
Location
Gulf Shores, AL US
8/1/2017 5:40am
Flux capacitor
rmoto003
Posts
910
Joined
2/26/2017
Location
Gulf Shores, AL US
8/1/2017 6:17am
Safety feature

Motocross bike

Safety feature

Motocross

Safety

Safety

lol
Bennett59
Posts
744
Joined
9/3/2015
Location
Bakersfield, CA US
8/1/2017 8:32am
Yea its for the electric start to work, you can I belive take the two wires going in there and put them together, to make it no longer needed and run any lever/perch
tmauto769
Posts
642
Joined
12/25/2011
Location
TN US
8/5/2017 1:57pm
Bennett59 wrote:
Yea its for the electric start to work, you can I belive take the two wires going in there and put them together, to make it...
Yea its for the electric start to work, you can I belive take the two wires going in there and put them together, to make it no longer needed and run any lever/perch
yes, did that on my '17 that I put the estart on. male/female connectors down by the diagnostic port, just connect them together.
8/5/2017 5:46pm
Wouldn't surprise me if it was a sensor that logged data on a how much/often the rider uses the clutch. I'm only kidding... but...

Did you see the Pit Bits from the All Japan Nationals?? So, many, sensors, on, EVERYTHING! All about that data bro..
mcardamon
Posts
5
Joined
8/18/2017
Location
Pleasanton, CA US
8/18/2017 4:06pm
Honda11 wrote:
If I had to guess I would say its a sensor? Maybe you have to have the clutch pulled in for the e-start to work?
Just bought mine yesterday and that is exactly right.
captmoto
Posts
4458
Joined
4/22/2009
Location
Rancho Cucamonga, CA US
8/18/2017 4:16pm Edited Date/Time 8/18/2017 4:19pm
omalley wrote:
I believe that's correct. I think I recall someone referencing a clutch safety on the optional e-start kit for the '17 450R. Another "thank a lawyer"...
I believe that's correct. I think I recall someone referencing a clutch safety on the optional e-start kit for the '17 450R. Another "thank a lawyer" piece of stupidity.
So why is this not on the Huskies and KTMs? A freind of mine tipped over and broke the clutch lever off at the perch. He happened to leave the kicker in place though so he was able to get started.
mcardamon
Posts
5
Joined
8/18/2017
Location
Pleasanton, CA US
8/18/2017 4:33pm
captmoto wrote:
So why is this not on the Huskies and KTMs? A freind of mine tipped over and broke the clutch lever off at the perch. He...
So why is this not on the Huskies and KTMs? A freind of mine tipped over and broke the clutch lever off at the perch. He happened to leave the kicker in place though so he was able to get started.
to my knowledge, KTMs don't require the clutch to be pulled in to start, thats why. But I could be wrong.
CarlinoJoeVideo
Posts
6903
Joined
11/30/2013
Location
Portland/Los Angeles, CA US
8/20/2017 5:10am
captmoto wrote:
So why is this not on the Huskies and KTMs? A freind of mine tipped over and broke the clutch lever off at the perch. He...
So why is this not on the Huskies and KTMs? A freind of mine tipped over and broke the clutch lever off at the perch. He happened to leave the kicker in place though so he was able to get started.
mcardamon wrote:
to my knowledge, KTMs don't require the clutch to be pulled in to start, thats why. But I could be wrong.
I bet it's an insurence or liability thing from Honda. Like in your car, some need to push the clutch in or have your foot on the brake to start.
