125 rm engine rebuild

Related:
Create New Tag

2/24/2019 11:15 AM

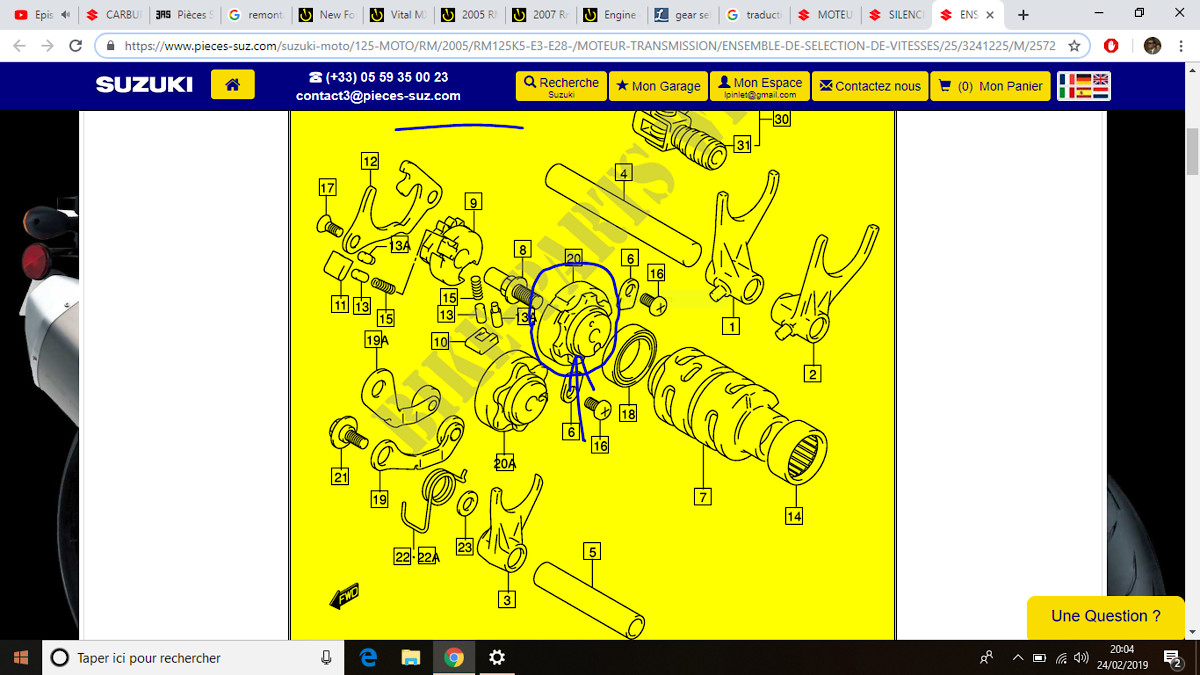

i've just opened my engine clutch side and i shifted without paying attention. So i came here because i don't find something on the net and i know you can help me, i wanted to ask how to rebuild this parts with the gear shift, i saw that there is a mark on this Photo

and i want to kwon how place it to a good rebuild thanks all sorry for the approximate english

|

2/24/2019 2:56 PM

It just unbolts.

Paw Paw

|

2/24/2019 4:52 PM

lpinlet wrote:

i've just opened my engine clutch side and i shifted without paying attention. So i came here because i don't find something on the net and i know you can help me, i wanted to ask how to rebuild this parts with the gear shift, i saw that there is a mark on this Photo

and i want to kwon how place it to a good rebuild thanks all sorry for the approximate english

To remove #20:
1) remove screw #21, then remove the roller (#19) and the spring (#22)
2) remove #8, then remove #20 by pulling it straight out toward you.


To re-assemble, you do those steps in the opposite order.

#7 should have a small pin that sticks out and registers into a groove in #20...
#8 bolts these two parts together. I recommend medium strength thread-locker on #8.

|

2/24/2019 4:55 PM

If your bike is a 2004-2008 model, here is a link to the manual. Tells you everything you need to know:

http://www.crservice.dk/Suzuki%20cross/RM125/RM125K7_01A.pdf

|

2/25/2019 12:18 AM

thaaaannnnnnks you !!!

|
