Showa TAC SKF glide kit

Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372
Edited Date/Time 4/25/2017 10:34am
Has anyone Done this mod?

I am looking for the tool they use in the video at 4.30 mins.

Any idea what the hex size is needed to open the cartridge. ...I was thinking I could make something from a coupling nut.
https://youtu.be/DZ27aOQFM9s
|
sebastianer 2/6/2016 9:04am
2/6/2016 9:04am
funny i was wondering the exact same thing, was gonna start a thread but just saw this. i did just order the skf glide kit
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/6/2016 9:55am
2/6/2016 9:55am
I am hearing 21mm, so there is a chance a M14 coupling nut might work.
slipdog
Profile picture for user slipdog
Posts
10044
Joined
7/25/2009
Location
Nor Cal, CA US
slipdog 2/6/2016 10:53am
2/6/2016 10:53am

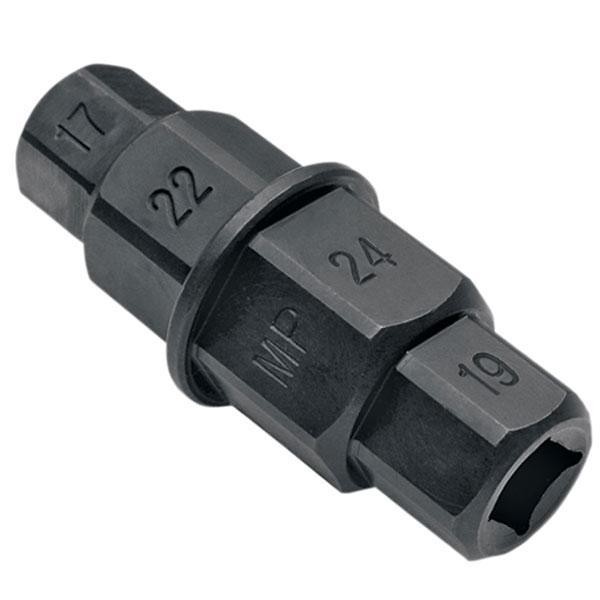

I'm not sure off the top of my head, but I think it's a 19mm. I use my Motion Pro axle tool when I take them apart and it works like a champ.



The Shop

See All »
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/6/2016 11:03am
2/6/2016 11:03am
slipdog wrote:
I'm not sure off the top of my head, but I think it's a 19mm. I use my Motion Pro axle tool when I take them...
I'm not sure off the top of my head, but I think it's a 19mm. I use my Motion Pro axle tool when I take them apart and it works like a champ.



Brian, i take it you are comfortable pushing the piston/ damper rod through the cartridge seal, rather than using a bullet in the video???
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/6/2016 11:07am
2/6/2016 11:07am
I am sure the majority of the performance advantages of this kit come from the air piston and not the cartridge seals. ???

It's interesting how they use a pipe cutter to cracked the peens, I drilled them when replacing cartridge seals in the past
slipdog
Profile picture for user slipdog
Posts
10044
Joined
7/25/2009
Location
Nor Cal, CA US
slipdog 2/6/2016 11:08am
2/6/2016 11:08am
Never 100% comfortable, but I use lost of slick honey grease and go nice and easy with no force. Have not had any problems yet, but I do keep an extra set of all the seals just in case.
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/6/2016 12:04pm
2/6/2016 12:04pm
slipdog wrote:
Never 100% comfortable, but I use lost of slick honey grease and go nice and easy with no force. Have not had any problems yet, but...
Never 100% comfortable, but I use lost of slick honey grease and go nice and easy with no force. Have not had any problems yet, but I do keep an extra set of all the seals just in case.
Brian, have done any of these tac glide kits?? I've done the cart seals on the old twin spring showas and I used a 17mm
slipdog
Profile picture for user slipdog
Posts
10044
Joined
7/25/2009
Location
Nor Cal, CA US
slipdog 2/6/2016 1:06pm
2/6/2016 1:06pm
Bruce372 wrote:
Brian, have done any of these tac glide kits?? I've done the cart seals on the old twin spring showas and I used a 17mm
I've seen the kits, but not installed one. My go to right now to pack all 5 seals with the Slick Honey and then I use Torco RSF light shock fluid since it is light viscosity with a very VI. The reduction in stiction over the stock fluid is massive with that combination.
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/6/2016 1:15pm
2/6/2016 1:15pm
That's really interesting. I used that grease too and it made quite a difference. I was thinking of adding some ptfe additive to the fluid also.
slipdog
Profile picture for user slipdog
Posts
10044
Joined
7/25/2009
Location
Nor Cal, CA US
slipdog 2/6/2016 2:01pm
2/6/2016 2:01pm
Some one in the air fork thread said it's the same tool(22mm) as Kawasaki-Rider linked above. Guess I was wrong and need to pay more attention, lol
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/6/2016 2:41pm
2/6/2016 2:41pm
LOL, so now ive heard 19mm, 21mm and 22mm hahsahash
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/6/2016 2:42pm
2/6/2016 2:42pm
guess i am gonna have to take them apart and measure Smile
Kawasaki-rider 2/6/2016 3:35pm
2/6/2016 3:35pm
Bruce372 wrote:
That's really interesting. I used that grease too and it made quite a difference. I was thinking of adding some ptfe additive to the fluid also.
I Dlc coated the inner legs on my sff fork, and that made a HUGE difference in "stickiness" even when you just apply pressure standing still. Definitely worth the money.

Will probably install this kit on next service for my fork, if I'm not going the öhlins/cone valve way, kind of tired in the constant check of pressures.

At least my fork, it's really important the pressures are exactly correct, otherwise it gets choppy and harsh directly. if I leave this fork on, I will get an nitrogen bottle to use for the fork air.
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/7/2016 1:28pm
2/7/2016 1:28pm
9/16 nut, I bored it out to 15mm and it looKS like it will work



sebastianer 2/7/2016 3:09pm
2/7/2016 3:09pm Edited Date/Time 2/7/2016 3:24pm
that is nice bruce, i have order the glide kit and should have it on Friday, but have you guys any tips on how to hold the cartridge rod when unscrewing the glide piston and the same for the nut that bruce is shown, i dont have the fancy vise clamping tool that the guy in the video has ? thanks

Pit Row

See All »
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/7/2016 3:37pm
2/7/2016 3:37pm
sebastianer wrote:
that is nice bruce, i have order the glide kit and should have it on Friday, but have you guys any tips on how to hold...
that is nice bruce, i have order the glide kit and should have it on Friday, but have you guys any tips on how to hold the cartridge rod when unscrewing the glide piston and the same for the nut that bruce is shown, i dont have the fancy vise clamping tool that the guy in the video has ? thanks


It's simple, just take the whole thing out and put the lower jam nut and bottom bolt on. You will then turn two 17mm wrenches against each other
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/7/2016 3:40pm
2/7/2016 3:40pm
On the video they use a plastic seal bullet to protect the seal from the threads, I use pvc electrical tape
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/7/2016 3:45pm
2/7/2016 3:45pm
This is the tool I used to drill out the nut....it's a cool little tool that I use to take the peeens of showa shock shafts without taking too much metal away

Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/8/2016 5:18pm
2/8/2016 5:18pm
Just ordered the kit from ridejbi.com .

JB said it's not worth swapping out the cartridge seal on the damper side .... it's because the skm seals are double lipped, but oem only uses a single lip seal on the damper so using the skf on the damper can actually add a little stiction.

To be honest, I was skipping that side anyway since I am lazy
sebastianer 2/9/2016 3:18am
2/9/2016 3:18am
Bruce372 wrote:
Just ordered the kit from ridejbi.com . JB said it's not worth swapping out the cartridge seal on the damper side .... it's because the skm...
Just ordered the kit from ridejbi.com .

JB said it's not worth swapping out the cartridge seal on the damper side .... it's because the skm seals are double lipped, but oem only uses a single lip seal on the damper so using the skf on the damper can actually add a little stiction.

To be honest, I was skipping that side anyway since I am lazy
ok i should have mine at friday im not sure eather if om gonna change the damper side, only thing that im nervous about is drilling the peelings out
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/10/2016 7:11pm
2/10/2016 7:11pm
The plastic piston insert is too long so the nut won't wind all the way down. See the paper wedged in the gap...

keith101
Profile picture for user keith101
Posts
256
Joined
9/2/2015
Location
AU
keith101 2/11/2016 4:43pm
2/11/2016 4:43pm
Bruce372 wrote:
The plastic piston insert is too long so the nut won't wind all the way down. See the paper wedged in the gap...[img]https://p.vitalmx.com/photos/forums/2016/02/10/123414/s1200_20160210_210953.jpg[/img]
The plastic piston insert is too long so the nut won't wind all the way down. See the paper wedged in the gap...

This is just me, but I'd send it back for a refund if it doesn't fit properly and I also wouldn't assume responsibility for installing it.

I believe the folks at PC won't even sell it to consumers outright. I'm pretty sure they are the only ones to install it. They also have a version of this that may be different than what you just bought.
Bruce372
Profile picture for user Bruce372
Posts
6341
Joined
4/1/2008
Location
US
Bruce372 2/11/2016 5:17pm
2/11/2016 5:17pm
It's just a smidgen off, so when you actually sinch down the cap nut, it seems to tighten fine. Maybe that's how they design it, should be fine.

It's going back together tomorrow.
Kawasaki-rider 2/13/2016 11:17am
2/13/2016 11:17am
Bruce372 wrote:
The plastic piston insert is too long so the nut won't wind all the way down. See the paper wedged in the gap...[img]https://p.vitalmx.com/photos/forums/2016/02/10/123414/s1200_20160210_210953.jpg[/img]
The plastic piston insert is too long so the nut won't wind all the way down. See the paper wedged in the gap...

Is this on a -16 kxf 450? Because it doesn't fit these, my suspension guy tells me there are new parts for this bike coming soon.
