How do I clean motor from staining and oxidation on a ktm

tyigar
Profile picture for user tyigar
Posts
4
Joined
9/16/2020
Location
AU
tyigar
Edited Date/Time 9/24/2020 2:48pm
Hi, i have a ktm 2013 450sxf that I didn’t wash properly before getting work done to the engine which took 2 months, since having it back I have a part of the head which got honed out for a bigger piston which is way cleaner then the rest I currently have a broken hand and cannot ride so looking at scrubbing it right up, I have used autosol aluminium polish and a scouting pad to clean the swing arm up but not really keen on doing that to my motor. Does anyone else have an easier or better way without pulling the motor off the frame?

1
|
Titane
Profile picture for user Titane
Posts
267
Joined
6/24/2017
Location
FR
Titane 9/16/2020 3:15am
9/16/2020 3:15am
Pull motor out, plug all holes. Bring it to a shop who have a vapor blast machine and it will come out new
7
4DAIVIPAI2K5
Profile picture for user 4DAIVIPAI2K5
Posts
916
Joined
12/15/2016
Location
Coshocton, OH US
4DAIVIPAI2K5 9/16/2020 5:49am
9/16/2020 5:49am
I have used meguiars hot rim aluminum wheel cleaner with good results
soggy
Profile picture for user soggy
Posts
4868
Joined
12/3/2018
Location
UT US
Fantasy
3846th
soggy 9/16/2020 6:10am
9/16/2020 6:10am
Simple green/ degreaser and a scotch brite pad, lots of elbow grease. Will be tough with a busted hand though
2
2
kb228
Profile picture for user kb228
Posts
6161
Joined
1/31/2018
Location
Mansfield, OH US
kb228 9/16/2020 6:19am
9/16/2020 6:19am
A dremel with wire wheel attachments in the tight areas and scotch brite for the bigger areas.

The best way to do it is to tear it down and have it vapor blasted. Heres a pic of my engine after i ran it through my vapor blaster.

15

The Shop

See All »
CarlinoJoeVideo
Profile picture for user CarlinoJoeVideo
Posts
7357
Joined
11/30/2013
Location
Portland/Los Angeles, CA US
Fantasy
2339th
CarlinoJoeVideo 9/16/2020 6:43am
9/16/2020 6:43am Edited Date/Time 9/16/2020 6:44am
Titane wrote:
Pull motor out, plug all holes. Bring it to a shop who have a vapor blast machine and it will come out new
I think you have to take the engine apart to a port blast. There’s potential to blast through a gasket if it was together.
1
kb228
Profile picture for user kb228
Posts
6161
Joined
1/31/2018
Location
Mansfield, OH US
kb228 9/16/2020 7:55am
9/16/2020 7:55am
Titane wrote:
Pull motor out, plug all holes. Bring it to a shop who have a vapor blast machine and it will come out new
CarlinoJoeVideo wrote:
I think you have to take the engine apart to a port blast. There’s potential to blast through a gasket if it was together.
X2. Before i built my blaster i thought i could do whole engines. You cant. Once you see how small the beads are you will realize you cant blast an assembled engine - or anything for that matter. The beads are probably .0005” in diameter.
1
Jeremy Macbeth 9/16/2020 8:22am
9/16/2020 8:22am Edited Date/Time 9/16/2020 8:26am
Get a box of these:


I remove the motor from the frame, put it on a stand, plug all the holes, soak it in concentrated SImpleGreen, hose it off, then start scrubbing with Scotch-Brite. It will look brand new and you won't have to use any harsh chemicals or take the motor apart. Takes me about a hour to completely refresh a motor. I've worked on way worse than what you have.

You don't have to remove the motor from the frame, by the way. I would, however, remove the header and radiators/shrouds and tank.
2
mattyhamz2
Profile picture for user mattyhamz2
Posts
10862
Joined
7/6/2015
Location
So Cal, CA US
Fantasy
767th
mattyhamz2 9/23/2020 9:14am
9/23/2020 9:14am
Scotch-brite.

Unfortunately had to deal with this last year after A Day in the Dirt. It was pretty wet, but good! Unfortunately it rained and snowed at my house for almost a week straight and the bike had to sit. By the time I was able to wash it, there was corrosion on the frame and motor. Scotch-brite and elbow grease took care of it.
Rickyisms
Profile picture for user Rickyisms
Posts
4203
Joined
10/5/2017
Location
FL US
Rickyisms 9/23/2020 9:29am
9/23/2020 9:29am
Jeremy Macbeth wrote:
Get a box of these: [img]https://images-na.ssl-images-amazon.com/images/I/51X2UJ-XM-L._AC_.jpg[/img] I remove the motor from the frame, put it on a stand, plug all the holes, soak it in concentrated...
Get a box of these:


I remove the motor from the frame, put it on a stand, plug all the holes, soak it in concentrated SImpleGreen, hose it off, then start scrubbing with Scotch-Brite. It will look brand new and you won't have to use any harsh chemicals or take the motor apart. Takes me about a hour to completely refresh a motor. I've worked on way worse than what you have.

You don't have to remove the motor from the frame, by the way. I would, however, remove the header and radiators/shrouds and tank.
What are you using to plug the holes? I use exhaust plugs where the header comes out and don’t think paper towels would hold up in the smaller areas.
Pirate421
Profile picture for user Pirate421
Posts
1818
Joined
7/26/2015
Location
MA US
Pirate421 9/23/2020 9:55am
9/23/2020 9:55am
Whenever I used scotch brite pads on my engine or frame I’d always soak them in wd40 and they came out great
1
ctbale
Profile picture for user ctbale
Posts
1088
Joined
1/4/2014
Location
Gustavus, AK US
ctbale 9/23/2020 12:49pm
9/23/2020 12:49pm Edited Date/Time 9/23/2020 12:53pm
Soak it with WD40

Ride it

Repeat.

That clamp on the coolant hose looks like its cutting into the hose? Might just be the angle
kb228
Profile picture for user kb228
Posts
6161
Joined
1/31/2018
Location
Mansfield, OH US
kb228 9/23/2020 6:54pm
9/23/2020 6:54pm
Pirate421 wrote:
Whenever I used scotch brite pads on my engine or frame I’d always soak them in wd40 and they came out great
Heres a tip for your frame i got from AC’s mechanic. Use steel wool instead of scotch brite. I use 00 steel wool with wd40 and it turns out great
TheGetFresh
Profile picture for user TheGetFresh
Posts
1649
Joined
8/12/2015
Location
COOL GY
Fantasy
2551st
TheGetFresh 9/23/2020 7:11pm
9/23/2020 7:11pm
whatever you do, stay away from acidic cleaners (simple green) and use a cutting oil or wd to polish then clean with a basic 7+pH detergent. I learned the hard way that acidic cleaners will really trash aluminum
tyigar
Profile picture for user tyigar
Posts
4
Joined
9/16/2020
Location
AU
tyigar 9/23/2020 8:31pm
9/23/2020 8:31pm
Thanks guys I’ve had a couple of goes with wd and scotch brite and worked wonders also the aluminium polish worked great on the rims. My hand is broken so making hard to have a good crack at it
garagedog
Profile picture for user garagedog
Posts
841
Joined
4/23/2014
Location
Tulare, CA US
Fantasy
687th
garagedog 9/23/2020 8:51pm
9/23/2020 8:51pm

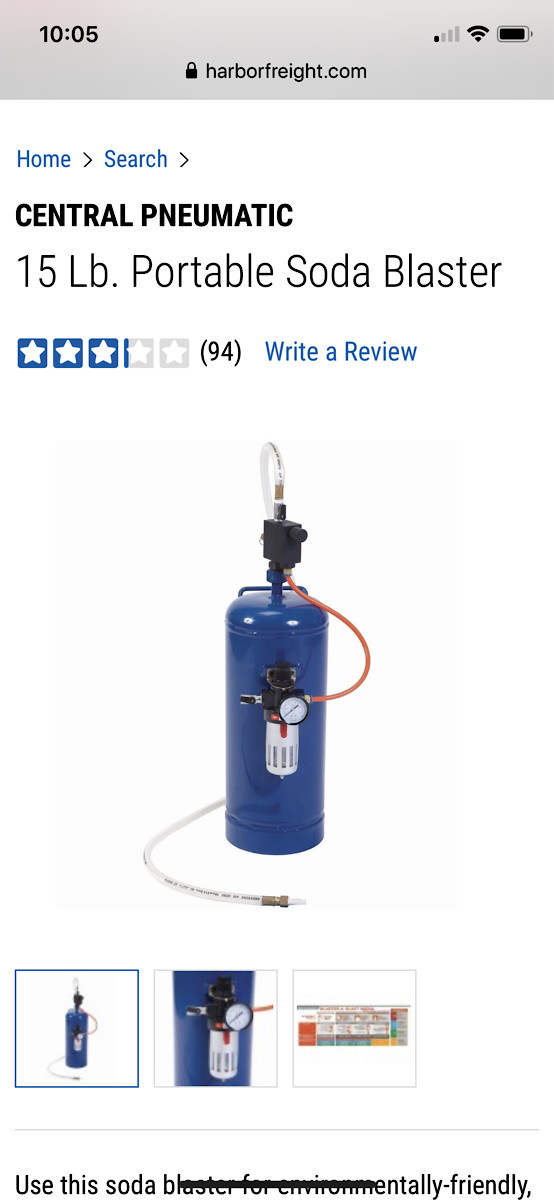

Put baking soda in this Harbor freight tool. No need to remove motor.

Pit Row

See All »
tyigar
Profile picture for user tyigar
Posts
4
Joined
9/16/2020
Location
AU
tyigar 9/23/2020 10:56pm
9/23/2020 10:56pm
garagedog wrote:
Put baking soda in this Harbor freight tool. No need to remove motor. [img]https://shop.harborfreight.com/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/9/5/95793_I.jpg[/img]
Put baking soda in this Harbor freight tool. No need to remove motor.

Where do I get one of these from in aus or online
Pink
Profile picture for user Pink
Posts
161
Joined
1/31/2020
Location
Greenville, SC US
Pink 9/24/2020 3:05am
9/24/2020 3:05am
Lime
1
ge217
Profile picture for user ge217
Posts
715
Joined
12/4/2013
Location
Vero Beach, FL US
ge217 9/24/2020 6:31am
9/24/2020 6:31am
You need to order you a bunch of cross buffing wheels. Attach them to your dremel or air. If you do it by hand, you’ll never get an even finish and you’ll always see the spots you can’t get. The only way to get every spot is blasting, cross buffing wheels come in second. You can still see some scoring from the buffing wheel, but does give you a nice even finish. Also making the drimmel do the hard work. I wouldn’t vapor blast your engine together. Needs to be torn down. I have a machine, the solution gets into everything, plus it wouldn’t be good for your bolts.

Jeremy Macbeth 9/24/2020 1:37pm
9/24/2020 1:37pm Edited Date/Time 9/24/2020 1:39pm
Rickyisms wrote:
What are you using to plug the holes? I use exhaust plugs where the header comes out and don’t think paper towels would hold up in...
What are you using to plug the holes? I use exhaust plugs where the header comes out and don’t think paper towels would hold up in the smaller areas.
Various sized rubber plugs/stoppers. Home Depot and similar hardware stores have them. I have a bunch of different sizes that I've kept over the years. I have also used small rubber balloons before for the breather hose and water pump inlet/outlet.

Keep the spark plug in.

I usually stuff a paper towel in the exhaust and intake ports and cover with tape, if possible. You can usually get a ballon around the intake flange.
garagedog
Profile picture for user garagedog
Posts
841
Joined
4/23/2014
Location
Tulare, CA US
Fantasy
687th
garagedog 9/24/2020 2:48pm
9/24/2020 2:48pm
tyigar wrote:
Where do I get one of these from in aus or online
Google "Gravity Feed Blast Gun"

Amazon
