2021 YZ450F Turbo/w E85

The_StreetSweeper
Edited Date/Time 4/26/2022 5:05pm

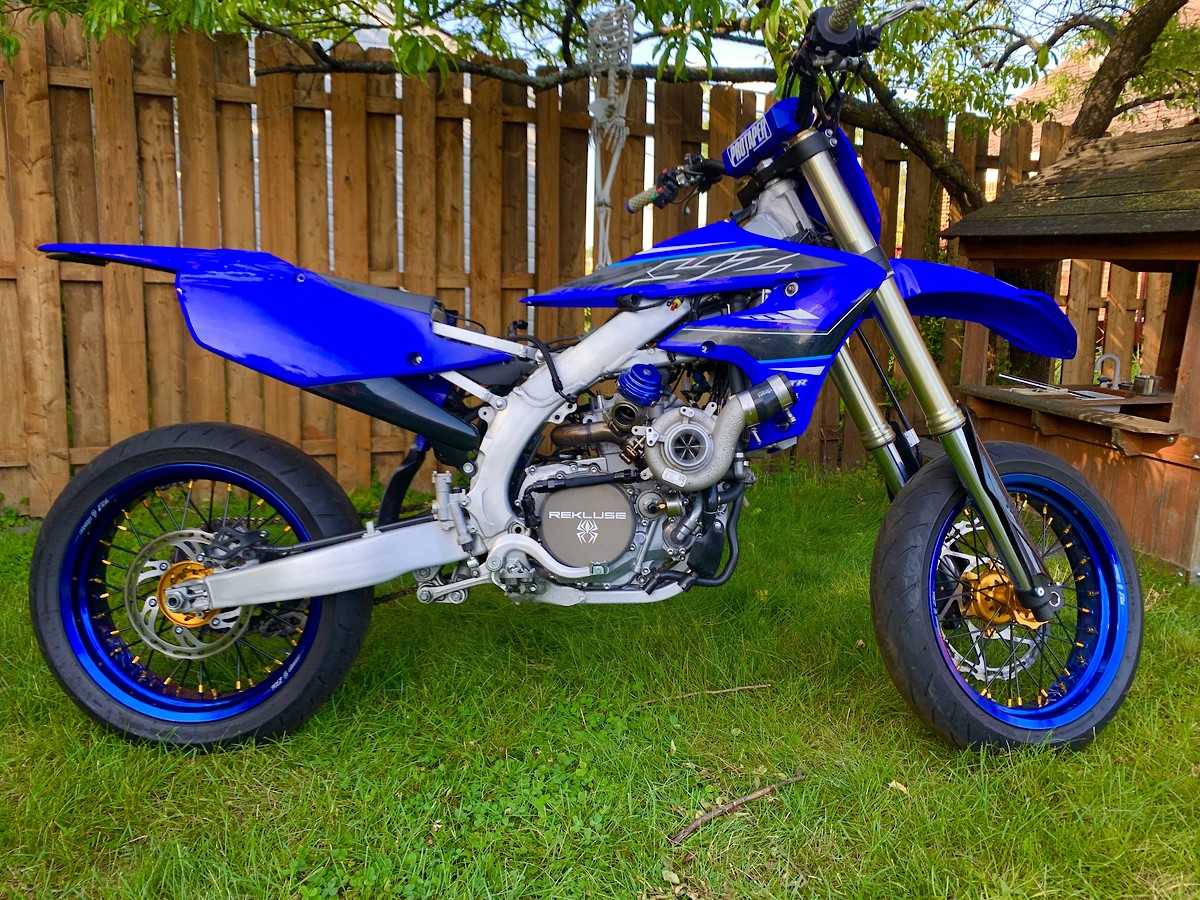

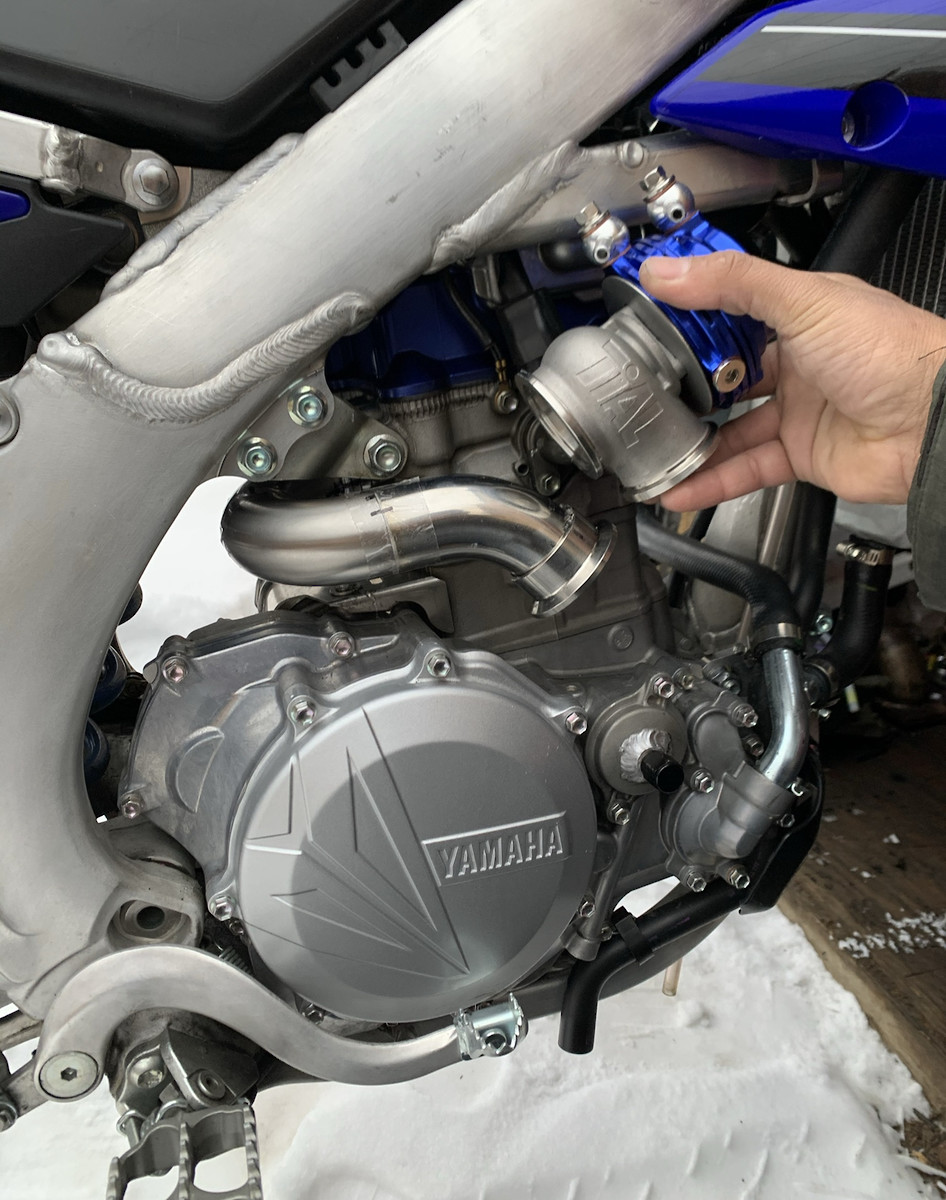

Sup guys haven’t really been associated with a forum in a bit lol but I figured I’d share my project. Both, my most recent iteration as I’m currently in the midst of building a new, more refined turbo setup, and my current iteration of the turbo build regarding my 2021 YZ450F. For the most part, the bike is a bone stock engine. (However, I did convert it over to E85. I also ran it naturally aspirated on E85 when the only mod was an FmF pipe a little bit before I started the turbo build.) bare with me as I’m still gathering pics as I’m sharing this project a bit late on this forum… I’d like to note that I literally do EVERYTHING with this bike.. Dirt, Supermoto, Sand.. ect it’s literally my “beater” LOL. I also ask that you bare with the fact that placement of certain components was solely for test purposes just to prove out the proof of concept of getting the setup to successfully work. The pics listed below are of my last iteration, the intentions for the new iteration is to contain all piping within the frame rails and NOT compromise any form of riding. It is most important to me to still be able to do ANYTHING with the bike.
I’d also like to note that I pretty much document everything on YouTube. Check out my video below when you guys get a chance.

https://youtu.be/ww2JBqSfQ1Y















24
6
|
The_StreetSweeper 4/20/2022 9:24am
4/20/2022 9:24am

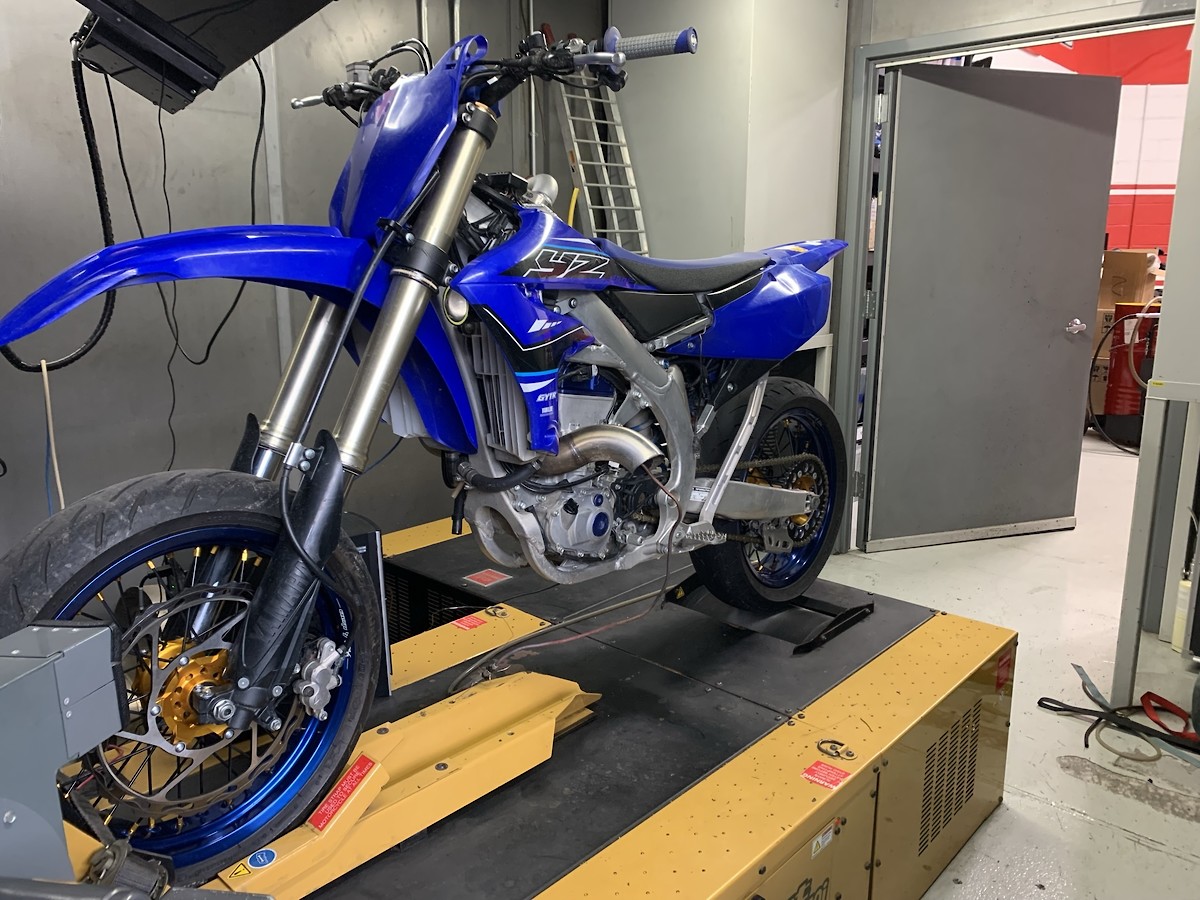

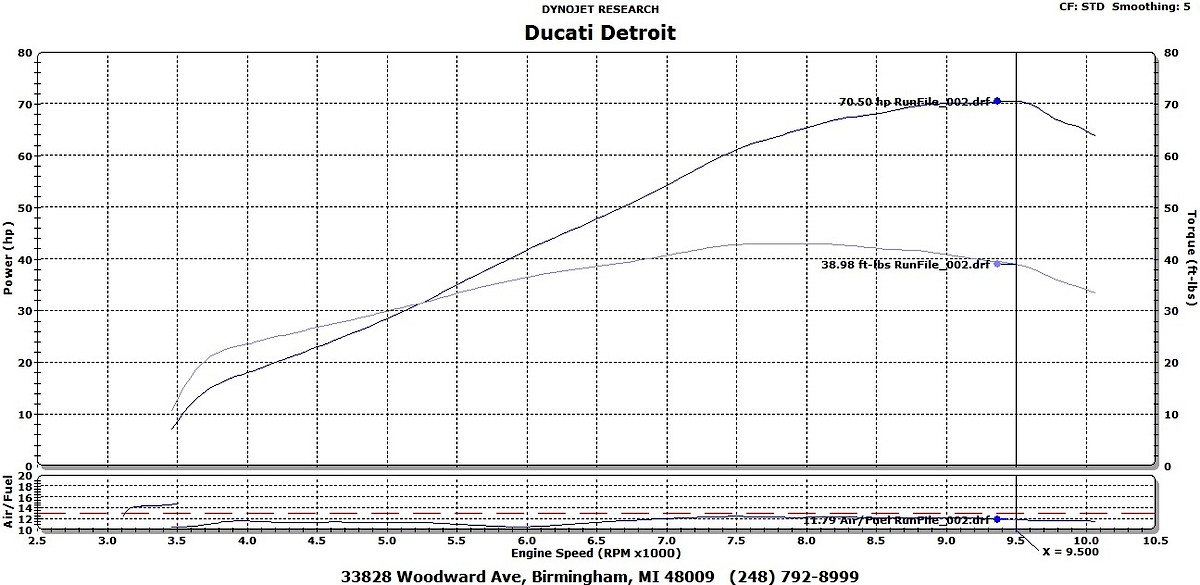

However I did have the opportunity to have the Bike dynoed at my local Ducati dealership that has an in-house Dyno right before A buddy and I took our bikes down to DURHAMTOWN this past December. On 6 psi with literally Zero timing/ no timing advance
(Powertuner app completely zeroed out) the bike put down 70.5hp on pump E85.
The only thing that sucks is that pull really wasn’t representative of the tune that I ran normally, it was a much softer tune up.








21

The Shop

See All »
scott_nz
Profile picture for user scott_nz
Posts
5325
Joined
4/1/2008
Location
NZ
Fantasy
840th
scott_nz 4/20/2022 11:59am
4/20/2022 11:59am
Fuck you would not want to case anything with the piping right in line with your balls

Coool project tho ,
3
Brad460
Profile picture for user Brad460
Posts
3679
Joined
5/15/2012
Location
Richfield, WI US
Fantasy
736th
Brad460 4/20/2022 5:34pm
4/20/2022 5:34pm
crowe660 wrote:
Ever take it off any sweet jumps?
Stop..Laughing
2
Braz
Profile picture for user Braz
Posts
119
Joined
4/1/2008
Location
US
Fantasy
1098th
Braz 4/20/2022 5:52pm
4/20/2022 5:52pm
If you made a kit based on your setup, you’d sell the shit out of it to the snow bike guys.
4
2
Timo
Profile picture for user Timo
Posts
786
Joined
1/9/2021
Location
Wichita, KS US
Timo 4/20/2022 5:58pm
4/20/2022 5:58pm
Just an FYI, the power tuning app set to zeros is stock, so there's plenty of timing advance on both maps.
Adam43
Profile picture for user Adam43
Posts
3185
Joined
8/16/2006
Location
WF
Adam43 4/20/2022 7:20pm
4/20/2022 7:20pm
That's pretty cool, in a frankenstein kinda way.

Curious what type of top end and crank life you'll get.
kott0n
Profile picture for user kott0n
Posts
674
Joined
10/4/2016
Location
Vancouver, WA US
Fantasy
3779th
kott0n 4/20/2022 7:57pm
4/20/2022 7:57pm Edited Date/Time 4/20/2022 7:58pm
TheGetFresh wrote:
Why the switch to E85?
Boosted engines love E85.

It runs much cooler and helps keep the temps down under load. You can also run more timing without knocking.
2
devotid
Profile picture for user devotid
Posts
609
Joined
12/16/2018
Location
Saginaw, MI US
Fantasy
315th
devotid 4/20/2022 9:53pm
4/20/2022 9:53pm
" you know what? I think that could be faster..."

Said no one ever after riding a modern 450. Haha.
8
KONG
Profile picture for user KONG
Posts
783
Joined
9/2/2021
Location
FR
KONG 4/21/2022 9:08am
4/21/2022 9:08am
Watching the video makes you wonder why anybody doing this would need more hp, let alone a turbo...

Cool project though.
Useless, but cool.
1
2
aeffertz
Profile picture for user aeffertz
Posts
9323
Joined
7/16/2015
Location
Eau Claire, WI US
aeffertz 4/21/2022 4:55pm
4/21/2022 4:55pm
That turbo looks massive! No way I’d want a dirt bike to finally hit boost when I was on the face of a jump. Grinning

Crazy project, looks like it was fun to build.
Hammer 663s
Profile picture for user Hammer 663s
Posts
2321
Joined
6/2/2016
Location
Forest Grove, OR US
Hammer 663s 4/21/2022 9:19pm
4/21/2022 9:19pm
You, sir, are insane. And I mean that in the nicest and best possible way!

Hammer
1
1
BIGRIGGIN
Profile picture for user BIGRIGGIN
Posts
353
Joined
12/2/2009
Location
Aromas, CA US
BIGRIGGIN 4/22/2022 12:33am
4/22/2022 12:33am
Nicely engineered turbo upgrade. The chase sexton Q ball helmet is lame though - get a visor asap

Pit Row

See All »
sumdood
Profile picture for user sumdood
Posts
5574
Joined
3/11/2013
Location
San Clemente, CA US
Fantasy
1267th
sumdood 4/22/2022 1:03am
4/22/2022 1:03am
Go dude go ! I’d tell you to pay no attention to the naysayers but you already know that. Keep us in the loop I like it !
1
Coggl
Profile picture for user Coggl
Posts
242
Joined
2/26/2022
Location
AU
Coggl 4/22/2022 4:20am
4/22/2022 4:20am
and people will still try argue that a 2 stroke 500 is faster lmao. This would be scary off road
1
kott0n
Profile picture for user kott0n
Posts
674
Joined
10/4/2016
Location
Vancouver, WA US
Fantasy
3779th
kott0n 4/23/2022 8:42am
4/23/2022 8:42am
Coggl wrote:
and people will still try argue that a 2 stroke 500 is faster lmao. This would be scary off road
Who would of ever guessed that a boosted motor makes more power than a non-boosted motor. What a crazy concept, huh?
2
c0ncEpT
Profile picture for user c0ncEpT
Posts
1270
Joined
5/13/2015
Location
Harrison Twp., MI US
c0ncEpT 4/24/2022 5:18pm
4/24/2022 5:18pm
What do you do for fueling? OEM in-tank pump and a 2nd injector enough for that power level on E85?
Hammer 663s
Profile picture for user Hammer 663s
Posts
2321
Joined
6/2/2016
Location
Forest Grove, OR US
Hammer 663s 4/24/2022 5:49pm
4/24/2022 5:49pm
The_StreetSweeper wrote:

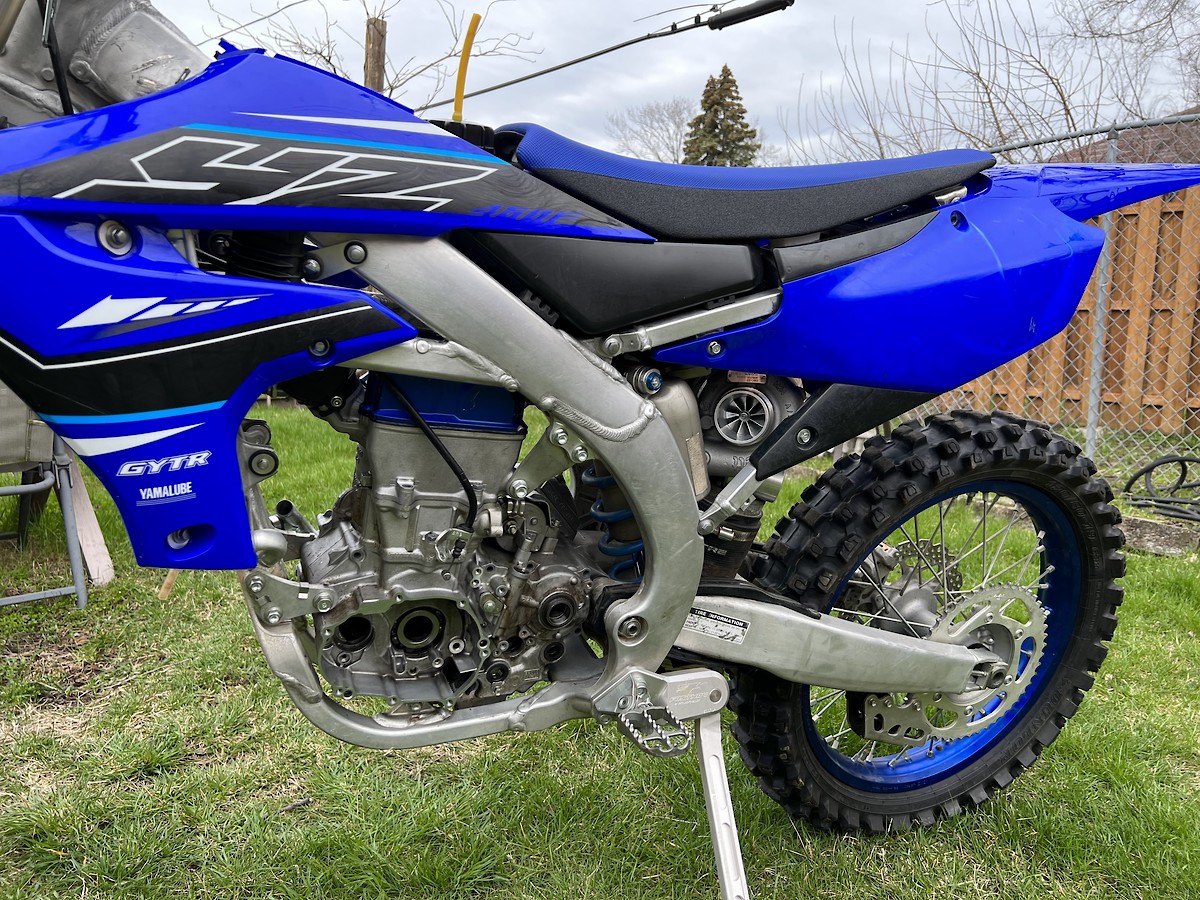

New setup in the making!! 😎 [img]https://p.vitalmx.com/photos/forums/2022/04/24/545743/s1200_8C42DBF0_6B9F_471A_947F_336A053C15A5.jpg[/img] [img]https://p.vitalmx.com/photos/forums/2022/04/24/545742/s1200_7AD9C8E0_B6FD_4DEB_987E_18A8B2577DE7.jpg[/img]
New setup in the making!! 😎

Putting all that heat next to the shock is not gonna end well.
The_StreetSweeper 4/24/2022 9:01pm
4/24/2022 9:01pm
c0ncEpT wrote:
What do you do for fueling? OEM in-tank pump and a 2nd injector enough for that power level on E85?
OEM pump with a larger injector (single injector). I use a larger injector @ lower base Fuel pressure so I can stretch the stock pump out farther
The_StreetSweeper 4/24/2022 9:02pm
4/24/2022 9:02pm
The_StreetSweeper wrote:
New setup in the making!! 😎 [img]https://p.vitalmx.com/photos/forums/2022/04/24/545743/s1200_8C42DBF0_6B9F_471A_947F_336A053C15A5.jpg[/img] [img]https://p.vitalmx.com/photos/forums/2022/04/24/545742/s1200_7AD9C8E0_B6FD_4DEB_987E_18A8B2577DE7.jpg[/img]
New setup in the making!! 😎

Hammer 663s wrote:
Putting all that heat next to the shock is not gonna end well.
Meh.. everything will be ceramic coated which will cut down in heat a ton. Plus the stock thin walled exhaust runs right next to it lol
