500 Two Stroke project. "I hope to end up in 2023"

David934
Profile picture for user David934
Posts
806
Joined
8/17/2016
Location
CZ
David934 1/30/2021 1:45pm
1/30/2021 1:45pm
Hulkteam wrote:

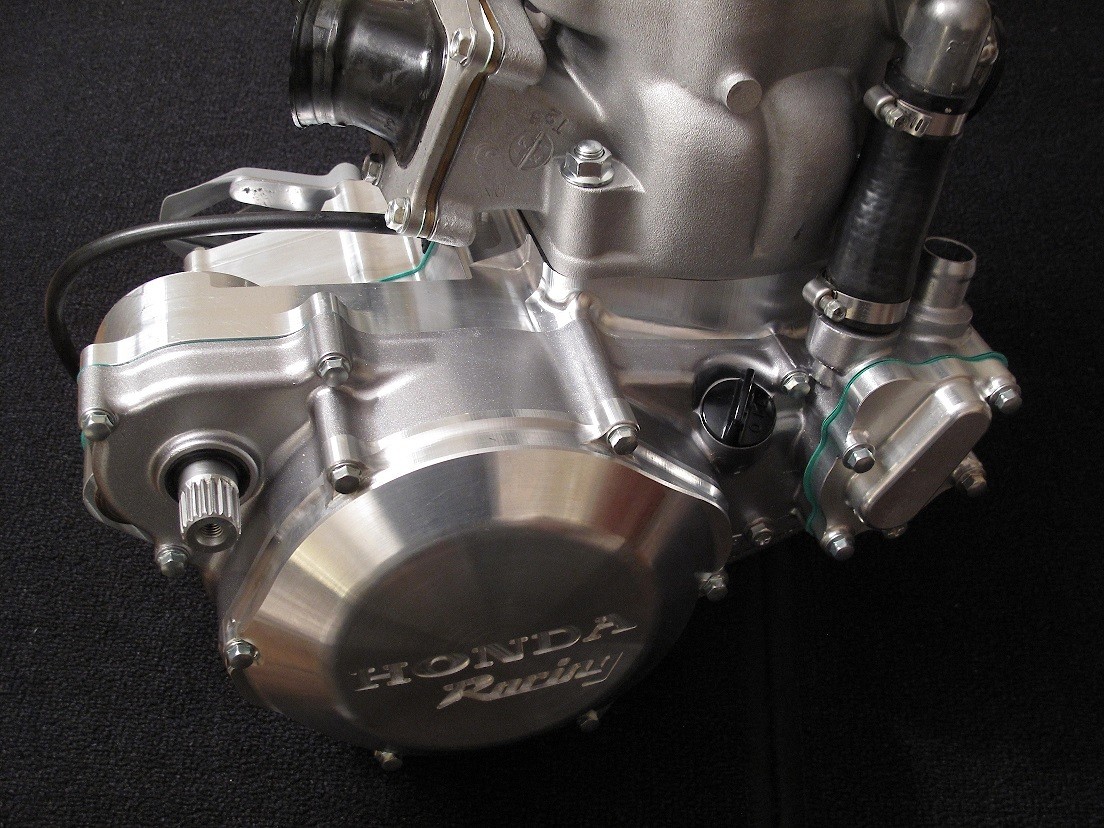

[img]https://p.vitalmx.com/photos/forums/2021/01/03/469706/s1200_assembly_engine2_0019.jpg[/img]

Looks like australian cases fits perfect! Engine looks awesome.
3
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 2/7/2021 4:30am
2/7/2021 4:30am

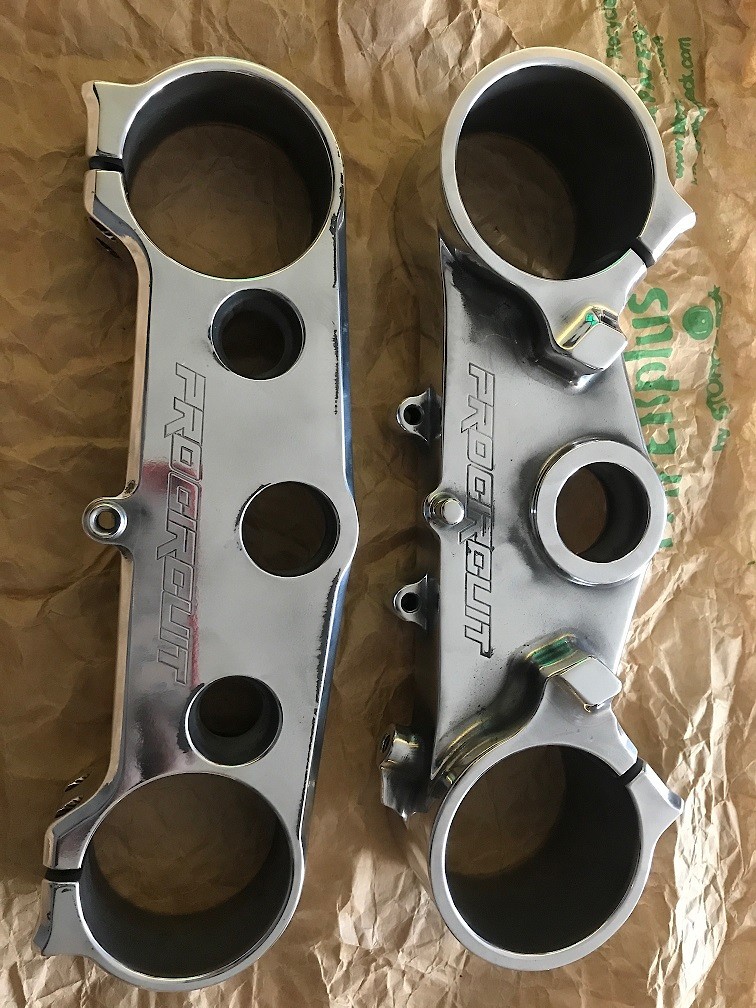

Tokyo_Tiddler, I told you about it a while ago:

Here is the result



= 1740/1742gr



= 1550gr
4
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 2/7/2021 4:33am
2/7/2021 4:33am
So, weight gain. (around 192gr)

Especially since I didn't put all the screws that hold the OEM mounted.
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 2/7/2021 5:03am
2/7/2021 5:03am

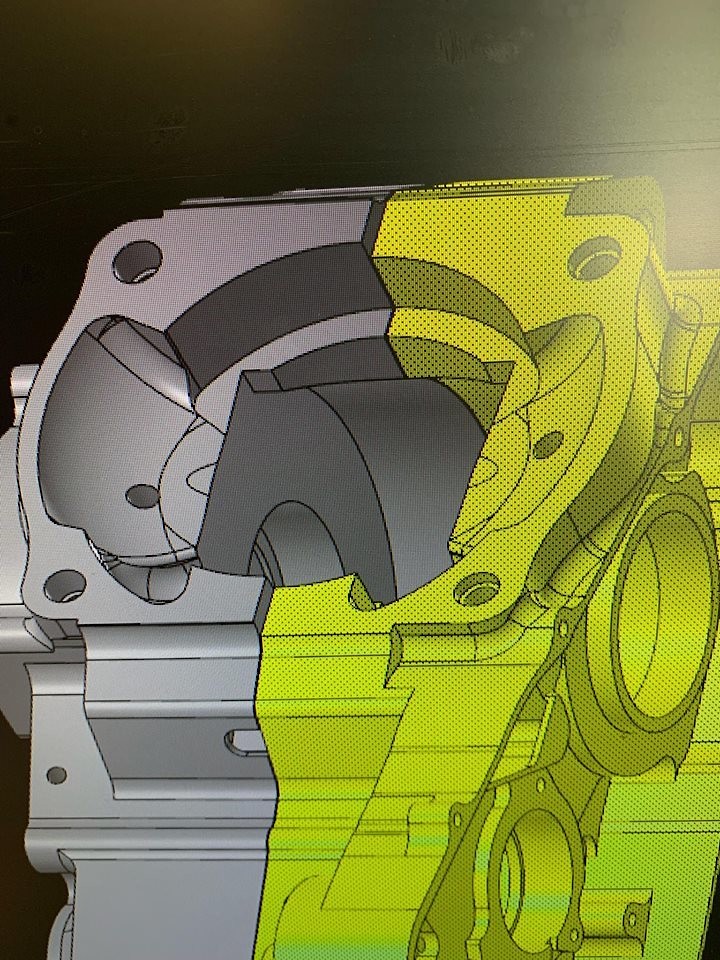

I'm slowly moving forward with the engine assembly with 139mm CWI rod.
Thank you Troy for that!
However, I will be using Andrew's crankcases for this (easier to re-machine).






4

The Shop

See All »
JMX82
Profile picture for user JMX82
Posts
1393
Joined
5/9/2013
Location
Hyllykallio FI
JMX82 2/20/2021 6:45am
2/20/2021 6:45am

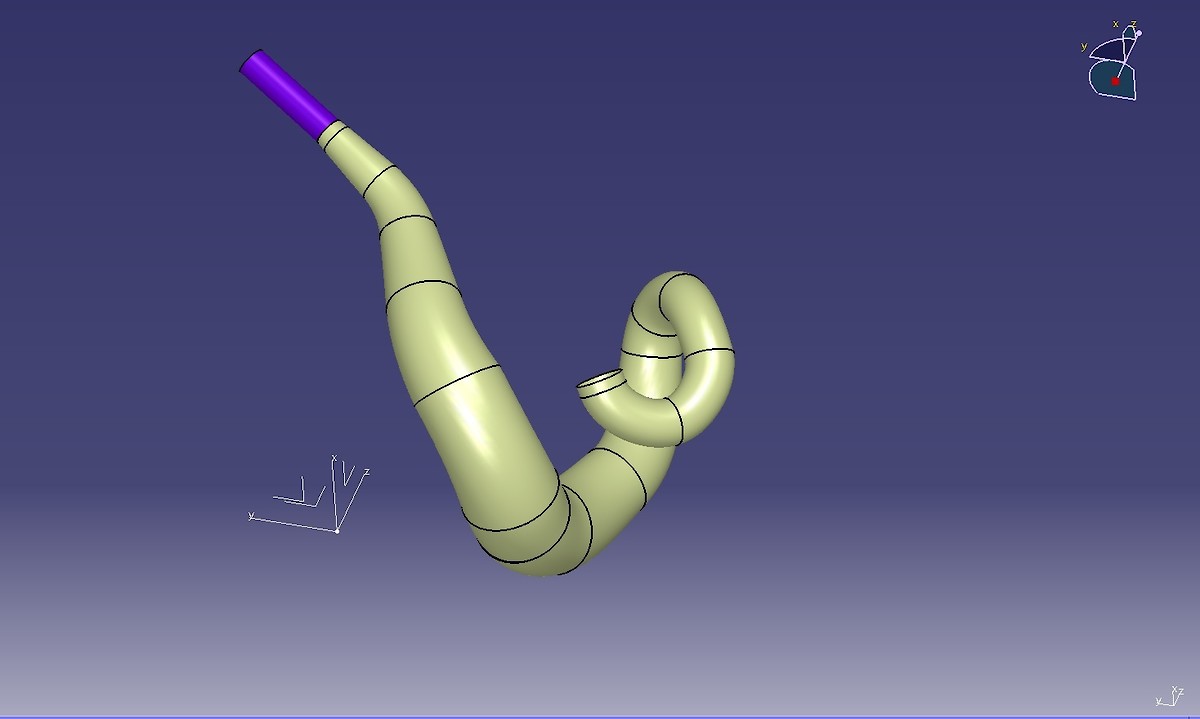

Nice Catia surface model from the exhaust pipe!
2
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 2/21/2021 1:33am
2/21/2021 1:33am Edited Date/Time 2/21/2021 1:49am
JMX82 wrote:
Nice Catia surface model from the exhaust pipe!
Thank you, yes work on the basis of an RC500HRC exhaust to adapt it to the aluminum chassis. ( GSD CATIA V5)

And to be able to reedit it in Steel(0.8mm) and other exotic material...
I also look at the number of cones (45/54 cones????we'll see.).

If people are interested, I will not be against selling copies (They will be able to mounted on Steel and Aluminium frames).
4
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 2/28/2021 6:31am
2/28/2021 6:31am
Hulkteam wrote:
[b]For the cr500 exhaust and why not for the BRC in the future, work on IT is made easier by the situation.[/b] [img]https://p.vitalmx.com/photos/forums/2020/04/30/424469/s1200_Conepipefirst002final.jpg[/img] [img]https://p.vitalmx.com/photos/forums/2020/04/30/424470/s1200_Conepipefirst001final.jpg[/img]
For the cr500 exhaust and why not for the BRC in the future, work on IT is made easier by the situation.




JMX82 wrote:
Nice! I see you are using Catia for exhaust pipe 3D modelling. What Catia version are you using?
I used Catia V5R21.
3

Pit Row

See All »
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 4/26/2021 12:53pm
4/26/2021 12:53pm
DXF!!!! Here we go! This thing was supposed to take me only a few days, will have taken several weeks!!!
2
mxav8r
Profile picture for user mxav8r
Posts
574
Joined
10/26/2006
Location
Atl, GA US
mxav8r 5/4/2021 2:09pm
5/4/2021 2:09pm
Hulkteam wrote:
[img]https://p.vitalmx.com/photos/forums/2021/04/26/489701/s1200_image00.jpg[/img]

Amazing! Such awesome craftsmanship!
3
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 6/11/2021 2:54am
6/11/2021 2:54am
Forming of the last cone before the tail pipe that connects the silencer.





number 52 /52
3
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 6/11/2021 3:08am
6/11/2021 3:08am
For all those who are looking for a capable person for your cr500 or for all those who do not know it yet.

I would recommend without hesitation among the good : "Adam Millar" aka "MRE" "Millar Race Engineering".

In addition to his skills, never stingy with tips and tricks and advice.

Many Thanks also "AJW"..... Ex "SH" and Now Built500.

Manufacture of a tool to install the bearings for the clutch control lever arm.








3
Hulkteam
Profile picture for user Hulkteam
Posts
564
Joined
9/2/2018
Location
FR
Hulkteam 6/11/2021 3:40am
6/11/2021 3:40am
I took opportunity when I do some mechanical work for make few more chips and make front fender washer aluminium.





4
Rickyisms
Profile picture for user Rickyisms
Posts
4246
Joined
10/5/2017
Location
FL US
Rickyisms 6/11/2021 7:44pm
6/11/2021 7:44pm
Hulkteam wrote:
[img]https://p.vitalmx.com/photos/forums/2020/10/28/456488/s1200_Finalswingarm004.jpg[/img]


Incredible build and craftsmanship! Where did you source the colored hardware?
2
Roostius_Maximus 6/11/2021 7:51pm
6/11/2021 7:51pm
Hulkteam wrote:
For all those who are looking for a capable person for your cr500 or for all those who do not know it yet. I would recommend...
For all those who are looking for a capable person for your cr500 or for all those who do not know it yet.

I would recommend without hesitation among the good : "Adam Millar" aka "MRE" "Millar Race Engineering".

In addition to his skills, never stingy with tips and tricks and advice.

Many Thanks also "AJW"..... Ex "SH" and Now Built500.

Manufacture of a tool to install the bearings for the clutch control lever arm.








Thanks for the mention, necessity isn’t the mother of invention lol.

The relieved area on mine is so that these can also be installed after the crank, because it can happen haha.
7
