2013 Yamaha TT-R110E
(discontinued)

Discontinued
s1600 TTR110E RIGHT 2013
c70 TTR110E RIGHT 2013
c70 TTR110E RIGHT ANGLE 2013
c70 TTR110E LEFT 2013

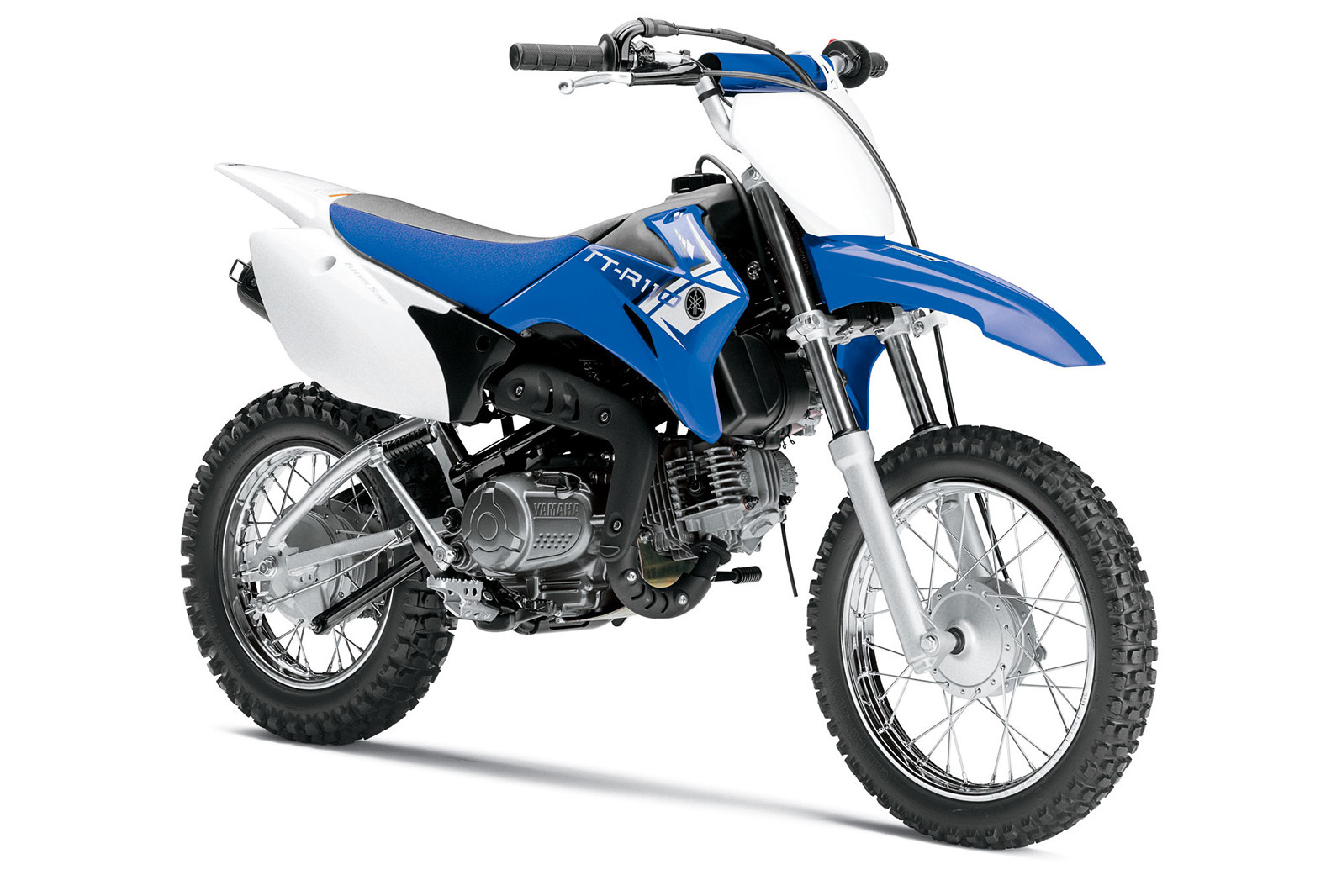

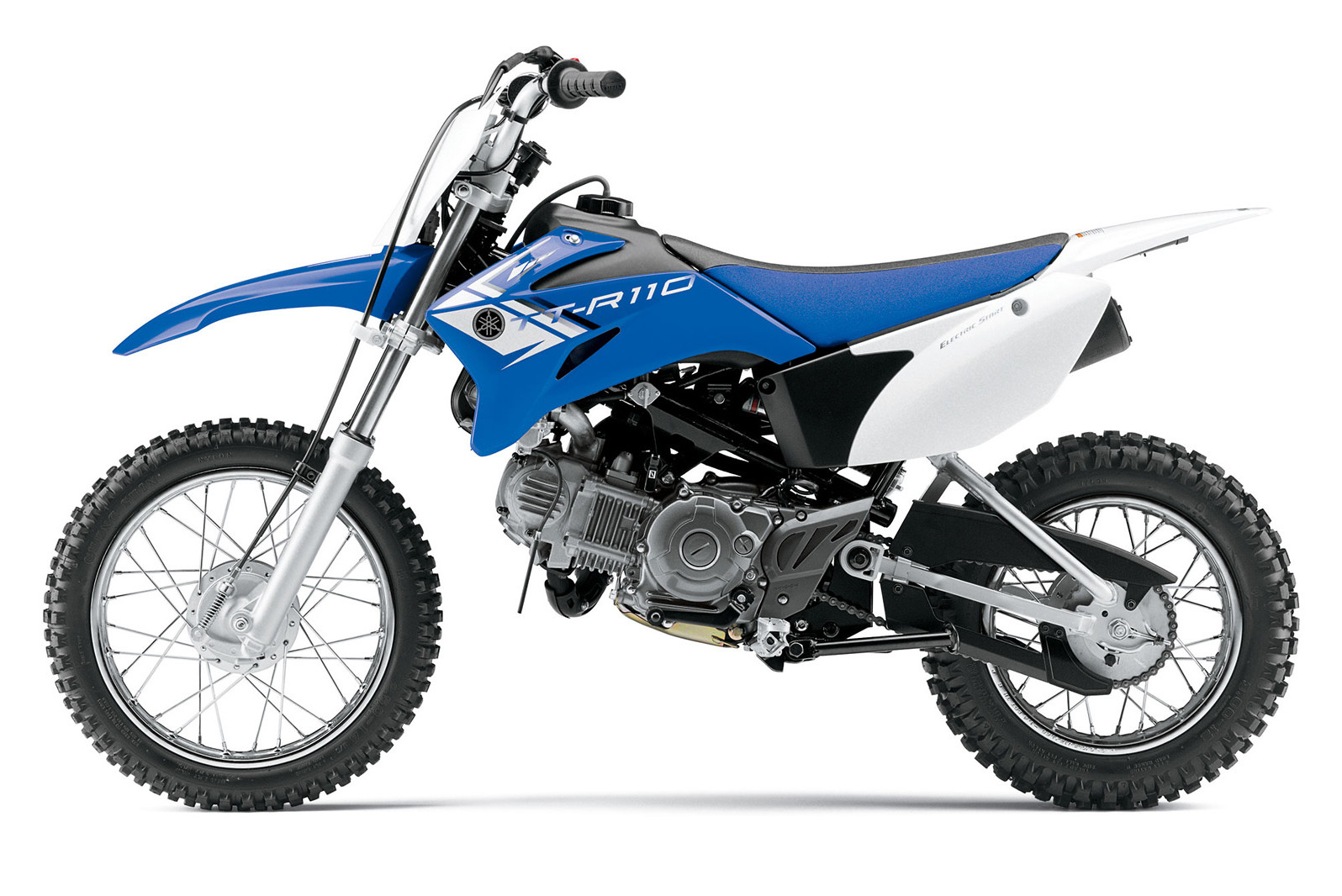

s1600 TTR110E RIGHT 2013 s1600 TTR110E RIGHT ANGLE 2013 s1600 TTR110E LEFT 2013
Related:
Yamaha

Specifications

Product
Yamaha TT-R110E
Model Year
2013
Engine Size
110cc
Engine Type
Two-Stroke
Engine Displacement
110.00 ccm (6.71 cubic inches)
Bore x Stroke
51.0 x 54.0 mm (2.0 x 2.1 inches)
Compression Ratio
9.3:1
Fuel System
Carburettor. Mikuni® VM16
Ignition
CDI
Transmission
4-speed
Final Drive
Chain
Suspension Front
31mm Telescopic fork, coil spring/oil damper, 4.5-in travel
Suspension Rear
Swingarm (Monocross ), coil spring/gas-oil damper, 4.3-in travel
Brakes Front
Expanding brake (drum brake); 95 mm (3.7 inches)
Brakes Rear
Expanding brake (drum brake); 110 mm (4.3 inches)
Tires Front
2.50-14
Tires Rear
3.00-12
Overall Length
1,565 mm (61.6 inches)
Overall Width
681 mm (26.8 inches)
Overall Height
922 mm (36.3 inches)
Seat Height
671 mm (26.4 inches)
Wheelbase
1,080 mm (42.5 inches)
Ground Clearance
180 mm (7.1 inches)
Rake/Trail

Fuel Capacity
3.79 litres (1.00 gallons)
Curb Weight
72.1 kg (159.0 pounds)
Features

Miscellaneous

Price
$2,240.00
