My 2002 cr 125 build complete

Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508
Edited Date/Time 11/6/2017 12:58pm
Long story short I wanted an 02 so I could build this motor. I got my hands on a factory Plano Honda cylinder, head and the complete set up.

The bike 800.00 craigslist beauty!

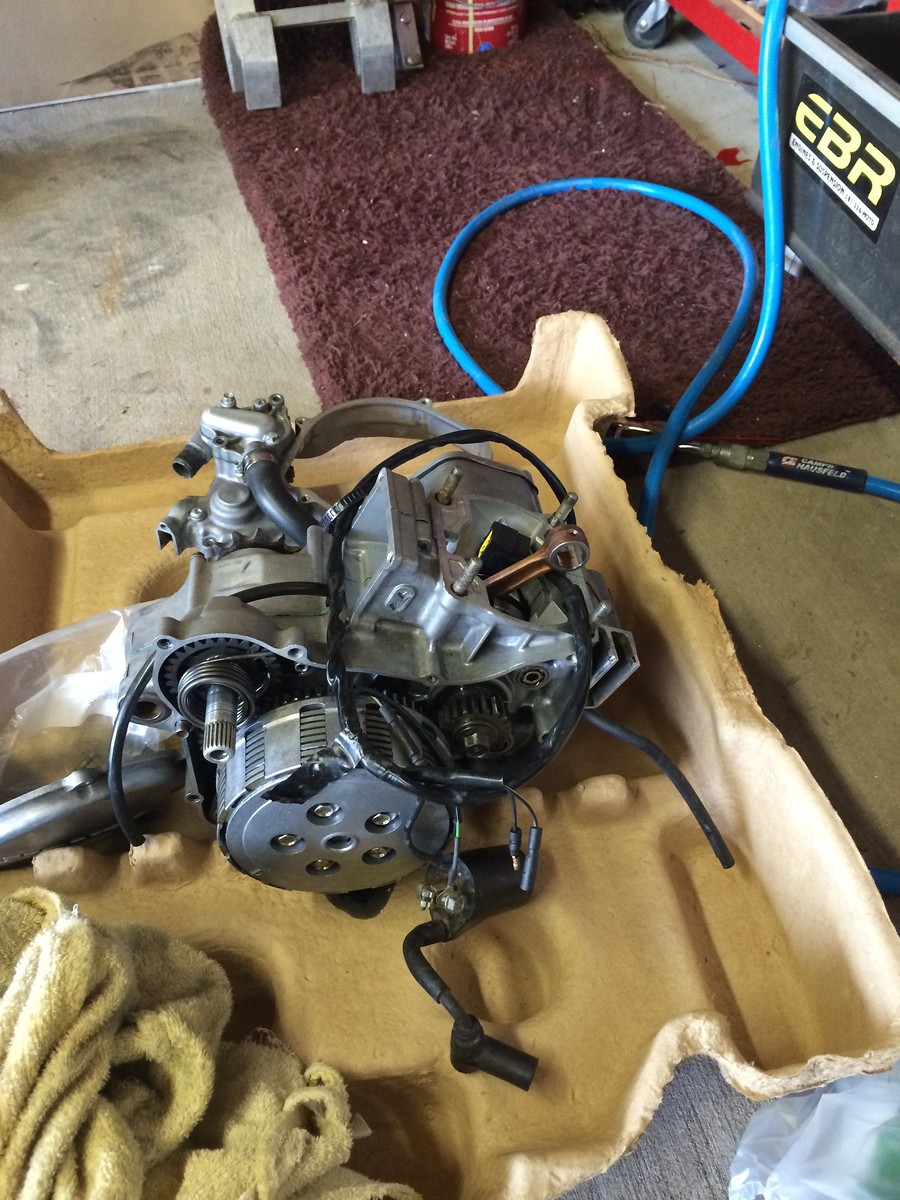

The tear down.

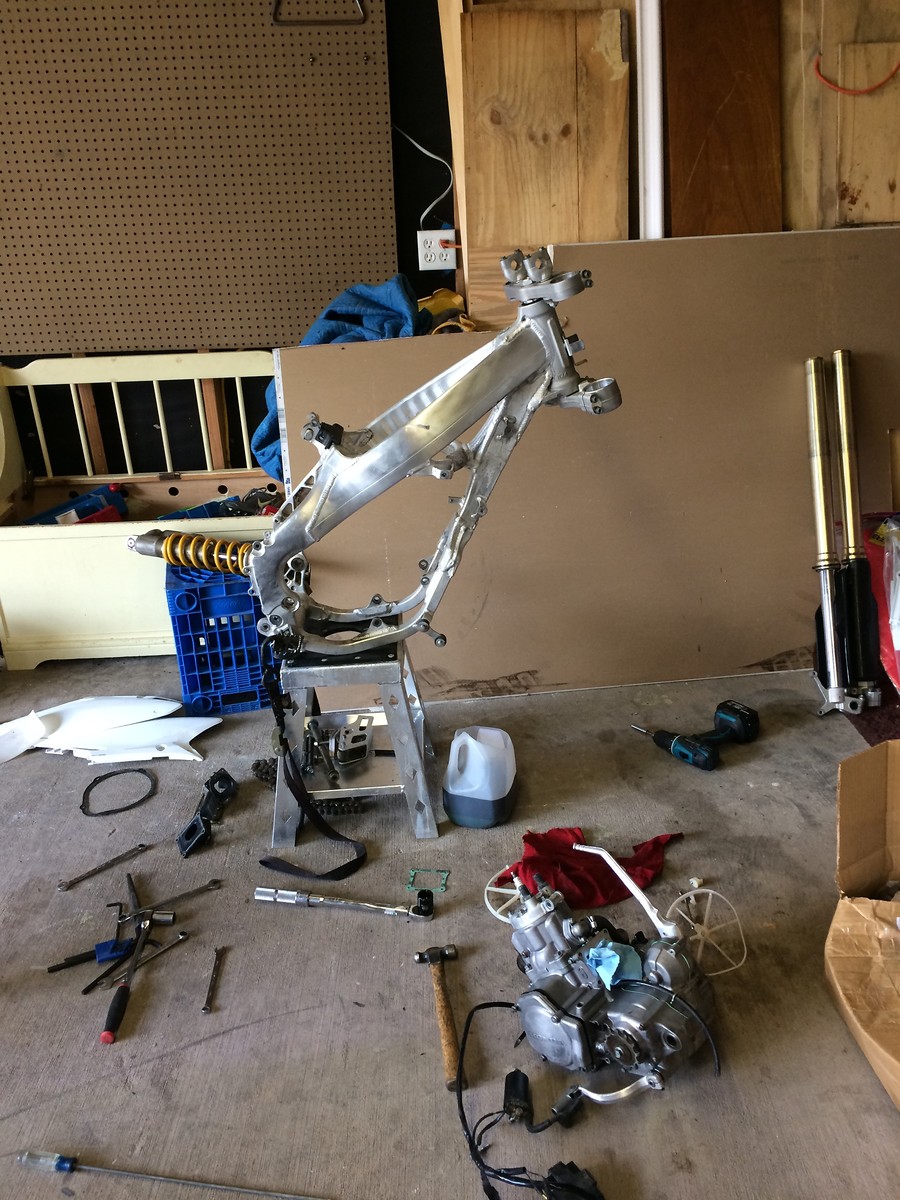

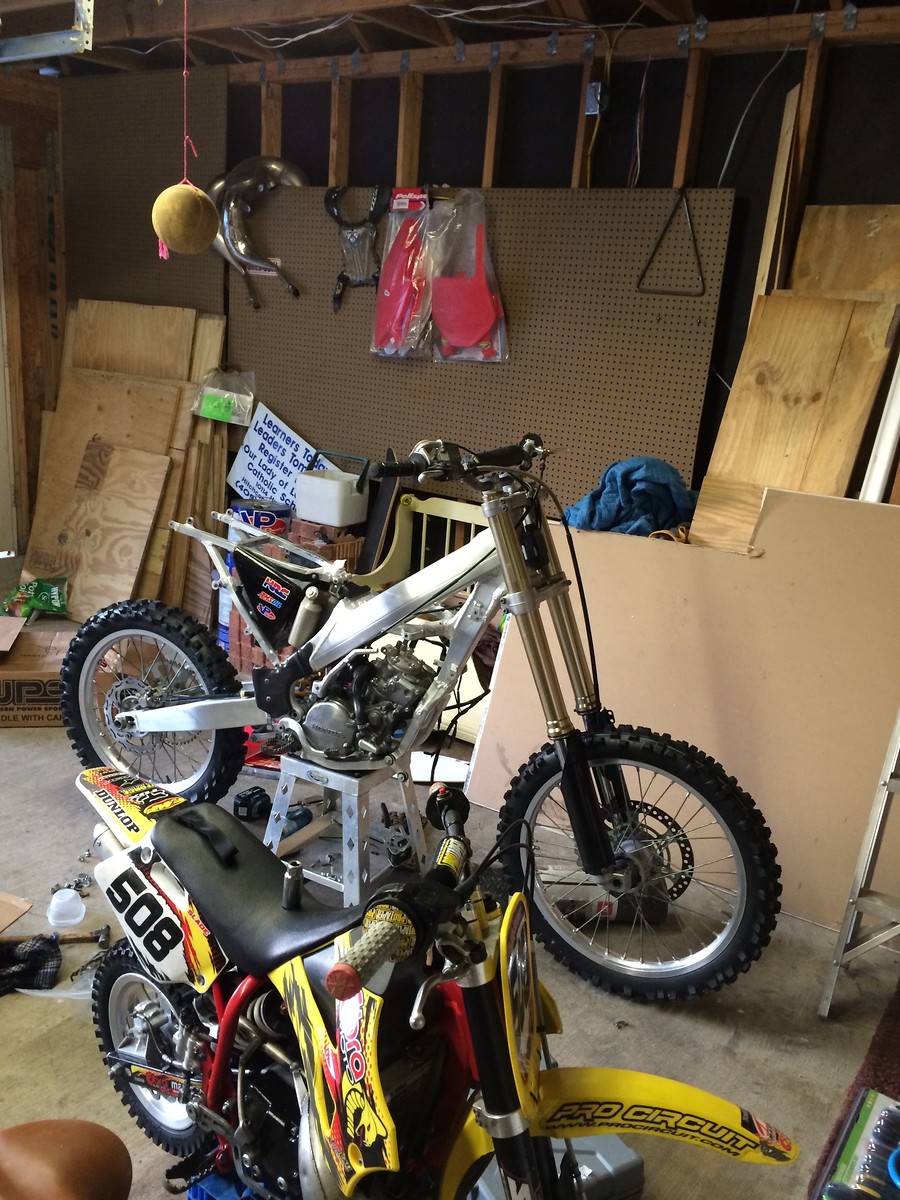

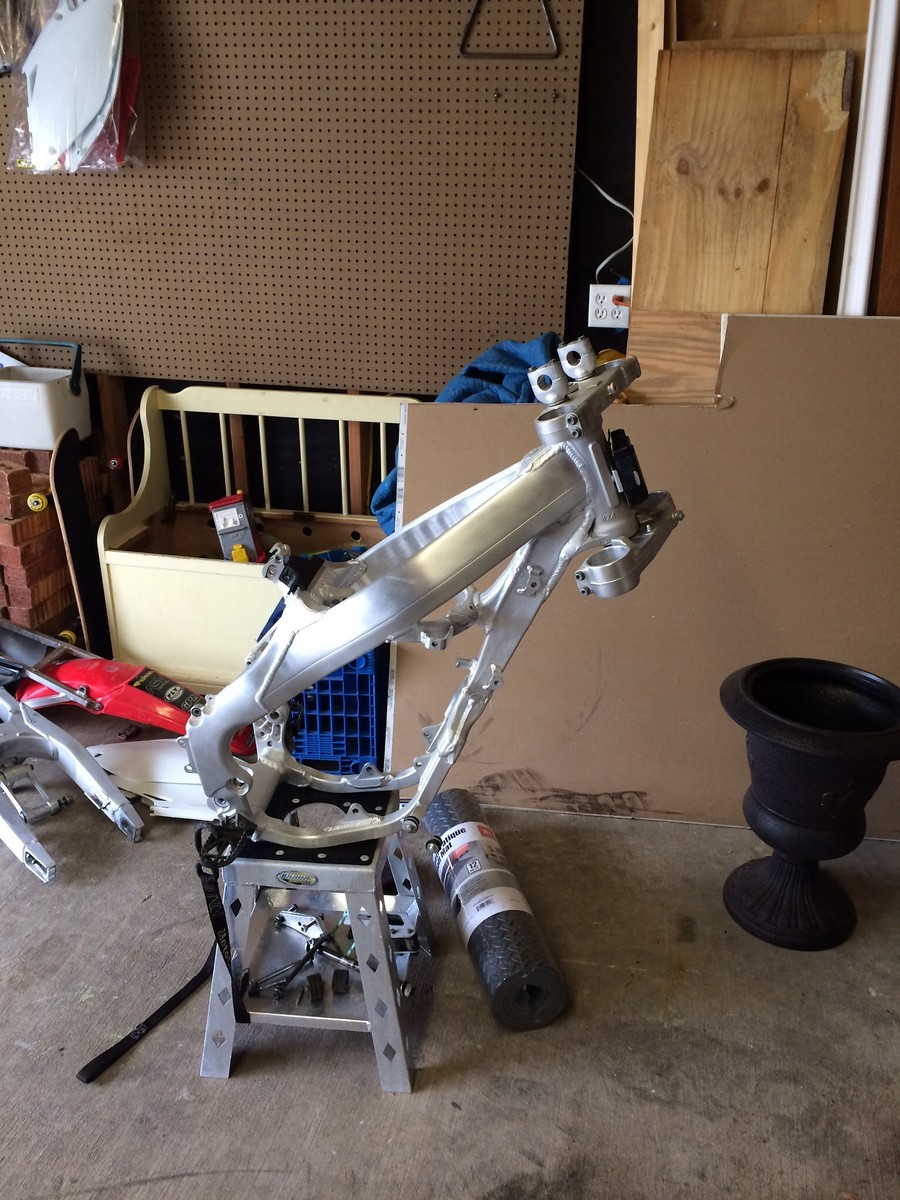

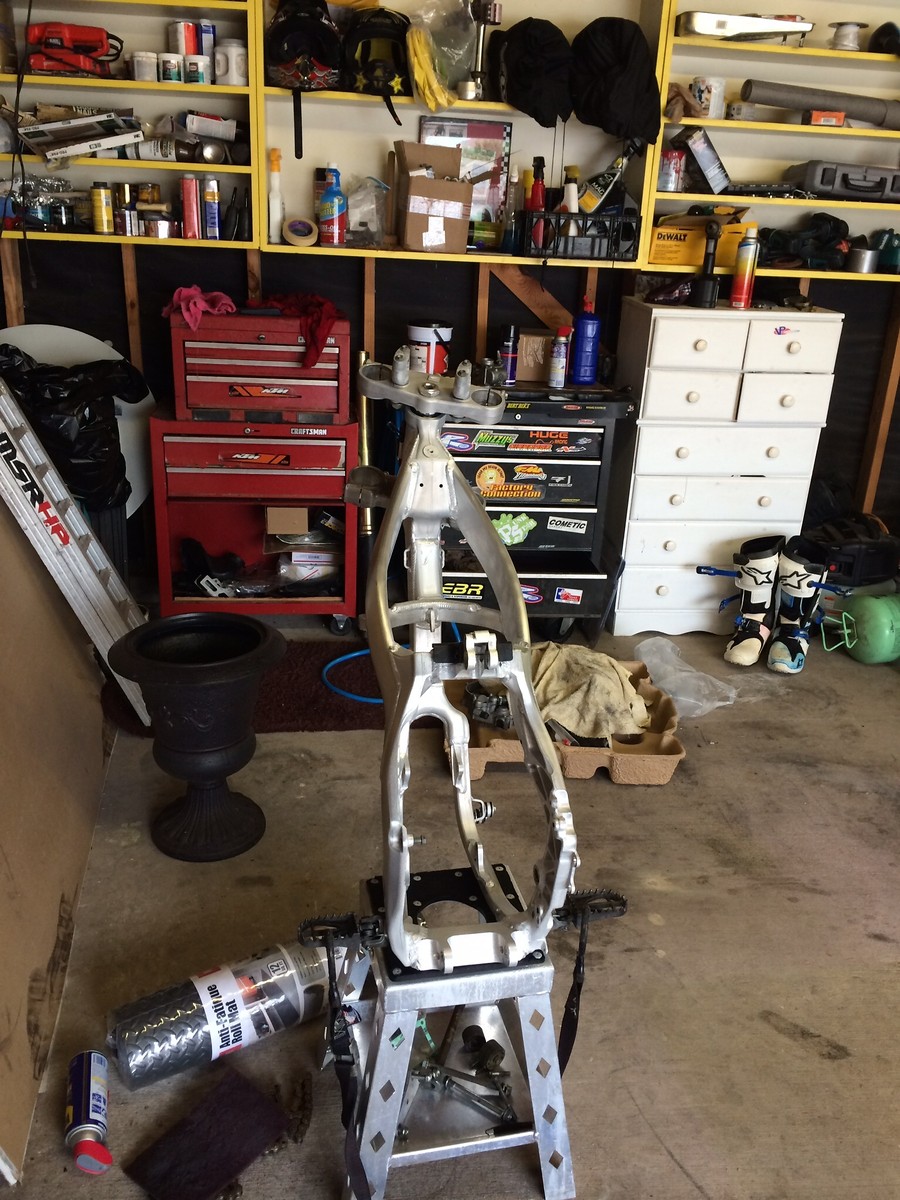

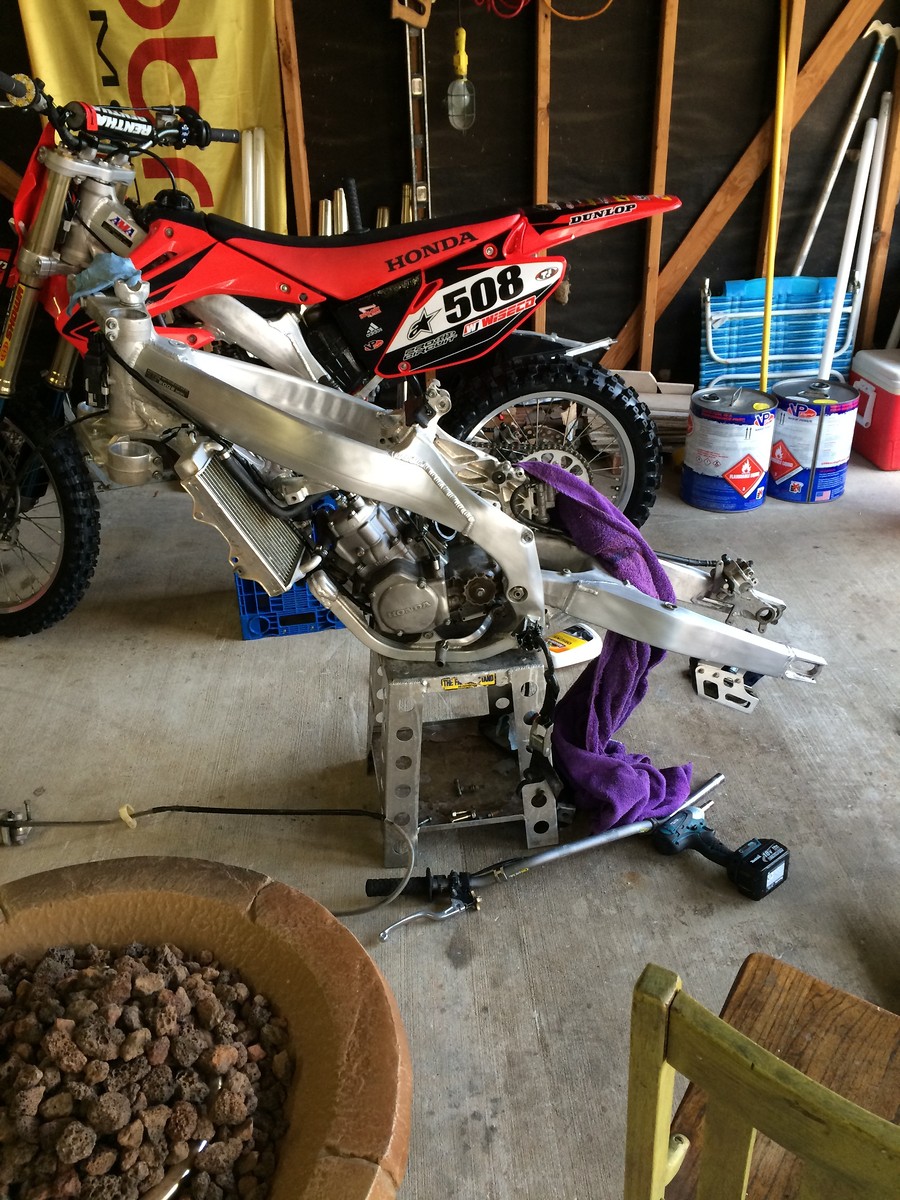

Acid washed frame.




The goodies.

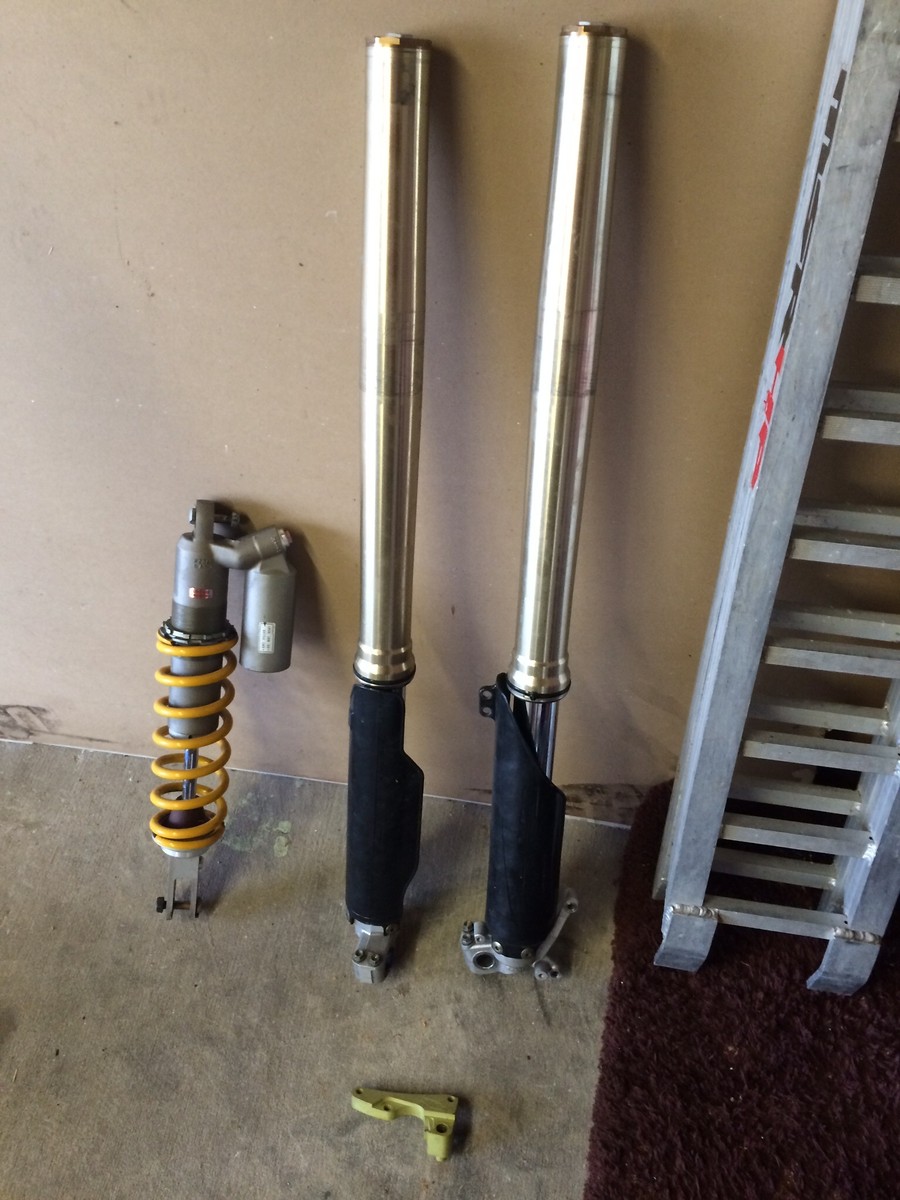

showa suspension

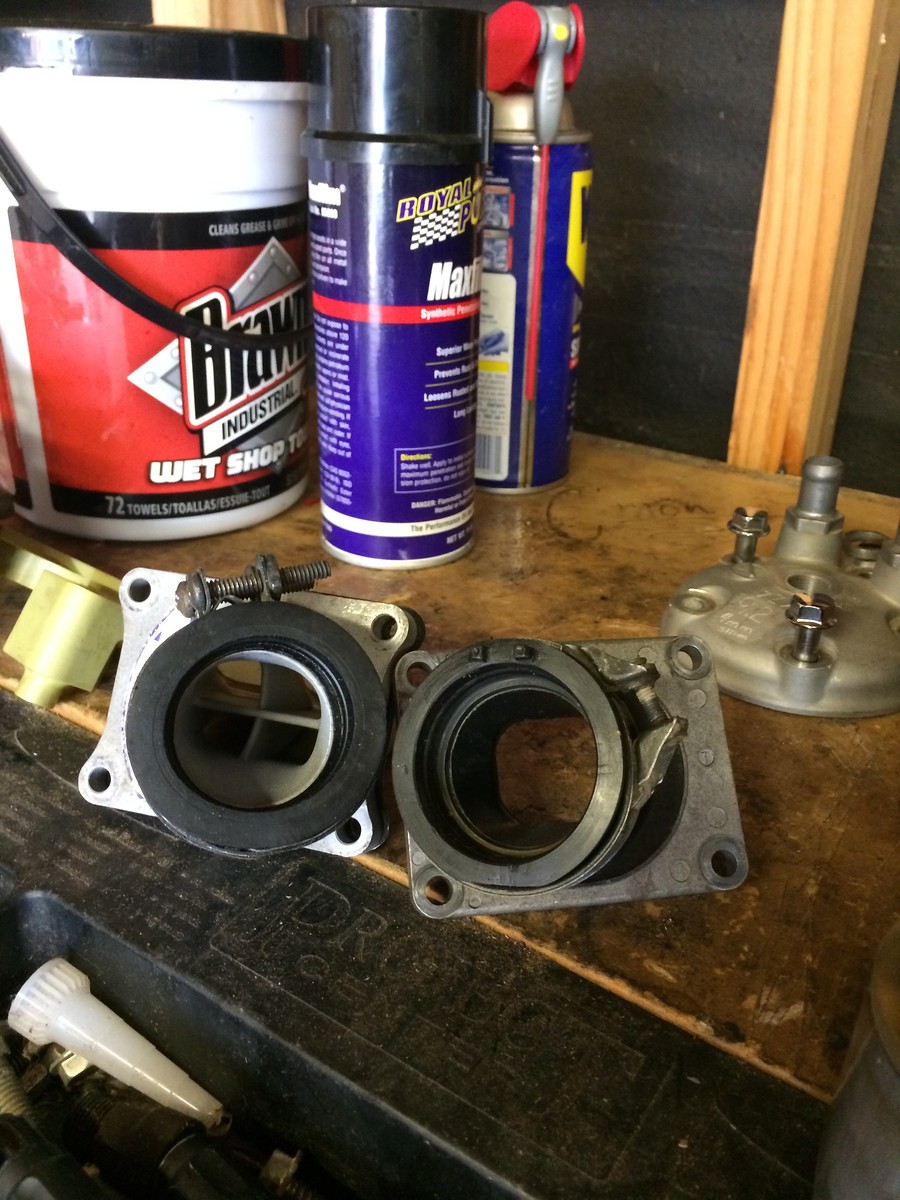

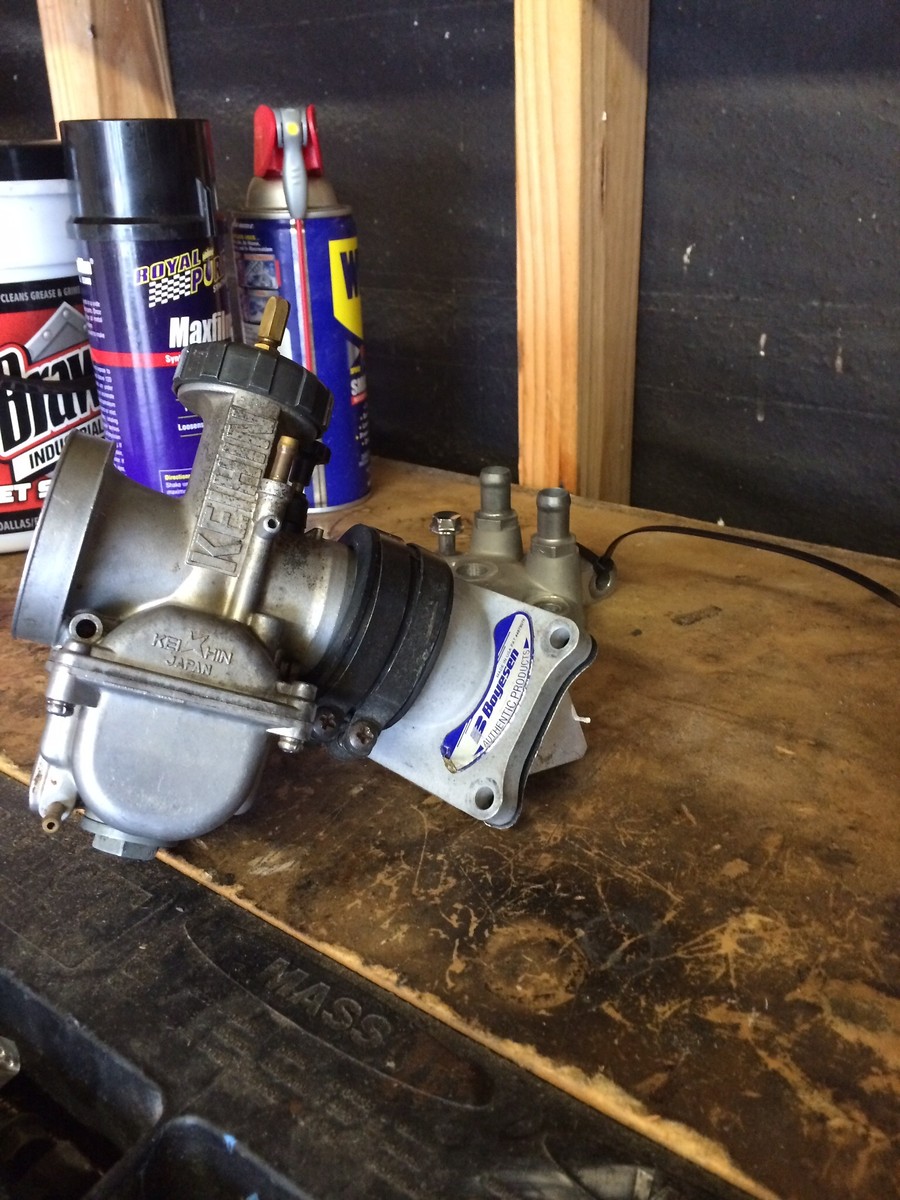

Intake and carb
Keihin 36mm jetted to spec. with Boyesen rad valve and will get a spacer. I also went with a 07 air boot and 1" air vents.

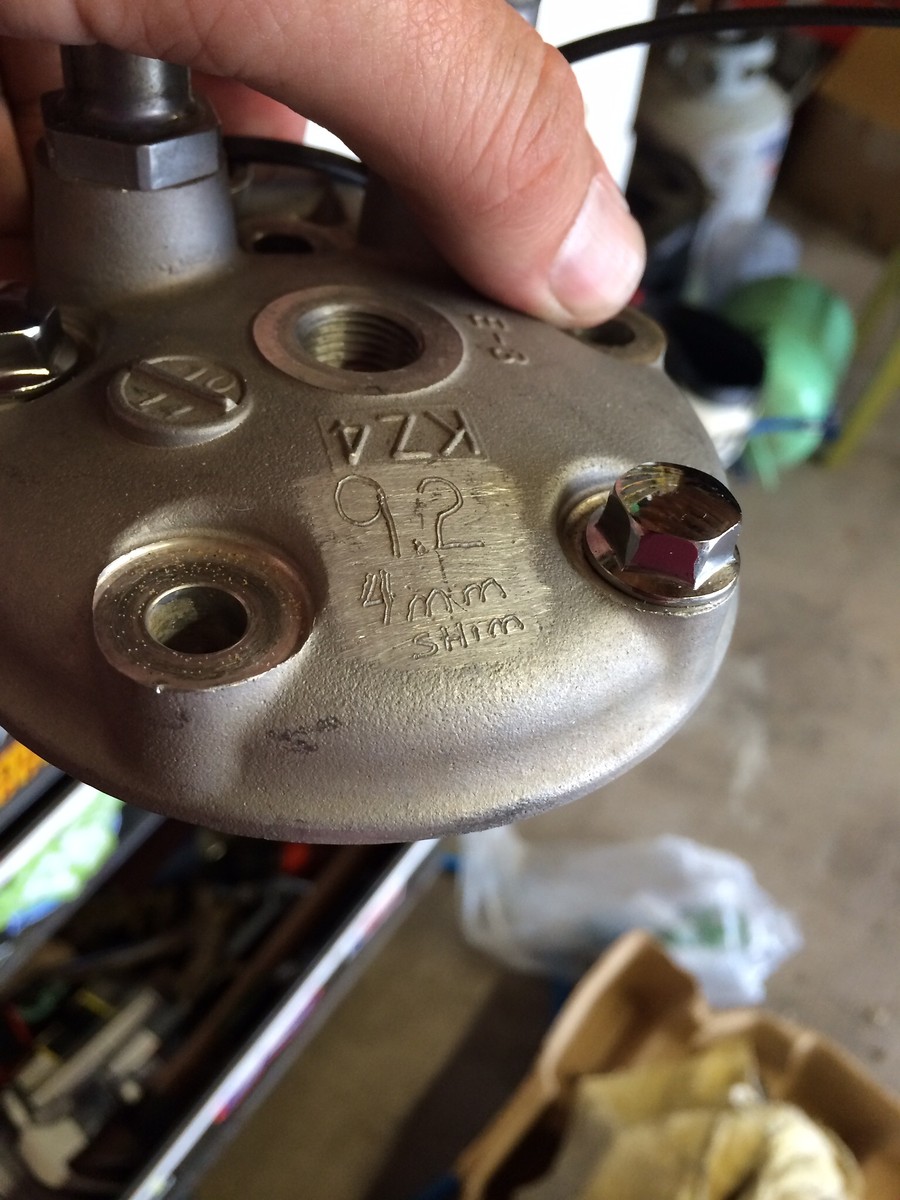

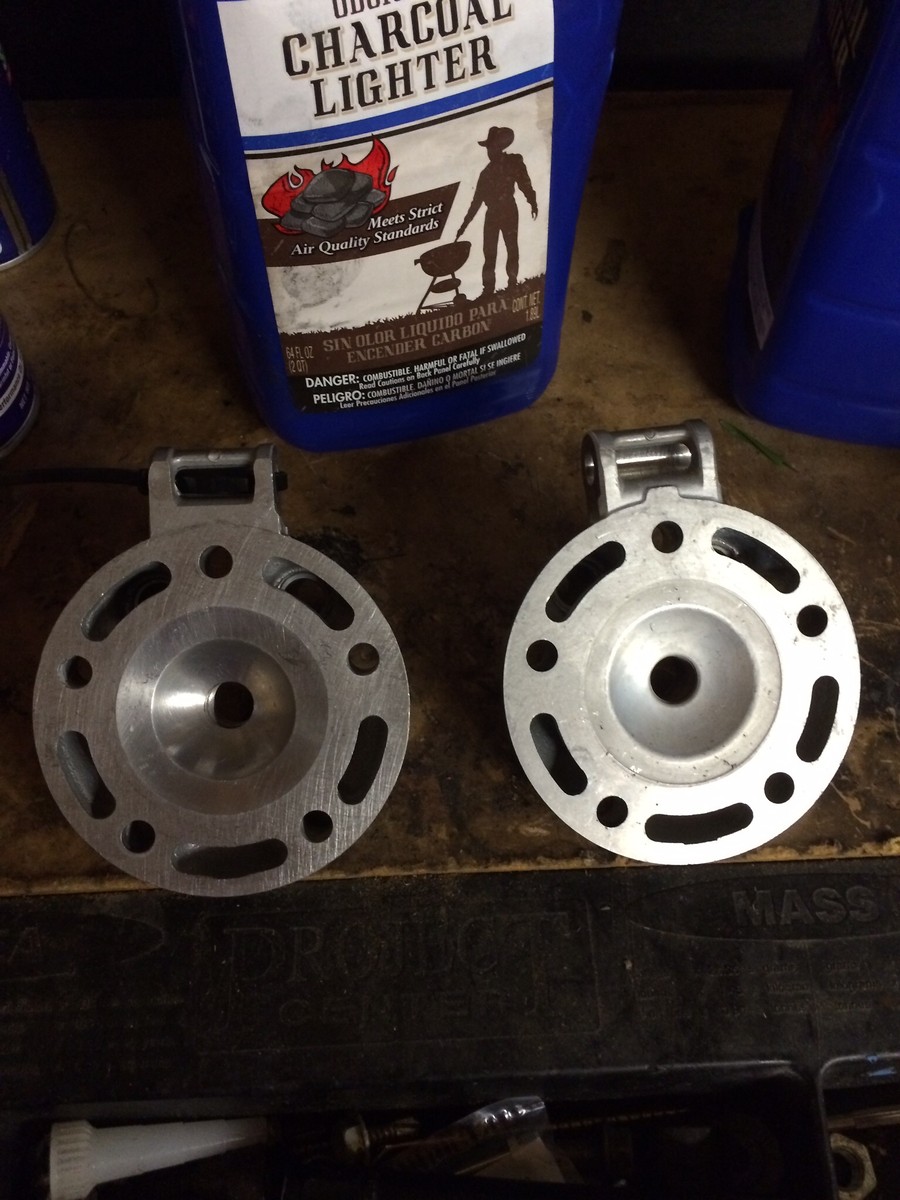

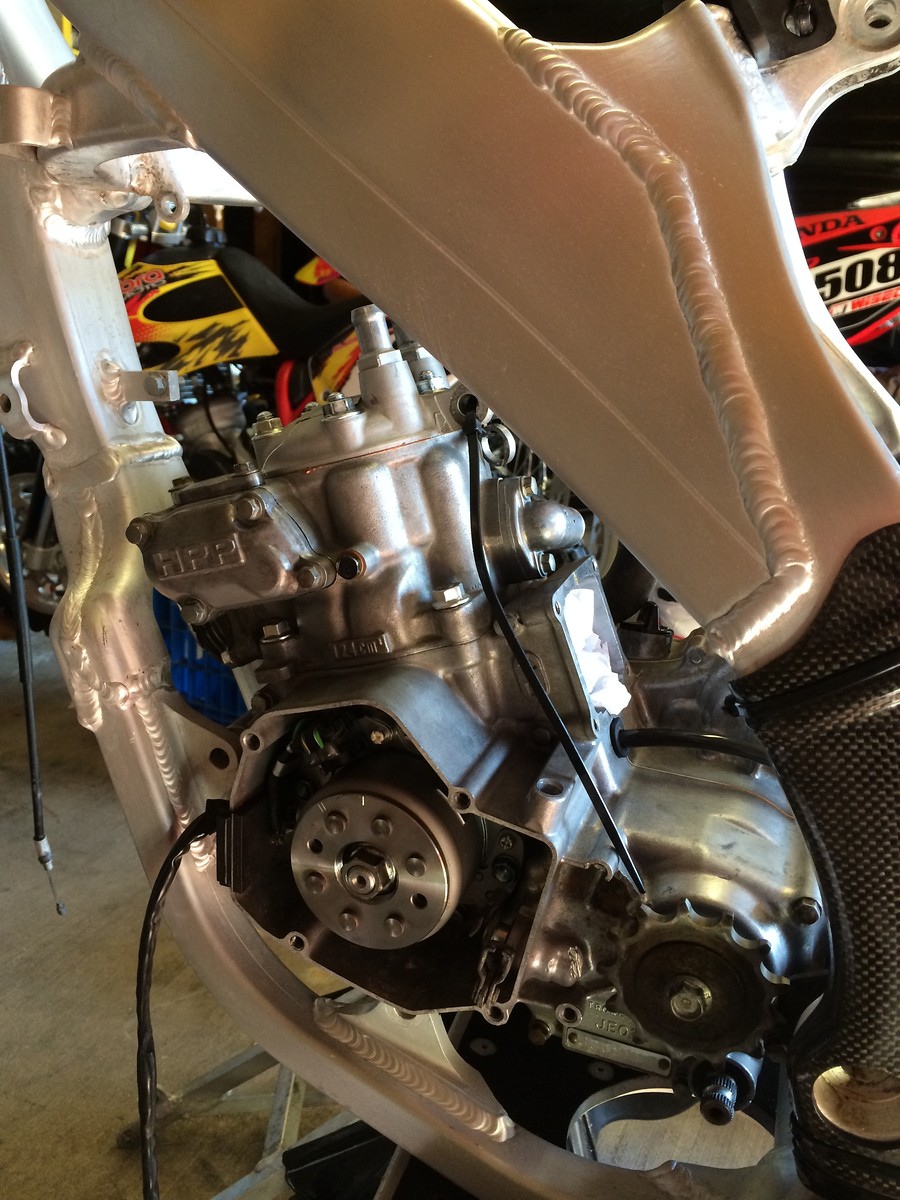

Now the motor. It got a Honda crank and all new bearings. It will be getting the Plano honda (HPP will only work up to an 02 cases. cylinder with a 9.2cc head with a dome crown piston. Bone stock (HPP setup) will give the bike 2hp gain.







I also have a 134cc kit but I wanna got with the stock 125cc bore set up firist.

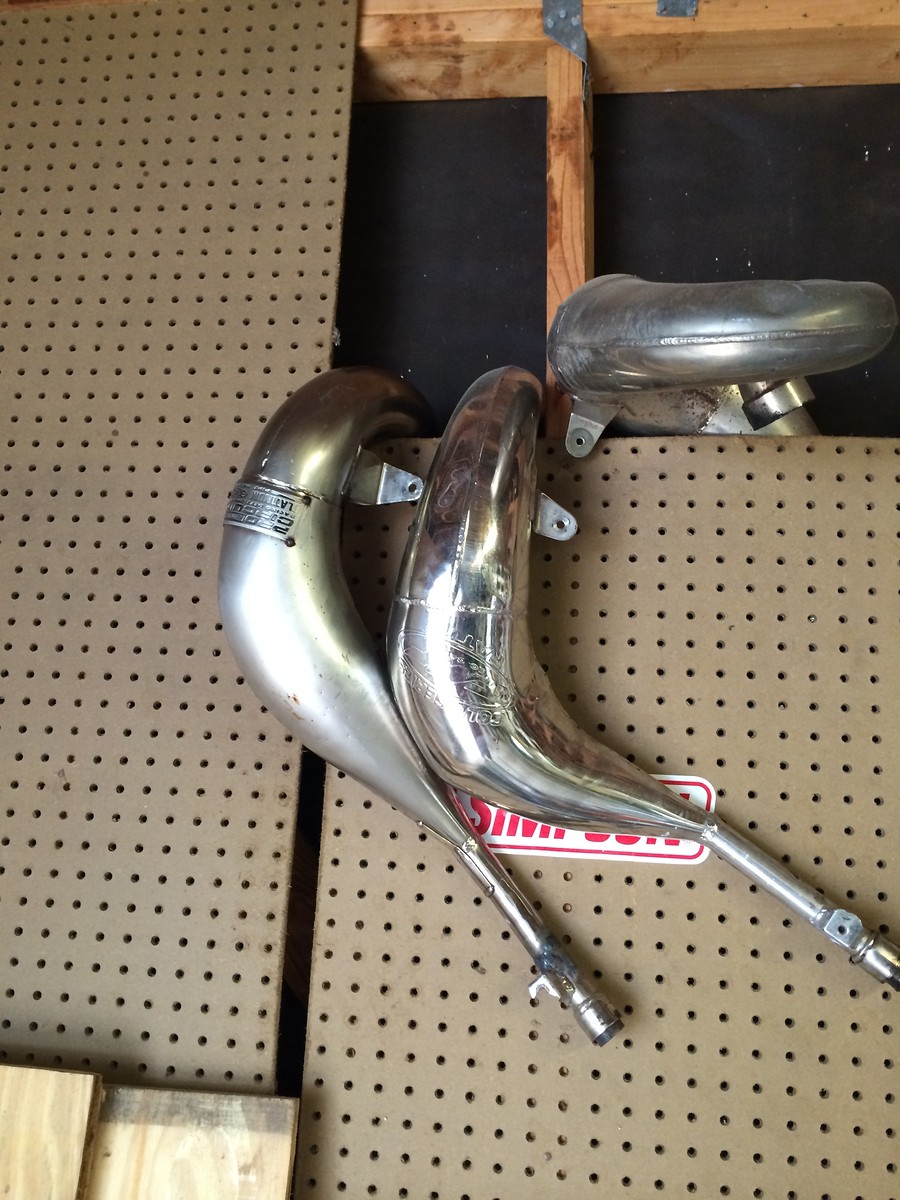

Pipes
|
wsc96
Profile picture for user wsc96
Posts
1013
Joined
8/26/2013
Location
AU
Fantasy
474th
wsc96 5/26/2014 9:03pm
5/26/2014 9:03pm Edited Date/Time 1/31/2019 8:04pm
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 5/26/2014 9:04pm
5/26/2014 9:04pm


I am looking for a 98 cr 125 PC factory pipe if anyon has one..
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 5/26/2014 9:16pm
5/26/2014 9:16pm
wsc96 wrote:
Probably about another 2-3 weeks. I have a lot if little misc parts I'm waiting to come in. PV linkage and governer, plastics graphics. Just little things.

The Shop

See All »
wsc96
Profile picture for user wsc96
Posts
1013
Joined
8/26/2013
Location
AU
Fantasy
474th
wsc96 5/26/2014 9:38pm
5/26/2014 9:38pm Edited Date/Time 1/31/2019 8:05pm
HenryA
Profile picture for user HenryA
Posts
3789
Joined
12/29/2011
Location
Stockholm SE
HenryA 5/27/2014 4:37am
5/27/2014 4:37am
Looking good, any mods on the chassis or suspension?
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 5/27/2014 9:26am
5/27/2014 9:26am
Stock chassis. The suspension is just restoring and revalved for me. I have a set of forks that are ti no coated blue and a shock with a black dlc shaft. That's stuff is on my 250 I may put it on the 125.
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 5/27/2014 5:44pm
5/27/2014 5:44pm
Yeah not to bad. First ride out the crank went. Wiseco crank junk. So I decided to go full on rebuild.
sesker15
Profile picture for user sesker15
Posts
1059
Joined
4/14/2008
Location
Upper Marlboro, MD US
sesker15 5/28/2014 11:06am
5/28/2014 11:06am
Take that race fuel off of that concrete floor. It will go bad. Look forward to your build,
mxBryan
Profile picture for user mxBryan
Posts
253
Joined
11/3/2013
Location
BE
mxBryan 5/29/2014 12:49am
5/29/2014 12:49am
Nice build ! Unbelievable how cheap you find decent bikes on craigslist.
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 5/29/2014 4:11am
5/29/2014 4:11am
Yeah there are some decent deals out there. With that being said an 02 cr 125 isn't the most sought after bike. I have actually seen some primo 03-04 only going for like 1300-1500. I needed an 02 for my build. The bike was all there complete but the motor was a little sick. Once I got into it I ended up changing all the transmission gears and shift forks. The people most have just rode it on the street a lot. But yes for 800.00 not bad at all. If you break down the motors are going for like 600 on ebay.
mxBryan
Profile picture for user mxBryan
Posts
253
Joined
11/3/2013
Location
BE
mxBryan 5/29/2014 7:44am
5/29/2014 7:44am
what kind of acid did you use to get that frame so neat ?!
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 5/29/2014 10:43am
5/29/2014 10:43am
It actually made from eagle one. It is called wheel etching and you spray it on then rub it with red scotch brite. It's a real soft acid it's not as harsh as just pure acid. But of you get it on magnesium or anything else it will discolor your bolts. Wd 40 and green scotch brite work petty good just for the spars and cradle.
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 5/30/2014 6:16pm
5/30/2014 6:16pm Edited Date/Time 5/30/2014 6:48pm

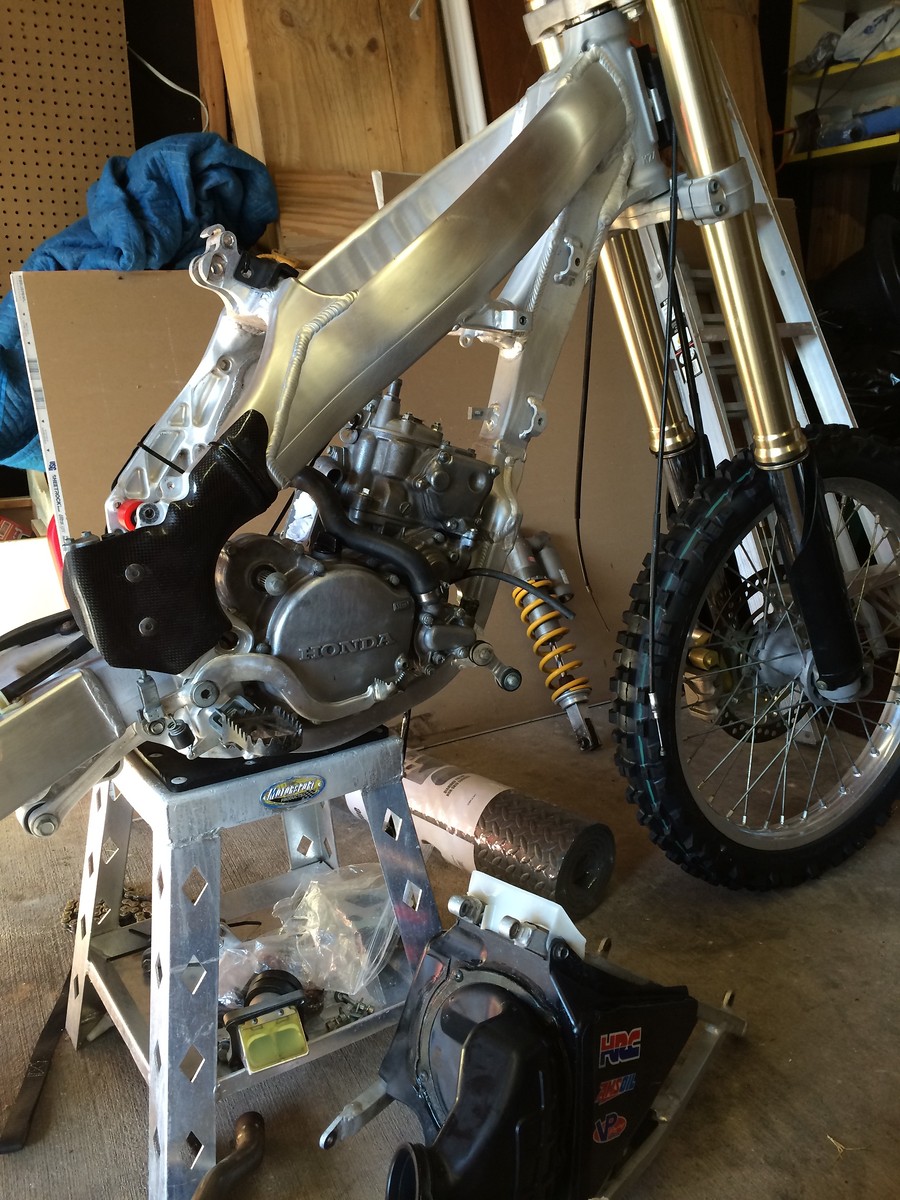

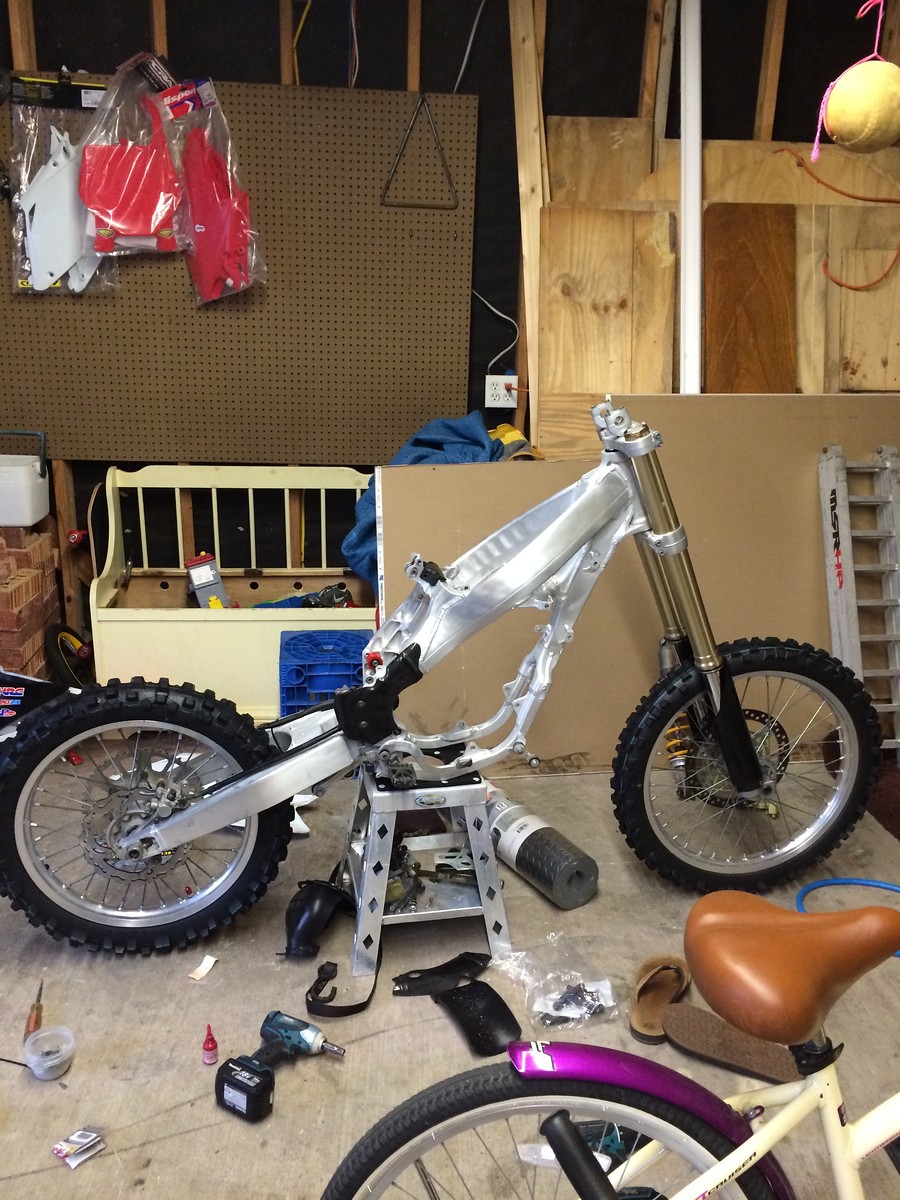

A little more progress. New tires I actually went with the artrax tires. Going to give them a shot complete set 89.00cant beat it. Trying to spare on some things being a spent so much on the motor. Also has showa forks on the front much better lookin than the silver kayabas and work better for some heavier on a 125. Added carbon fiber frame guards which are really nice. I have a set on my 250 and my white boots stay white.


Pit Row

See All »
CR BOYZ
Profile picture for user CR BOYZ
Posts
1
Joined
6/3/2014
Location
Smithsburg, MD US
CR BOYZ 6/3/2014 11:03am
6/3/2014 11:03am
Rmartin508 wrote:
Long story short I wanted an 02 so I could build this motor. I got my hands on a factory Plano Honda cylinder, head and the...
Long story short I wanted an 02 so I could build this motor. I got my hands on a factory Plano Honda cylinder, head and the complete set up.

The bike 800.00 craigslist beauty!






The tear down.








Acid washed frame.




The goodies.
showa suspension



Intake and carb
Keihin 36mm jetted to spec. with Boyesen rad valve and will get a spacer. I also went with a 07 air boot and 1" air vents.






Now the motor. It got a Honda crank and all new bearings. It will be getting the Plano honda (HPP will only work up to an 02 cases. cylinder with a 9.2cc head with a dome crown piston. Bone stock (HPP setup) will give the bike 2hp gain.







I also have a 134cc kit but I wanna got with the stock 125cc bore set up firist.


Pipes

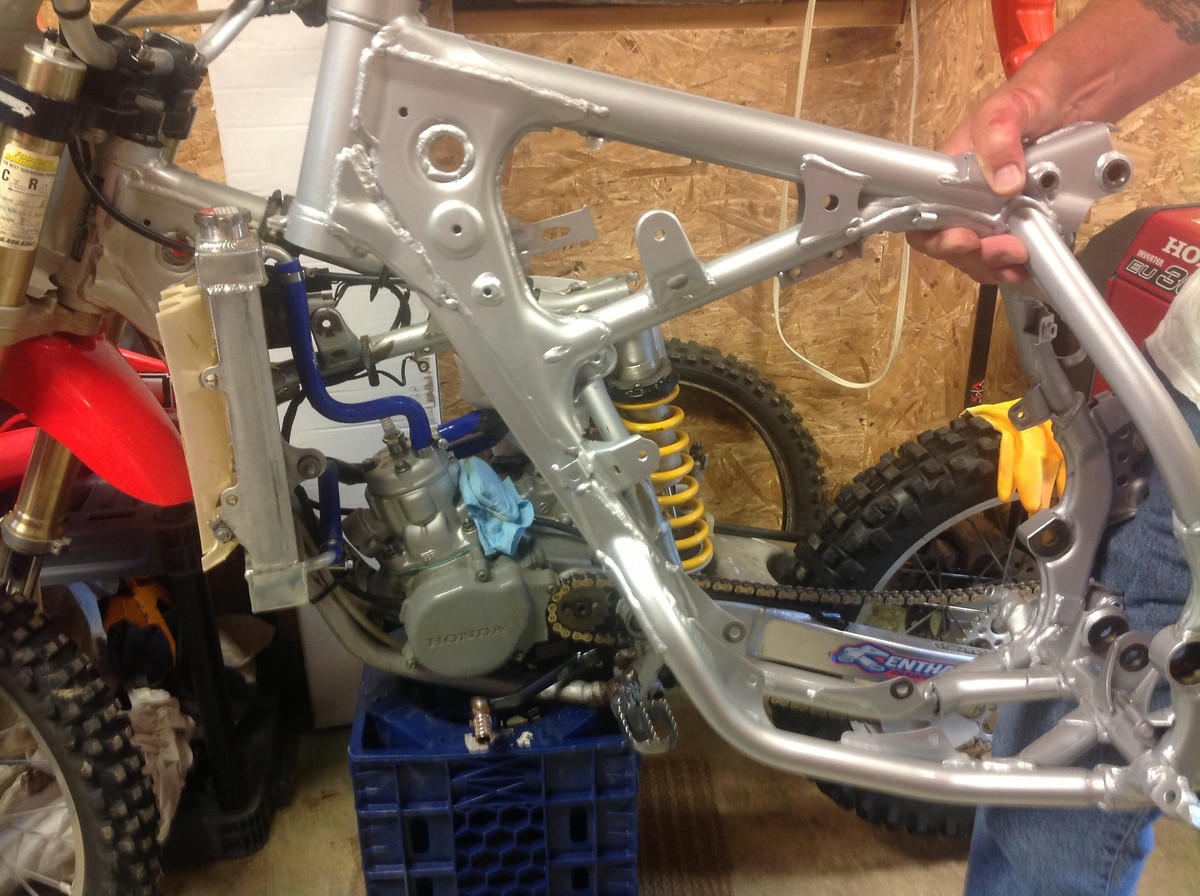

Very nice! just finished a 07 Super mini for my son. ordered a new frame from Honda man their welds scare me. What a rocket
[img]https://p.vitalmx.com/photos/forums/2014/06/03/55743/s1200_New_Frame_CR…" class="img-fluid" />



Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 6/6/2014 7:39pm
6/6/2014 7:39pm

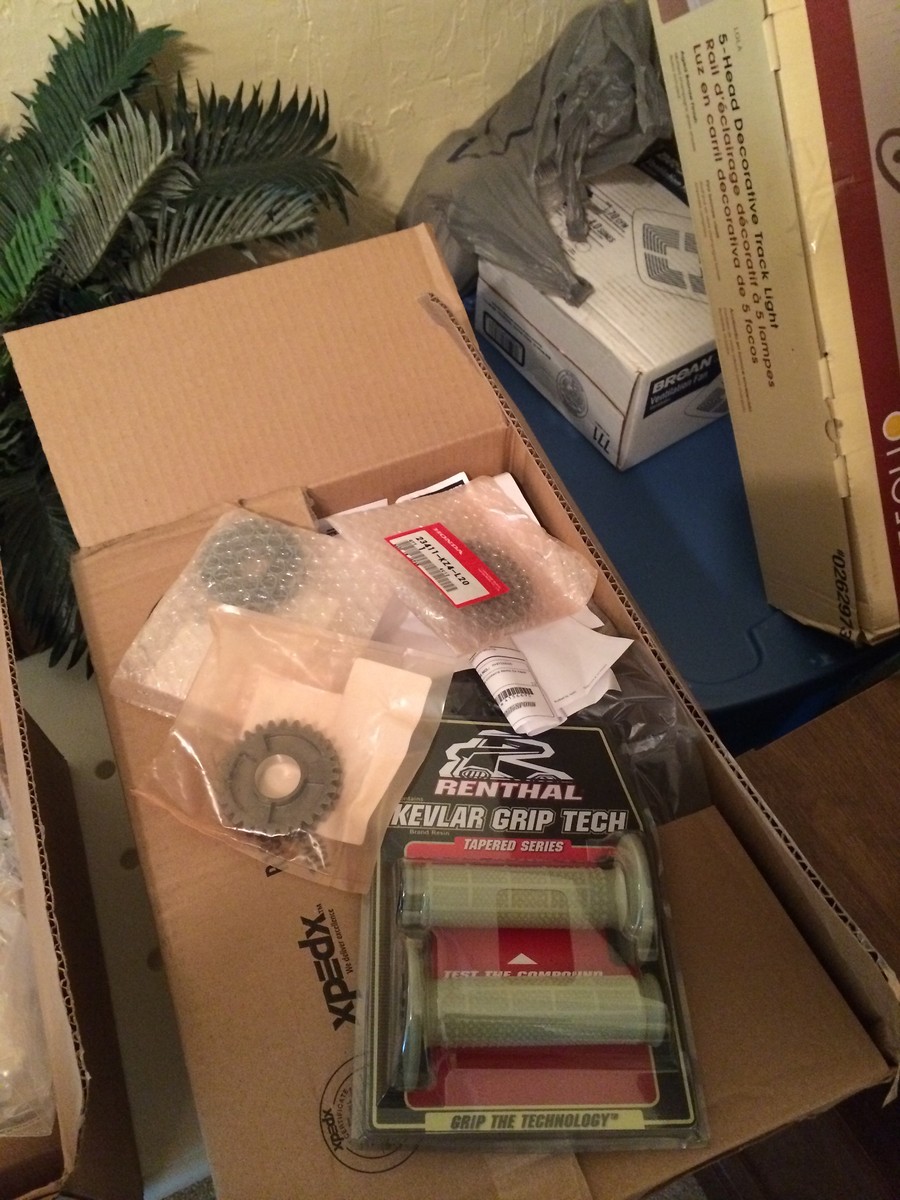

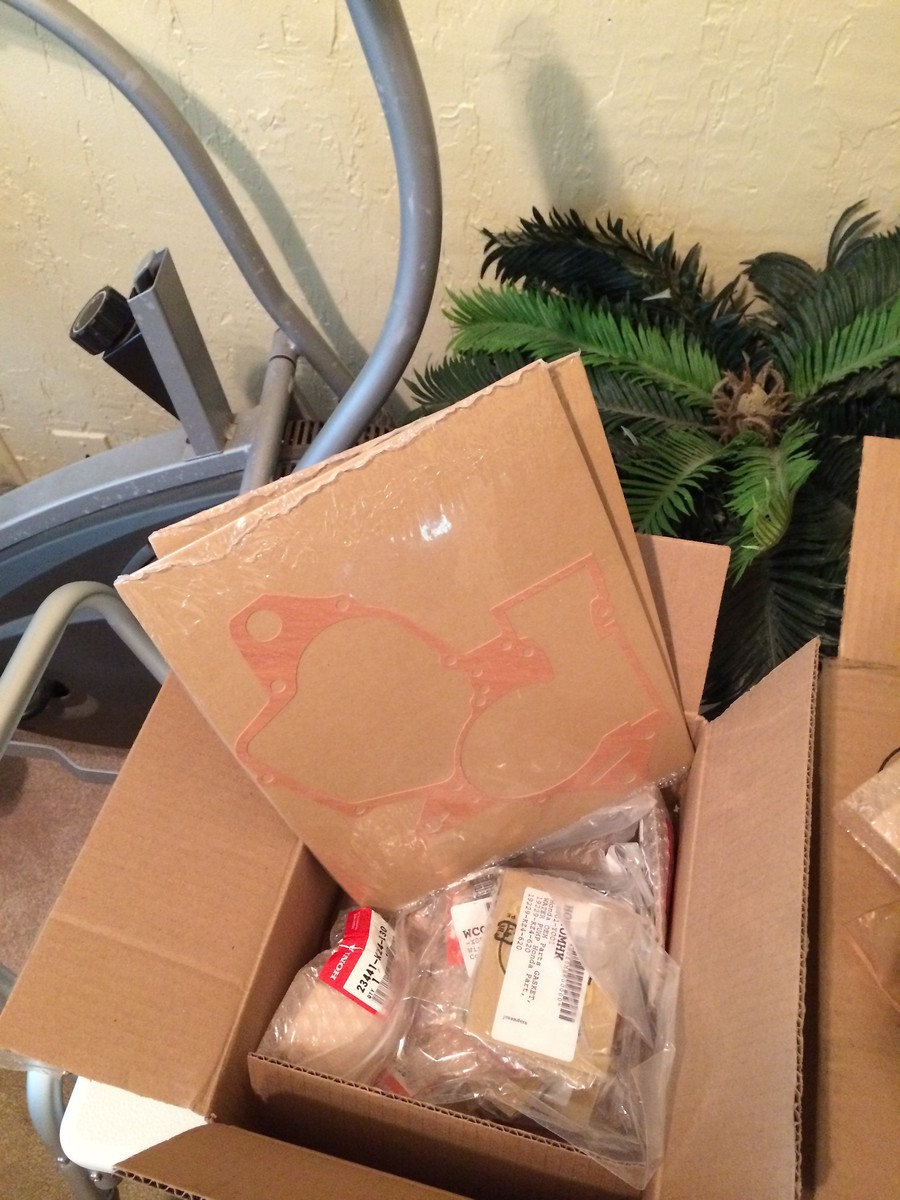

Complete transmission and the rest of the parts came in today to finish the motor. Shouldn't be to long now!
lumpy790
Profile picture for user lumpy790
Posts
9256
Joined
9/18/2007
Location
York, SC US
lumpy790 6/8/2014 6:34am
6/8/2014 6:34am
Is your Cyl one of the big bore that the team was running?
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 6/8/2014 8:22am
6/8/2014 8:22am Edited Date/Time 6/8/2014 8:24am

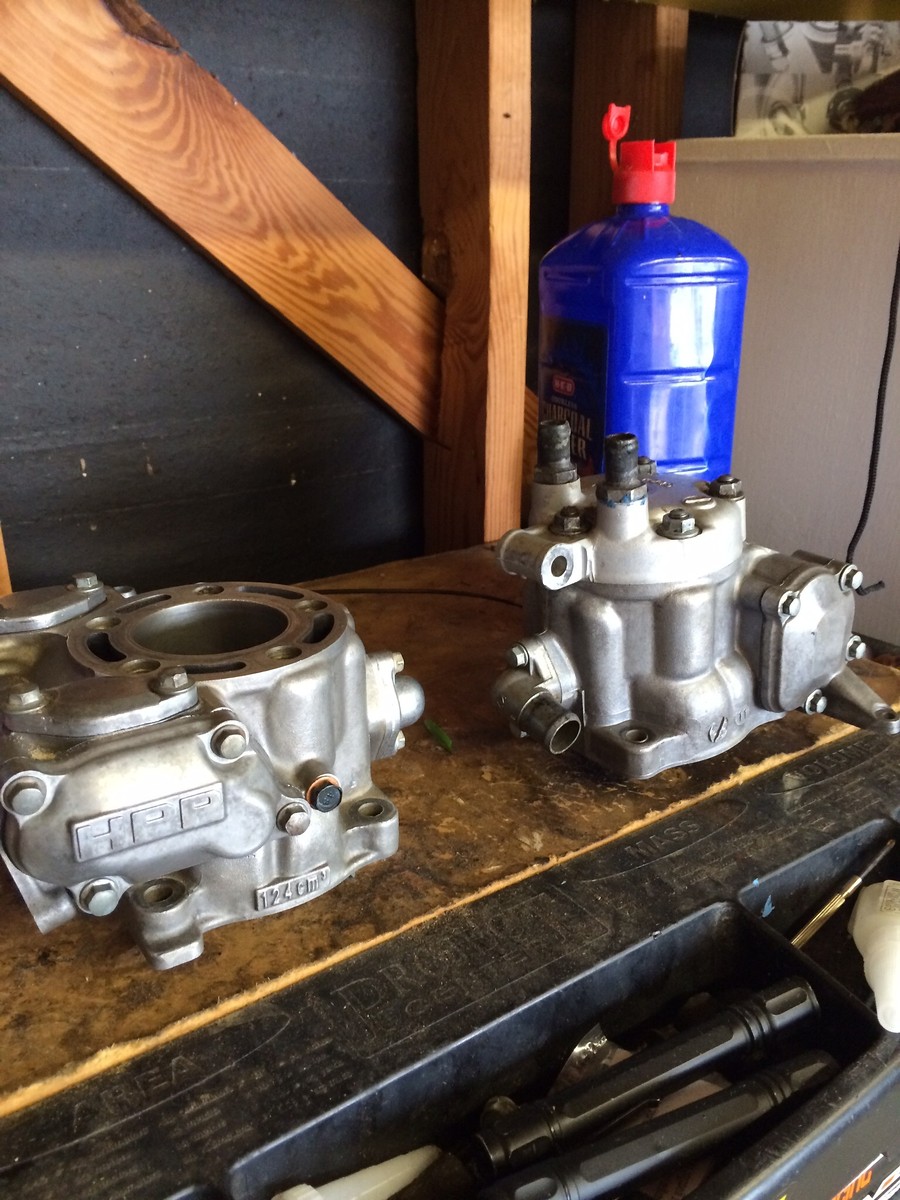

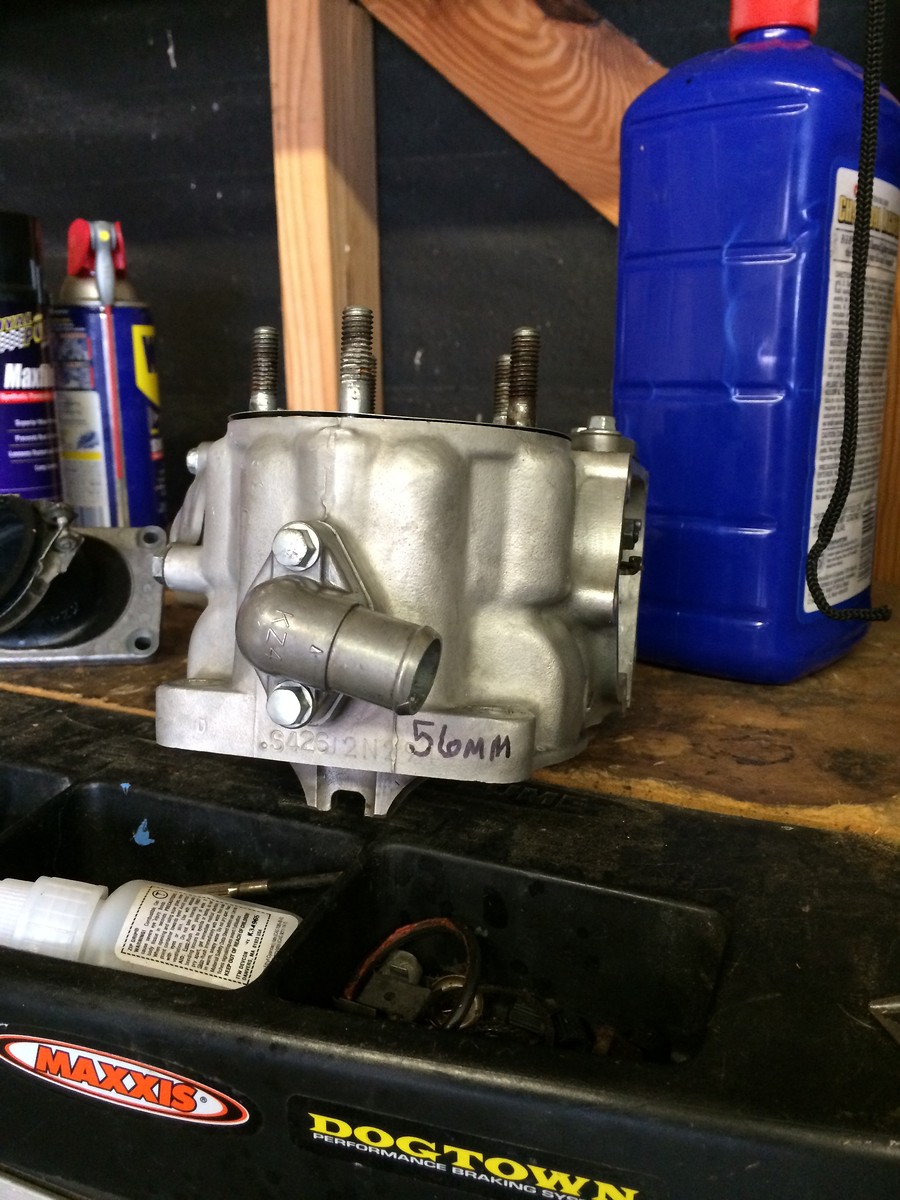

No, just another HPP cylinder set up with a 134 bore. I wanna run them back to back to see the difference. Im suspecting the Plano set up will have more HP. The Plano cylinder is actually one of the first cylinders sitting side by side the stock 02 cylinder.
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 6/8/2014 9:24am
6/8/2014 9:24am

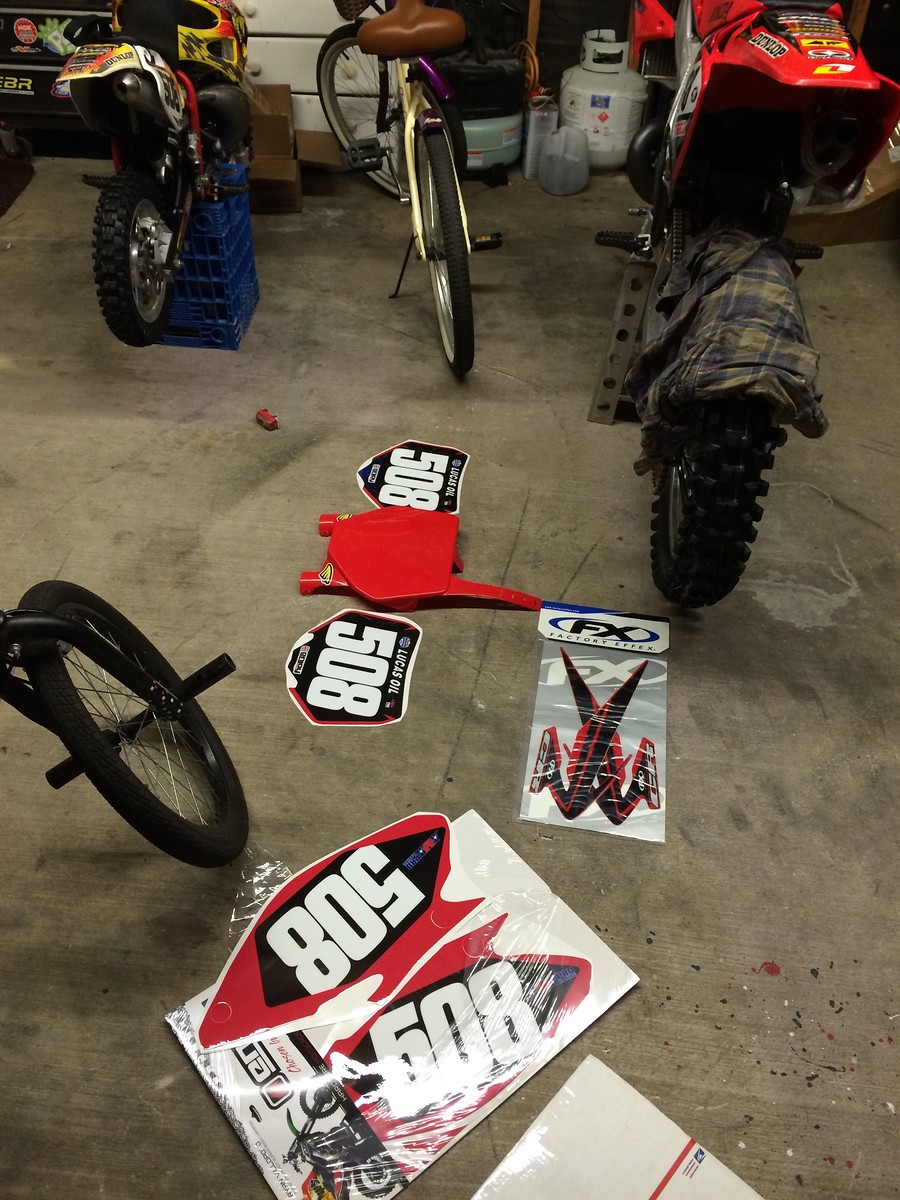

Graphics and backgrounds are here. I usuly go for more of a stock look on my bikes.

Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 6/10/2014 7:48pm
6/10/2014 7:48pm

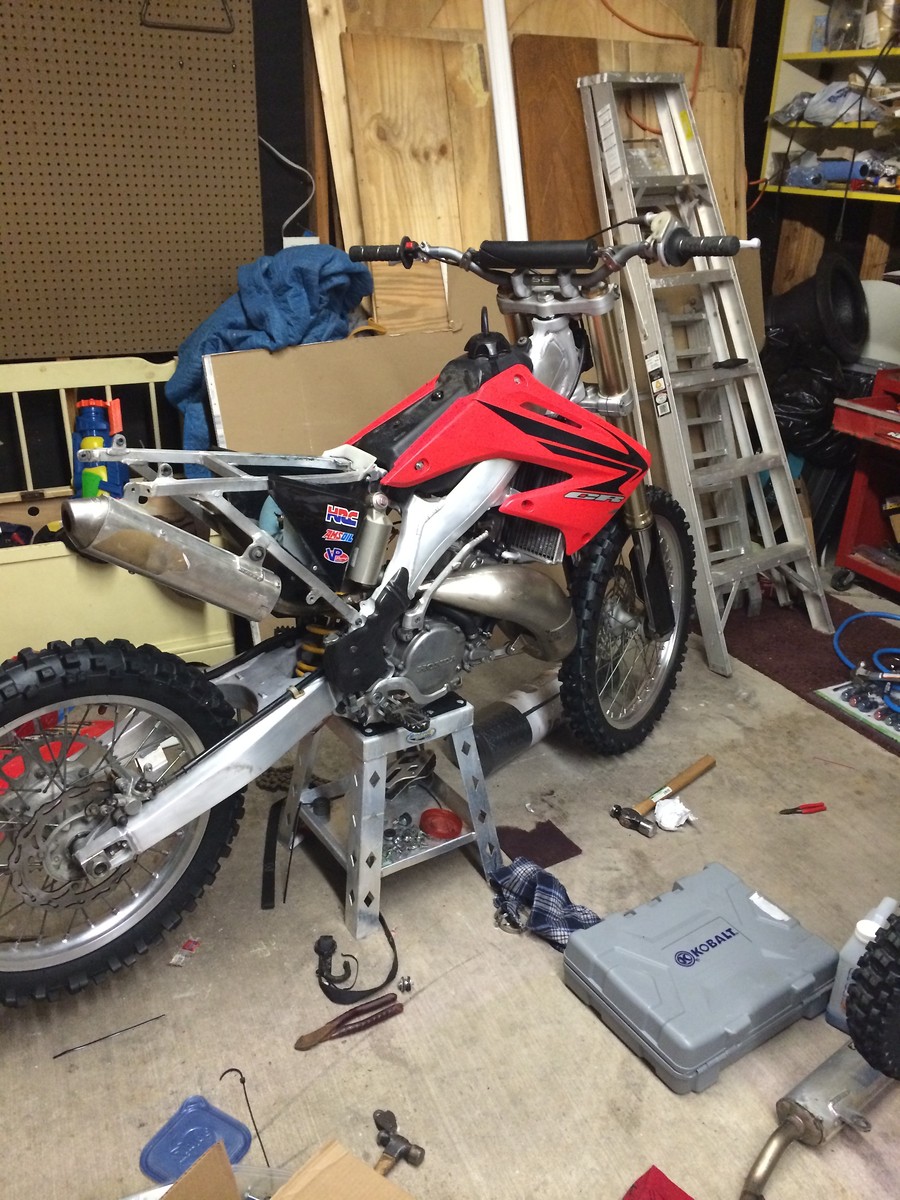

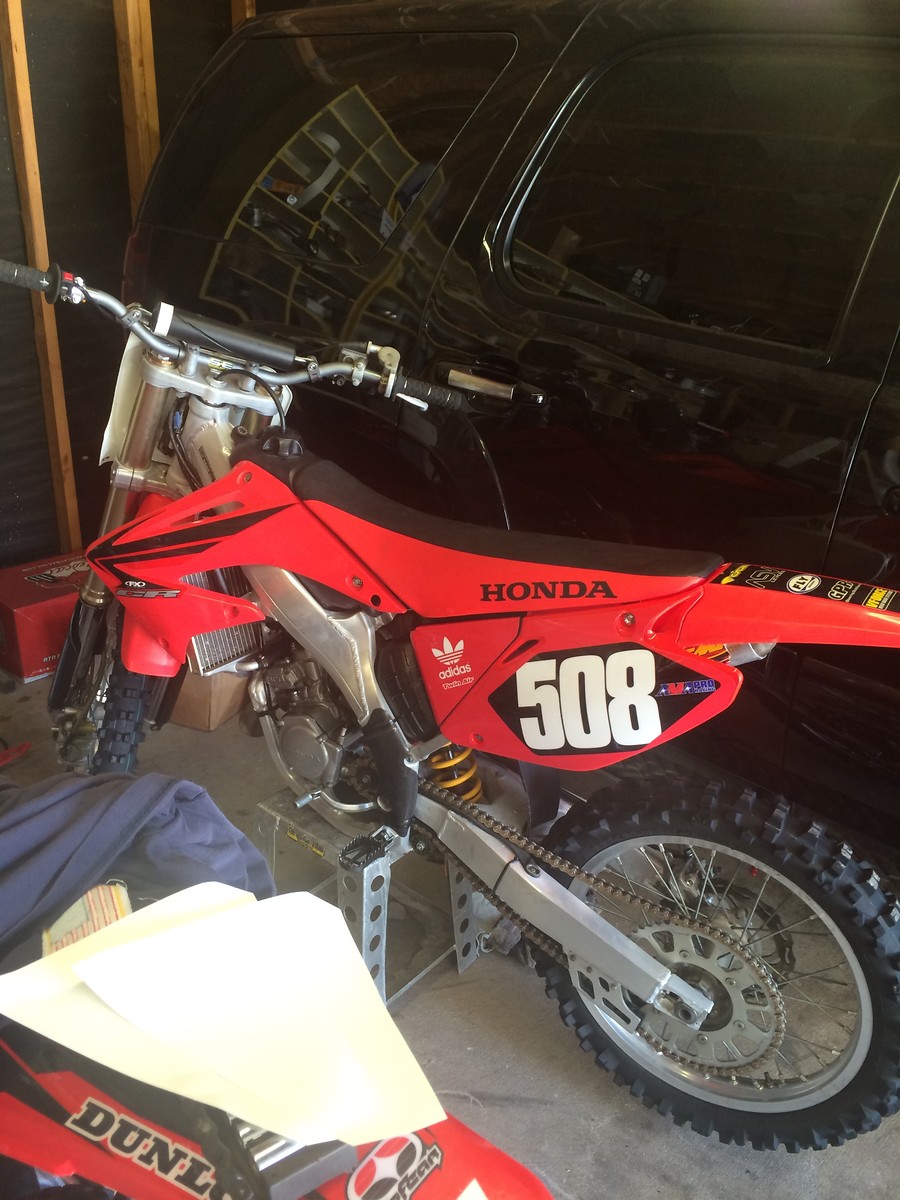

Got it pretty put together. It's running and running great. The motor is so crisp. Should get a test ride in Friday!!!










Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 6/11/2014 7:39pm
6/11/2014 7:39pm Edited Date/Time 6/11/2014 8:07pm
Rode the bike today and it flat out rips. Probably the fastest 125cc stock bore I have ever ridden. I have had a few kx125 mods and strokers back in 03 and a few other cr 125 mods around 05. I am running a 13/53 which was good with the stock motor but probably will be changing to a 13/51 for this motor. I am happy with the motor overall except 100% c12 is gonna be an expensive ride every time. I will post final pics up once the new plastics and graphics are on. I didn't spend much money on the wheels and stuff because I put it all into the motor and gaining hp.
Danpadula 6/19/2014 9:37am
6/19/2014 9:37am
Rmartin508 wrote:
Rode the bike today and it flat out rips. Probably the fastest 125cc stock bore I have ever ridden. I have had a few kx125 mods...
Rode the bike today and it flat out rips. Probably the fastest 125cc stock bore I have ever ridden. I have had a few kx125 mods and strokers back in 03 and a few other cr 125 mods around 05. I am running a 13/53 which was good with the stock motor but probably will be changing to a 13/51 for this motor. I am happy with the motor overall except 100% c12 is gonna be an expensive ride every time. I will post final pics up once the new plastics and graphics are on. I didn't spend much money on the wheels and stuff because I put it all into the motor and gaining hp.
Bike looks absolutly silly, great work man!
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 6/19/2014 10:59am
6/19/2014 10:59am
Thanks. Quick update. I have rode the bike a few more times. It is very fast for a stock bore. Only complaint is after about two laps the stock clutch begins to fade. I went a head and order Hinson steel plates and their high heat 250f springs. I guess the next option would be full Hinson kit. Was trying to not go that route but, I may have too. Open to suggestions of any one has any for the clutch. Haven't had time to put all the new plastic and graphics on due to work. I will try and get em on and post pics soon.
Rmartin508
Profile picture for user Rmartin508
Posts
122
Joined
11/30/2013
Location
Dickinson, TX US
Rmartin508 6/19/2014 1:21pm
6/19/2014 1:21pm

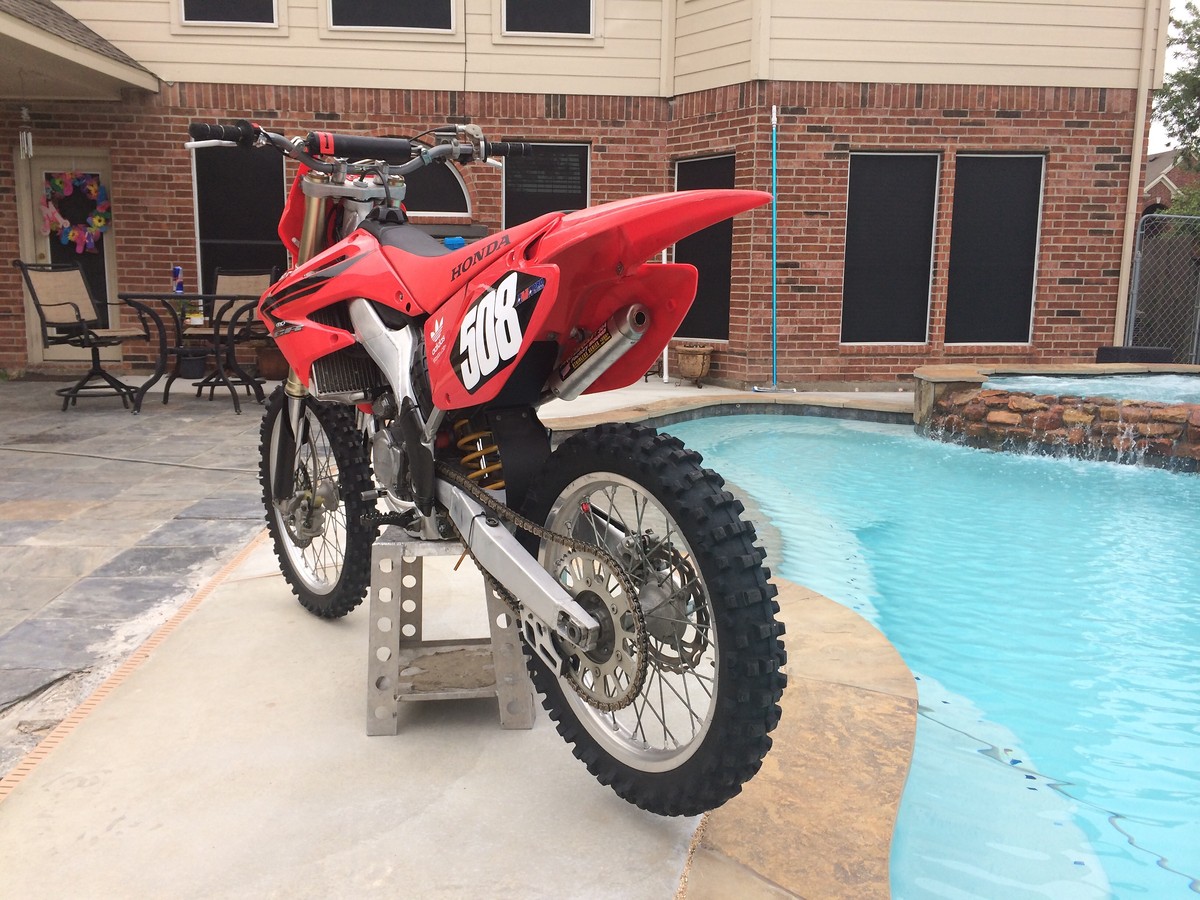

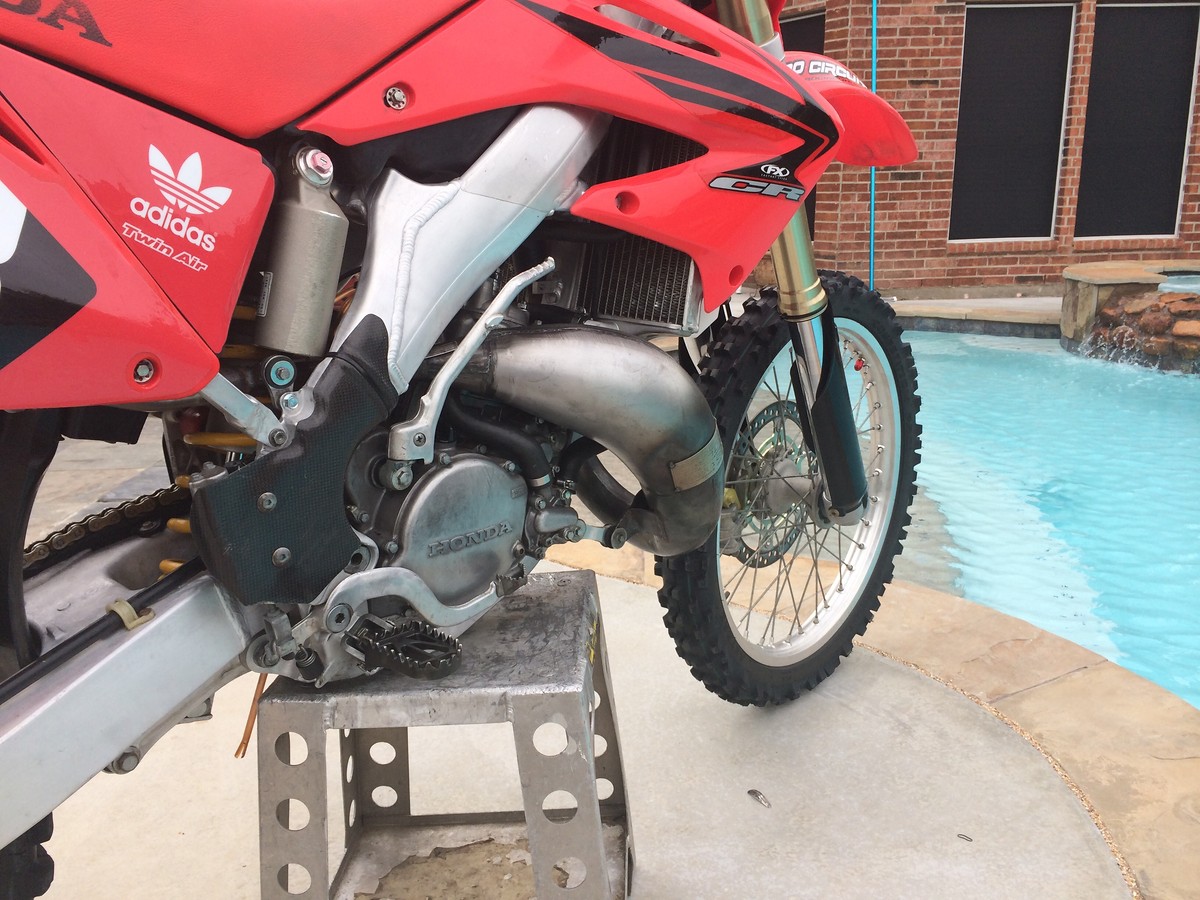

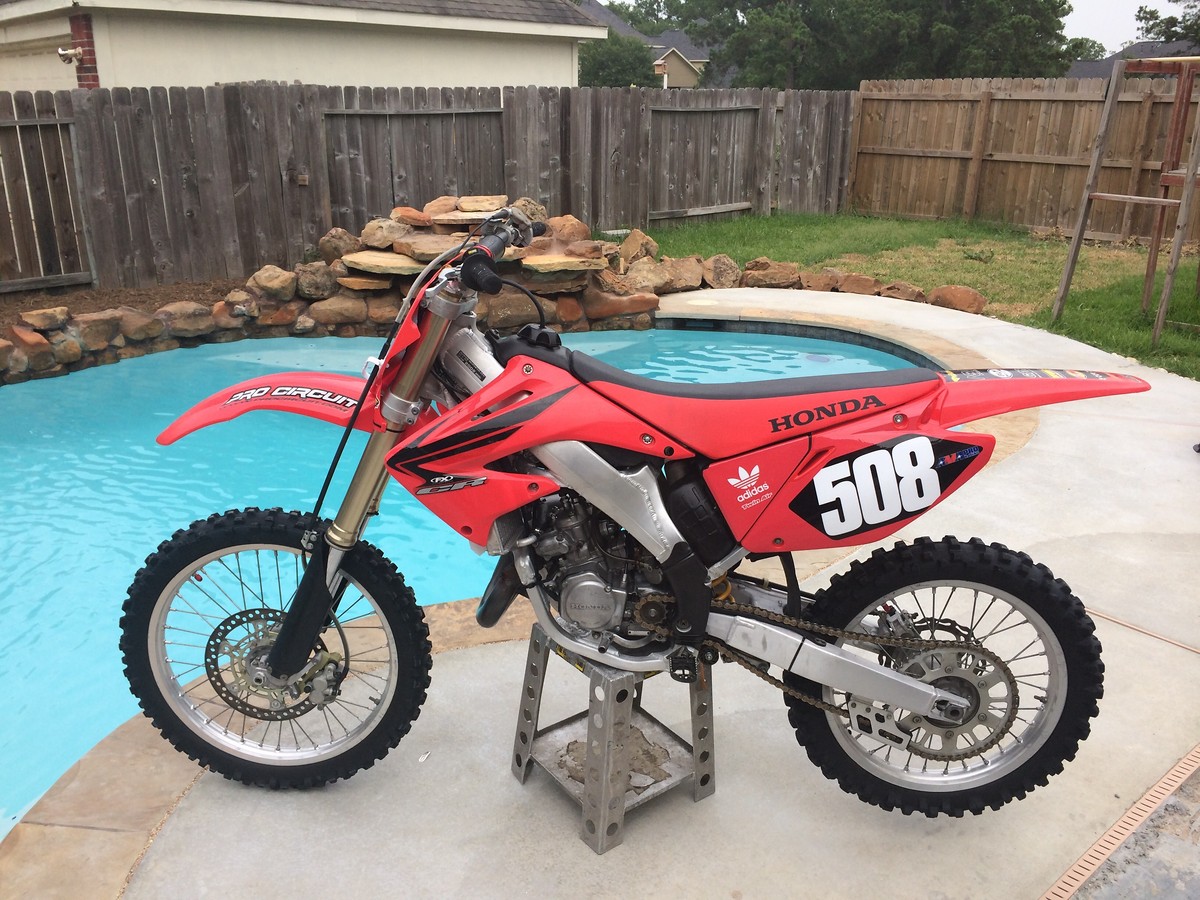

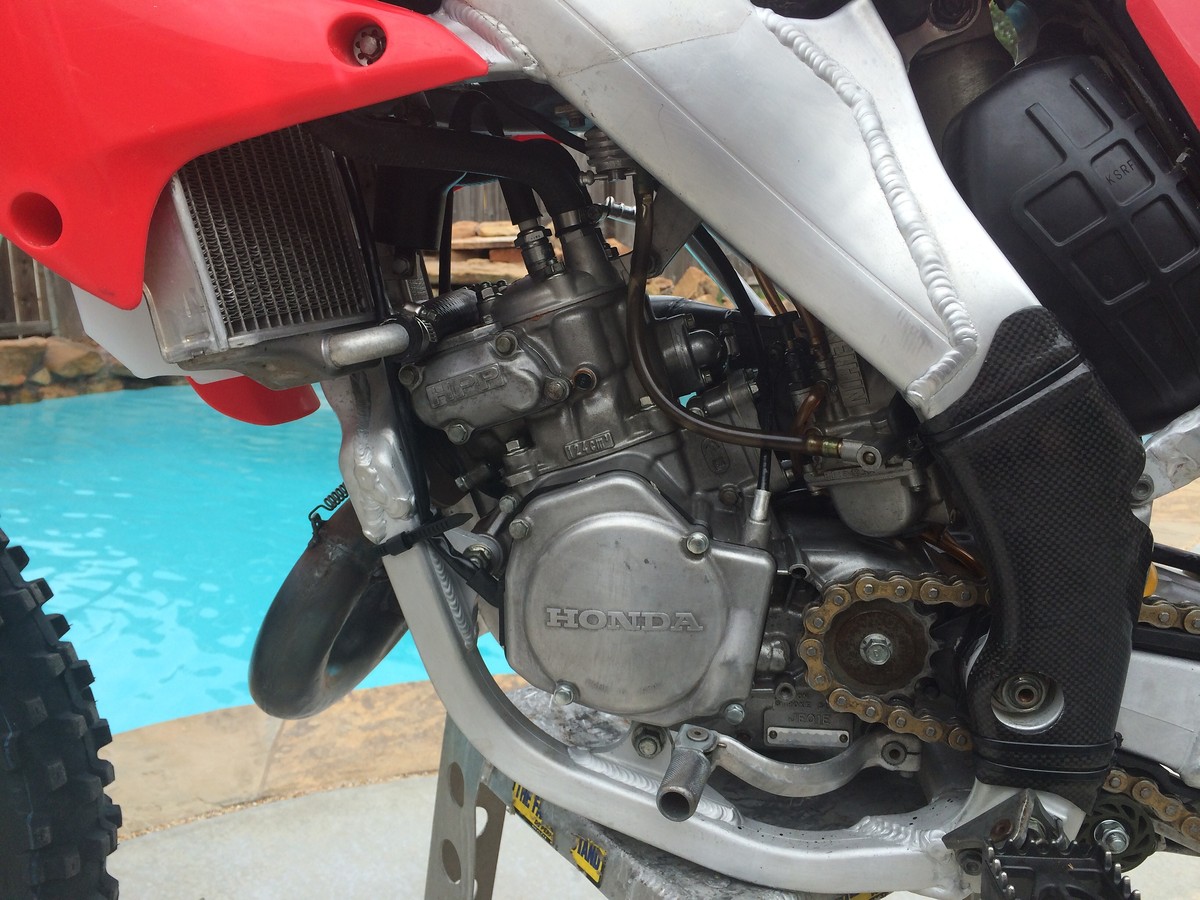

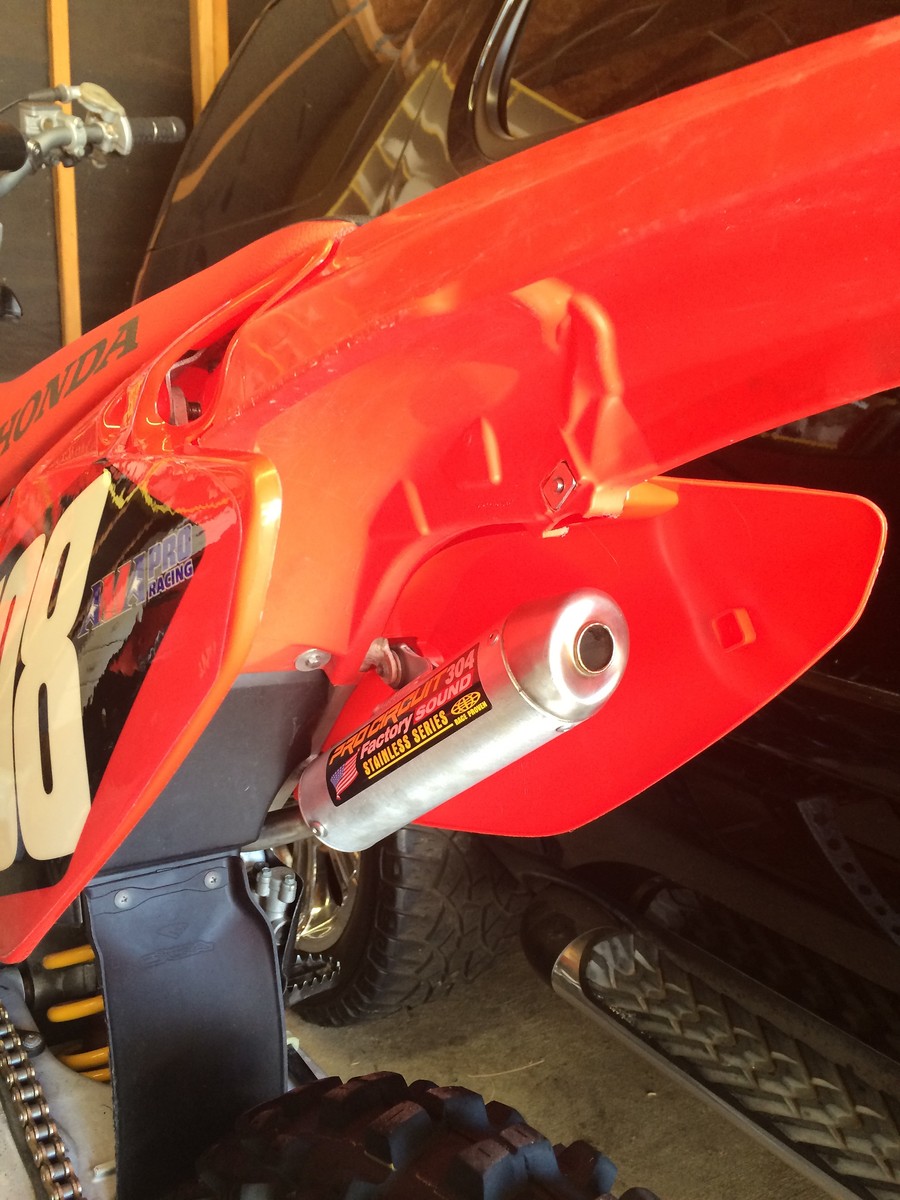

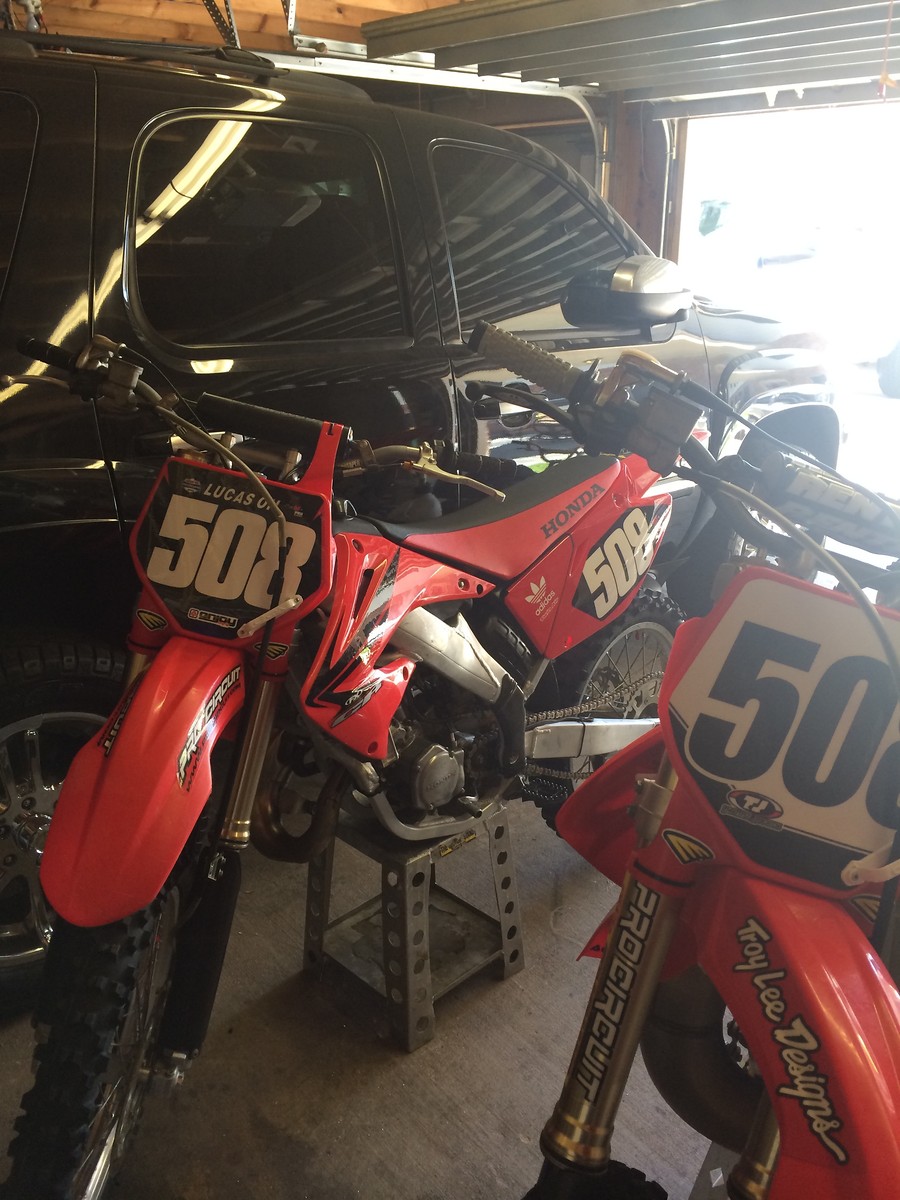

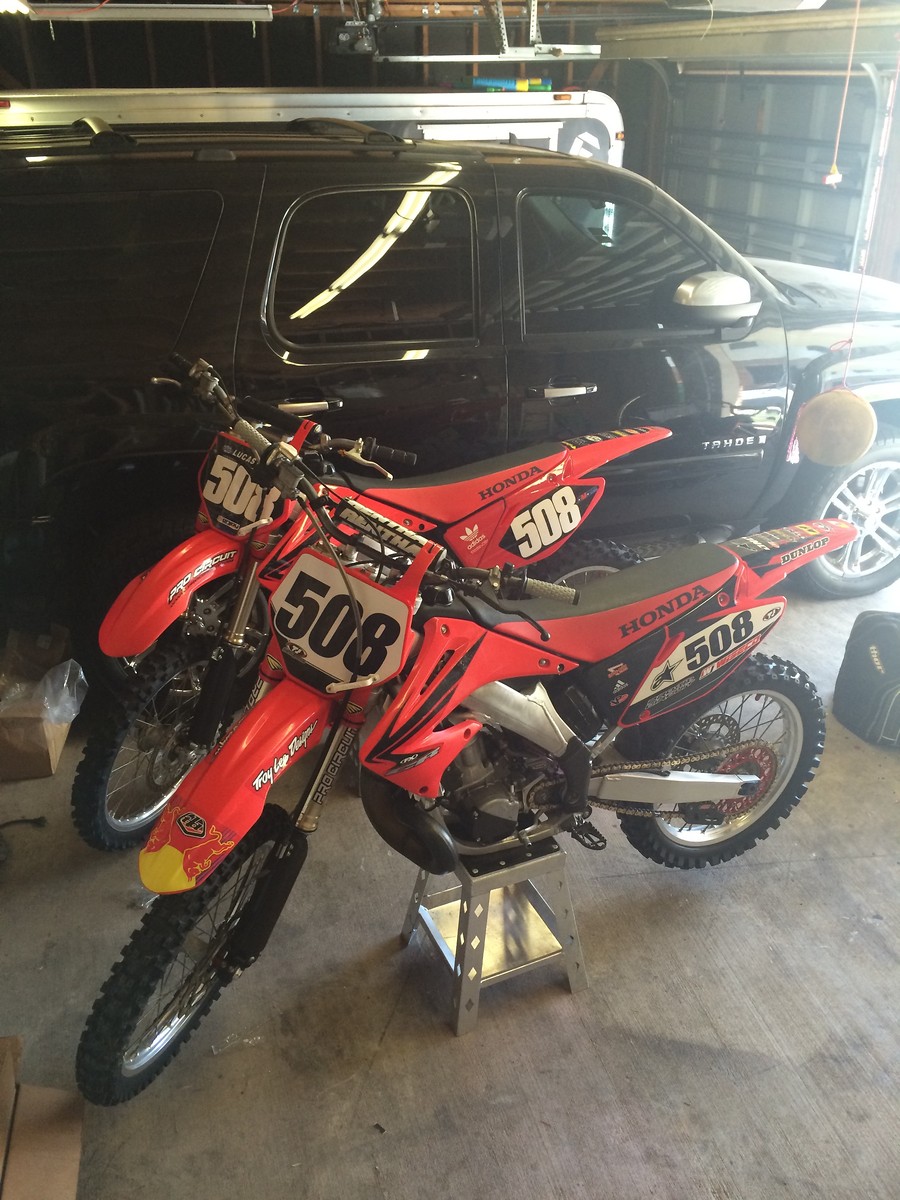

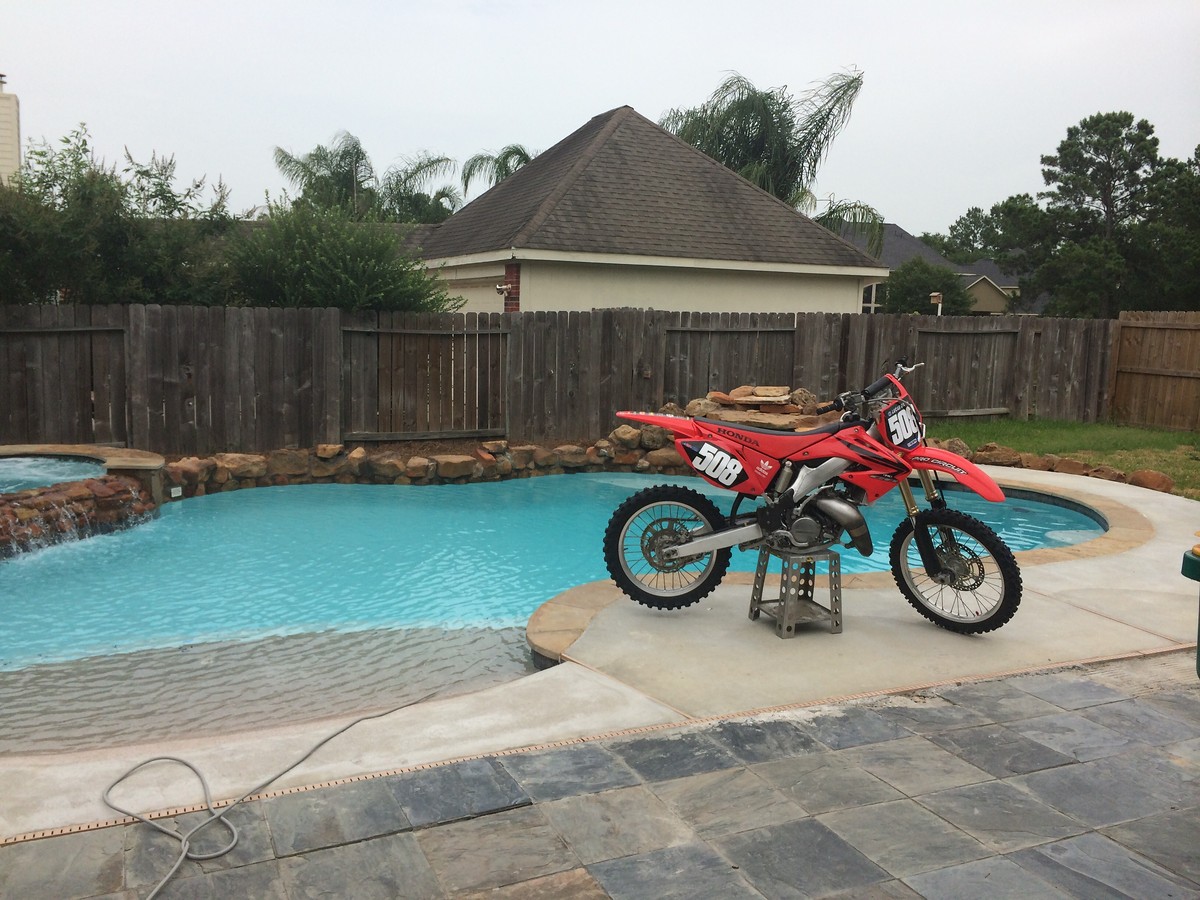

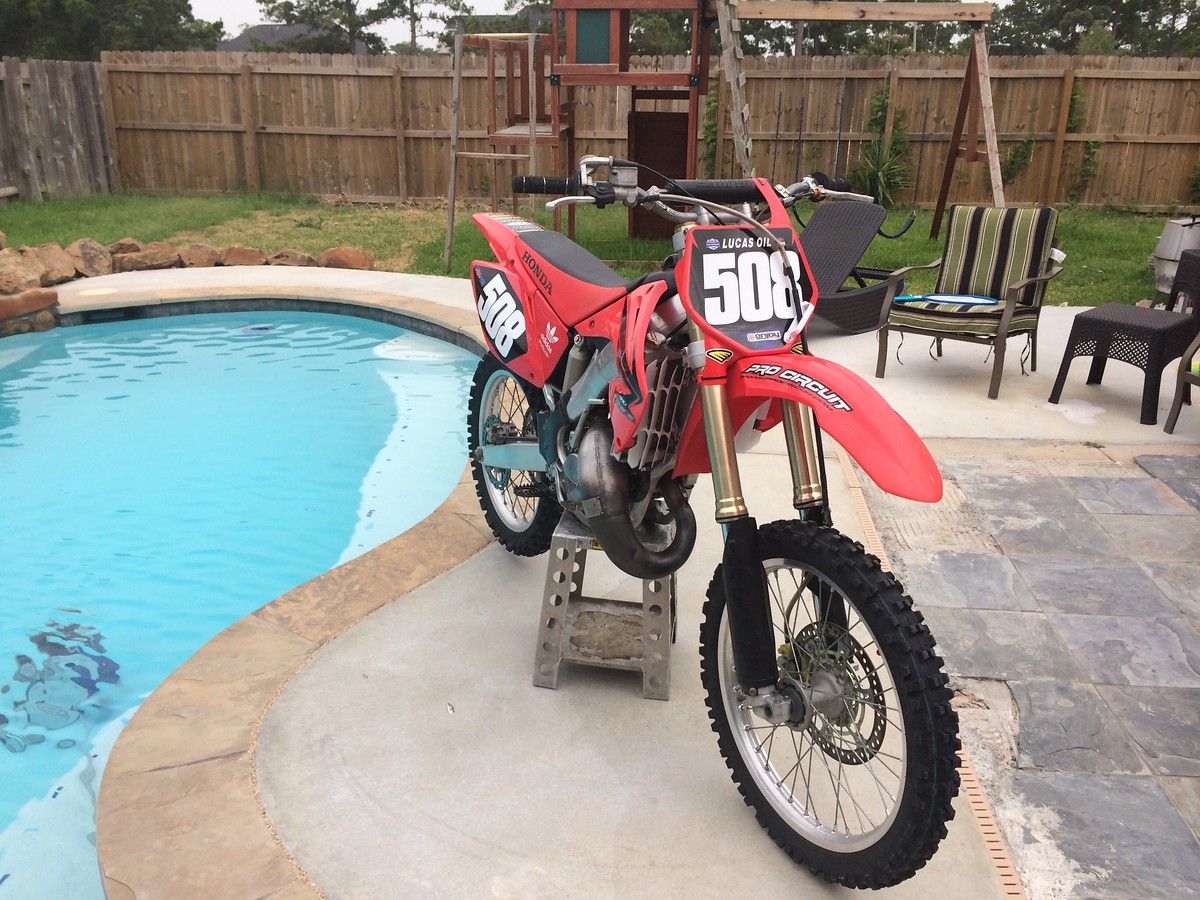

Here are some quick snaps not very good. I haven't installed the PC works pipe yet.







Matt Fisher
Profile picture for user Matt Fisher
Posts
3948
Joined
4/1/2008
Location
Visalia, CA US
Fantasy
1117th
Matt Fisher 6/22/2014 3:34pm
6/22/2014 3:34pm
Bike looks great!

I've been told that the Hinson clutch plates are better than normal plates, from either a coating or some type of heat treating type process. I know, not very specific on my part, but it came from a source I have excellent faith in. I simply can't remember exactly why they are better, just that they are better.
