2015 YZ250 Build

Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder
Edited Date/Time 7/31/2018 11:03am
As you all know i brought a 2015 YZ250 about a month or so ago the plan is for it to be a bit of a project wile I recover from a knee reach, then a lighter bike to get fit on before get on the big 450 again.

so far i have pretty much just stripped, cleaned and greased for a 2015 it was in a bit of a state with some basic things like chain guides, sliders chains sprockets etc, all of which will be replaced.

I have given the hubs and forks to Slosh for some machining the tubes were pretty sand blasted which is painful but i think they will look good black.

Anyway i know use love pictures

As Brought;

















Tear Down



















Assembly;















done a big order of genuine parts today don't want to get to carried away with it or break the bank as i want to make a quid on it when i sell it, but if anyone has any cool YZ250 parts they want to get rid of they think I might be interested I'm post them in here..

Cheers Chris
|
Harry Backmon 5/26/2016 4:05am
5/26/2016 4:05am
I would grease that steering stem while you got it apart. Mine went to corroding pretty quickly. I do not use a pressure washer and avoid getting water near that area, but it still happened. Nice bike, by the way. What type of head is that?
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 5/26/2016 2:14pm
5/26/2016 2:14pm
Cheers mate the steeri g is a bit notchy I will do them also, the head is a VHM I honestly don't know to much about them but I'll do a bit of research and check it out when I put a fresh top end in.
seth505
Profile picture for user seth505
Posts
9367
Joined
4/1/2008
Location
SD, CA US
Fantasy
1092nd
seth505 5/27/2016 7:33am
5/27/2016 7:33am
Agreed on the steering stem, mine used to get dirty very quick compared to my KTM. Not sure if it is exactly the same as the 09 I had but you can buy the top cap/seal part # for a 4stroke and it has a better lip on it to seal out dirt from the top bearing.
Slosh 112
Profile picture for user Slosh 112
Posts
1155
Joined
3/31/2014
Location
Mackay QLD AU
Slosh 112 5/30/2016 2:15am
5/30/2016 2:15am
So this is the weapon aye! Its cooped a good hiding on the triple clamps by the look of it.

The Shop

See All »
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 5/30/2016 5:58pm
5/30/2016 5:58pm
Yeah it has its crap i don't know what i will do with them to be honest, not keen on a $600 pair of triple clamps
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 6/3/2016 1:50am
6/3/2016 1:50am
Pulled the triple clamps out tonight found alloy welding spatter in there which is really ordinary!!

New bearing for sure but still don't know what to do with the clamps....





Slosh 112
Profile picture for user Slosh 112
Posts
1155
Joined
3/31/2014
Location
Mackay QLD AU
Slosh 112 6/3/2016 2:49am
6/3/2016 2:49am
Sand the casting lines out and anodise them, might cost you an hour or two on a belt sander with a fine belt (I have one thats you are free to use) then maybe 100 bucks to get them anodised, my OEM 125 clamps came out quite nice.
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 6/3/2016 3:00am
6/3/2016 3:00am
Shock bottom bearing spacers and seals in backwards and the bearing was cactus I don't even know how he was riding it... Maybe I'm to picky but it wasn't close to smooth.





Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 6/3/2016 3:25am
6/3/2016 3:25am
Slosh 112 wrote:
Sand the casting lines out and anodise them, might cost you an hour or two on a belt sander with a fine belt (I have one...
Sand the casting lines out and anodise them, might cost you an hour or two on a belt sander with a fine belt (I have one thats you are free to use) then maybe 100 bucks to get them anodised, my OEM 125 clamps came out quite nice.
Yeah sanding them out sounds like the go wasn't sure how they would turn out I'll have to have a look at you RM ones I'll get around there tomorrow the missus is sick sorry didn't get there today!
cwtoyota
Profile picture for user cwtoyota
Posts
1926
Joined
3/11/2013
Location
Tacoma, WA US
cwtoyota 6/3/2016 4:54am
6/3/2016 4:54am
Helder wrote:
Shock bottom bearing spacers and seals in backwards and the bearing was cactus I don't even know how he was riding it... Maybe I'm to picky...
Shock bottom bearing spacers and seals in backwards and the bearing was cactus I don't even know how he was riding it... Maybe I'm to picky but it wasn't close to smooth.





I don't know if it's only the two-stroke models, but my YZ250 came with the seals/spacers installed the opposite way too. The aluminum flange was behind the rubber seal. I bought that bike new. My 2011 YZ125 was assembled that way from the factory as well.

I think they do that so the aluminum collars don't fall out when you R&R the shock.
moco
Profile picture for user moco
Posts
138
Joined
10/8/2014
Location
CA
moco 6/3/2016 7:52am
6/3/2016 7:52am
Since you're going into a lot of detail here...

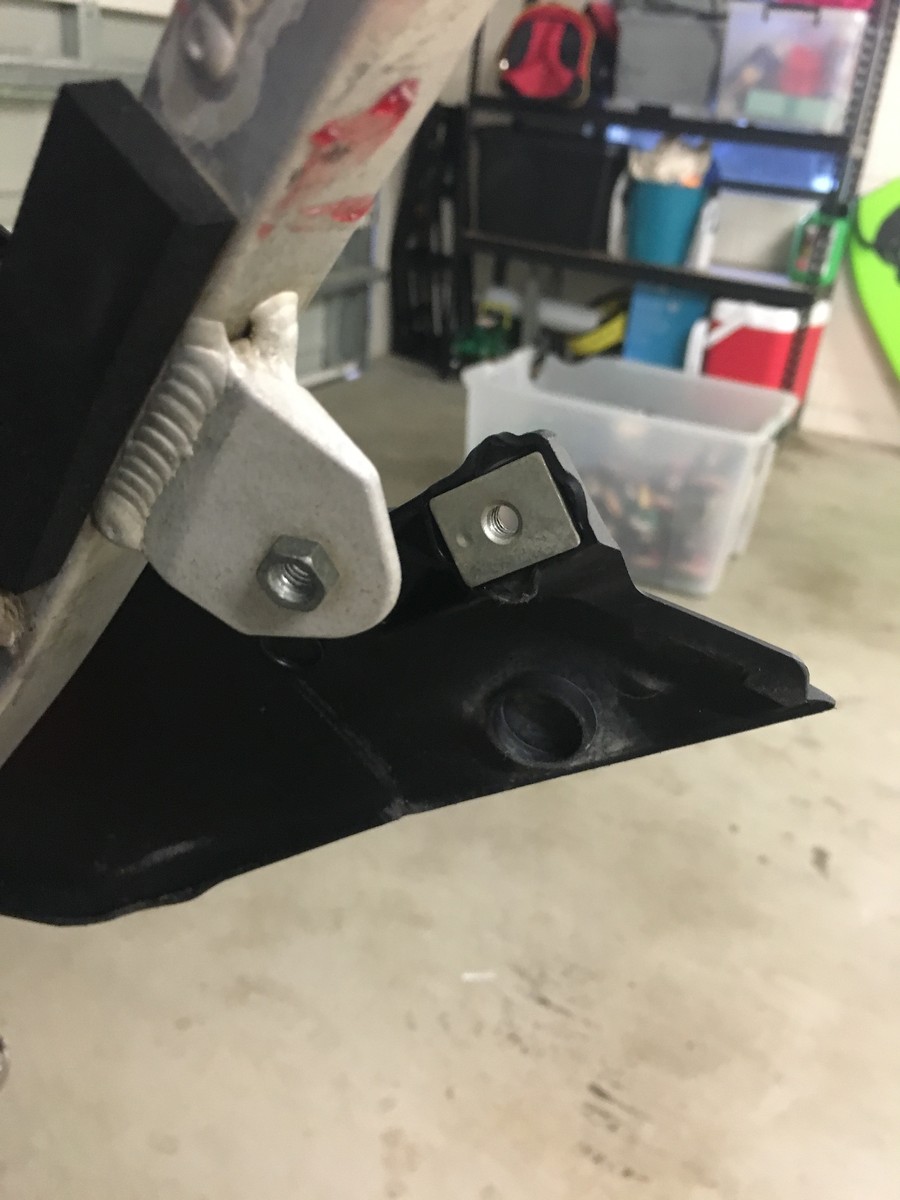

What the deal with the new plastics and their mounts? Specifically where the number plates bolt to the airbox. There's a cheap square peice of steel that's embedded in the back of the plastic that just spins around when trying to remove bolts. I had to use vice grips on this crap to take the plates off. Is there a fix for this?
It's kindA funny people begged for a plastic update for a decade and they give you this complete garbage.
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 6/3/2016 2:19pm
6/3/2016 2:19pm
cwtoyota wrote:
I don't know if it's only the two-stroke models, but my YZ250 came with the seals/spacers installed the opposite way too. The aluminum flange was behind...
I don't know if it's only the two-stroke models, but my YZ250 came with the seals/spacers installed the opposite way too. The aluminum flange was behind the rubber seal. I bought that bike new. My 2011 YZ125 was assembled that way from the factory as well.

I think they do that so the aluminum collars don't fall out when you R&R the shock.
Yeah really strange the parts break down definitely shows the opposite to the picture in my last post with the seals retaining the spacers.
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 6/3/2016 2:22pm
6/3/2016 2:22pm
Helder wrote:
As you all know i brought a 2015 YZ250 about a month or so ago the plan is for it to be a bit of a...
As you all know i brought a 2015 YZ250 about a month or so ago the plan is for it to be a bit of a project wile I recover from a knee reach, then a lighter bike to get fit on before get on the big 450 again.

so far i have pretty much just stripped, cleaned and greased for a 2015 it was in a bit of a state with some basic things like chain guides, sliders chains sprockets etc, all of which will be replaced.

I have given the hubs and forks to Slosh for some machining the tubes were pretty sand blasted which is painful but i think they will look good black.

Anyway i know use love pictures

As Brought;

















Tear Down



















Assembly;















done a big order of genuine parts today don't want to get to carried away with it or break the bank as i want to make a quid on it when i sell it, but if anyone has any cool YZ250 parts they want to get rid of they think I might be interested I'm post them in here..

Cheers Chris
Hey mate, I see what you mean I never had any trouble with them, they are commonly used they are on my 16 WR450f to hold the mudguard on. suppose just don't over tighten them or use loctite or anything like that, I don't usually have any dramas with them.




Brownie281 6/5/2016 9:11pm
6/5/2016 9:11pm
cwtoyota wrote:
I don't know if it's only the two-stroke models, but my YZ250 came with the seals/spacers installed the opposite way too. The aluminum flange was behind...
I don't know if it's only the two-stroke models, but my YZ250 came with the seals/spacers installed the opposite way too. The aluminum flange was behind the rubber seal. I bought that bike new. My 2011 YZ125 was assembled that way from the factory as well.

I think they do that so the aluminum collars don't fall out when you R&R the shock.
Helder wrote:
Yeah really strange the parts break down definitely shows the opposite to the picture in my last post with the seals retaining the spacers.
May have some stuff you could be interested in for your build! Looks good man! If you are interested shoot me an email at sean_brown281@hotmail.com or text me anytime (306)421-1713













Slosh 112
Profile picture for user Slosh 112
Posts
1155
Joined
3/31/2014
Location
Mackay QLD AU
Slosh 112 7/1/2016 2:13am
7/1/2016 2:13am
Score! can't wait to see this thing start to come together!
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 8/31/2016 9:06pm
8/31/2016 9:06pm
Hey mate not really got the engine back together wiseco race piston all the linkage rebuilt and back on just waiting on all the above parts as brownie had some issues with the post in Canada







Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 8/31/2016 9:08pm
8/31/2016 9:08pm
Going to do the 2013 YZF250 rear end conversion I'm trying to build up the courage to give the suspension the A kit treatment using the YZF suspension.... Bike builds just never end and my missus in on my arse about it hahahaha

Pit Row

See All »
Nystrom
Profile picture for user Nystrom
Posts
110
Joined
11/16/2006
Location
SE
Nystrom 9/3/2016 1:03pm
9/3/2016 1:03pm
Helder wrote:
Hey mate not really got the engine back together wiseco race piston all the linkage rebuilt and back on just waiting on all the above parts...
Hey mate not really got the engine back together wiseco race piston all the linkage rebuilt and back on just waiting on all the above parts as brownie had some issues with the post in Canada







Nice build! Just a heads up with the wiseco piston, i had one in mine yz 250 and a friend had one in his, first be sure to check ring gap because that was way tight on both our bikes and we have never had that happen with oem or vertex. Second mine made it 11h and his made it 17h. Since then i also heard about others that wont use wiseco for the same reason. Not trying to be a ass just a heads up. Bet a lot of people are gonna come tell me im wrong and wisecos fine but thats just my opinion
adam8781
Profile picture for user adam8781
Posts
670
Joined
12/22/2015
Location
CA
adam8781 9/4/2016 1:21pm
9/4/2016 1:21pm Edited Date/Time 9/4/2016 1:22pm
im done with wiseco, i havnt used one in years, tried one this week on a customers bike had bad luck with a yz450 kit, its rare i stray from pro x and i wont waste my time on the big W again.


Love the bike tho!
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 9/4/2016 7:36pm
9/4/2016 7:36pm
Damn wish I knew before I'll see how it goes and pull it at 5 hours.
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 9/5/2016 1:28am
9/5/2016 1:28am
Got some parts today once brownies parts arrive I'll have it running so that will be sweet!



Slosh 112
Profile picture for user Slosh 112
Posts
1155
Joined
3/31/2014
Location
Mackay QLD AU
Slosh 112 9/5/2016 2:03am
9/5/2016 2:03am
I wouldn't worry about Wiseco man their 2 stroke pistons anyway, I put their GP race replica pistons in the in-laws CR125 & YZ250 with no dramas. Maybe their replacement bottom ends and some 4 stroke stuff is a bit dodgy but Wiseco made a name for themselves with their 2 banger stuff, their good stuff is good.
Nystrom
Profile picture for user Nystrom
Posts
110
Joined
11/16/2006
Location
SE
Nystrom 9/5/2016 4:20am
9/5/2016 4:20am
Slosh 112 wrote:
I wouldn't worry about Wiseco man their 2 stroke pistons anyway, I put their GP race replica pistons in the in-laws CR125 & YZ250 with no...
I wouldn't worry about Wiseco man their 2 stroke pistons anyway, I put their GP race replica pistons in the in-laws CR125 & YZ250 with no dramas. Maybe their replacement bottom ends and some 4 stroke stuff is a bit dodgy but Wiseco made a name for themselves with their 2 banger stuff, their good stuff is good.
On the pulpmx show cant remember which one they had a question about sponsors were the teams didnt use their product and he said Wiseco. I've heard the same about their snowmobile pistons. They used to be better quality then now. How was the ring gap in the wisecos you used?

You are right about their bottom end kits are junk as are hot rods. I would never let that stuff near my bike or workshop.
adam8781
Profile picture for user adam8781
Posts
670
Joined
12/22/2015
Location
CA
adam8781 9/5/2016 10:25am
9/5/2016 10:25am Edited Date/Time 9/5/2016 10:30am
im very interested in the rear end swap, its on my list of things todo as well as the 22.5 clamps off a newer yzf
Slosh 112
Profile picture for user Slosh 112
Posts
1155
Joined
3/31/2014
Location
Mackay QLD AU
Slosh 112 9/5/2016 12:47pm
9/5/2016 12:47pm
Nystrom wrote:
On the pulpmx show cant remember which one they had a question about sponsors were the teams didnt use their product and he said Wiseco. I've...
On the pulpmx show cant remember which one they had a question about sponsors were the teams didnt use their product and he said Wiseco. I've heard the same about their snowmobile pistons. They used to be better quality then now. How was the ring gap in the wisecos you used?

You are right about their bottom end kits are junk as are hot rods. I would never let that stuff near my bike or workshop.
The YZ250 was good from the box but the CR125 was wrong, I checked it in the car while I was at the bike shop, took it back in and they gave me another. Never had a rebuilt engine fail on me, I personally use Vertex or CP but some people especially old school people will tell me they want a Wiseco piston. Maybe because back in the day they were really good, makes it hard when this many people swear against a product.
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 9/5/2016 2:34pm
9/5/2016 2:34pm
Not that I'm old or anything but when I was racing 2/'s you only ever ran Wiseco pistons! So back to Wiseco I went.
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 9/28/2016 8:17pm
9/28/2016 8:17pm










Bingo got some parts today just need time now! Id sell my soul for the A Kit in Bazarr but ill be shot.
adam8781
Profile picture for user adam8781
Posts
670
Joined
12/22/2015
Location
CA
adam8781 9/28/2016 11:03pm
9/28/2016 11:03pm Edited Date/Time 9/28/2016 11:05pm
lol, i anodized my stock stuff and have valving, close to A kit ill have for the foreseeable future
Helder
Profile picture for user Helder
Posts
1045
Joined
5/16/2015
Location
AU
Helder 10/9/2016 8:38pm
10/9/2016 8:38pm
Nice! Coated lowers also?

Got a bit done.... back to work tomorrow arvo.
