2011 Crf250r build

Related:
Create New Tag

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

8/16/2016 2:21 PM
Edited Date/Time: 8/16/2016 3:21 PM

Been following several builds on here for the last year or so and ive been completely blown away by the dedication and craftsmanship put into everyones builds. So i wanted to throw mine in the mix. I purchased this blown up turd of a bike 4 months ago and have been working to build something i could be really proud of.

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

8/16/2016 3:20 PM
Edited Date/Time: 8/16/2016 3:38 PM



So this is what i started with, motor was completely seized previous owner had no idea why, so i started by pulling the entire bike down and quickly ripped into the motor and to my horror found this



Looks like a valve failed and made a complete mess of the motor, i wound up trashing the cyclinder, crank, and head. I then got to cleaning/anodizing anything that needed it.




I used Lye to strip the swingarm, followed up by eagle one and lots of scrubbing

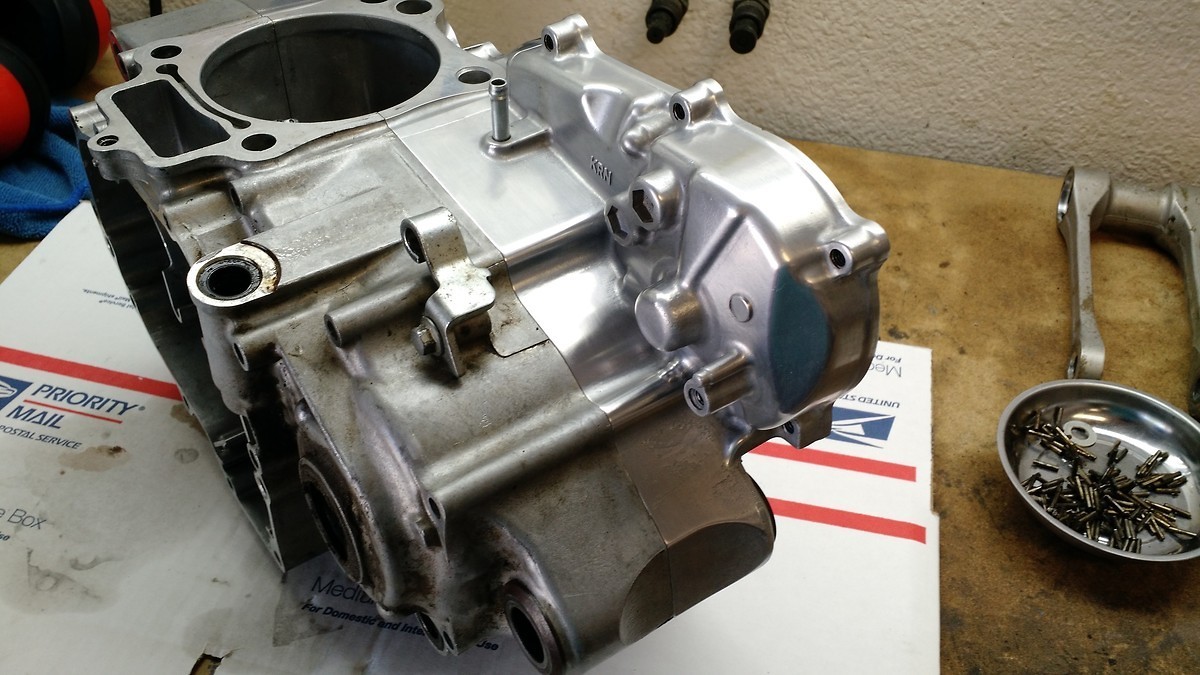

Before and after of the cases

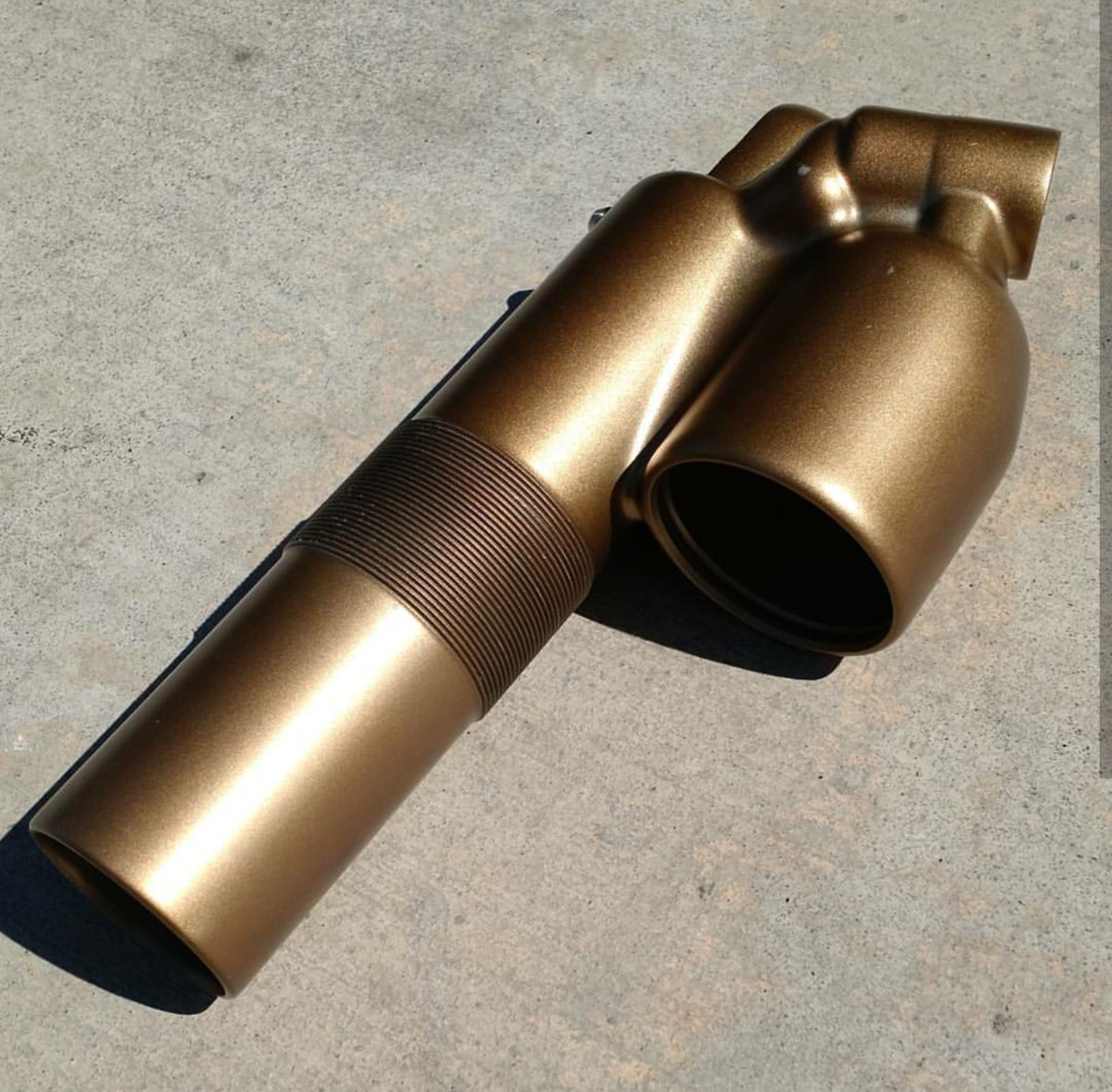

Side cases, fork tubes, Merge knuckle and lots of other misc parts got anodized



Got a Kashima body on ebay for $100

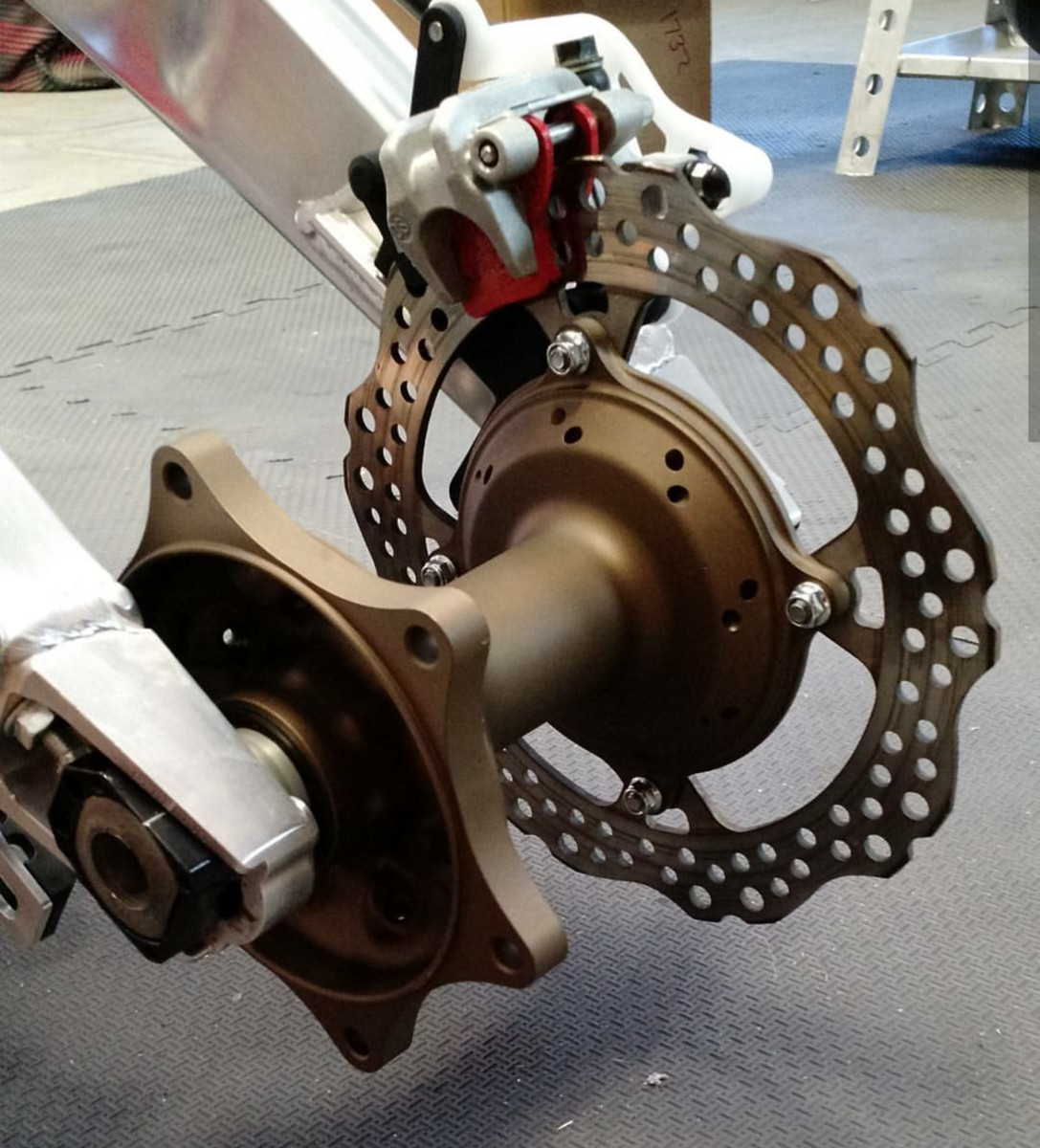

Hubs were cerakoted by OC custom coatings, they do all of AHM and Dubyas parts

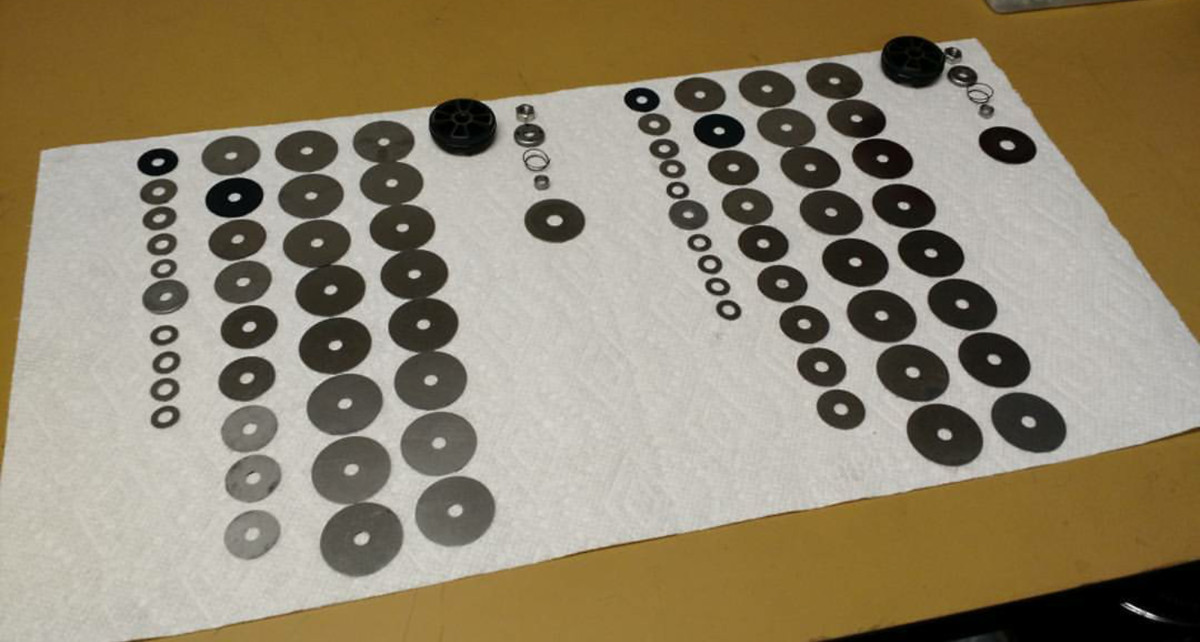

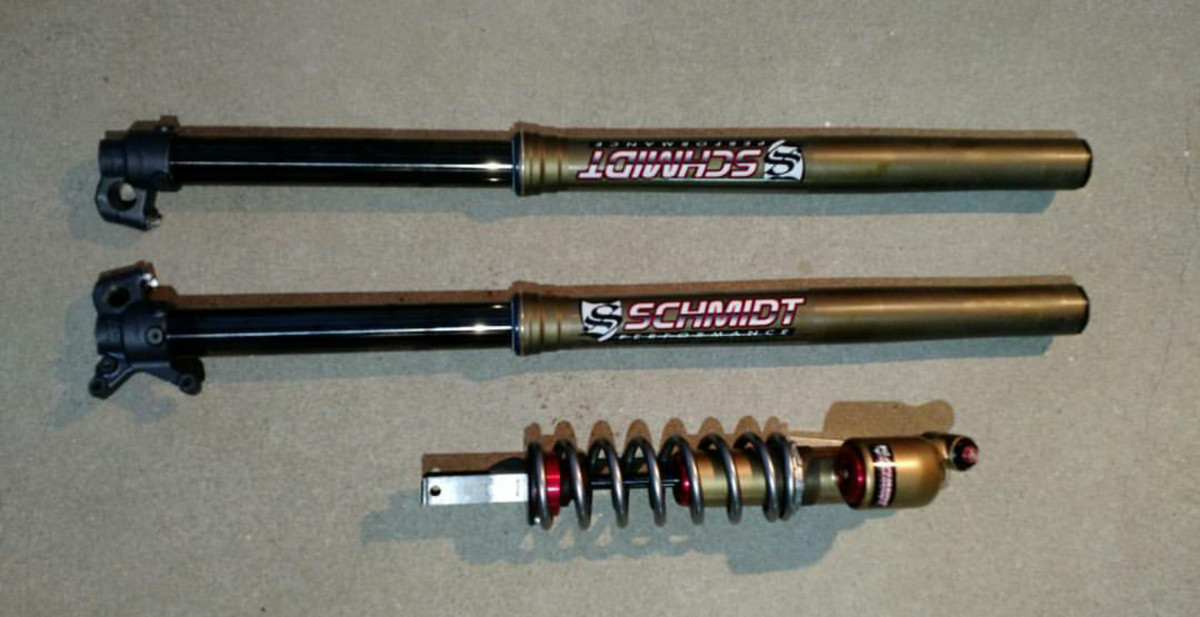

Fork and Shock shaft were DLC coated, check valve and works PC piston in the shock valving from Schmidt Performance

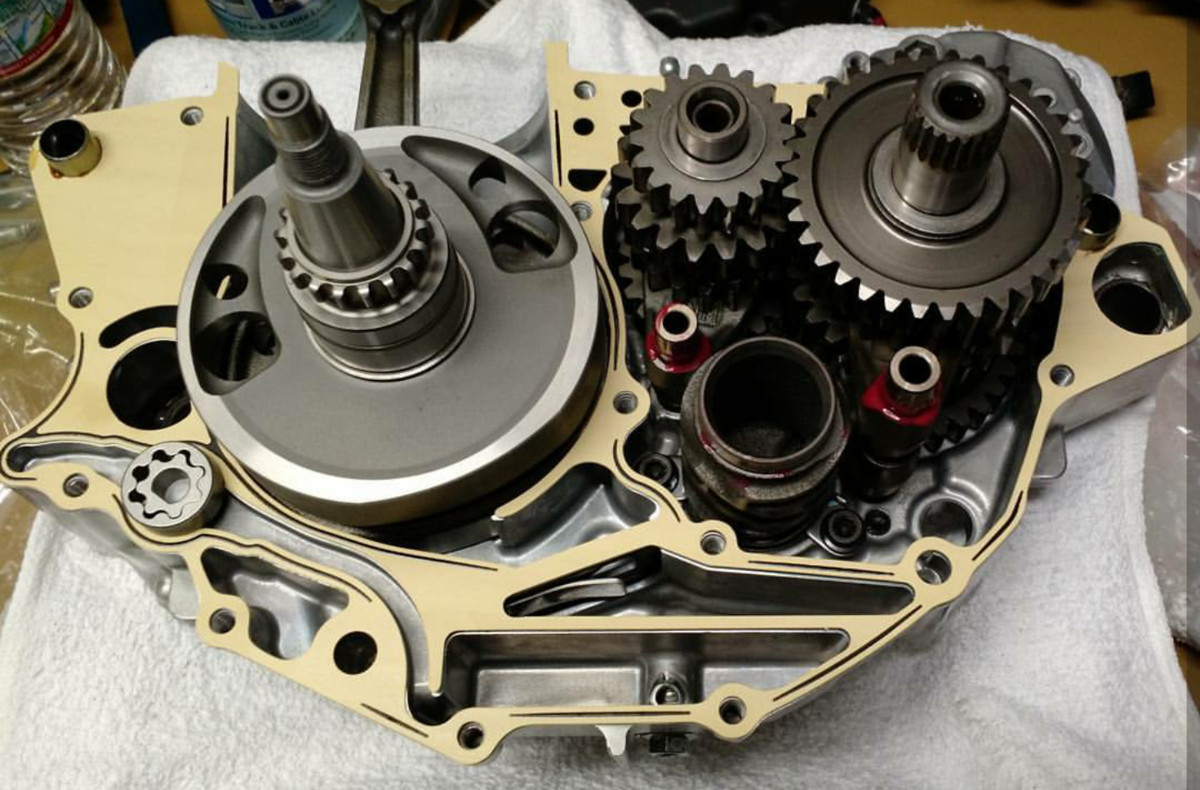

Motor got a Vertex HC piston, Stage 2 Hotcam and Moto Tassanari airboot

Graphics by Max Friese at 719 Designs

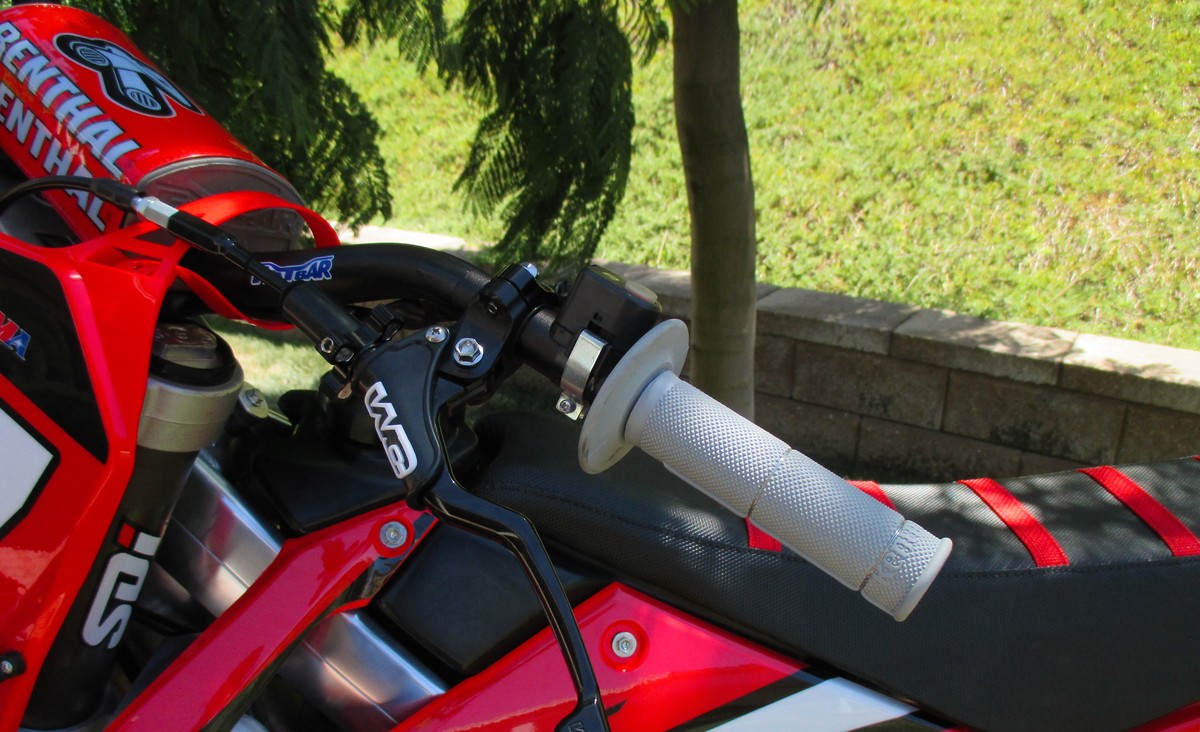

Brembo master cylinder





Used the 2016 clutch cable/mount/actuator for smoother pull


Merge Racing Nuckle

And after 4 months of hardwork thats the final result. Lots of cool little details i couldnt capture in a couple pics but im really ecstatic with how it turned out. Its satisfying to say i worked every piece of the bike, from motor/suspension valving to cleaning every nut&bolt, frame, building wheels etc.

Spuder155

Vital MX member Spuder155
53497 Spuder155 http://p.vitalmx.com/photos/users/53497/avatar/c50_image_1476968065.jpg?1476967438 http://www.vitalmx.com/community/Spuder155,53497/all 07/28/16 3 26

Posts: 29

Joined: 7/28/2016

Location: AUS

8/17/2016 8:41 PM

Hey man mint build, just a few questions. How did you clean your cases so well? And how did you prep your side covers for anodising?

mxb2

Vital MX member mxb2
20799 mxb2 http://p.vitalmx.com/photos/users/20799/avatar/c50_IMG_20151127_132255925_1450107346.jpg?1450106842 http://www.vitalmx.com/community/mxb2,20799/all 06/15/10 7 http://www.vitalmx.com/community/mxb2,20799/setup 308 15076 118 1

Posts: 15384

Joined: 6/15/2010

Location: Bowie, MD USA

8/17/2016 8:52 PM

Nice build man.

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

8/17/2016 9:44 PM

Spuder155 wrote:

Hey man mint build, just a few questions. How did you clean your cases so well? And how did you prep your side covers for anodising?

Thanks man, the cases I used 320 to smooth them out followed by maroon scotch brite and brillo pads, they were really dirty and a major pita, probably spent 2hrs per side, will definitely vapor blast them next time. For the side covers I started by stripping the ignition cover with aircraft paint striper, then had it bead blasted along with the primary and water pump cover. They were all hard anodized, water pump and ignition/oil filter cover are dark gray at .002, and the primary is "clear" at .0005.

CarlinoJoeVideo

Vital MX member CarlinoJoeVideo
41118 CarlinoJoeVideo http://p.vitalmx.com/photos/users/41118/avatar/c50_jessy1_1471467436.jpg?1471466703 http://www.vitalmx.com/community/CarlinoJoeVideo,41118/all 11/30/13 3 53 http://www.vitalmx.com/community/CarlinoJoeVideo,41118/setup 96 4123 44 5 1

Posts: 4219

Joined: 11/30/2013

Location: Portland/Los Angeles, CA USA

8/17/2016 10:31 PM

Great work! Super clean! How does it ride?

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

8/17/2016 11:08 PM

CarlinoJoeVideo wrote:

Great work! Super clean! How does it ride?

Thanks! Haven't been able to throw a leg over it yet haha hoping to get out some time this weekend and see how she goes!

Turbojez

Vital MX member Turbojez
48348 Turbojez http://p.vitalmx.com/photos/users/48348/avatar/c50_DSC_0669_1470385124.jpg?1470384960 http://www.vitalmx.com/community/Turbojez,48348/all 08/05/15 7 http://www.vitalmx.com/community/Turbojez,48348/setup 90 1072 18

Posts: 1162

Joined: 8/5/2015

Location: POL

8/18/2016 12:18 AM

Good job, the bike looks awesome.
I never thought you can order just the shim stack from suspension companies?

Jrewing

Vital MX member Jrewing
41597 Jrewing http://p.vitalmx.com/photos/users/41597/avatar/c50_image_1441366962.jpg?1441366500 http://www.vitalmx.com/community/Jrewing,41597/all 01/04/14 28 1545 4

Posts: 1573

Joined: 1/4/2014

Location: AUS

8/18/2016 1:55 AM

Nice

Spuder155

Vital MX member Spuder155
53497 Spuder155 http://p.vitalmx.com/photos/users/53497/avatar/c50_image_1476968065.jpg?1476967438 http://www.vitalmx.com/community/Spuder155,53497/all 07/28/16 3 26

Posts: 29

Joined: 7/28/2016

Location: AUS

8/18/2016 3:31 AM

Spuder155 wrote:

Hey man mint build, just a few questions. How did you clean your cases so well? And how did you prep your side covers for anodising?

dereka15 wrote:

Thanks man, the cases I used 320 to smooth them out followed by maroon scotch brite and brillo pads, they were really dirty and a major pita, probably spent 2hrs per side, will definitely vapor blast them next time. For the side covers I started by stripping the ignition cover with aircraft paint striper, then had it bead blasted along with the primary and water pump cover. They were all hard anodized, water pump and ignition/oil filter cover are dark gray at .002, and the primary is "clear" at .0005.

Sounds good, might have to give it a go. Nice job

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

8/18/2016 7:40 AM

Turbojez wrote:

Good job, the bike looks awesome.
I never thought you can order just the shim stack from suspension companies?

Thanks man, I actually used work for Schmidt, but we do sell valving to diy guys and people in other states/countries on occasion.

jrrundle

Vital MX member jrrundle
51380 jrrundle http://p.vitalmx.com/photos/users/51380/avatar/c50_sunrise_1457665809.jpg?1457665002 http://www.vitalmx.com/community/jrrundle,51380/all 03/10/16 16 120 1

Posts: 136

Joined: 3/10/2016

Location: Renton, WA USA

8/22/2016 10:07 PM

Bike looks amazing, loving the all red look.

3rdgearpinned

Vital MX member 3rdgearpinned
53106 3rdgearpinned http://p.vitalmx.com/photos/users/53106/avatar/c50_Denver_2017_1509457698.jpg?1509457269 http://www.vitalmx.com/community/3rdgearpinned,53106/all 07/08/16 1 46 330

Posts: 376

Joined: 7/8/2016

Location: In the Mountains, NC USA

8/23/2016 6:35 AM

dereka15 wrote:

Thanks man, I actually used work for Schmidt, but we do sell valving to diy guys and people in other states/countries on occasion.

With being in the middle of a Cr125 build, I will have to say this is outstanding. The attention to detail is incredible and I know first hand how long it takes to concentrate on a certain part. I sanded and scotch brited my swing arm for about 4 hours on one saturday and it looks no where the shape of yours. I may have to go back to the drawing board. I think my lack of patience makes me say to myself, "thats looks good enough" and stick it back on just to be done with that part. If you dont mine me asking, what can I expect to pay for a 2010-2011 CRF thats locked up these days? It may be my next project. Nice work!

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

8/23/2016 7:20 AM

Turbojez wrote:

Good job, the bike looks awesome.
I never thought you can order just the shim stack from suspension companies?

dereka15 wrote:

Thanks man, I actually used work for Schmidt, but we do sell valving to diy guys and people in other states/countries on occasion.

3rdgearpinned wrote:

With being in the middle of a Cr125 build, I will have to say this is outstanding. The attention to detail is incredible and I know first hand how long it takes to concentrate on a certain part. I sanded and scotch brited my swing arm for about 4 hours on one saturday and it looks no where the shape of yours. I may have to go back to the drawing board. I think my lack of patience makes me say to myself, "thats looks good enough" and stick it back on just to be done with that part. If you dont mine me asking, what can I expect to pay for a 2010-2011 CRF thats locked up these days? It may be my next project. Nice work!

Thanks man, for the swingarm the easiest way to remove the anodizing so it can be polished is to soak it in lye, it's pretty nasty stuff but it works great, and only takes maybe 15 mins, then just use an aluminium brightener to remove the black smut and then just polish as you normally would. You could also take it to an anodizing shop and have them strip it for you. As far as the price for a locked up bike I honestly don't know, that was my dillema, I wound up paying $1700 which looking back was probably a little high, but it did have the full Yoshi, Hinson BTL clutch, Vortex ignition and Merge racing knuckle already installed retail on those parts alone is almost $3500, so I figured they were worth what I payed. All in i have about 6k in this bike, which is more then it's worth but I don't really plan on selling it, that's still way cheaper then new and it wouldn't be as cool haha.

Spydee

Vital MX member Spydee
41407 Spydee http://p.vitalmx.com/photos/users/41407/avatar/c50_red_dragon_national_emblem_wales_1442821698.jpg?1442821080 http://www.vitalmx.com/community/Spydee,41407/all 12/18/13 11 1 http://www.vitalmx.com/community/Spydee,41407/setup 50 1804 16

Posts: 1854

Joined: 12/18/2013

Location: Wales, GBR

8/23/2016 8:03 AM

Very nice!

mingham97

Vital MX member mingham97
39718 mingham97 http://p.vitalmx.com/photos/users/39718/avatar/c50_13116134_977576465690800_46989810979237177_o_1463408496.jpg?1463408091 http://www.vitalmx.com/community/mingham97,39718/all 07/16/13 55 539 6

Posts: 594

Joined: 7/16/2013

Location: Perth, AUS

8/24/2016 6:28 AM

Good job mate. There are plenty of 2 stroke builds but never and older 4 stroke build. I was thinking to myself "I'm pretty sure I'll be the only one to want to put 3k into a 250f" but nah. Great minds think alike

"Now go out to the garage and get your POS ready to go rip the vet track tomorrow you dumbass."

ML512

Vital MX member ML512
13480 ML512 http://p.vitalmx.com/photos/users/13480/avatar/c50_profile_1424660203.jpg?1424659234 http://www.vitalmx.com/community/ML512,13480/all 12/28/08 355 52 1906 458 http://www.vitalmx.com/community/ML512,13480/setup 368 8187 1 524 87 25

Posts: 8555

Joined: 12/28/2008

Location: Wildomar, CA USA

Administrator

11/1/2016 6:57 PM

Moving to the build section...

Vital MX's Do-All Minion...

Instagram: @Michael_Lindsay512

Braden_Steinhour23

Vital MX member Braden_Steinhour23
55077 Braden_Steinhour23 /images/default/avatar/c50.png http://www.vitalmx.com/community/Braden-Steinhour23,55077/all 12/01/16 3 46 14

Posts: 49

Joined: 12/1/2016

Location: San Antonio, TX USA

12/1/2016 9:26 AM

When you end up throwing a leg over it let me know if the "a-kit" coating make a difference or just make a trick look. Sweet build, i had a 2012 crf250r and loved it until there was rattle coming from who knows where, and the engine needed a new top end. its an awesome bike if you keep up good maintenance.

ed921reyes

Vital MX member ed921reyes
54792 ed921reyes http://p.vitalmx.com/photos/users/54792/avatar/c50_lonemountryder_1478194315.jpg?1478193864 http://www.vitalmx.com/community/ed921reyes,54792/all 11/02/16 6 274 1

Posts: 280

Joined: 11/2/2016

Location: Las Vegas, NV USA

12/1/2016 11:44 AM
Edited Date/Time: 12/1/2016 11:52 AM

dammmmmmmmmm!!! this bike is awesome. i had a 11 crf250 best bike ive ever owned!!! wish i never sold it.

how much you into it?

RussB

Vital MX member RussB
43777 RussB http://p.vitalmx.com/photos/users/43777/avatar/c50_1_1450103961.jpg?1450103468 http://www.vitalmx.com/community/RussB,43777/all 07/12/14 4 http://www.vitalmx.com/community/RussB,43777/setup 16 407 10

Posts: 423

Joined: 7/12/2014

Location: GBR

12/2/2016 12:21 AM

Wow, really nice job!
Your build definitely deserves a bigger/more detailed thread. It looks like you've put a lot of hours into that bike!

Out of all the builds I've seen I think yours in one of the best in terms of the overall finish and look of the metal work on the bike. The finish on the frame, swingarm and cases look perfect without being 'over polished'. Gives the bike a super clean look.

Did you do any work to the header pipe? I bet that will blue up nicely after a few rides.

I'm rebuilding my 15 RMZ450 at the moment, if I can get my aluminum to look half as good as yours I will be happy!

@russ_69

Braden_Steinhour23

Vital MX member Braden_Steinhour23
55077 Braden_Steinhour23 /images/default/avatar/c50.png http://www.vitalmx.com/community/Braden-Steinhour23,55077/all 12/01/16 3 46 14

Posts: 49

Joined: 12/1/2016

Location: San Antonio, TX USA

12/2/2016 3:48 AM

How do you like the brembo master cylinder? Is it worth the investment? Did you swap the calipers aswell?

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

12/2/2016 4:45 AM

Braden_Steinhour23 wrote:

When you end up throwing a leg over it let me know if the "a-kit" coating make a difference or just make a trick look. Sweet build, i had a 2012 crf250r and loved it until there was rattle coming from who knows where, and the engine needed a new top end. its an awesome bike if you keep up good maintenance.

Thanks man! Yeah I've got about 10hrs on it now and i absolutely love it! As far as the coatings its hard to say because I didn't have anything to compare it to, but I've built alot of suspension and when you build something that's coated you definitely notice how much smoother everything is so on some level its definitely doing something, whether or not you feel it is hard to say, looks cool though!

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

12/2/2016 4:51 AM

ed921reyes wrote:

dammmmmmmmmm!!! this bike is awesome. i had a 11 crf250 best bike ive ever owned!!! wish i never sold it.

how much you into it?

Thanks! They're great bikes. With the $1700 I payed for the bike itself and everything I have into it, I'm probably at about 6k, that's obviously far more then it will ever be worth to anyone else, but it's way better then a new bike imo for much less.

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

12/2/2016 5:08 AM
Edited Date/Time: 12/2/2016 5:18 AM

RussB wrote:

Wow, really nice job!
Your build definitely deserves a bigger/more detailed thread. It looks like you've put a lot of hours into that bike!

Out of all the builds I've seen I think yours in one of the best in terms of the overall finish and look of the metal work on the bike. The finish on the frame, swingarm and cases look perfect without being 'over polished'. Gives the bike a super clean look.

Did you do any work to the header pipe? I bet that will blue up nicely after a few rides.

I'm rebuilding my 15 RMZ450 at the moment, if I can get my aluminum to look half as good as yours I will be happy!

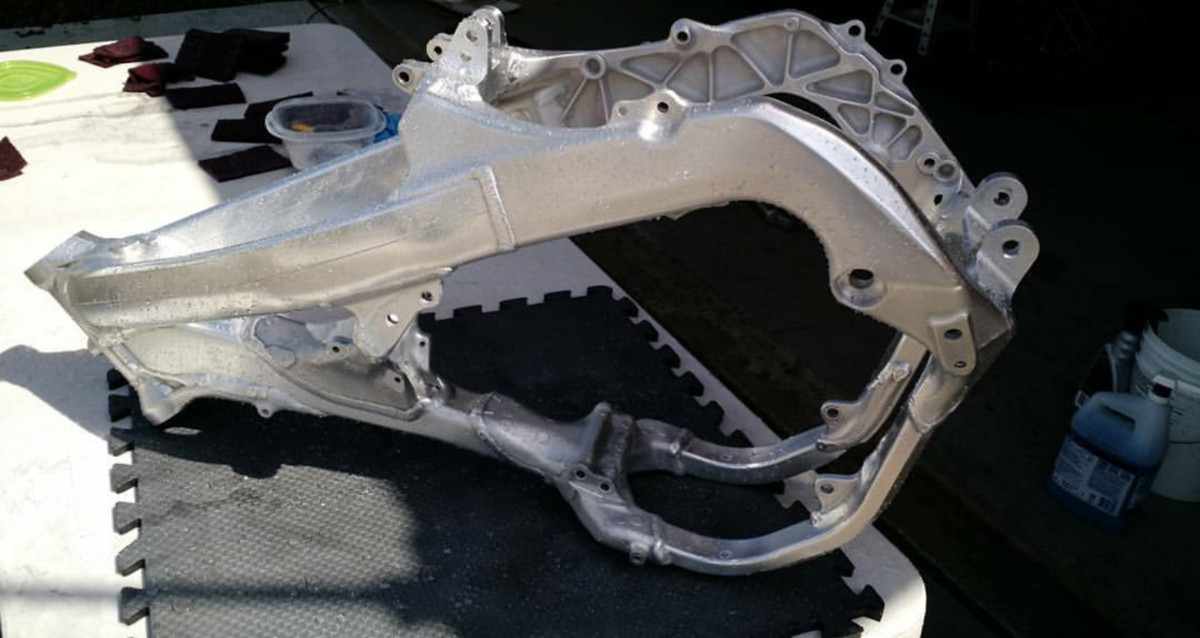

Thanks man I greatly appreciate it! For the frame all I did was wash it with eagle one and then I scrubbed it with maroon scotchbrite and sos. Same thing for the cases except no eagle one and I used 320 sand paper first. I did polish the header and it did blue very nice, one of my favorite things on the bike



Right on! I've never done a full frame job on an rmz like this yet, one thing I've noticed is every bike reacts a bit different, some are shinier then others, just depends on the alloy and how the peices are cast. The rmz's seem to clean up quite nice though, the factory guy's frames are probably the nicest in the pits.

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

12/2/2016 5:15 AM
Edited Date/Time: 12/2/2016 5:17 AM

Braden_Steinhour23 wrote:

How do you like the brembo master cylinder? Is it worth the investment? Did you swap the calipers aswell?

I like the brembo master cylinder, I have one on both my Hondas. It's definitely got quite a bit more power imo. It does have a different feel to it, and it's still no KTM but I think that could be because of my line. I did not swap the caliper though, there's no way that I know of to get one to mount without some pretty serious machining.

Cmiller493

Vital MX member Cmiller493
25341 Cmiller493 http://p.vitalmx.com/photos/users/25341/avatar/c50_1_1418867431.jpg?1418867396 http://www.vitalmx.com/community/Cmiller493,25341/all 01/15/11 4 http://www.vitalmx.com/community/Cmiller493,25341/setup 15 165 5

Posts: 180

Joined: 1/15/2011

Location: Derby, KS USA

12/2/2016 4:30 PM

How much did it cost for cerakoting the hubs? Wonder if its any cheaper going directly to the company versus going through dubya.

dereka15

Vital MX member dereka15
48559 dereka15 /images/default/avatar/c50.png http://www.vitalmx.com/community/dereka15,48559/all 08/22/15 http://www.vitalmx.com/community/dereka15,48559/setup 1 19 1

Posts: 20

Joined: 8/22/2015

Location: USA

12/2/2016 5:05 PM

Cmiller493 wrote:

How much did it cost for cerakoting the hubs? Wonder if its any cheaper going directly to the company versus going through dubya.

It only cost me $100 to have them done which is half of Dubya's cost.
