2004 Kx250 Build

DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21
Edited Date/Time 11/7/2015 9:17am
This weekend I am picking an 04 Kx250, guy says he just rebuilt the motor but the rest of the bike needs some work. So Ima use it as a project bike and go through the whole thing and make it all brand new again! What are some ideas that I can do it make it unique without spending a ton of dough. Trying to keep it the whole cost to a minimum but, I will spend the nessicary money to fix whatever needs to be done as far as bearings, suspension, and what not.

|
Premix
Profile picture for user Premix
Posts
1514
Joined
1/5/2014
Location
AS US
Premix 8/17/2015 3:54pm
8/17/2015 3:54pm
Get ready to break out your check book. I have close to 4k in mine
DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/17/2015 6:30pm
8/17/2015 6:30pm
Premix wrote:
Get ready to break out your check book. I have close to 4k in mine
Let's see it.
tempura
Profile picture for user tempura
Posts
2079
Joined
5/18/2015
Location
JP
tempura 8/18/2015 5:23am
8/18/2015 5:23am
Why does everyone rebuild their motors then sell? Not to sound paranoid, but if you don't know the guy well, ask for some proof of the rebuild, receipts for parts, photos etc..

The Shop

See All »
Spydee
Profile picture for user Spydee
Posts
1995
Joined
12/18/2013
Location
Wales GB
Spydee 8/18/2015 5:40am
8/18/2015 5:40am Edited Date/Time 8/18/2015 5:46am
tempura wrote:
Why does everyone rebuild their motors then sell? Not to sound paranoid, but if you don't know the guy well, ask for some proof of the...
Why does everyone rebuild their motors then sell? Not to sound paranoid, but if you don't know the guy well, ask for some proof of the rebuild, receipts for parts, photos etc..
A rebuilt motor is more desirable to a buyer rather than an engine which needs rebuilding after buying.

However be wary of people who claim an engine rebuild has been performed... The only way you'll know for sure is to tear it down and see for yourself. My mate and I bought a KX125 2004 a few weeks ago - the buyer was nice as pie and very honest. he claimed the engine had been rebuilt, and low and behold when we stripped it down all the seals and gaskets were perished. Thankfully the buyer reimbursed us the cost of the parts (£150), but still. Don't believe everything you're told.
DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/18/2015 7:20am
8/18/2015 7:20am
Spydee wrote:
A rebuilt motor is more desirable to a buyer rather than an engine which [i]needs[/i] rebuilding after buying. However be wary of people who claim an...
A rebuilt motor is more desirable to a buyer rather than an engine which needs rebuilding after buying.

However be wary of people who claim an engine rebuild has been performed... The only way you'll know for sure is to tear it down and see for yourself. My mate and I bought a KX125 2004 a few weeks ago - the buyer was nice as pie and very honest. he claimed the engine had been rebuilt, and low and behold when we stripped it down all the seals and gaskets were perished. Thankfully the buyer reimbursed us the cost of the parts (£150), but still. Don't believe everything you're told.
For sure, I work at a shop so I have all the tools to do whatever I need to do to it and I will for sure be looking at it.


DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/18/2015 7:22am
8/18/2015 7:22am
Does any one know if the newer style kxf shrouds(13-15) style bolt up like the older kxf shrouds(08 and older) to the kx frame? And does the newer style front number plate and fender bolt right up?
Spydee
Profile picture for user Spydee
Posts
1995
Joined
12/18/2013
Location
Wales GB
Spydee 8/19/2015 2:15am
8/19/2015 2:15am
It has been done before, however I read that you need to weld a tab onto the frame to make the shrouds line up, and if you want to go all out on the rear also then you may need the '13 airbox, subframe and seat, if you want to upgrade the rear to the new gen plastics. The front end (fender/plate) bolts on without any mods apparently.

DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/19/2015 12:46pm
8/19/2015 12:46pm
Spydee wrote:
It has been done before, however I read that you need to weld a tab onto the frame to make the shrouds line up, and if...
It has been done before, however I read that you need to weld a tab onto the frame to make the shrouds line up, and if you want to go all out on the rear also then you may need the '13 airbox, subframe and seat, if you want to upgrade the rear to the new gen plastics. The front end (fender/plate) bolts on without any mods apparently.

I have seen it done before just never knew how difficult it was! But thanks for the info!
Spydee
Profile picture for user Spydee
Posts
1995
Joined
12/18/2013
Location
Wales GB
Spydee 8/20/2015 12:21am
8/20/2015 12:21am
No worries dude, here's a few more pics to give you some inspiration and confidence!



DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/20/2015 8:05am
8/20/2015 8:05am
Spydee wrote:
No worries dude, here's a few more pics to give you some inspiration and confidence!
No worries dude, here's a few more pics to give you some inspiration and confidence!



Did the rear end go to together pretty easy?? And what did you do for shroud brackets?

Looks sick by the way!!
luke99
Profile picture for user luke99
Posts
155
Joined
1/4/2014
Location
GB
luke99 8/20/2015 2:11pm
8/20/2015 2:11pm
Keep the stock shrouds on it looks better imp

dylanv21
Profile picture for user dylanv21
Posts
414
Joined
10/3/2013
Location
Fresno, CA US
dylanv21 8/20/2015 4:10pm
8/20/2015 4:10pm
luke99 wrote:
Keep the stock shrouds on it looks better imp [img]https://p.vitalmx.com/photos/forums/2015/08/20/102213/s1200_image.jpg[/img]
Keep the stock shrouds on it looks better imp

Yeah, I think you can't go wrong in either direction. Both sets look good thats forsure! And sweet bike by the way!
Spydee
Profile picture for user Spydee
Posts
1995
Joined
12/18/2013
Location
Wales GB
Spydee 8/21/2015 12:00am
8/21/2015 12:00am
DylanVV21 wrote:
Did the rear end go to together pretty easy?? And what did you do for shroud brackets?

Looks sick by the way!!
Sounds like the KXF fender is actually a little short, in the sense that it doesn't seal off the airbox and leaves a gap
... you know how the KX rear fender is sticking up a lot? The KXF kinda droops down...

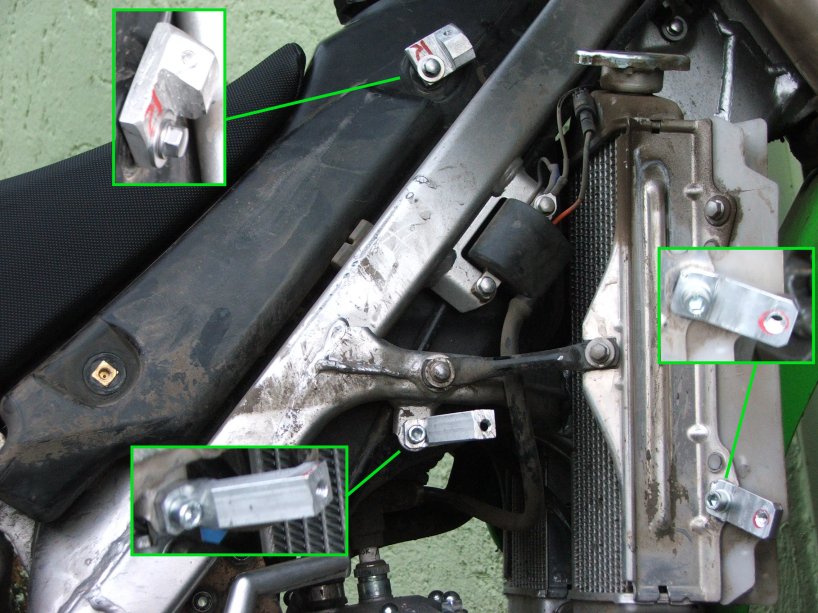

Here's the shroud brackets:



If you're going to get shrouds, 06-08 work the best, they line up with the tank and that's the biggest thing. 09-11 are off, and 12-13 are even more difficult to fit.
Badjak
Profile picture for user Badjak
Posts
26
Joined
9/25/2014
Location
FR
Badjak 8/21/2015 1:36pm
8/21/2015 1:36pm
Spydee wrote:
Sounds like the KXF fender is actually a little short, in the sense that it doesn't seal off the airbox and leaves a gap ... you...
Sounds like the KXF fender is actually a little short, in the sense that it doesn't seal off the airbox and leaves a gap
... you know how the KX rear fender is sticking up a lot? The KXF kinda droops down...

Here's the shroud brackets:



If you're going to get shrouds, 06-08 work the best, they line up with the tank and that's the biggest thing. 09-11 are off, and 12-13 are even more difficult to fit.
Not so much difficult with the 450 kxf 2015,I did it


DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/21/2015 6:53pm
8/21/2015 6:53pm
Badjak wrote:
Not so much difficult with the 450 kxf 2015,I did it [img]https://p.vitalmx.com/photos/forums/2015/08/21/102325/s1200_DSCF4840.jpg[/img]
Not so much difficult with the 450 kxf 2015,I did it


Do they line up closer then the 250?
DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/25/2015 5:38pm
8/25/2015 5:38pm
Well, got to pick up this baby this past weekend. Here it is from when I picked it up.





Here it is as of Monday evening.

slackinoff
Profile picture for user slackinoff
Posts
307
Joined
11/18/2014
Location
Nacogdoches, TX US
slackinoff 8/25/2015 5:54pm
8/25/2015 5:54pm
Nice work! Looks like a solid bike.

There are a bunch of methods to get the rust off that nice PC pipe. CLR, navel jelly, aluminum wheel cleaner, ect. I am about to do the same on a rusty PC pipe....going to try CLR first.

Pit Row

See All »
dylanv21
Profile picture for user dylanv21
Posts
414
Joined
10/3/2013
Location
Fresno, CA US
dylanv21 8/25/2015 6:11pm
8/25/2015 6:11pm
slackinoff wrote:
Nice work! Looks like a solid bike. There are a bunch of methods to get the rust off that nice PC pipe. CLR, navel jelly, aluminum...
Nice work! Looks like a solid bike.

There are a bunch of methods to get the rust off that nice PC pipe. CLR, navel jelly, aluminum wheel cleaner, ect. I am about to do the same on a rusty PC pipe....going to try CLR first.
I am going to try a few methods to try and get the rust off! I really want to keep the PC works pipe since PC does not offer it anymore for a 2004. So I am hoping I can save it and just throw a new 304 silencer on it!
731chopper
Profile picture for user 731chopper
Posts
4084
Joined
1/2/2015
Location
DFW, TX US
Fantasy
355th
731chopper 8/25/2015 6:33pm
8/25/2015 6:33pm
Badjak wrote:
Not so much difficult with the 450 kxf 2015,I did it [img]https://p.vitalmx.com/photos/forums/2015/08/21/102325/s1200_DSCF4840.jpg[/img]
Not so much difficult with the 450 kxf 2015,I did it


Where did you get those graphics made?? Woohoo
cleareforlanding 8/25/2015 7:40pm
8/25/2015 7:40pm
break out your checkbook and have a blast...the shroud mod is pretty simple. go to home depot and get some sticks of aluminum, start cutting and bending. sorry don't have any good pics on new phone.

Premixed112
Profile picture for user Premixed112
Posts
850
Joined
2/19/2015
Location
Los Angeles, CA US
Premixed112 8/26/2015 6:35am
8/26/2015 6:35am
I can never understand how people let their pipes get that rusty...
DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/26/2015 12:26pm
8/26/2015 12:26pm
Premixed112 wrote:
I can never understand how people let their pipes get that rusty...
Me either, but I do know this thing sat for a few years! I hoping I can get it off, but it's on their pretty thick so we will see. Really want to keeps the works pipe!
Premixed112
Profile picture for user Premixed112
Posts
850
Joined
2/19/2015
Location
Los Angeles, CA US
Premixed112 8/27/2015 12:00pm
8/27/2015 12:00pm
Premix wrote:
[img]https://p.vitalmx.com/photos/forums/2015/08/26/102982/s1200_IMG_20150822_200052793_HDR.jpg[/img] [img]https://p.vitalmx.com/photos/forums/2015/08/26/102983/s1200_IMG_20150822_200221670_HDR.jpg[/img] [img]https://p.vitalmx.com/photos/forums/2015/08/26/102984/s1200_IMG_20150822_200114158.jpg[/img]






Such a fan of the blue hubs on Kawasakis....
DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 8/31/2015 10:07pm
8/31/2015 10:07pm
Quick update;

-Forks and shock are apart, getting serviced and should be back together by Wednesday evening.
-Linkage, swing arm, axles and all other moving parts are gonna be washed tomorrow and greased and be ready to be put back on.
-Front rim, spokes, and hub are being cleaned and shined up. The back wheel spokes are being cut out tomorrow and will be replaced this week and the rim and hub will be cleaned and shinned up. Both while be recieving new tires as well.
-Frame, subframe, air box, gas tank, and engine cleaned and ready to go back in the frame.

Hoping by the end of the week, motor will be back in the frame, along with all the suspension piece (linkage and all) are back on the bike by the end of the week.

romain524
Profile picture for user romain524
Posts
567
Joined
1/14/2015
Location
Irvine, CA US
romain524 9/2/2015 6:23am
9/2/2015 6:23am
Badjak wrote:
Not so much difficult with the 450 kxf 2015,I did it [img]https://p.vitalmx.com/photos/forums/2015/08/21/102325/s1200_DSCF4840.jpg[/img]
Not so much difficult with the 450 kxf 2015,I did it


731chopper wrote:
Where did you get those graphics made?? Woohoo
I answer, it's a buddy,the graphics come from France "Shark-Graphic"
For sure the bike looking good with this, she just need a refresh frame now! Haha
DylanVV21
Profile picture for user DylanVV21
Posts
38
Joined
8/17/2015
Location
Fowler, CA US
DylanVV21 9/5/2015 8:45am
9/5/2015 8:45am
How it looks as of Friday night.. Still got some work to do, but can't complain so far.. It's so far perfect with everything, but I left the motor alone and just cleaned up the cases and what not without taking it all apart because it was running cherry before I framed it.

JZ125
Profile picture for user JZ125
Posts
48
Joined
9/14/2015
Location
Marion, IL US
JZ125 11/7/2015 6:07am
11/7/2015 6:07am
tempura wrote:
Why does everyone rebuild their motors then sell? Not to sound paranoid, but if you don't know the guy well, ask for some proof of the...
Why does everyone rebuild their motors then sell? Not to sound paranoid, but if you don't know the guy well, ask for some proof of the rebuild, receipts for parts, photos etc..
Kinda surprised this was asked. I purchased my 04 purposely for the steel frame and 48mm Kayaba combo for $1000. I built it how I wanted it, did the work myself so I can trust it, and saved a butt load of dough in the process. I am going to be super frank, I really think people purchase over their ability and think they will be better for doing so. A more powerful engine will not make you faster; a Gibson LP will not make you a better guitar play; Ping golf clubs will not make you a better golfer.

Post a reply to: 2004 Kx250 Build
