1994 Splitfire Pro Circuit KX125 Build

Goodluckmonkey 7/3/2015 8:13am
7/3/2015 8:13am
Very nice!

I like the irony that all the honda guys can't wait to get rid of their Mg cases.

Is there a metal insert in the pump, or do you have to run waterless coolant?

Not that it mattered to the factory, with all parts having a short life span.
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 7/28/2015 3:04am
7/28/2015 3:04am
7 weeks to go till Farleigh so yeah, pressure is on!! Picked this lot up last night, thanks to Simon at MaxMx, Cradley Kawasaki and Baz at Elbe MX.





The Shop

See All »
CrGuy2T
Profile picture for user CrGuy2T
Posts
4188
Joined
3/11/2015
Location
Santa Fe, TX US
Fantasy
3719th
CrGuy2T 7/29/2015 8:39pm
7/29/2015 8:39pm
Cannot wait to see this bike done. I'm thinking it's gonna be one of the top builds on the site.
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 7/30/2015 4:07am
7/30/2015 4:07am
CrGuy2T wrote:
Cannot wait to see this bike done. I'm thinking it's gonna be one of the top builds on the site.
Thanks bud, it should be a gem! Plenty going on behind the scenes every night after work! Bottom end could be back together and in the bike by the end of the week if all goes well...along with swingarm/forks/shock/linkage etc..
barkhard696
Profile picture for user barkhard696
Posts
1467
Joined
1/30/2010
Location
Houston, TX US
barkhard696 7/30/2015 6:27am
7/30/2015 6:27am Edited Date/Time 7/30/2015 1:27pm
Chuck, that'll be what, THREE bikes of the Month? You rule sir. Also, don't ever bet against the man's ability to find even the most obscure NOS and NOS/OEM parts for his builds.
CrGuy2T
Profile picture for user CrGuy2T
Posts
4188
Joined
3/11/2015
Location
Santa Fe, TX US
Fantasy
3719th
CrGuy2T 7/30/2015 8:09am
7/30/2015 8:09am
Hahaha I'm hoping he comes across a 99-02 kx 125 cycra clear vented front number plate for me!!!
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 7/31/2015 1:25am
7/31/2015 1:25am
CrGuy2T wrote:
Hahaha I'm hoping he comes across a 99-02 kx 125 cycra clear vented front number plate for me!!!
Haha barkhard thankyou sir, i do try!

CRguy, i'll try and search for one for you but theyre rocking horse ish! But it'll be worth it for me to find you one, as deep down i know i'll be buyin that bike off you in the future... Haha! I know you say not for sale, but everything's for sale at the right price Wink
NESC838
Profile picture for user NESC838
Posts
151
Joined
2/2/2011
Location
Wells, ME US
NESC838 7/31/2015 5:23pm
7/31/2015 5:23pm
Another beauty in the making, Chuck! The time, effort, and attention to detail you put into each of your builds is outstanding. Keep up the good work.
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/1/2015 12:15am
8/1/2015 12:15am
Thanks buddy, if a job's worth doing, it's worth doing properly!
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/1/2015 12:17am
8/1/2015 12:17am
As i'll actually be racing this bike, i thought it would be unfair to use a set of NOS Team graphics when we all know how rare they are. So i shipped off my originals to Dare Decals and had them reproduce them exactly... Unreal job as usual, cheers Ryno!

chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/1/2015 12:27am
8/1/2015 12:27am
Using my 102 race number, in the original n-style font that i drew up. Same 3 digit style pichon ran too...



TKL965
Profile picture for user TKL965
Posts
151
Joined
5/5/2014
Location
AU
TKL965 8/1/2015 2:00am
8/1/2015 2:00am
Damn. I love these projects. Gonna look good chuck.
tomm55x
Profile picture for user tomm55x
Posts
725
Joined
9/14/2014
Location
Erie, PA US
tomm55x 8/1/2015 4:43am
8/1/2015 4:43am
Wow,these builds are really awesome, this one is a gem nice work sir!
CrGuy2T
Profile picture for user CrGuy2T
Posts
4188
Joined
3/11/2015
Location
Santa Fe, TX US
Fantasy
3719th
CrGuy2T 8/1/2015 4:57am
8/1/2015 4:57am
chuckdavies wrote:
[img]https://p.vitalmx.com/photos/forums/2015/08/01/99525/s1200_image.jpg[/img]


Ryan does an amazing job! He's doing a some simple green graphics for me and some others they should be printed soon. He did my Plano Honda Shark graphics also.
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/1/2015 3:15pm
8/1/2015 3:15pm
chuckdavies wrote:
[img]https://p.vitalmx.com/photos/forums/2015/08/01/99525/s1200_image.jpg[/img]


CrGuy2T wrote:
Ryan does an amazing job! He's doing a some simple green graphics for me and some others they should be printed soon. He did my Plano...
Ryan does an amazing job! He's doing a some simple green graphics for me and some others they should be printed soon. He did my Plano Honda Shark graphics also.
Thanks guys^^^

And yeah, Ryan's looked after me for years, pulled it out the bag with this kit though, over the moon!

Pit Row

See All »
CrGuy2T
Profile picture for user CrGuy2T
Posts
4188
Joined
3/11/2015
Location
Santa Fe, TX US
Fantasy
3719th
CrGuy2T 8/1/2015 3:28pm
8/1/2015 3:28pm Edited Date/Time 8/1/2015 5:45pm
Not to high jack here's another kit Ryan did as chuck would say over the moon! I would have to say the vibrant colors are better than original. Although there is nothing like having the actual original graphics in hand.




chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/3/2015 2:24am
8/3/2015 2:24am

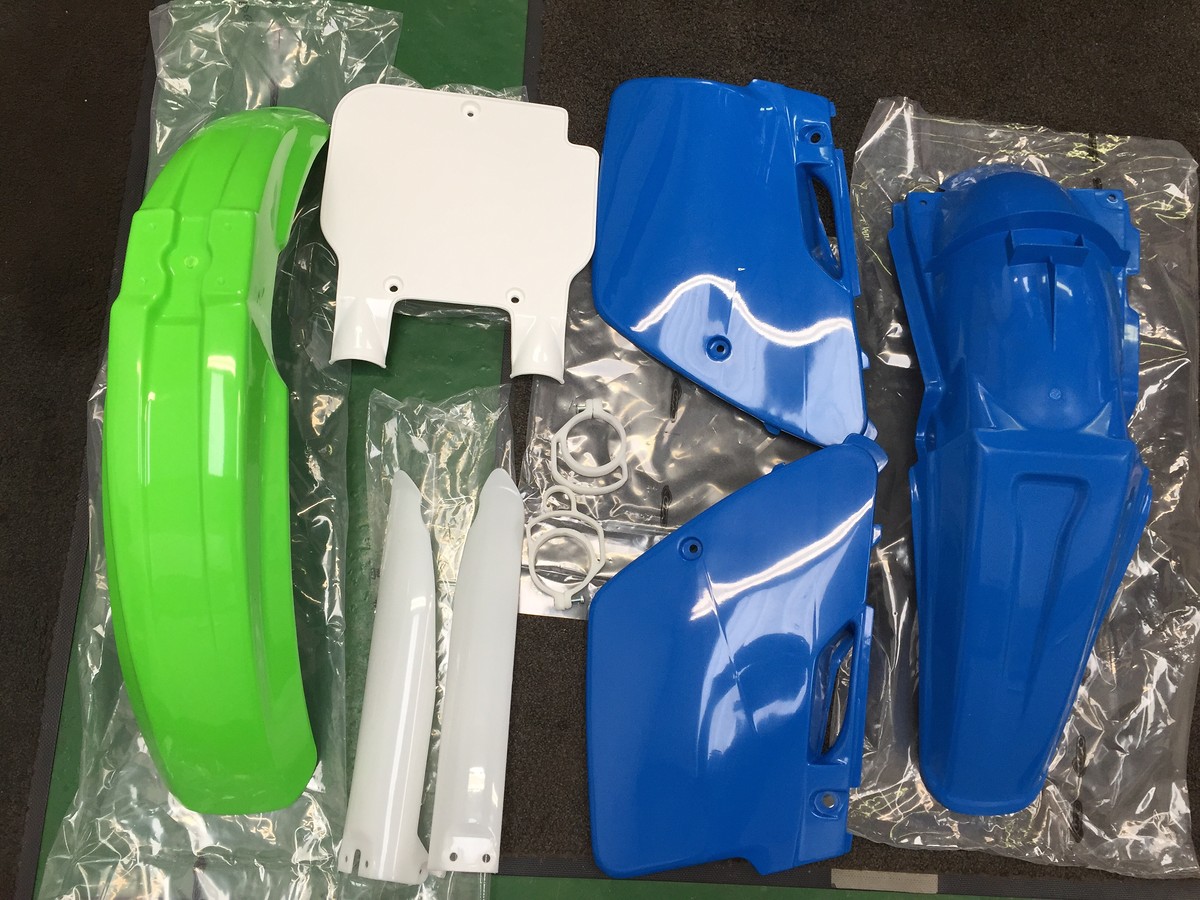

Now have a full new UFO set of plastics. White ufo rad shrouds will be here this week Smile



chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/3/2015 2:28am
8/3/2015 2:28am
Shock fully rebuilt with all new genuine internals, powdercoated, blasted, zinc plated components etc...



Forks also fully rebuilt with new genuine internals...



All new titanium M8 bolts and oem hardware...



Goodluckmonkey 8/3/2015 2:35am
8/3/2015 2:35am Edited Date/Time 8/3/2015 2:37am
Raising the bar for a race bike resto there Chuck.

I can see you now, solitary tear rolling down your cheek as it gets filled-in off the line by a '90's CR250.

All that hard work!

Great to see there are guys like you out there that think 'if a job's worth doing, it's worth doing like a crazy obsessive person would do it'

Just remember, it's not OCD, it's CDO, the letters need to be in alphabetical order. Wink
la-zdunck
Profile picture for user la-zdunck
Posts
23
Joined
8/5/2015
Location
IL US
la-zdunck 8/5/2015 5:41pm
8/5/2015 5:41pm
This is such an awesome build, so many n.o.s. gems and rarietys! Big props across the board on this one, and such a smart move to save the original throttle jockey decals too, so cool.

Since your guy already copied the old school procircuit fender decals, you think he might make a set for me? Got his email addy?
CrGuy2T
Profile picture for user CrGuy2T
Posts
4188
Joined
3/11/2015
Location
Santa Fe, TX US
Fantasy
3719th
CrGuy2T 8/5/2015 8:36pm
8/5/2015 8:36pm
la-zdunck wrote:
This is such an awesome build, so many n.o.s. gems and rarietys! Big props across the board on this one, and such a smart move to...
This is such an awesome build, so many n.o.s. gems and rarietys! Big props across the board on this one, and such a smart move to save the original throttle jockey decals too, so cool.

Since your guy already copied the old school procircuit fender decals, you think he might make a set for me? Got his email addy?
Here he actually has some stuff on eBay. Dare Decals.
http://pages.ebay.com/link/?nav=item.view&alt=web&id=281764183681
la-zdunck
Profile picture for user la-zdunck
Posts
23
Joined
8/5/2015
Location
IL US
la-zdunck 8/5/2015 9:40pm
8/5/2015 9:40pm
Nice, thanks, he's deff got a ton of cool stuff, I'll contact him through ebay..
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/6/2015 4:31am
8/6/2015 4:31am
Goodluckmonkey wrote:
Raising the bar for a race bike resto there Chuck. I can see you now, solitary tear rolling down your cheek as it gets filled-in off...
Raising the bar for a race bike resto there Chuck.

I can see you now, solitary tear rolling down your cheek as it gets filled-in off the line by a '90's CR250.

All that hard work!

Great to see there are guys like you out there that think 'if a job's worth doing, it's worth doing like a crazy obsessive person would do it'

Just remember, it's not OCD, it's CDO, the letters need to be in alphabetical order. Wink
Hahaha thanks buddy! No tears here...can't wait to get it dirty! Old plastics/seat cover for practice first though so she'll look fresh for farleigh!
chuckdavies
Profile picture for user chuckdavies
Posts
1623
Joined
5/6/2009
Location
Coventry GB
chuckdavies 8/6/2015 4:32am
8/6/2015 4:32am
la-zdunck wrote:
This is such an awesome build, so many n.o.s. gems and rarietys! Big props across the board on this one, and such a smart move to...
This is such an awesome build, so many n.o.s. gems and rarietys! Big props across the board on this one, and such a smart move to save the original throttle jockey decals too, so cool.

Since your guy already copied the old school procircuit fender decals, you think he might make a set for me? Got his email addy?
Thanks for the props! It would've killed me to use the originals...

Yeah Ryno will do you anything you want, message him!
