1990-1_0010 by teyblyy, on Flickr




Any one remember these fully automatic Works HRC CR prototypes? They experimented with them in 1990 but never saw production.
|
tblazier
Profile picture for user tblazier
Posts
8780
Joined
7/20/2011
Location
Leesburg, VA US
tblazier 9/8/2011 8:24am
9/8/2011 8:24am

170990-04KX450F by teyblyy, on Flickr

This one is very interesting. THis was supposed to be the 2006 KX450F. A catastrophic frame failure on the prototype though made Kawasaki go back to the drawing board and redesign the bike.
1
tblazier
Profile picture for user tblazier
Posts
8780
Joined
7/20/2011
Location
Leesburg, VA US
tblazier 9/8/2011 8:26am
9/8/2011 8:26am

164949-meo by teyblyy, on Flickr

Many of the manufacturers have tried these radically lowered shocks over the years to try and lower the mass.

The Shop

See All »
TriRacer27
Profile picture for user TriRacer27
Posts
5449
Joined
2/7/2009
Location
Dallas, TX US
Fantasy
44th
TriRacer27 9/8/2011 8:50am
9/8/2011 8:50am
Awesome man, thanks for posting! I love looking back on all of these.

I wonder how much different that RMZ prototype would feel compared to Dungey's bike today.


Also, wonder if any manufacturers are playing around with electro-magnetic shock dampening like Cadillac and Ferrari are using now? Would be pretty cool to have the ability to download different valving programs for different tracks just like you have with the engine controller. Although I'm sure Dungey wouldn't want anything else electric on his bike at this time Blink
newmann
Profile picture for user newmann
Posts
24444
Joined
4/1/2008
Location
US
newmann 9/8/2011 9:56am
9/8/2011 9:56am
Any pics of the early /mid 90's Yamaha with the leaf spring, rotary shock rear suspension?
tblazier
Profile picture for user tblazier
Posts
8780
Joined
7/20/2011
Location
Leesburg, VA US
tblazier 9/8/2011 12:57pm
9/8/2011 12:57pm
newmann wrote:
Any pics of the early /mid 90's Yamaha with the leaf spring, rotary shock rear suspension?
I'll see if I can find one.
Erick
Profile picture for user Erick
Posts
181
Joined
1/20/2010
Location
NL
Erick 9/8/2011 1:01pm
9/8/2011 1:01pm
Thank you for the beautifull pictures you post. And thank you for the effort you put in Smile
tbanks
Profile picture for user tbanks
Posts
1519
Joined
5/28/2011
Location
Great Mills, MD US
tbanks 9/8/2011 1:03pm
9/8/2011 1:03pm
tblazier wrote:
[url=http://www.flickr.com/photos/65727046@N02/6127461522/][img]https://farm7.static.flickr.com/6062/6127461522_35387b2119_o.jpg[/img][/url] [url=http://www.flickr.com/photos/65727046@N02/6127461522/]164949-meo[/url] by [url=http://www.flickr.com/people/65727046@N02/]teyblyy[/url], on Flickr Many of the manufacturers have tried these radically lowered shocks over the years to try and lower the mass.

164949-meo by teyblyy, on Flickr

Many of the manufacturers have tried these radically lowered shocks over the years to try and lower the mass.
I have seen those unsided shocks before. Someone riding in the British Nationals rode with em one year, also on a Kawasaki (I don't remember the name). I wonder how well the shock actually works?
sdfog1
Profile picture for user sdfog1
Posts
966
Joined
5/24/2009
Location
Flower Mound, TX US
sdfog1 9/8/2011 3:59pm
9/8/2011 3:59pm
tblazier wrote:
[url=http://www.flickr.com/photos/65727046@N02/6127461522/][img]https://farm7.static.flickr.com/6062/6127461522_35387b2119_o.jpg[/img][/url] [url=http://www.flickr.com/photos/65727046@N02/6127461522/]164949-meo[/url] by [url=http://www.flickr.com/people/65727046@N02/]teyblyy[/url], on Flickr Many of the manufacturers have tried these radically lowered shocks over the years to try and lower the mass.

164949-meo by teyblyy, on Flickr

Many of the manufacturers have tried these radically lowered shocks over the years to try and lower the mass.
I'd like to see what their solution was for putting that bike on a stand! Pinch
tblazier
Profile picture for user tblazier
Posts
8780
Joined
7/20/2011
Location
Leesburg, VA US
tblazier 9/9/2011 10:15am
9/9/2011 10:15am

1991 set1_0004 by teyblyy, on Flickr

This one is very interesting because the CR is obviously a 92 model but Honda has discussed it as a 91 CR250R

Pit Row

See All »
Dissident
Profile picture for user Dissident
Posts
158
Joined
4/14/2015
Location
CA US
Dissident 5/1/2015 10:02am
5/1/2015 10:02am
the under shock on the kawsakis looks cool but id be willing to bet that the seals would get chewed up rather quickly..no?


would hate to case a jump with that setup and land on the frame..
Matt Fisher
Profile picture for user Matt Fisher
Posts
3948
Joined
4/1/2008
Location
Visalia, CA US
Fantasy
1177th
Matt Fisher 5/1/2015 10:51am
5/1/2015 10:51am
Bluelion wrote:

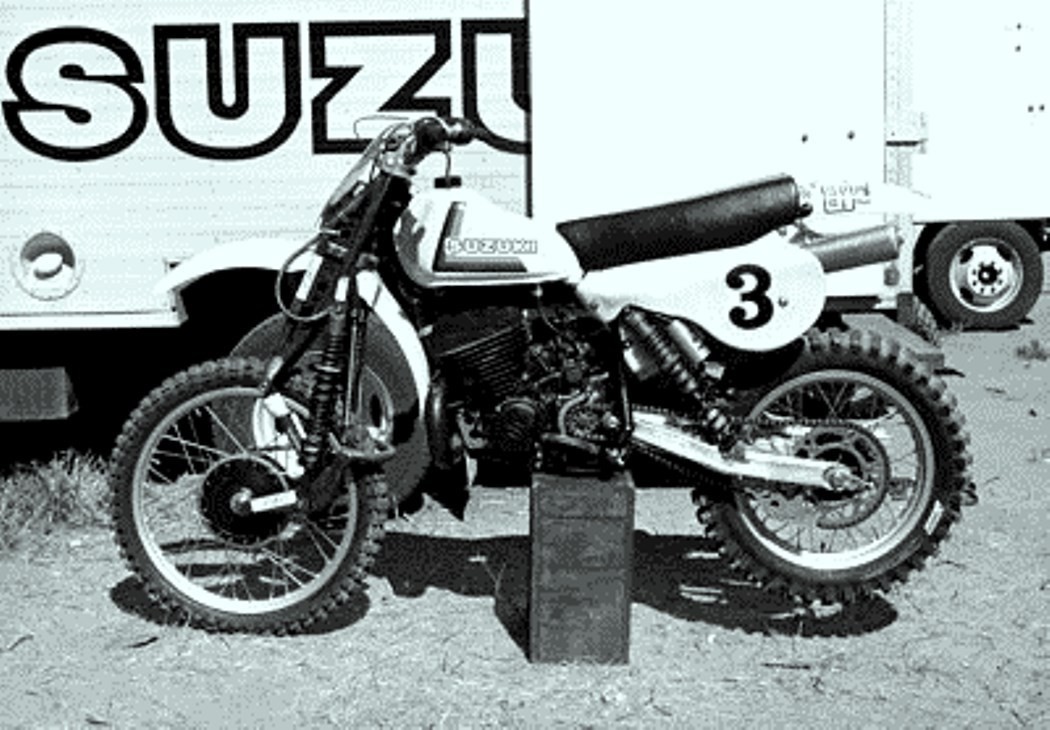

[img]https://p.vitalmx.com/photos/forums/2015/05/01/89627/s1200_hondaribi1314190694.jpg[/img] [img]https://p.vitalmx.com/photos/forums/2015/05/01/89628/s1200_Gianatsis_Suzuki_RN370_77_RibiForks_02_12_S_2.jpg[/img]




The twin cylinder version of that CR125 has to be one of the trickest dirt bikes ever made.
Ramrod
Profile picture for user Ramrod
Posts
4735
Joined
4/1/2008
Location
Ontario CA
Fantasy
1692nd
Ramrod 5/1/2015 11:29am
5/1/2015 11:29am
tblazier wrote:
[url=http://www.flickr.com/photos/65727046@N02/6126866719/][img]https://farm7.static.flickr.com/6203/6126866719_acbacefe86_b.jpg[/img][/url] [url=http://www.flickr.com/photos/65727046@N02/6126866719/]1990-1_0011 - Version 2[/url] by [url=http://www.flickr.com/people/65727046@N02/]teyblyy[/url], on Flickr Supercool KTM Prototype done by AMP research.

1990-1_0011 - Version 2 by teyblyy, on Flickr

Supercool KTM Prototype done by AMP research.
This bike was super trick! I don't remember if they said how good it was or not?

Very interesting design and engineering here.
englishman
Profile picture for user englishman
Posts
2604
Joined
3/7/2008
Location
England GB
englishman 5/1/2015 12:40pm
5/1/2015 12:40pm
tbanks wrote:
I have seen those unsided shocks before. Someone riding in the British Nationals rode with em one year, also on a Kawasaki (I don't remember the...
I have seen those unsided shocks before. Someone riding in the British Nationals rode with em one year, also on a Kawasaki (I don't remember the name). I wonder how well the shock actually works?
I think it may have been Stephen Sword.
shuggs
Profile picture for user shuggs
Posts
1575
Joined
8/6/2008
Location
Dunfermline GB
shuggs 5/1/2015 12:44pm
5/1/2015 12:44pm
tbanks wrote:
I have seen those unsided shocks before. Someone riding in the British Nationals rode with em one year, also on a Kawasaki (I don't remember the...
I have seen those unsided shocks before. Someone riding in the British Nationals rode with em one year, also on a Kawasaki (I don't remember the name). I wonder how well the shock actually works?
englishman wrote:
I think it may have been Stephen Sword.
Was it not Billy Mac when riding for De Groot??
englishman
Profile picture for user englishman
Posts
2604
Joined
3/7/2008
Location
England GB
englishman 5/1/2015 1:35pm
5/1/2015 1:35pm Edited Date/Time 5/1/2015 1:36pm
Cant remember if it was Billy or Stephen as Steve rode for Jan also somewhere back then .
Markopolo400
Profile picture for user Markopolo400
Posts
1379
Joined
7/24/2012
Location
St. Paul-ish, MN US
Markopolo400 5/1/2015 1:37pm
5/1/2015 1:37pm
tblazier wrote:
[url=http://www.flickr.com/photos/65727046@N02/6127461560/][img]https://farm7.static.flickr.com/6190/6127461560_5f82cb9090_o.jpg[/img][/url] [url=http://www.flickr.com/photos/65727046@N02/6127461560/]170990-04KX450F[/url] by [url=http://www.flickr.com/people/65727046@N02/]teyblyy[/url], on Flickr This one is very interesting. THis was supposed to be the 2006 KX450F. A catastrophic frame failure on the prototype...

170990-04KX450F by teyblyy, on Flickr

This one is very interesting. THis was supposed to be the 2006 KX450F. A catastrophic frame failure on the prototype though made Kawasaki go back to the drawing board and redesign the bike.
Actually that was supposed to be the 2005 KX450F, supposed to follow the 2004 KX250F. Ended up not coming out till 06 because of the issues that you mentioned.

Sorry, OCD.
FGR01
Profile picture for user FGR01
Posts
5115
Joined
10/1/2006
Location
AZ US
Fantasy
1327th
FGR01 5/1/2015 2:23pm
5/1/2015 2:23pm
tblazier wrote:
[url=http://www.flickr.com/photos/65727046@N02/6127461560/][img]https://farm7.static.flickr.com/6190/6127461560_5f82cb9090_o.jpg[/img][/url] [url=http://www.flickr.com/photos/65727046@N02/6127461560/]170990-04KX450F[/url] by [url=http://www.flickr.com/people/65727046@N02/]teyblyy[/url], on Flickr This one is very interesting. THis was supposed to be the 2006 KX450F. A catastrophic frame failure on the prototype...

170990-04KX450F by teyblyy, on Flickr

This one is very interesting. THis was supposed to be the 2006 KX450F. A catastrophic frame failure on the prototype though made Kawasaki go back to the drawing board and redesign the bike.
Markopolo400 wrote:
Actually that was supposed to be the 2005 KX450F, supposed to follow the 2004 KX250F. Ended up not coming out till 06 because of the issues...
Actually that was supposed to be the 2005 KX450F, supposed to follow the 2004 KX250F. Ended up not coming out till 06 because of the issues that you mentioned.

Sorry, OCD.
This bike and the prototype for the RMZ450 both had their debut at the 1st round of the Japan Nationals at Meihan in 2004. I have some pics somewhere. IIRC, they each had at least one moto DNF that day.
Nystrom
Profile picture for user Nystrom
Posts
110
Joined
11/16/2006
Location
SE
Nystrom 5/1/2015 3:46pm
5/1/2015 3:46pm
tbanks wrote:
I have seen those unsided shocks before. Someone riding in the British Nationals rode with em one year, also on a Kawasaki (I don't remember the...
I have seen those unsided shocks before. Someone riding in the British Nationals rode with em one year, also on a Kawasaki (I don't remember the name). I wonder how well the shock actually works?
englishman wrote:
I think it may have been Stephen Sword.
shuggs wrote:
Was it not Billy Mac when riding for De Groot??
Yes he did in 2006 i think? I think Kenneth Gunderssen rode with that shock and i may remember wrong but i think it was the lage Andrew Macfarlane also who rode for De groot in 2002 when they used that shock!

Post a reply to: Check out these super trick works Prototypes
