First Look: 2013 Suzuki RM-Z450 and RM-Z250

Ready for a first look at the new Suzukis? Here goes...

The RM-Z250 features a redesigned chassis and suspension, including the all-new Showa Separate Function front Forks (SFF). The 2013 RM-Z250 engine is also more potent than ever thanks to revisions made to the piston, connecting rod and piston pin, as well as updated intake and exhaust cams. The result is improved mid-range torque and acceleration, which lets riders accelerate harder out of turns and power by the competition on the straights. Additionally, the RM-Z250 is equipped with a new 5-speed transmission with revised gears and shift cam for smooth, precise shifting and a revised clutch release cam shape for improved clutch feel. New Dunlop MX-51 tires complete the RM-Z250’s package.

The RM-Z450's updates include a new lighter piston, revised piston pin and connecting rod as well as a new intake cam for stronger mid-range torque and crisper throttle response. Complementing the engine improvements is a transmission update featuring revised gear shapes to 2nd, 3rd, 4th, 5th gears, along with a new shift cam to help deliver smoother and more precise shifts. The RM-Z450 also comes with the all-new Showa Separate Function front Forks (SFF). The new front suspension works with an updated twin-spar aluminum frame to further optimize the balance between rigidity and high-speed traction.

Both RM-Z models include two electrical couplers (one rich and one lean coupler) that quickly allow the rider to adjust the fuel setting to suit track conditions. Fuel settings can easily be changed to best suit the riding conditions by just connecting either coupler, all without using tools. A brand new option for 2013 – riders can now easily track engine-operating time and better manage maintenance intervals using Suzuki’s optional FI indicator light (Part #36380-28H00).

First Look: 2013 Suzuki RM-Z450 and RM-Z250

First Look: 2013 Suzuki RM-Z450 and RM-Z250

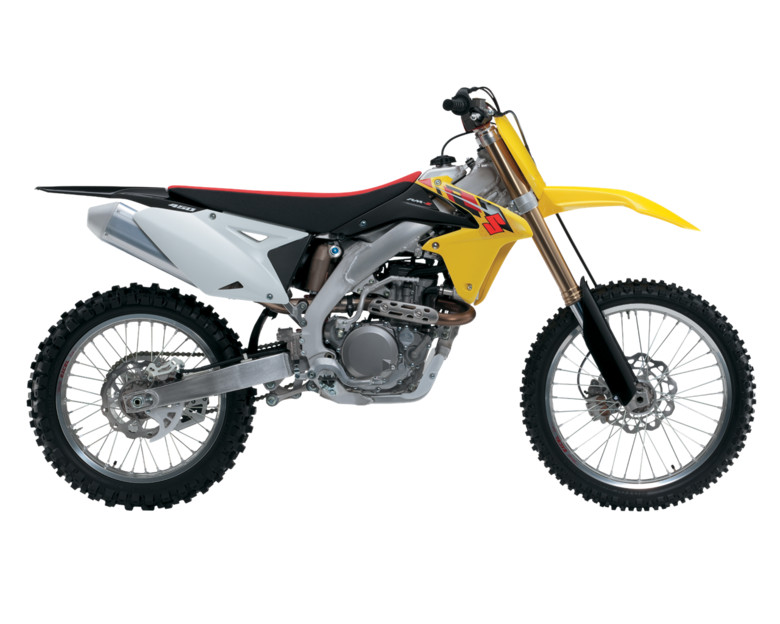

2013 Suzuki RM-Z450
The Suzuki RM-Z450 give you the power to dominate the competition. For 2013, the RM-Z450 is redesigned to give you an even greater edge. With a thoroughly refined engine, it develops exceptional power from idle to redline and incredibly crisp throttle response. It also features the innovative new Separate Function front Fork (SFF) from Showa. The new front suspension works with a twin-spar aluminum frame engineered for an optimum balance between rigidity and high-speed traction, providing you with incredibly precise handling and smooth performance on the toughest tracks. The new RM-Z450 - it puts championship-winner performance in your control to reach the top of the podium!
Champions Choose Suzuki...and Suzuki supports future champions! In addition to all the high-tech features and race-winning performance of the 2013 RM-Z models, Suzuki offers the best amateur racing program around!
Get an edge on the competition by finishing out the 2012 contingency year on a Champion Approved 2013 RM-Z450. American Suzuki is also increasing their contingency for 2013 to over $4.8 million at over 450 events across the Nation!

Key Features
In 2011 Suzuki introduced the coupler system to the RM-Z450. The 2013 RM-Z450 uses this innovative design, which consists of three couplers that allow you to quickly adjust the fuel setting to suit riding conditions. One coupler contains the stock settings, a second is for a richer fuel setting than the stock setting and the third is for a leaner setting.

All-new Showa Separate Function front Fork (SFF) separates spring and damping functions. The right leg holds the spring, while the left leg incorporates the cartridge assembly to manage damping. The SFF design reduces friction, increased absorption performance and is lighter weight resulting in remarkably smooth performance over a variety of track conditions.

Redesigned 5-speed transmission with reshaped shift cam, stopper spring and drive shaft results in more solid shift feel, enabling more precise gear shift operation.

Riders can now track engine-operating time and better manage maintenance intervals using the optional FI indicator (Part no. 36380-28H00).

Engine Features

  • Compact and lightweight 4-stroke, 449cc, fuel-injected, DOHC engine provides extraordinary torque for awesome acceleration from idle to redline, with incredible high-rpm power.
  • The newly designed piston, piston pin and connecting rod are developed with use of Finite Element Method (FEM) analysis. The new piston is 13 percent lighter without any compromise to strength and rigidity.
  • The new piston pin has Diamond-Like Carbon (DLC) surface treatment for less friction and increased durability. The new design reduces mechanical loss and helps the engine produce quicker throttle response.
  • Intake cam timing and amount of lift has been modified for smoother power delivery and control.
  • Aluminum cylinder, with Suzuki Composite Electrochemical Material (SCEM) coating, is designed for durability, light weight and efficient heat transfer.
  • An advanced battery-less fuel-injection (FI) system features a 12-hole fuel injector and progressive throttle linkage for instant throttle response.
  • A new ECM with higher processing performance and a new high power ignition coil optimize combustion efficiency for increased roll-on performance.
  • Redesigned muffler internal parts, bottom-to-mid range power and torque are increased, resulting in improved performance without losing top end. The new muffler body now uses conventional bolts in end cap instead of rivets to simplify the replacement of the glass wool packing in the muffler.

Transmission Features

  • Redesigned 5-speed transmission with reshaped shift cam, stopper spring and drive shaft results in more solid shift feel, enabling more precise gear shift operation.

Chassis Features

  • Front fork inner tube diameter is increased from 47mm to 48mm, results in optimized stability and absorption. The spring pre-load is now adjustable, which allows a wider range of adjustment for all level of riders.
  • The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.
  • To maintain the RM-Z's renowned handling performance, each bike's rear suspension features a Showa Piggyback shock with setting changes and adjustments to best match with the increased engine performance and front forks changes. The design allows enhanced suspension performance for a wider variety of riders.


Chassis
Overall Length   2190 mm (86.2 in)
Overall Width   830 mm (32.7 in)
Overall Height   1270 mm (50.0 in)
Wheelbase   1495 mm (58.9 in)
Ground Clearance   325 mm (12.8 in)
Seat Height   955 mm (37.6 in)
Curb Weight   113 kg (249 lbs)
Transmission   5-speed constant mesh
Final Drive   Chain, DID520MXV4, 114 links
Suspension Front   Inverted telescopic, coil spring, oil damped
Suspension Rear   Link type, coil spring, oil damped
Brakes Front   Disc brake
Brakes Rear   Disc brake
Tires Front   80/100-21 51M, tube type
Tires Rear   110/90-19 62M, tube type
Fuel Tank Capacity   6.2 L (1.6 US gallons)
Color   Champion Yellow

Engine
Engine   449cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore Stroke   96.0mm (3.8 in) x 62.1mm (2.4 in)
Compression Ratio   12.5:1
Fuel System   Fuel Injection
Starter   Primary kick
Lubrication   Semi-dry sump
Ignition   Electronic ignition (CDI)

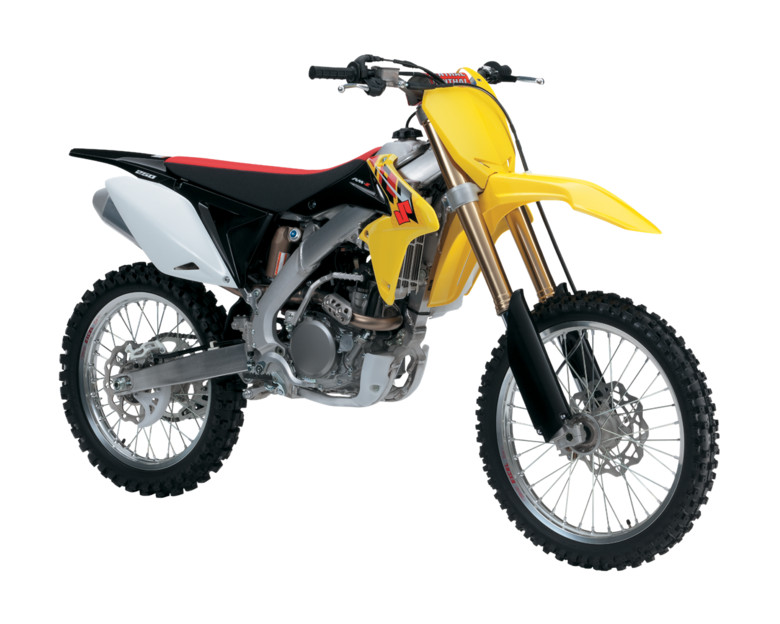

2013 RM-Z250
For 2013, the Championship-caliber Suzuki RM-Z250 is potent than ever. It features a long list of engine modifications designed to increase the mid- to top-end performance and provide smoother power delivery. The result is performance that lets you blast out of turns and blow by the competition on the straights. The RM-Z250 also features a redesigned chassis and suspension, including an all-new Separate Function front Fork (SFF) from Showa. It provides crisper, more stable handling so you can carve up the tightest tracks on your way to the top of the podium!
Champions Choose Suzuki...and Suzuki supports future champions! In addition to all the high-tech features and race-winning performance of the 2013 RM-Z models, Suzuki offers the best amateur racing program around!

Get an edge on the competition by finishing out the 2012 contingency year on a Champion Approved 2013 RM-Z250. American Suzuki is also increasing their contingency for 2013 to over $4.8 million at over 450 events across the Nation!

Key Features
In 2010 Suzuki revolutionized race-day tuning with the introduction of a fuel-setting adjustment system. The RM-Z250 uses this innovative design, which consists of three couplers that allow you to quickly adjust the fuel setting to suit riding conditions. One coupler contains the stock settings, a second is for a richer fuel setting than the stock setting and the third is for a leaner setting.

All-new Showa Separate Function front Fork (SFF) separates spring and damping functions. The right leg holds the spring, while the left leg incorporates the cartridge assembly to manage damping. The SFF design reduces friction, increased absorption performance and is lighter weight resulting in remarkably smooth performance over a variety of track conditions.

The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.

A new transmission provides smoother and crisper shifting. The clutch's cam release has also been modified for lighter operation and enhanced feel.

Riders can now track engine-operating time and better manage maintenance intervals using the optional FI indicator (Part #: 36380-28H00)

Engine Features

  • Compact and lightweight 4-stroke, 249cc, fuel-injected, DOHC engine is modified for increased reliability. It provides outstanding performance across an incredibly wide powerband.
  • A newly designed piston and piston pin was developed using Finite Element Method (FEM) analysis. The new piston is 3% lighter without any compromise to strength and integrity.
  • The crankcase reed valve has been revised for more efficient lubrication. The new oil strainer has a stronger magneto to capture contaminants from the engine oil. Together these changes contribute to better throttle response and smoother power delivery.
  • An advanced battery-less fuel-injection (FI) system features a 44mm throttle body with progressive throttle linkage and a 16-bit computer for instant throttle response.
  • Aluminum cylinder, with Suzuki Composite Electrochemical Material (SCEM) coating, is designed for durability, light weight and efficient heat transfer.
  • Redesigned exhaust system meets new FIM sound limits while increasing mid- to high-rpm power and delivery. The new muffler body now uses conventional bolts in end cap instead of rivets to simplify the replacement of the glass wool packing in the muffler.
  • A new ECM with higher processing performance and a new high power ignition coil optimize combustion efficiency for increased roll-on performance.
  • The RM-Z250's cooling efficiency is increased thanks to a redesigned radiator fin and revised water hose routing, making the bike's high performance power output more stable, even in the most demanding conditions. RM-Z250's also features a new by-pass hose routing to simplify occasional radiator maintenance.
  • Transmission Features
  • A new transmission provides smoother and crisper shifting. The clutch's cam release has also been modified for lighter operation and enhanced feel.

Chassis Features

  • The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.
  • The front fork inner tube diameter has been increased from 47mm to 48mm further improving stability and absorption. The spring pre-load is now adjustable, which allows a wider range of adjustment for any level of rider.
  • New Dunlop MX51 series front and rear tires provide enhanced traction.
  • The high-quality Renthal handlebars feature a tapered design and are fixed to the triple clamp on a rubber mount.
  • To maintain the RM-Z's renowned handling performance, each bike's rear suspension features a Showa Piggyback shock with setting changes and adjustments to best match with the increased engine performance and front forks changes. The design allows enhanced suspension performance for a wider variety of riders.

Chassis
Overall Length   2170 mm (85.4 in)
Overall Width   830 mm (32.7 in)
Overall Height   1270 mm (50.0 in)
Wheelbase   1475 mm (58.1 in)
Ground Clearance   345 mm (13.6 in)
Seat Height   955 mm (37.6 in)
Curb Weight   106.5 kg (235 lbs)
Transmission   5-speed constant mesh
Final Drive   Chain, DID520DMA4, 114 links
Suspension Front   Inverted telescopic, coil spring, oil damped
Suspension Rear   Link type, coil spring, oil damped
Brakes Front   Disc brake
Brakes Rear   Disc brake
Tires Front   80/100-21 51M, tube type
Tires Rear   100/90-19 57M, tube type
Fuel Tank Capacity   6.5 L (1.7 US gallons)
Color   Champion Yellow

Engine
Engine   249cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore Stroke   77.0mm (3.0 in) x 53.6mm (2.1 in)
Compression Ratio   13.5:1
Fuel System   Fuel Injection
Starter   Primary kick
Lubrication   Semi-dry sump
Ignition   Electronic ignition (CDI)
Warranty
Warranty   No Warranty
